iPhone 8 Lightning Connector Assembly Replacement

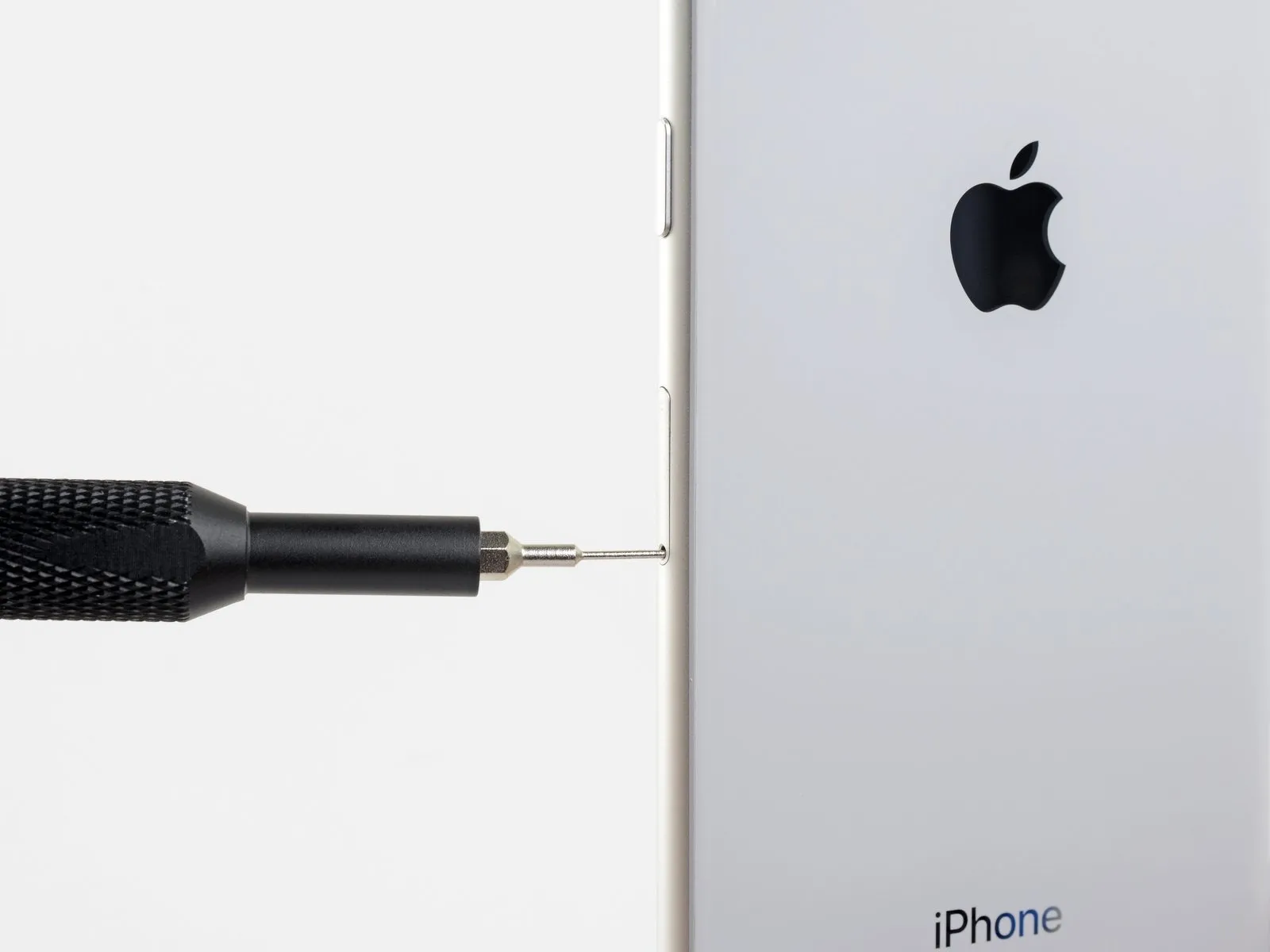

• Apply force to release the tray from its housing.
• Applying considerable pressure might be necessary; prior to proceeding, carefully position the eject tool to prevent harm to the internal ejection system.

• Due to the tray's design, the SIM card can be ejected with minimal force.
• Confirm the SIM card's correct alignment within the tray before sliding the tray back into the device.
• To safeguard the iPhone’s internal components from water and dust, the SIM card tray is sealed with a thin rubber gasket; if this gasket is damaged or absent, replacement of either the gasket itself or the entire SIM card tray is necessary.

• To prevent electrical shock or damage, ensure the iPhone is completely de-energized prior to starting the repair process.
• Using a pentalobe screwdriver, detach the two screws measuring 3.5 mm located along the device's lower perimeter.
• Removing the display assembly will damage the iPhone's water resistance; ensure you have replacement seals available to install, or exercise extreme caution to prevent liquid ingress if you choose to reassemble the device without new seals.

• Determine the dimension using a suitable measuring tool.Three millimeters.Using a permanent marker, clearly indicate the opening point on the pick.
• Alternative corner markings, using the same measurement tools, can be applied to the remaining corners of the pick.
• To facilitate access, affix a coin to the pick, positioning it 3 millimeters from the working end.

• To secure the arms, advance the blue handle in the direction of the front.
• Rotate the handle fully, completing a 360-degree turn, observing for the initial signs of cup expansion.
• Maintain parallel positioning of the suction cups; should misalignment occur, gently release the suction cups’ hold and reposition the arms.

• Using an iOpener heated to the appropriate temperature, carefully guide it between the device's arm components.Prevent clamping.To loosen adhesive, apply warmth using a hair dryer, heat gun, or hot plate; however, exercise caution as excessive heat may compromise the display or internal battery.
• Position the iOpener flat against the iPhone's lower edge.
• Allow a full 60 seconds for the adhesive to soften and create a separation.
• Using a specialized opening tool, carefully create a small space between the surfaces.
• Carefully disconnect the 12-volt battery, then use a 7mm socket to loosen the mounting bolts securing the air conditioning compressor, after which, detach the refrigerant lines, observing that a special tool is required to prevent damage and always wear appropriate eye protection.Prevent clamping.If the resulting space isn't adequate, increase the heat applied to that region and rotate the handle by 90 degrees. Incremental adjustments should not exceed 90-degree rotations, with a mandatory one-minute pause between each adjustment.Prevent clamping.Allow the specified duration for the process to complete automatically.

Employing a suction cup, proceed with the following three steps to detach the display assembly.
Applying heat to the phone's bottom perimeter with a heat gun or similar device will loosen the adhesive that holds the display in place, simplifying the separation process.
To loosen the adhesive securing the phone's bottom edge, heat the area for approximately 90 seconds using either a hairdryer or an iOpener.

Introduce the substance to the designated area.Position a suction cup directly on the lower portion of the front panel, specifically in the area situated above the home button.
Confirm thatTo ensure a proper seal between the suction cup and the front glass, position the cup so that it does not extend over the home button.

1. Apply upward force.Apply steady, even force to the suction cup to generate a small separation between the display assembly and the device's surrounding frame.
   Because the screen is secured with a robust, waterproof adhesive, separating it initially requires considerable force. Should you encounter difficulty, apply additional heat and gently oscillate the screen to soften the adhesive, allowing for a gap sufficient to accommodate your tool.

1. Carefully move theUse a specialized tool designed for prying, often referred to as a pick.Carefully separate the display from the phone's body by working along the left side, beginning at the bottom and progressing upward toward the volume buttons and silent switch, while carefully releasing the adhesive securing the display.
   Position yourself close to the upper left edge of the screen.
2. Avoid separating the display's upper boundary from the back cover by force; delicate plastic fasteners secure it, and applying excessive pressure risks their damage.

Exercise caution, as certain components are easily damaged.Ensure all wires are connected properly, maintaining the original configuration and respecting any color-coding or labeling; use a 1/4-inch wrench to tighten connectors to a torque of 6-8 inch-pounds, and be aware that improper connections can damage the unit and void the warranty.Avoid inserting the opening tool along the iPhone’s right side, as doing so risks harming the internal wiring.

• Using your tool, begin at the lower-right edge of the iPhone, then carefully move it along the edge and upward along the right side to release the adhesive.
  Limit pick insertion depth to avoid damage.Three millimeters.Carefully proceed to avoid harm to the display cables.

Using a suction cup, apply upward force to the display's lower border, carefully separating it from the device.
Ensure the display's elevation remains below the specified maximum of.The angle should measure fifteen degrees.Careless handling can damage the display's ribbon cables, potentially causing them to stretch or rip.
To detach the suction cup, grasp the small projection extending from its surface and apply traction.

• Using an opening pick, carefully separate the display from the frame by inserting it between the display and the phone body, starting at the top-left corner and working along the entire top edge to release the remaining adhesive.

Using a prying tool, carefully separate the display assembly from the device body by initiating movement upwards from the left edge; this action mimics the opening of a book's cover.
Before completely disconnecting the display, be aware that multiple delicate ribbon cables, which remain attached to the iPhone's logic board, must be carefully managed.
To facilitate access to the internal components, secure the display in an upright position using a support.

Using a Phillips screwdriver, detach the lower display cable bracket from the logic board by unscrewing the four fasteners, each measuring the specified length.

• Two.One point three millimeters.Secure with screws.
• Use a quantity of two.Two point eight millimeters.Secure with screws.

Carefully disengage the battery connector from its socket on the logic board by applying targeted pressure with a spudger.
To avoid unintended power-up during the repair process, gently deflect the battery connector cable outward, creating a small gap between it and the logic board's socket.

Carefully leverage the spudger tip to disengage the lower display connector from its receptacle.
Secure the connector by applying even pressure to each side individually until you hear a distinct click; avoid compressing the central portion. Slight misalignment during attachment can result in bending and irreversible damage to the connector.

• Using the appropriate tool, detach the three.Use a Phillips screwdriver with a 1.3 mm tip.Affix the bracket, ensuring it covers the connector for the front panel sensor assembly.
• Detach the bracket.

• Carefully detach the display assembly, ensuring all connections are properly disengaged.
• If you intend to substitute fresh adhesive along the display's perimeter during reassembly, stop at this point.

• Using a Phillips head screwdriver, detach the bracket located adjacent to the Taptic Engine by unscrewing the three fasteners holding it in place.

  A Y000 screwdriver is needed to remove a 1.3-millimeter screw.
  Use a Phillips screwdriver to remove a screw with a 2.7 mm head.
  Use a Phillips screwdriver to remove a single screw with a 2.9 mm head.


Detach the bracket.

Using a specialized opening tool, carefully insert its tip into the space separating the antenna flex cable and the speaker's upper surface.
To facilitate safe removal, gently warm the adhesive securing this flex cable section using an iOpener or hair dryer.

Carefully leverage a spudger tip to release and detach the diversity antenna flex cable from the logic board.

• Use a specialized opening tool to gently secure the connector while preventing it from moving, specifically supporting the socket.
• Carefully position the tip of your screwdriver.Use a plastic pry tool to gently separate.Employ the opening pick to secure the socket while carefully levering the antenna flex cable free from its connection.
• Carefully reattaching this connector may present challenges; simplify the process with your needle-nose pliers.Employ fine-tipped pliers or similar precision instruments.Carefully position the flex cable to ensure proper connector alignment with its socket, and subsequently apply even, downward pressure on the connector’s flat surface.Use a plastic pry tool, often referred to as a spudger, to gently separate components.Ensure proper engagement by listening for the audible click confirming secure positioning.

• Detach the Wi-Fi diversity antenna.

1. Using a Phillips head screwdriver, detach the Taptic Engine by unscrewing the two fasteners that hold it in place.
   Begin the process by executing the action designated as "one."Use a Phillips screwdriver with a 2.1 mm tip.
   Begin the process by executing the action designated as "One."Use a 2.1 mm standoff screw.
2. To detach standoff screws, utilize a standoff screwdriver or a compatible bit.
   If a dedicated tool isn't available, a small flathead screwdriver can be substituted; however, exercise heightened care to prevent slippage and potential harm to nearby parts.

• Carefully position the tip of your screwdriver.Use a plastic pry tool, often referred to as a spudger, to gently separate components.Use a flathead screwdriver to gently lift the antenna cable socket, separating it from the underlying connector.

• Carefully position the tip of your screwdriver.Use a plastic pry tool, often referred to as a spudger, to gently separate components.Carefully lever the component free and detach it.The flexible cable connecting the Taptic Engine must be handled with care..

Carefully detach the component, ensuring all original specifications and dimensions are maintained.The device incorporates a Taptic Engine..
Exercise caution when detaching.The flexible cable connecting the Taptic Engine must be handled with care.Carefully inspect the antenna flex cable, as adhesive may secure it in place.

1. Detach the barometric vent from the rear case by unscrewing the two fasteners that hold it in place.
   Begin the process by executing the singular action.Use a Phillips screwdriver, size 2 mm.
   Begin the process by executing the action designated as "one."Use a Phillips screwdriver with a 1.8 mm tip.

• Using a screwdriver, detach the two screws that hold the rear camera bracket in place.
• A single screw with a 3.0 mm diameter is needed.
• Use a Phillips screwdriver to remove a single screw with a 3.1 mm head.
• To detach standoff screws, utilize a standoff screwdriver or a compatible bit.
• If a dedicated tool isn't available, a small flathead screwdriver can be carefully substituted; however, exercise heightened awareness to prevent slippage and potential harm to nearby parts.

• Using the appropriate screwdriver, detach the upper cable bracket by unscrewing the two fasteners that hold it in place.
• Use a Phillips screwdriver to remove a single screw with a 2.9 mm head.
• Use a Phillips screwdriver to remove a single screw with a 1.3 mm head.

• Using the appropriate tool, detach the three.Use a screwdriver with a Phillips head. One point three millimeters.Use a screwdriver to detach the screws holding the top left antenna component in place.

• Carefully detach theUse a Phillips screwdriver with a 1.4 mm tip.Affix the antenna to the case's upper edge, ensuring it is firmly attached.

• Detach the antenna.

• Using a Phillips head screwdriver, detach the two 3.5mm screws.Use a screwdriver with a Phillips head.Use the specified tools to detach the grounding clip from the logic board by removing the screws located on the top left side.

  • Begin the process by performing action one.Use a Phillips screwdriver with a 1.5 mm tip.
  • Begin the process by executing the action designated as "one."Use a Phillips screwdriver with a 2.6 mm tip.

• Using a screwdriver, detach the motherboard from its mounting by unscrewing the three fasteners.
  Use a Phillips screwdriver to remove a single screw measuring 1.8 millimeters.
  A single screw, measuring 2.5 millimeters in diameter, serves as a standoff.
  A screw with a 2.2-millimeter diameter is required.

• Carefully insert the tip of a screwdriver to.Use a plastic pry tool to gently separate.Carefully use a prying tool to release and detach the Lightning connector cable from the logic board.

• Carefully employ the tip of a screwdriver to apply pressure.Use a plastic pry tool, often referred to as a spudger.Carefully use a prying tool to release and separate the wireless charging coil's connector.

• Employ the tool's straight, planar edge.Use a plastic pry tool, often referred to as a spudger, to gently separate components.Carefully raise the logic board, supporting the battery connector end.
  Avoid tugging on any wires; if you encounter opposition while moving parts, verify that all cables, connectors, and components are unobstructed from the circuit board.

• Carefully lift the logic board, holding it firmly along its sides, in the vicinity of the battery connector.Carefully detach the component, ensuring no damage occurs.
  Exercise caution to prevent the logic board from being damaged by contact with any wires.

• Begin the process by executing the singular action.Use a Phillips screwdriver with a 1.5 mm tip.
• Begin the process by executing action number one.Use a Phillips screwdriver with a 2.1 mm tip.

• Begin the process by executing the singular action.Use a Phillips screwdriver, size 1.3 millimeters.
• Two.Use a Phillips screwdriver with a 2.2 mm tip.

• Carefully employ the tip of a screwdriver to apply pressure.Use a plastic pry tool, often referred to as a spudger, to gently separate components.Carefully separate the microphone, which is adhered to the logic board, using gentle prying pressure.
• Carefully detach the microphone from its position, avoiding complete removal, and follow the illustrated procedure for adhesive separation.

• Carefully insert the tip of a screwdriver to actuate the retaining clip.Use a spudger.Carefully use a prying tool to release the microphone, which is attached to the battery connector, from the adhesive holding it in position.
• Carefully detach the microphone from its position, avoiding complete removal, and follow the illustrated technique to release the adhesive bond.

Use a heat source to introduce the material.Use the iOpener.Tilt the device downwards, following the illustrated angle, to aid in separating the flex cable from its adhesive.

• Using an opening pick, carefully work to detach the flex cable of the Lightning connector assembly from the rear case by sliding the pick between the cable and the case.
• Using a pick, carefully move it outward, directing the motion away from the battery compartment.
• A section of the wireless charging coil is positioned immediately beneath the Lightning connector flex cable.Apply firm, controlled force to separate components, being mindful of potential damage.Applying excessive force could harm the coil.
• To loosen adhesive, apply warm air from a hair dryer.Use the iOpener.Apply heat repeatedly to the area behind the Lightning connector assembly flex cable, facilitating separation.

• Carefully detach the flex cable's upper section, ensuring no other parts are harmed during the process.
• To prevent damage, carefully maneuver the battery connector so it's positioned aside.
• Exercise extreme caution to prevent any physical damage to the battery; a compromised battery casing may release hazardous chemicals and pose a fire risk.
• Cease the pick's movement immediately after it extends beyond the battery's bottom boundary.

• Carefully insert the pick beneath the cable, beginning at a corner of the device, and maneuver it in the direction of the Lightning connector.
• Cease forward movement of the pick as it contacts the Lightning connector.

Carefully draw the component outward, applying even pressure.USB-C connectorCarefully disengage the component from its opening in the back cover.

• Carefully insert a tool with a thin profile beneath theUSB-C connectorAdditional detachment from the rear case can be achieved to facilitate disassembly.
• Advance the prying tool further, ensuring it remains aligned.The connector for the Lightning cable is referred to as the Lightning connector assembly.The adhesive securing the rear case to the chassis has completely detached.

• Carefully detach the Lightning connector assembly.
• To remove adhesive remnants from the rear case, employ a plastic tool for thorough cleaning; applying a solvent consisting of high concentration isopropyl alcohol can aid in this process.
• To prevent reconnection issues with the logic board, verify the Lightning connector assembly's proper placement by ensuring the flex cable's hole aligns with the screw post prior to peeling away the adhesive backing.

• Apply the adhesive patches, ensuring complete coverage of the damaged area, with each patch measuring 25mm x 10mm and utilizing a firm, even pressure for 60 seconds to guarantee proper adhesion; failure to do so may compromise the repair and require reapplication.To safeguard your iPhone against liquid and dust, each microphone features a small adhesive patch; it’s recommended to substitute both of these patches prior to Lightning connector assembly installation.
