iPhone SE LCD and Digitizer Replacement

• To prevent a fire hazard or explosion resulting from accidental puncture, ensure the iPhone's lithium-ion battery is depleted to less than 25% charge prior to beginning any repair work.
• To prevent electrical shock or damage, ensure the iPhone is completely de-energized prior to starting the repair process.
• Using a Pentalobe screwdriver, detach the two screws, each measuring 3.9 mm, located on the left and right sides of the Lightning connector.

• To avoid injury and contain shattered fragments while you work, secure any cracked display glass with tape.
• Completely cover the iPhone's screen with multiple layers of transparent packing tape, ensuring no portion of the display remains exposed.
• To prevent scattered fragments and maintain stability during the display separation process, this technique helps secure the glass.
• To safeguard your eyes from potential glass fragments released during the repair process, always use safety glasses.

Carefully lift the display assembly—consisting of a glass screen, a plastic bezel, and integrated metal clips—from within the phone's chassis during the subsequent procedures.

Ensure complete removal of the display assembly, irrespective of the chosen tool.

When the glass and plastic layers detach, mirroring the depiction in the initial image, use a plastic opening tool to carefully insert it into the gap between the plastic frame and the phone's metal chassis, releasing the retaining clips.

To ensure proper closure during reassembly of a phone featuring a detached display bezel, apply a narrow adhesive strip positioned between the plastic bezel and the glass surface.

• To simplify the subsequent disassembly, the following actions utilize the Anti-Clamp tool, a custom-designed aid; if you do not have this tool, proceed two steps further to find an alternative approach.
• Refer to the included guide for detailed procedures regarding the Anti-Clamp's operation.
• To release the Anti-Clamp's arms, move the blue handle in a rearward direction.
• Position the arms so they clear the left or right side of the iPhone, then move them into place.
• Affix two suction cups to the iPhone’s front and back surfaces, placing them close to the lower edge, directly above the home button.
• Apply vacuum by pressing the cups firmly against the surface you intend to work on.
• To improve the Anti-Clamp's grip if the iPhone's exterior is too smooth, apply the provided adhesive pad to generate a more textured holding area.

• To secure the arms, advance the blue handle in the direction indicated.
• Rotate the handle fully, completing a 360-degree turn, observing for the initial expansion of the cups.
• Maintain parallel positioning of the suction cups; should misalignment occur, gently release the suction cups' hold and reposition the arms.
• Once sufficient separation is achieved by the Anti-Clamp, slide a prying tool beneath the display.
• To ensure adequate separation, reposition the handle by 90 degrees.
• Apply rotations no greater than 90 degrees, pausing for several seconds after each adjustment to allow the Anti-Clamp feature and dwell time to facilitate proper seating.

• Position a suction cup directly on the display surface, situated slightly higher than the home button's location.
• Ensure the entire cup makes contact with the screen surface to guarantee a secure seal.

• Securely affix the suction cup to the front panel assembly, positioning it close to the home button.
• Using one hand to secure the iPhone, lift the suction cup vertically to gently create a small gap between the front panel and the rear case, beginning at the home button area.
• Using a plastic opening tool, lift the rear case's perimeter away from the front panel assembly, applying gentle force while simultaneously raising the assembly with a suction cup.
• Exercise caution and use steady, even pressure when installing the front panel assembly, as it requires a more precise fit compared to similar components in other equipment.

• To detach the suction cup, depress the plastic projection to break the airtight connection.
• Carefully detach the screen from the device using the suction cup.

• Carefully separate the phone's casing to expose the metallic securing bracket that protects the home button cable.
• To prevent damage to the home button cable and its connector, avoid excessive separation of the phone's housing; maintain slack in the cable, as overextension can cause harm.
• The Touch ID feature is exclusive to the factory-installed home button assembly; replacement with a non-original part will result in a standard home button with no Touch ID capability, and any damage to the cable during replacement will produce the same outcome.
• Employ the pointed end of a screwdriver.Use a plastic pry tool, often referred to as a spudger.Using tweezers, carefully disengage the bracket.
• For reassembly procedures, proceed with the subsequent two steps; otherwise, bypass them and move directly to Step 12.

To complete reassembly, secure the Touch ID cable bracket by positioning its upper edge between the battery and the Touch ID cable connector, ensuring it sits ahead of the metal tab, then fasten the bracket's lower edge by engaging the latch over the connector.

• Position the bracket's upper edge so it overlaps the Touch ID cable connector, then move it horizontally to the right.
• Position the bracket so it rests on the connector; the side featuring the "leg" will naturally create a small incline, ensuring the opposite edge aligns between the cable connector and the metal tab located close to the battery.Use a plastic pry tool, often referred to as a spudger, to avoid scratching surfaces.Position the component flush with the bracket, then secure it by lightly pressing downwards to engage both the rear and front clasps.

Employ the tool's flattened tip to facilitate reassembly.Use a plastic spudger.Secure the Touch ID cable connector by pressing the front section of its bracket firmly into place.

To ensure the bracket sits level against the surface, reposition it by sliding it back over the cable connector if it doesn't seat properly.

• Employ the pointed end of a screwdriver to carefully apply pressure.Use a plastic pry tool, often referred to as a spudger.Use a spudger to carefully lift the home button cable connector vertically from its receptacle.
• Avoid lifting the socket assembly; instead, carefully detach the cable connector from its receptacle, as the socket is affixed to a separate, adhesive-backed cable that can be dislodged if excessive force is applied.

• Carefully detach the connector, then pivot the home button portion of the assembly outward, utilizing the phone's upper edge as a fulcrum.
• Carefully separate the display assembly from the device housing, creating an approximately 90-degree angle.Rotate to a 90-degree angle.Position the device at an angle, securing it in place with support to prevent it from falling during the repair process.
• To avoid stressing the display's wiring during the repair process, secure it with a rubber band.
• As a temporary measure, an unused, sealed can of soda can substitute for the display during the repair process.

• Carefully lift the battery connector away from its corresponding socket on the logic board, utilizing the flat edge of a spudger to avoid damage.
• Exercise extreme caution during disconnection, applying force solely to the battery connector; any leverage applied to the logic board socket or the board itself risks socket destruction or damage to adjacent components.

• Detach the cable bracket that holds the front panel assembly wiring by unscrewing the screws listed below.

  • A Phillips screwdriver, size #000, is needed to remove a 1.7-millimeter screw.
  • A Phillips screwdriver, size #000, is needed to remove a 1.2-millimeter screw.
  • A Phillips screwdriver, size #000, is needed to remove a 1.3-millimeter screw.
  • An additional screw, measuring 1.7 mm in width and utilizing a Phillips #000 head, is required.
  Please provide the original text you want me to rewrite. I need the sentence/instruction to work with.Use a 1.7-millimeter screw.Due to its non-magnetic nature, the component will not adhere to a magnetized screwdriver; therefore, exercise caution to prevent loss during removal.
  Carefully organize all screws during this procedure, as incorrect placement during reassembly can cause damage.Use a screw with a diameter of 1.3 millimeters.Alternatively, aUse screws with a 1.7-millimeter head diameter.Inserting a tool into that specific lower-right aperture risks substantial logic board damage, preventing the device from powering on.
  Avoid applying excessive force when tightening screws; if resistance is encountered during installation, verify that the correct screw size is being used.

• Detach the bracket securing the front panel assembly cable to the logic board.

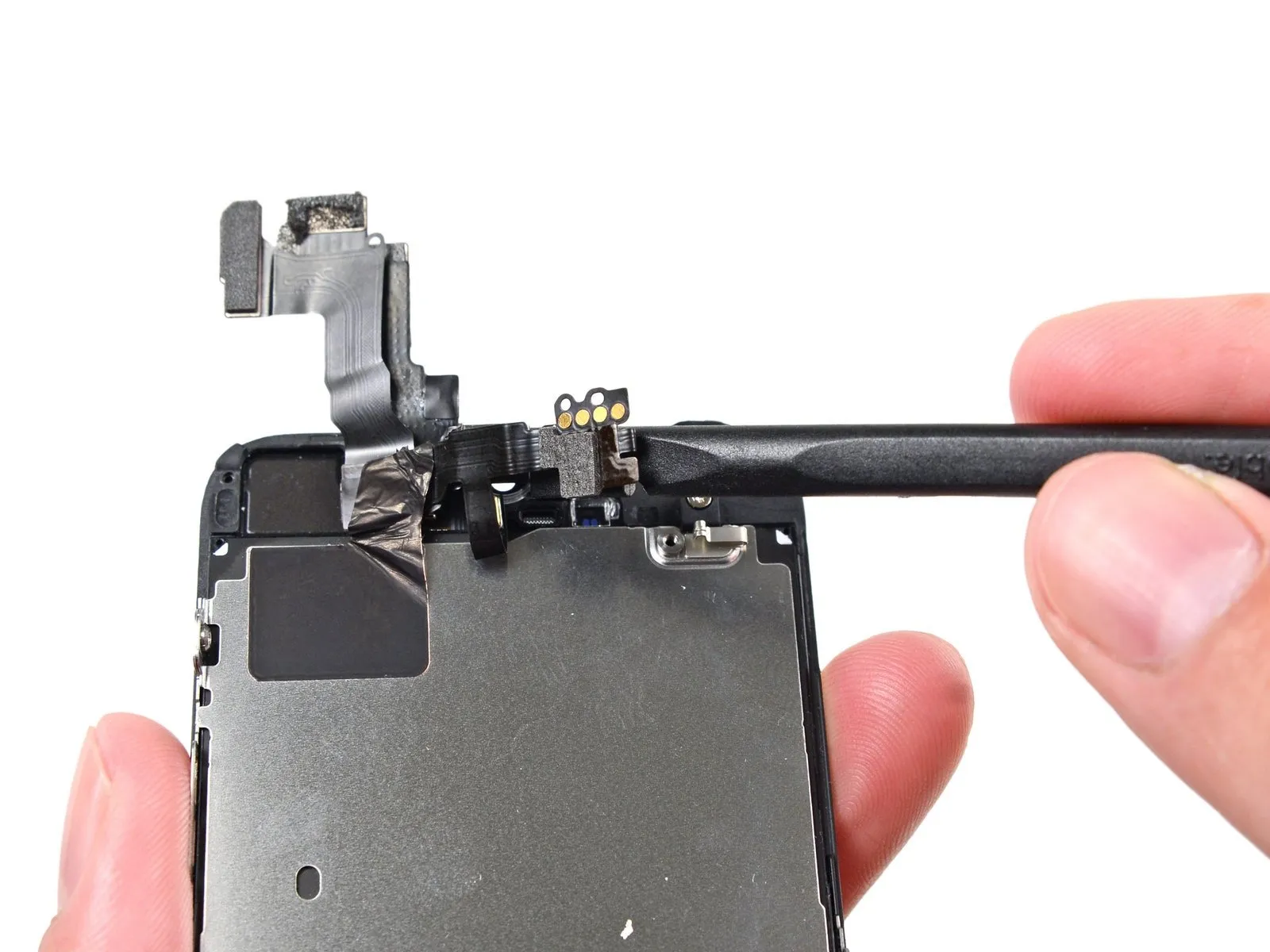

• Carefully detach the front camera and sensor assembly's cable using a spudger or similar tool, like a fingernail.

• Prior to either detaching or reattaching the cable in this procedure, ensure the battery is disconnected.
  Carefully detach the LCD cable connector.
  Should the LCD cable become detached from its connector during reassembly, a blank screen or white lines may appear upon powering on the device; to resolve this, reattach the cable and restart the phone, preferably by disconnecting and reconnecting the battery.

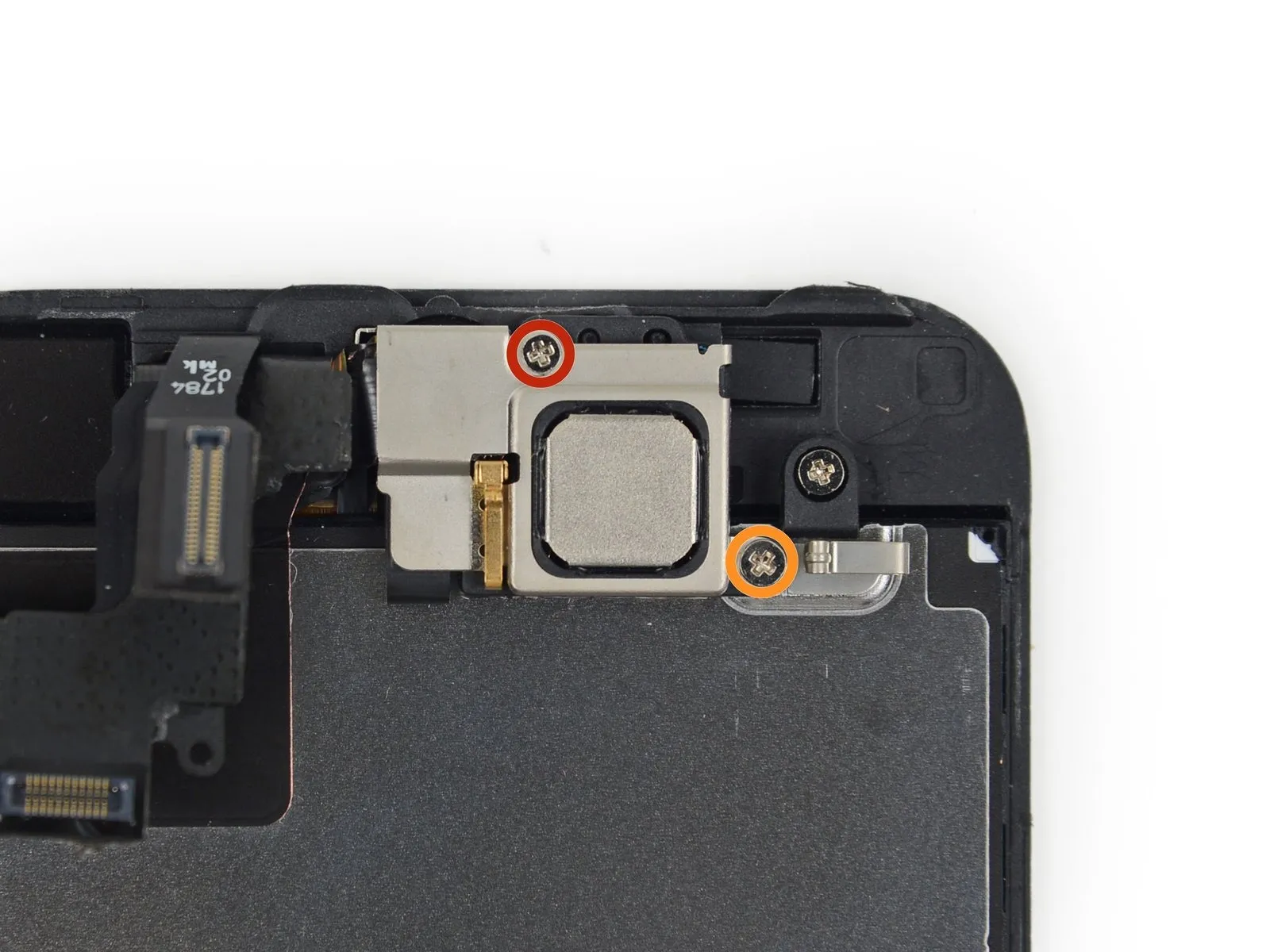

• Using the appropriate screwdriver, detach the upper component bracket by unscrewing the two fasteners that hold it in place.
  Use a Phillips head screwdriver, size #000, with a shaft diameter of 4.0 millimeters.
  Use a Phillips head screwdriver, size #000, with a tip measuring 2.3 millimeters.

Using the incorrect screws can critically damage the LCD during reassembly; ensure each screw is properly aligned with its designated hole.

• Position the device so that the physical home button faces upwards and the earpiece speaker is directed downwards, mirroring the illustrated view.

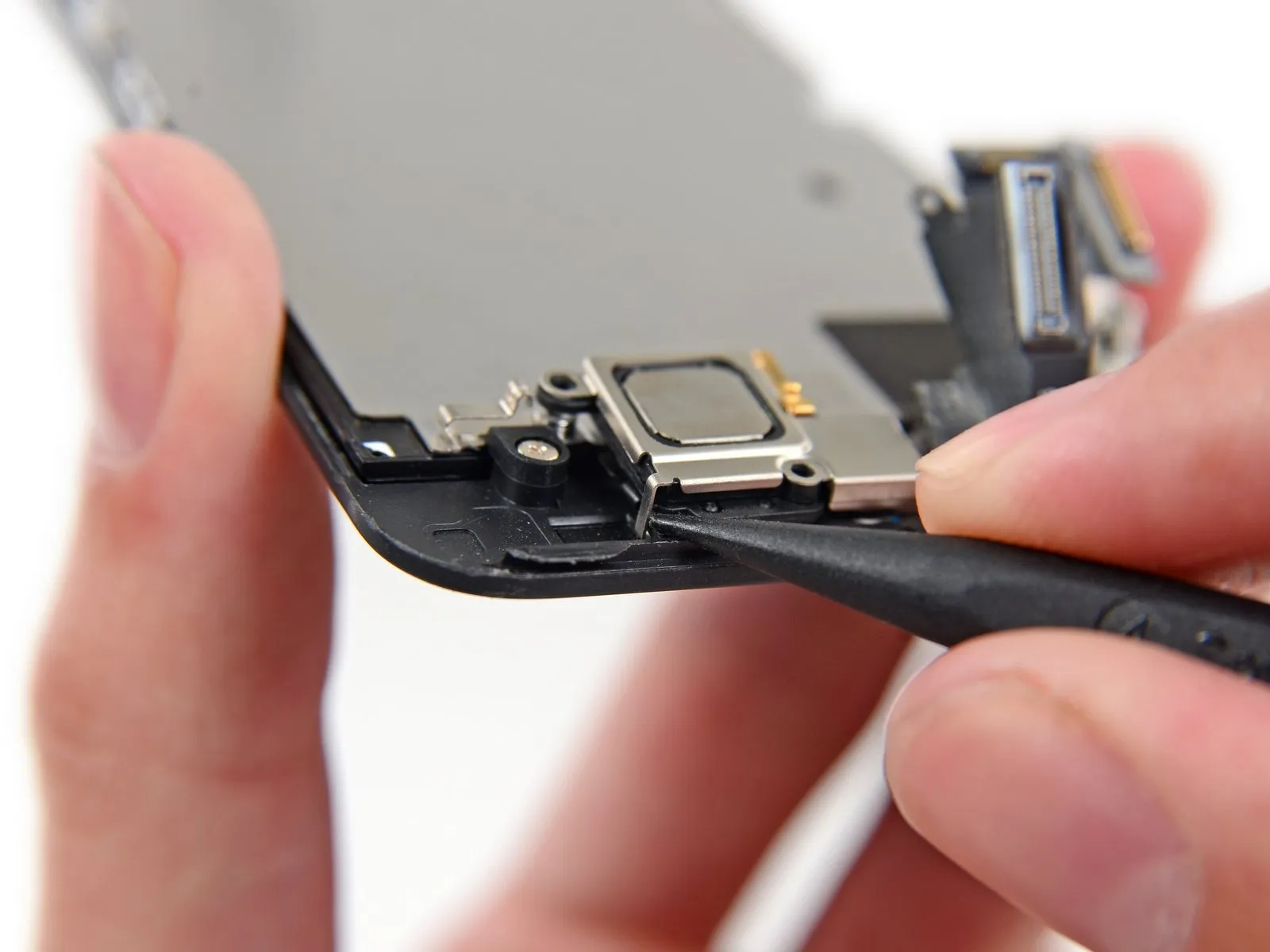

• Using careful pressure, move the clip, located on the earpiece speaker bracket's lower left side, away from its molded position within the front panel assembly.
• Applying too much pressure when separating components risks damaging the earpiece speaker bracket due to its delicate and flexible nature.

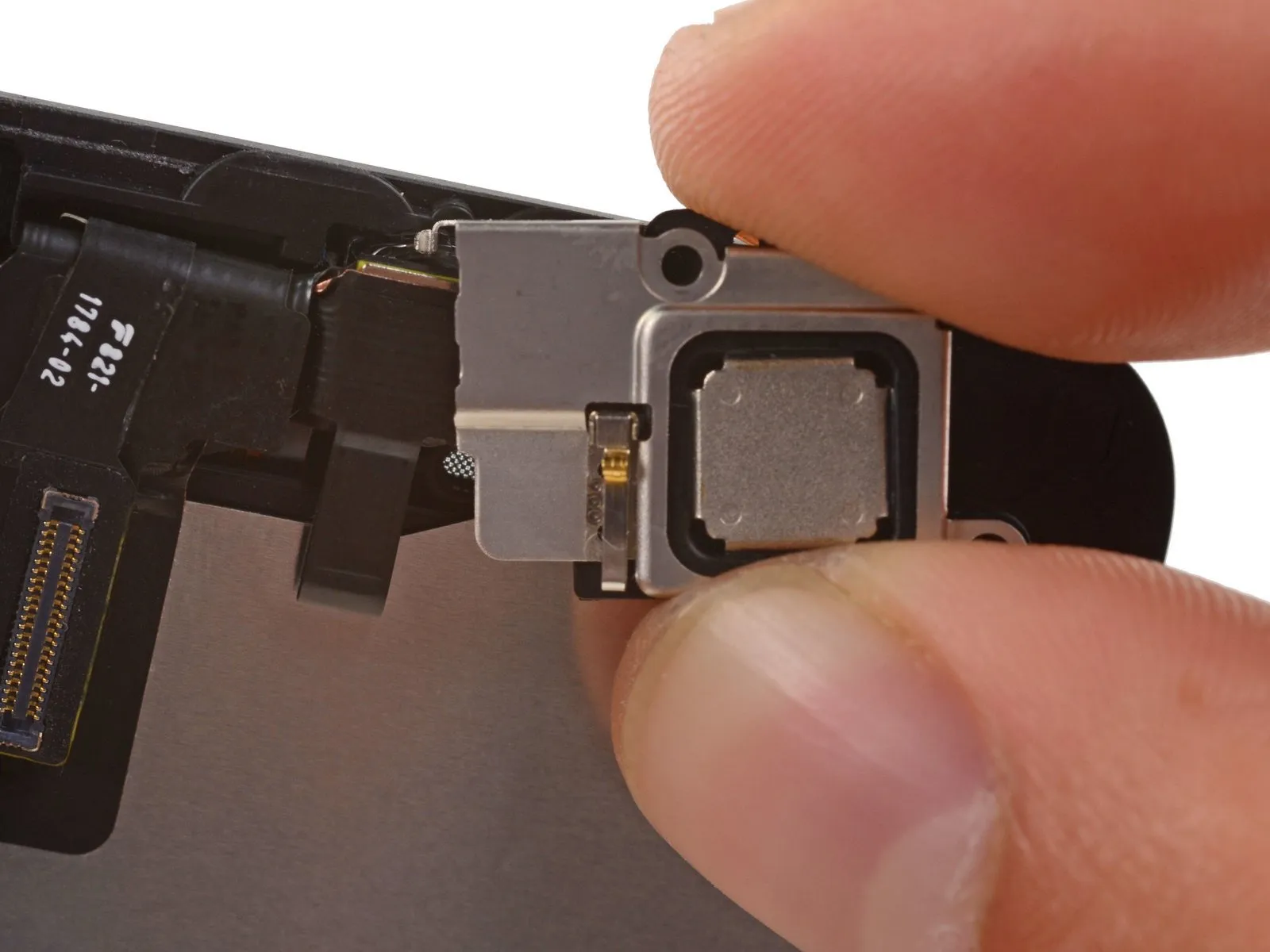

• Using tweezers, move the bracket laterally to the left until the clip releases.

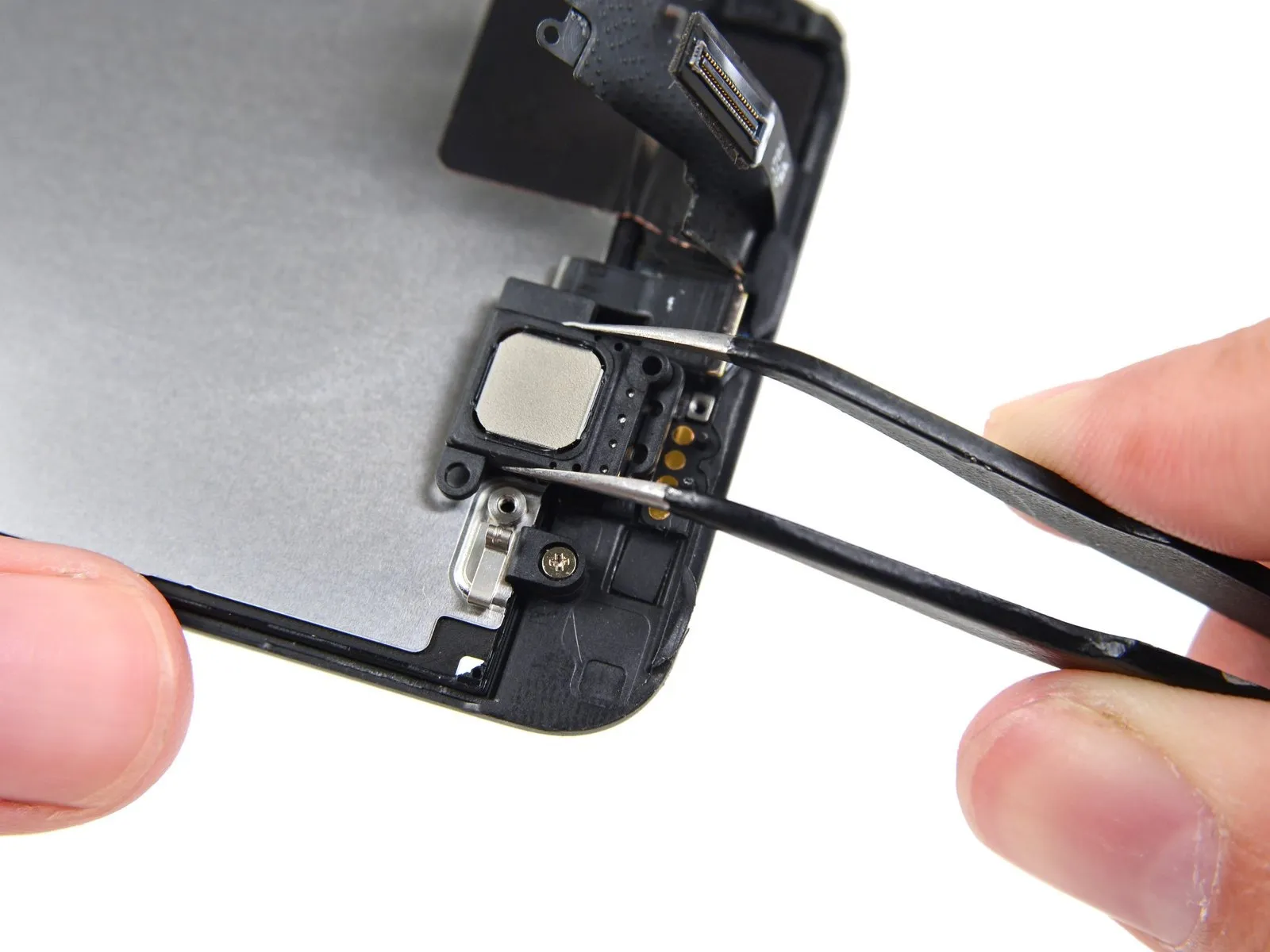

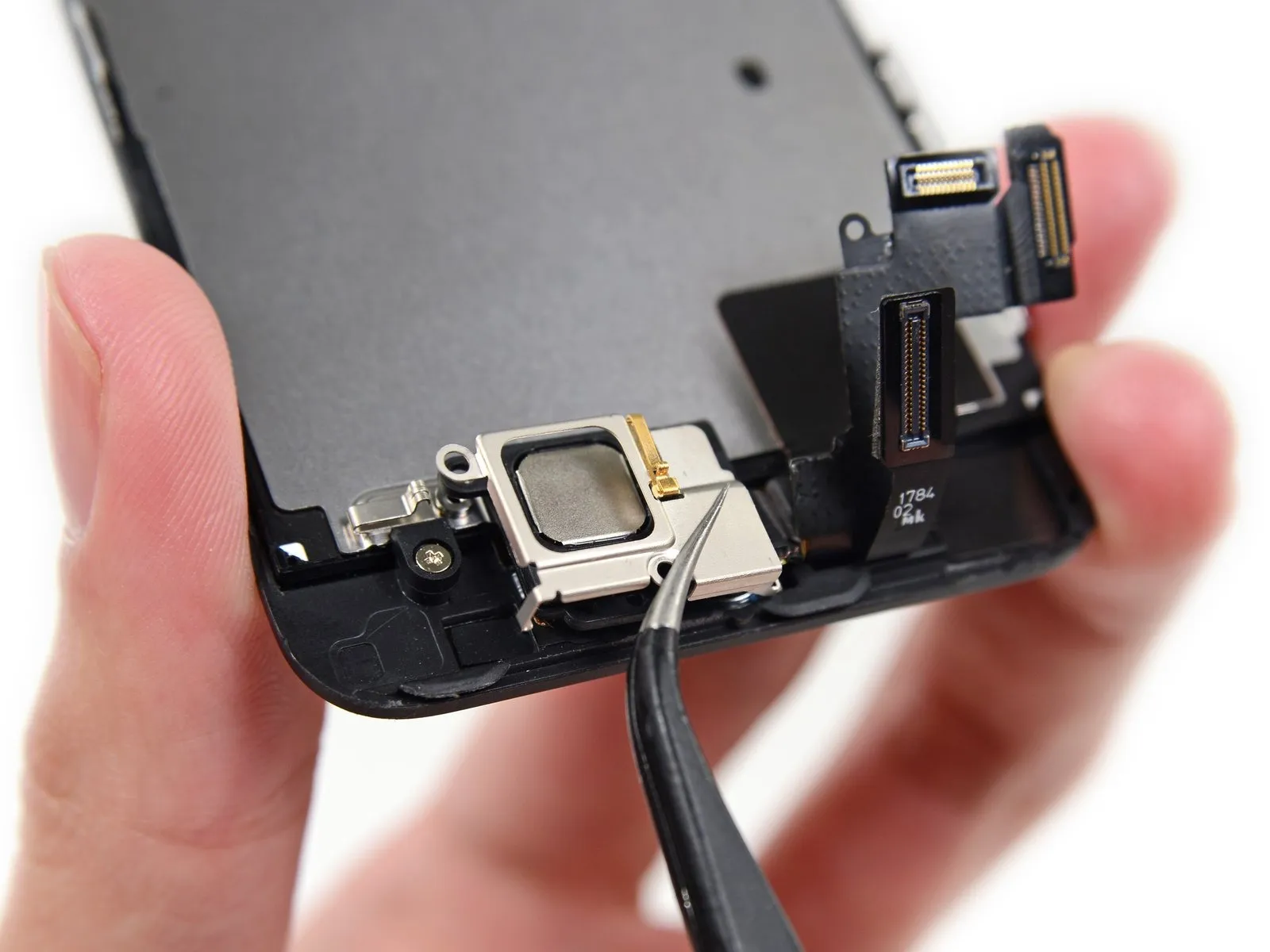

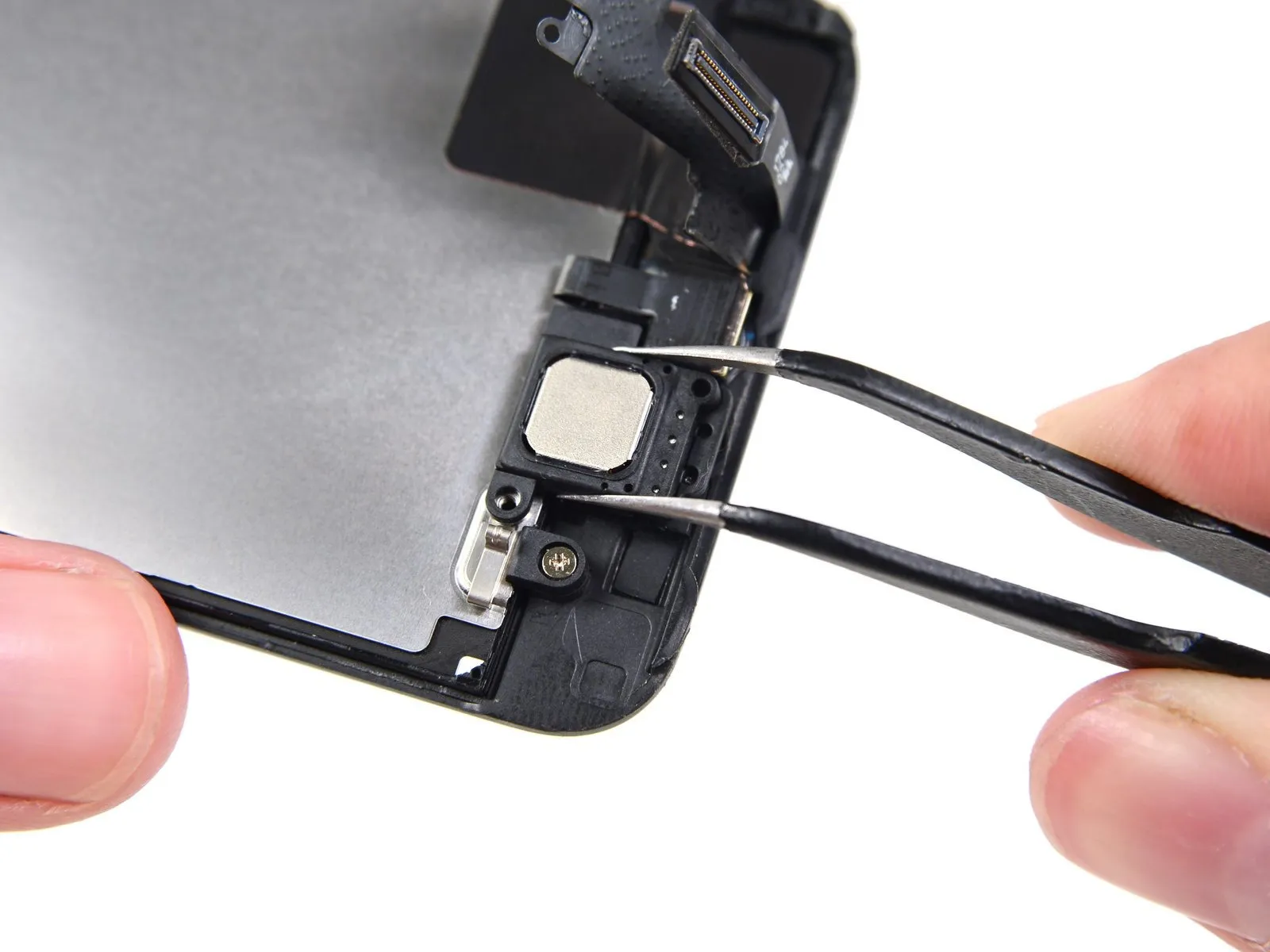

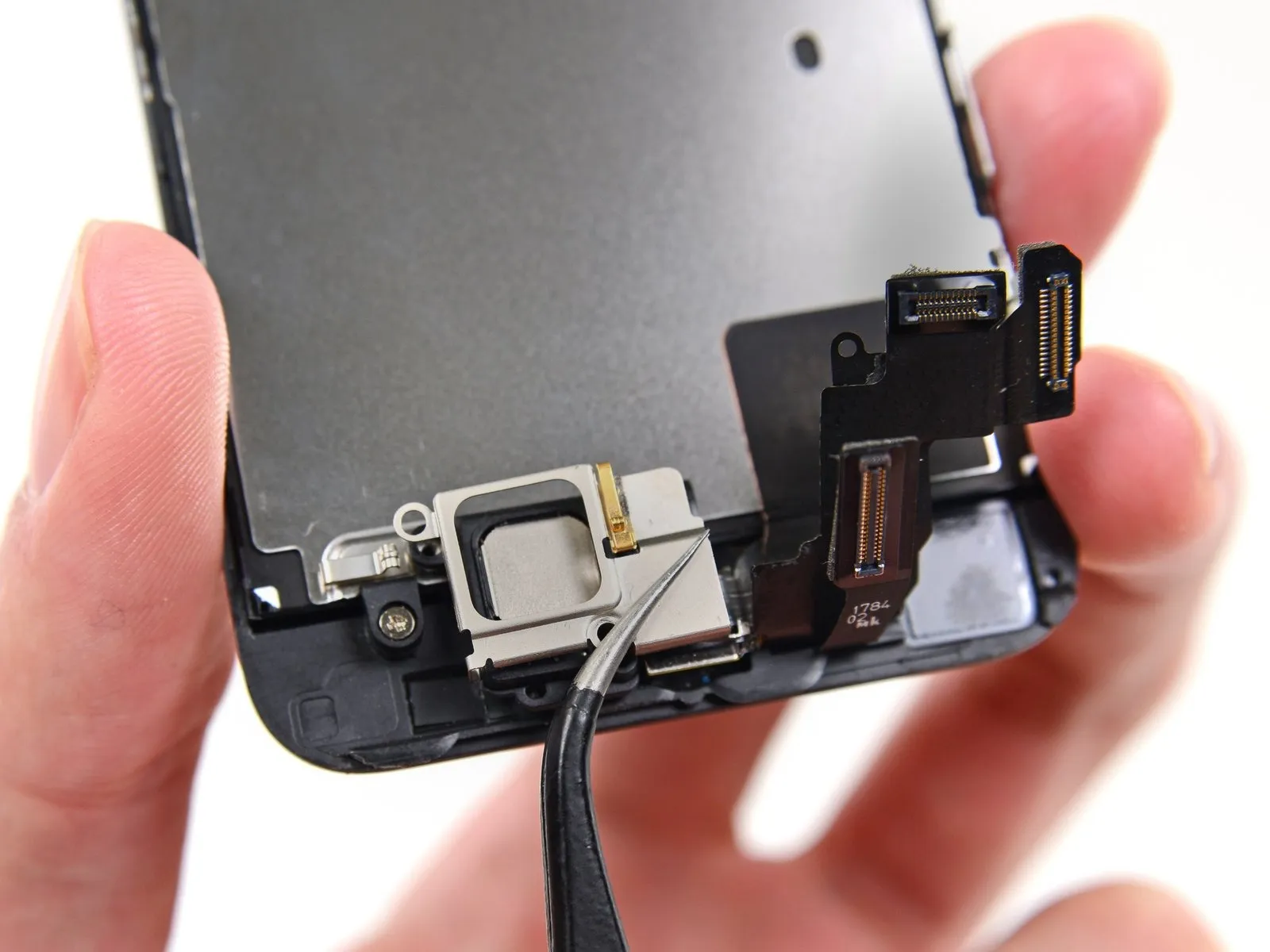

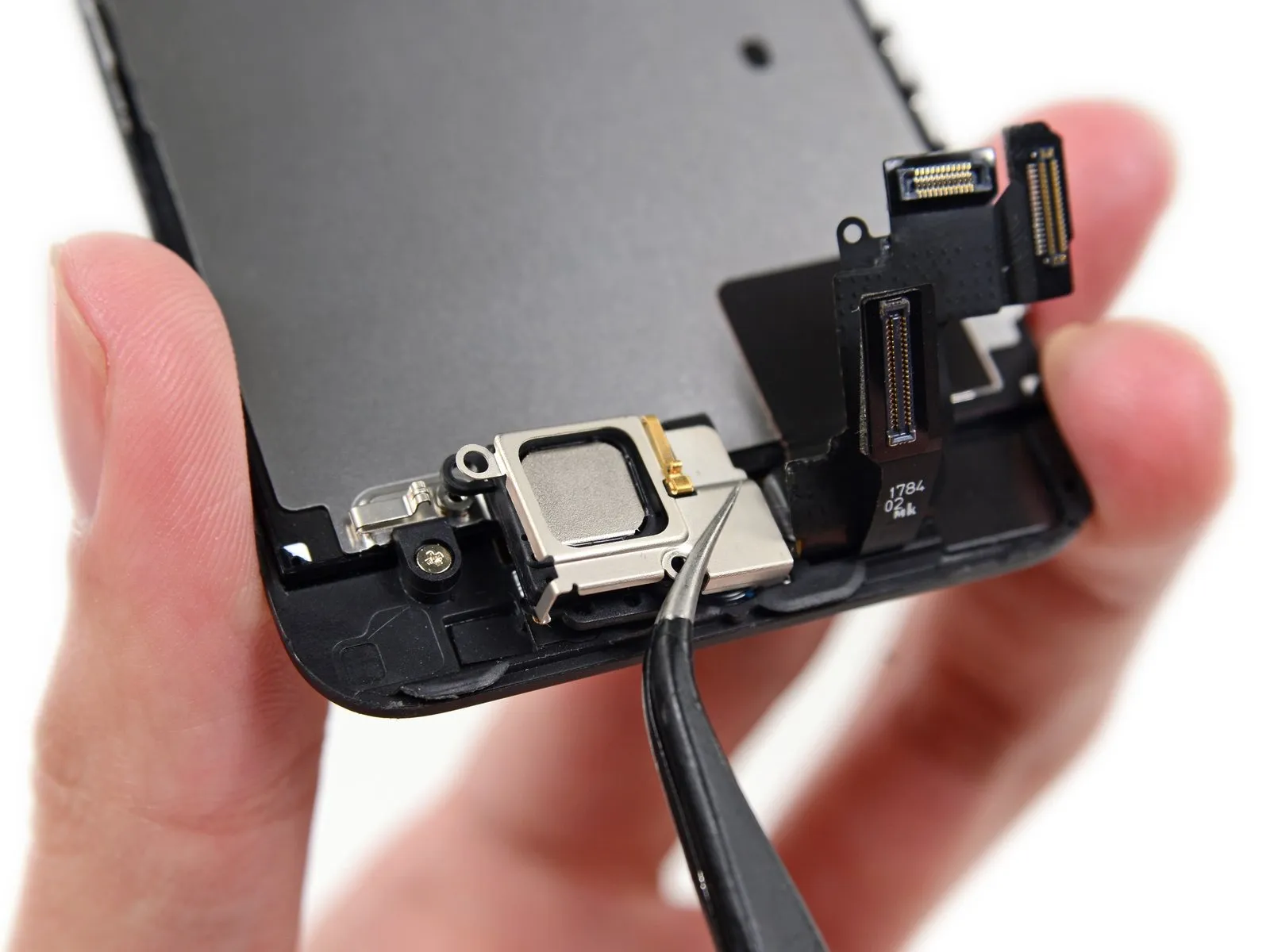

• Using tweezers, carefully detach the earpiece speaker.
• To avoid compromising electrical connections, exercise extreme caution and prevent any contact between your skin and the gold-plated connectors located on the front panel. Residue from skin oils can impede proper contact.

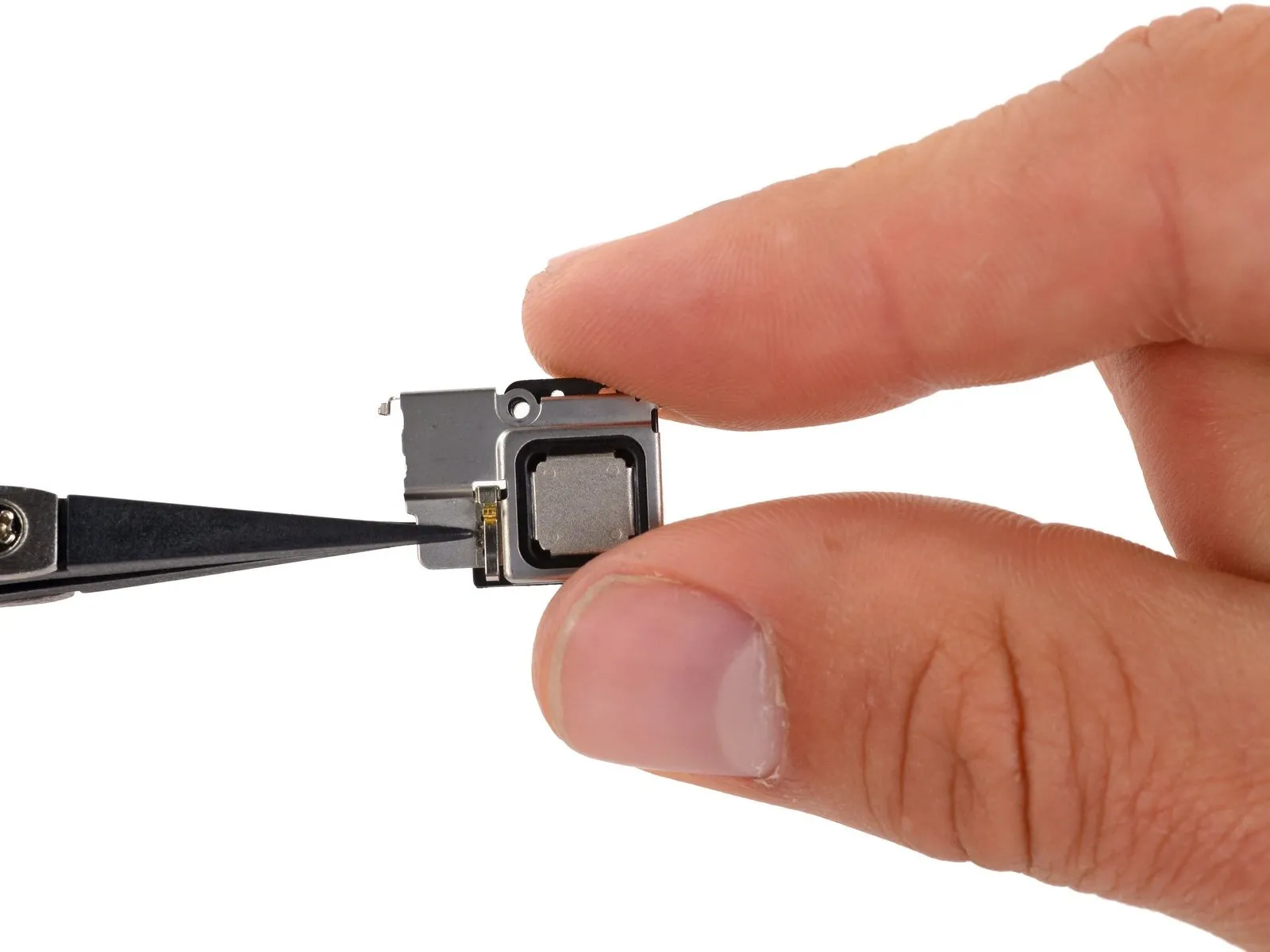

• For earpiece speaker replacement, combine the speaker and its bracket during installation to simplify the process.

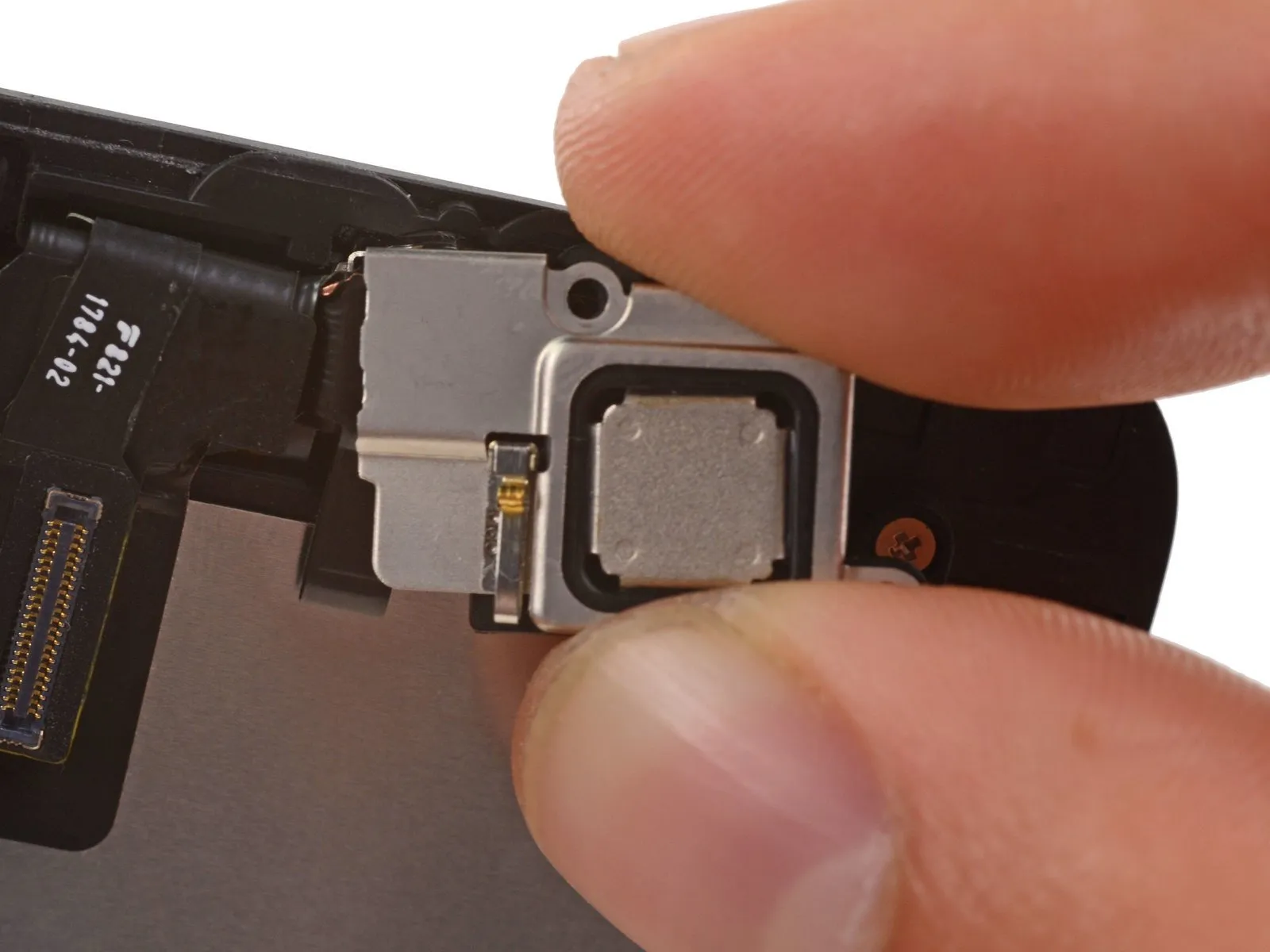

• Align the speaker and its bracket, ensuring a secure and flush fit within the designated housing.
• Position the bracket's left hook so it engages the notch located directly above the front-facing camera's upper left corner.
• Position the bracket horizontally against the rear case, matching the screw holes. Secure the bracket by pressing it firmly, verifying that the right-side hook engages with the display.

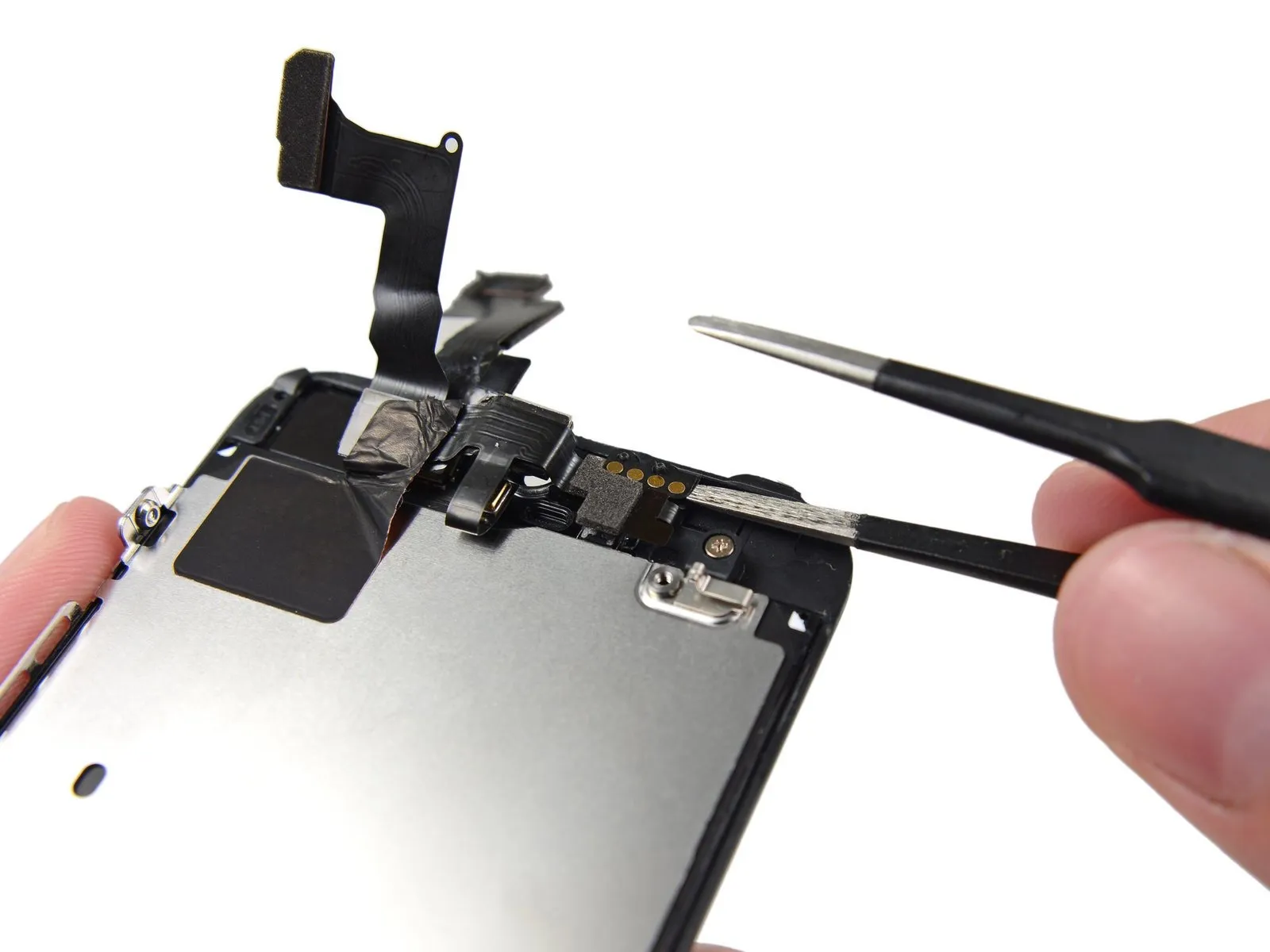

Detach the front panel assembly's front-facing camera and its associated sensor cable.
A light adhesive secures the front camera and its connecting cable to the display assembly.

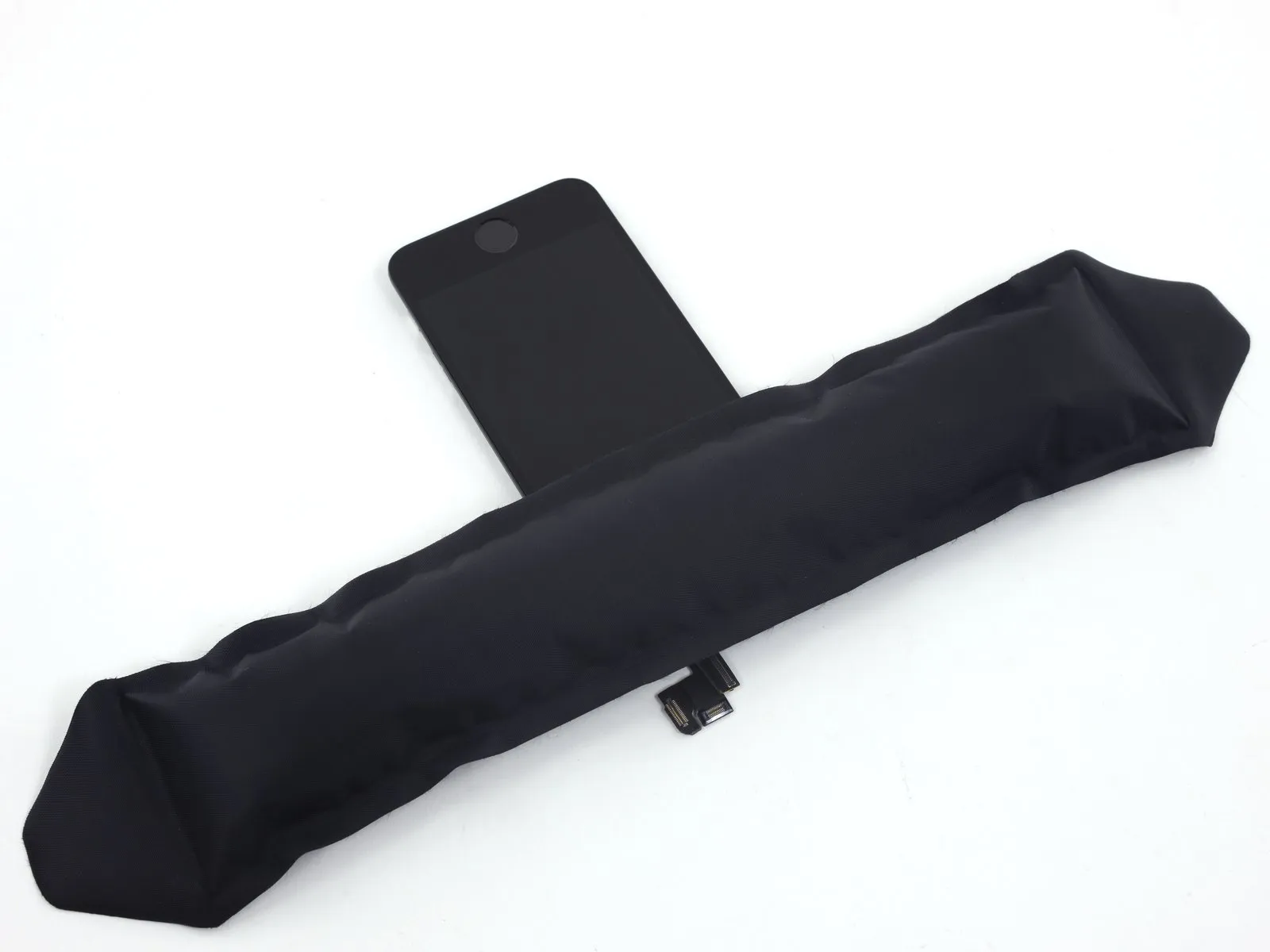

Applying heat with an iOpener eases the adhesive bond, facilitating safe removal; proceed with the following steps.Use the iOpener.Refer to the accompanying documentation for operational procedures.

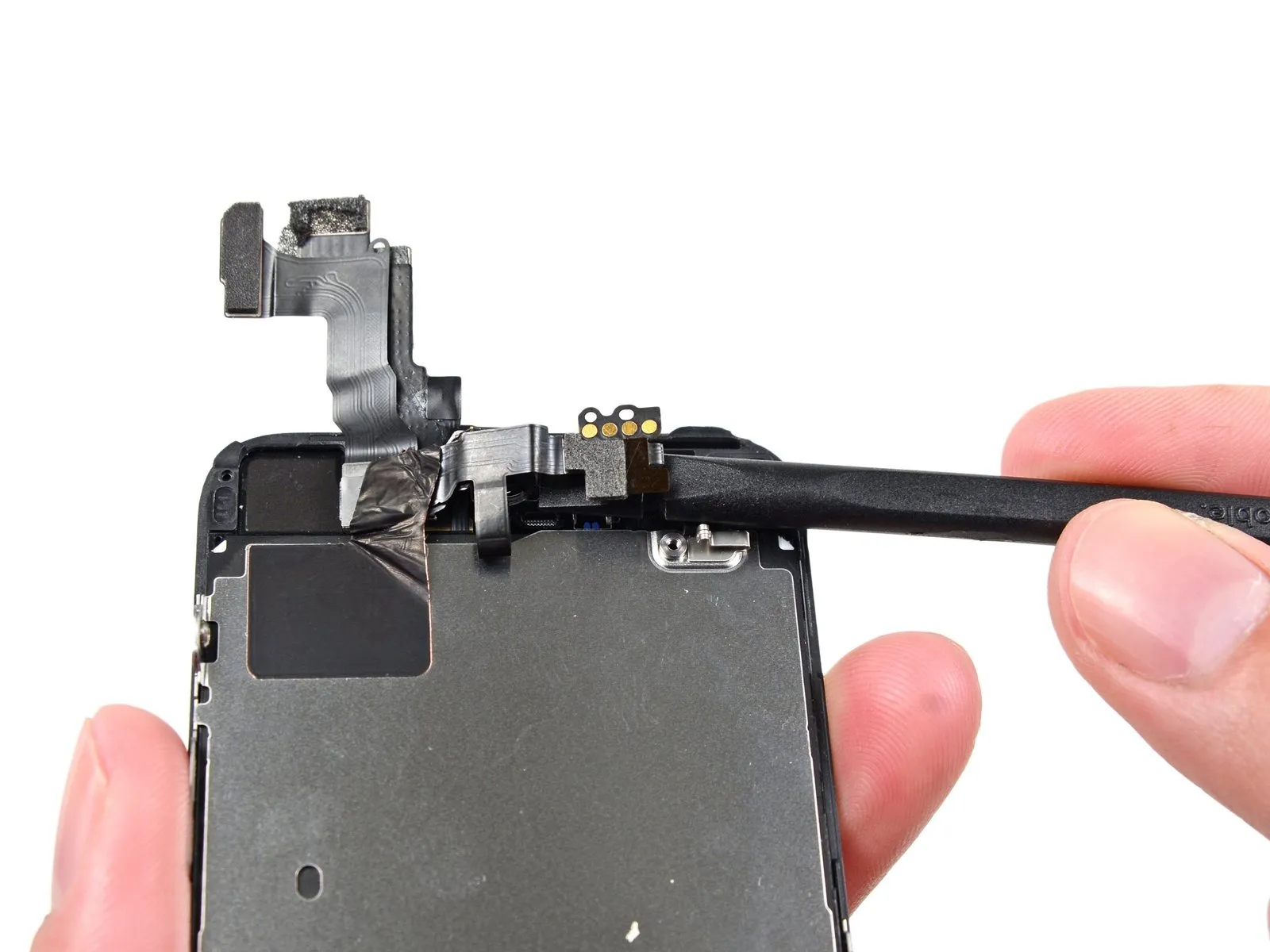

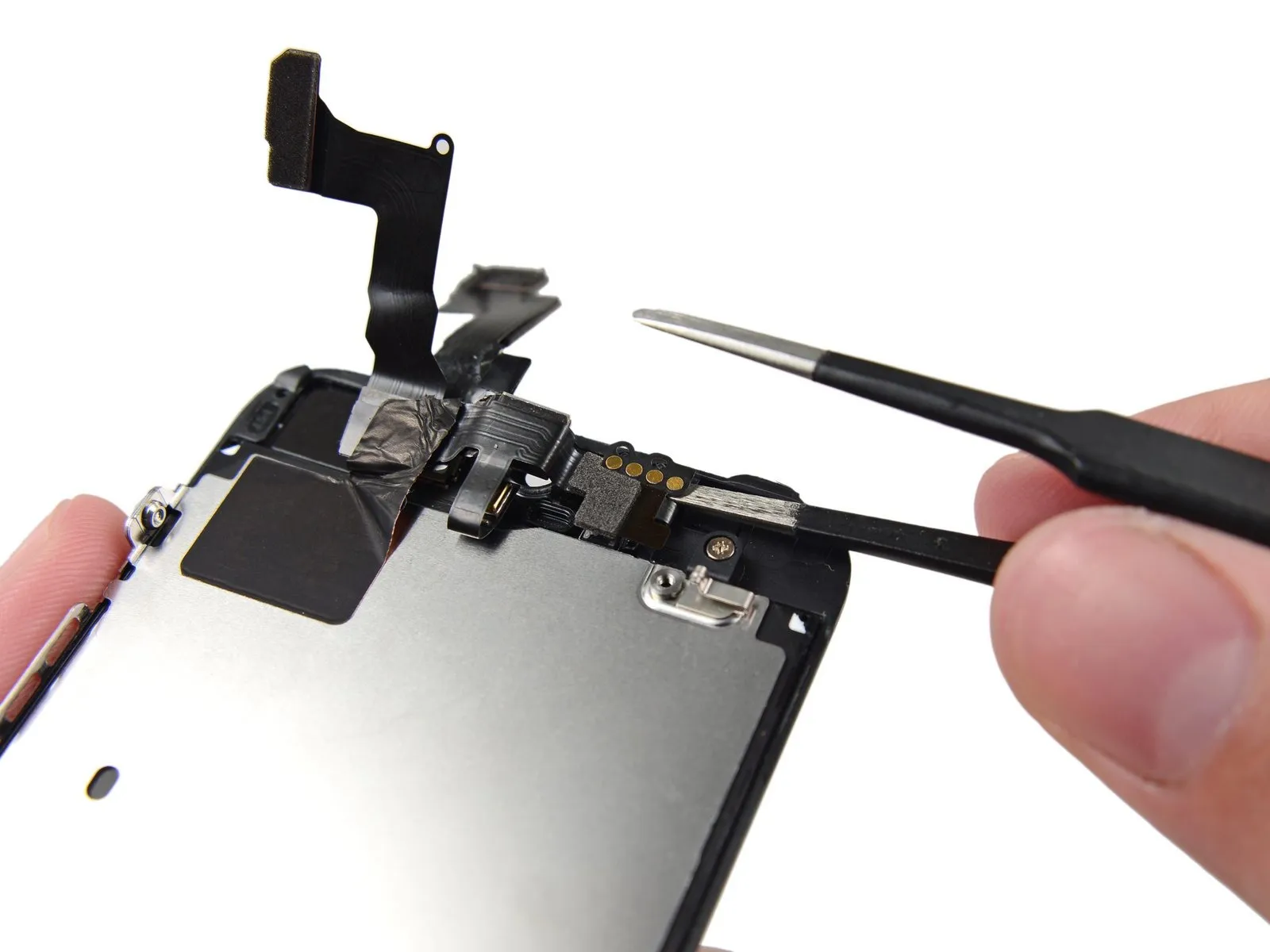

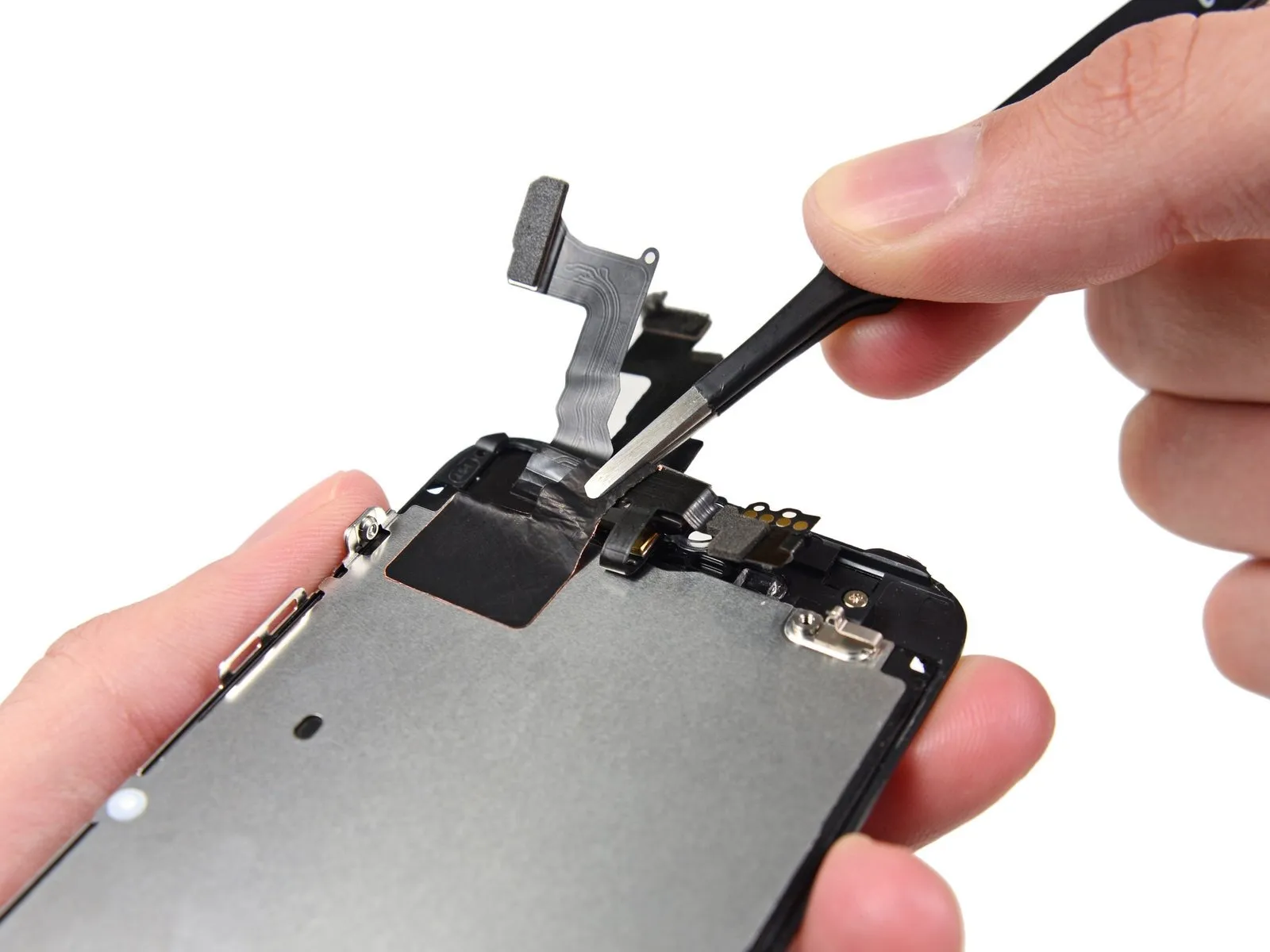

• Carefully employ the blade edge of the provided tool set.Employ fine-tipped pliers or similar precision instruments.Employ a metallic material.Use a plastic spudger.Using careful force, lift the earpiece speaker contact cable to release it from the underlying adhesive, effectively disconnecting that section of the camera and sensor cable.

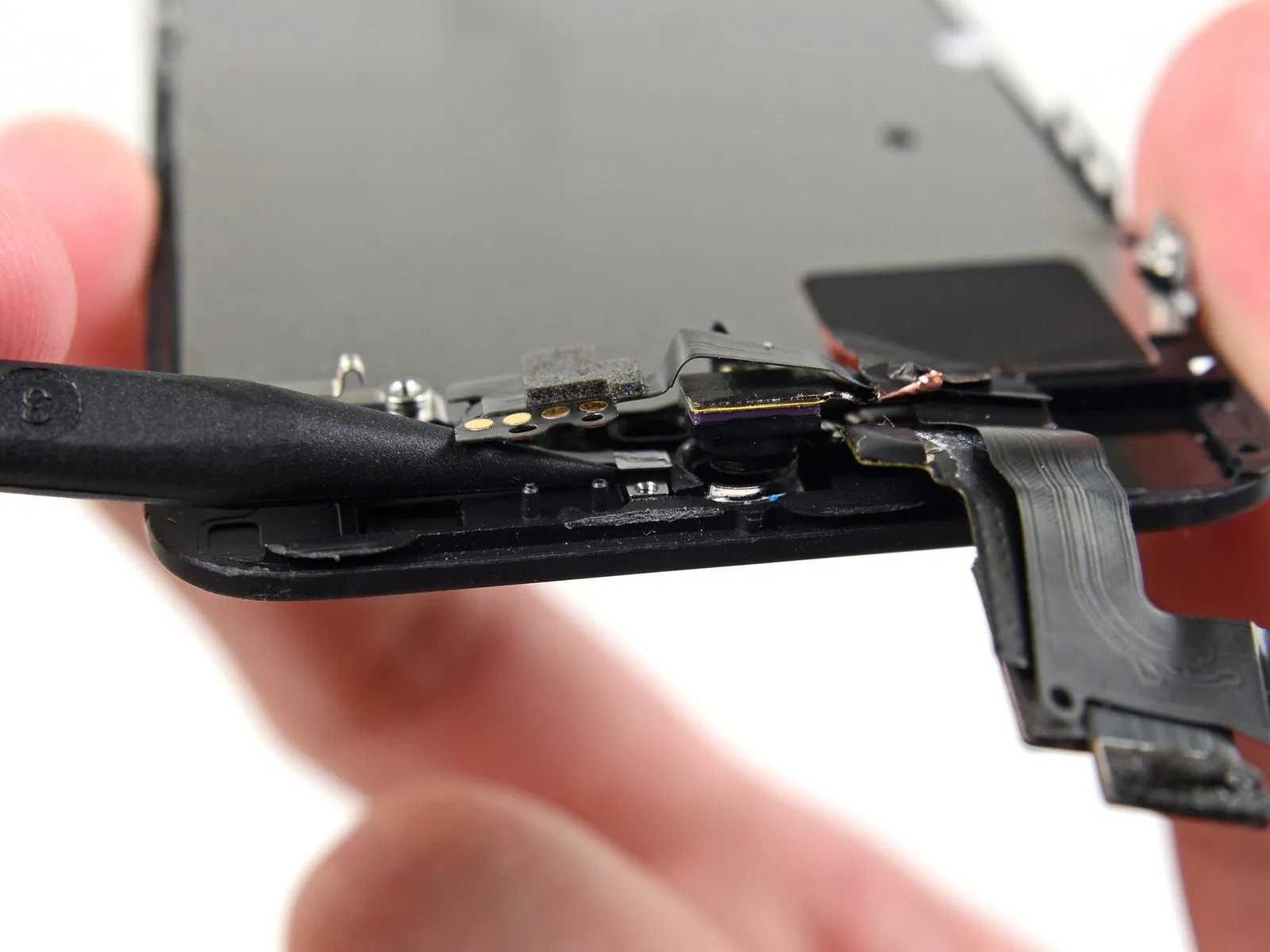

• To avoid damaging sensitive components like sensors and microchips, limit your prying action specifically to the area beneath the earpiece speaker contacts.

• Carefully employ the tip of a screwdriver to apply pressure.Use a plastic pry tool, often referred to as a spudger, to avoid scratching surfaces.Carefully elevate the ambient light sensor and proximity sensor from their molded location within the display assembly.

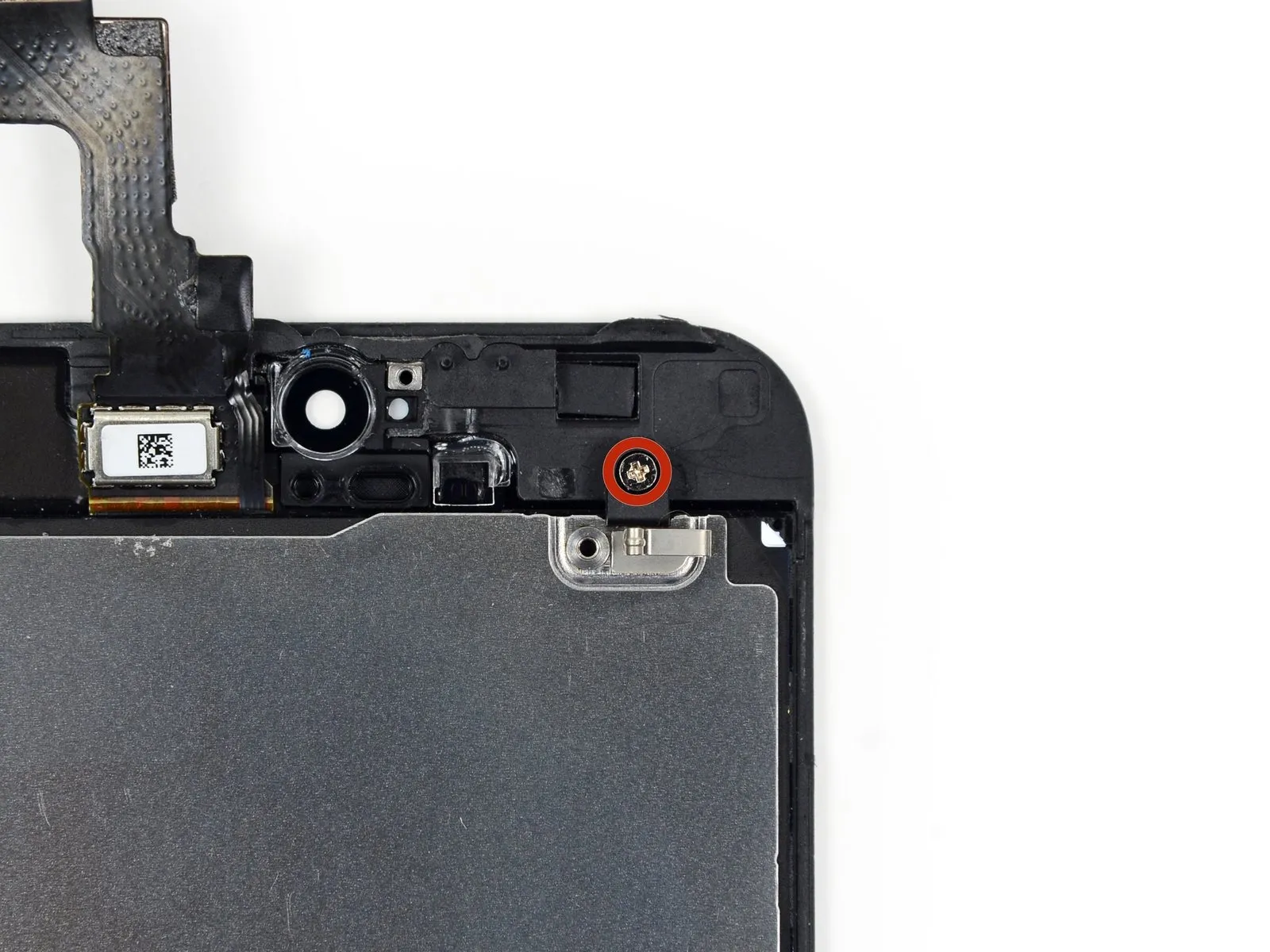

• The proximity sensor’s operation relies on a critical, small housing constructed from plastic and metal.
• When substituting the proximity sensor, ensure the holder stays secured to the display's rear surface; should the holder detach with the old sensor, carefully separate it and apply a small amount of adhesive to reattach it to the display.

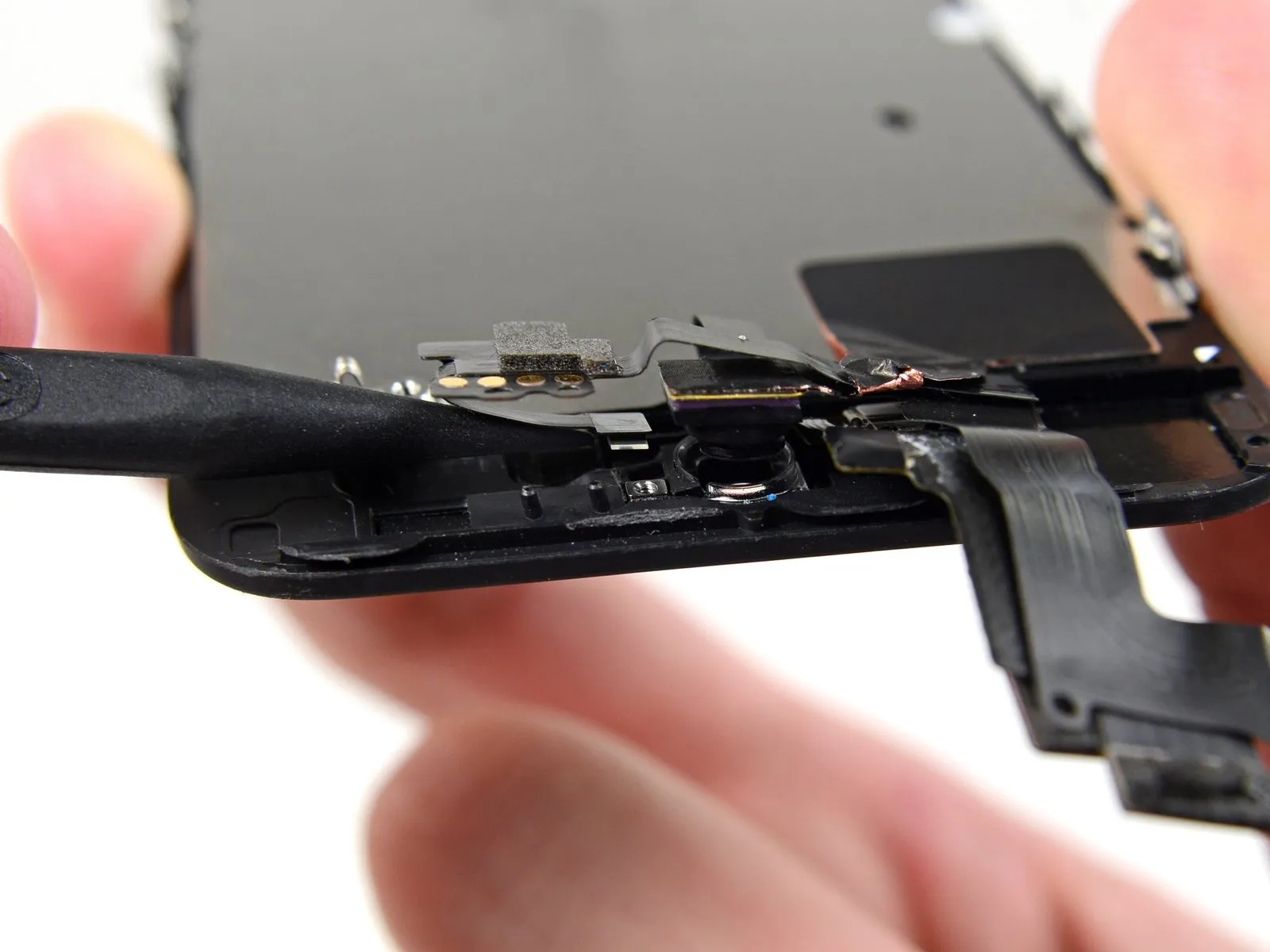

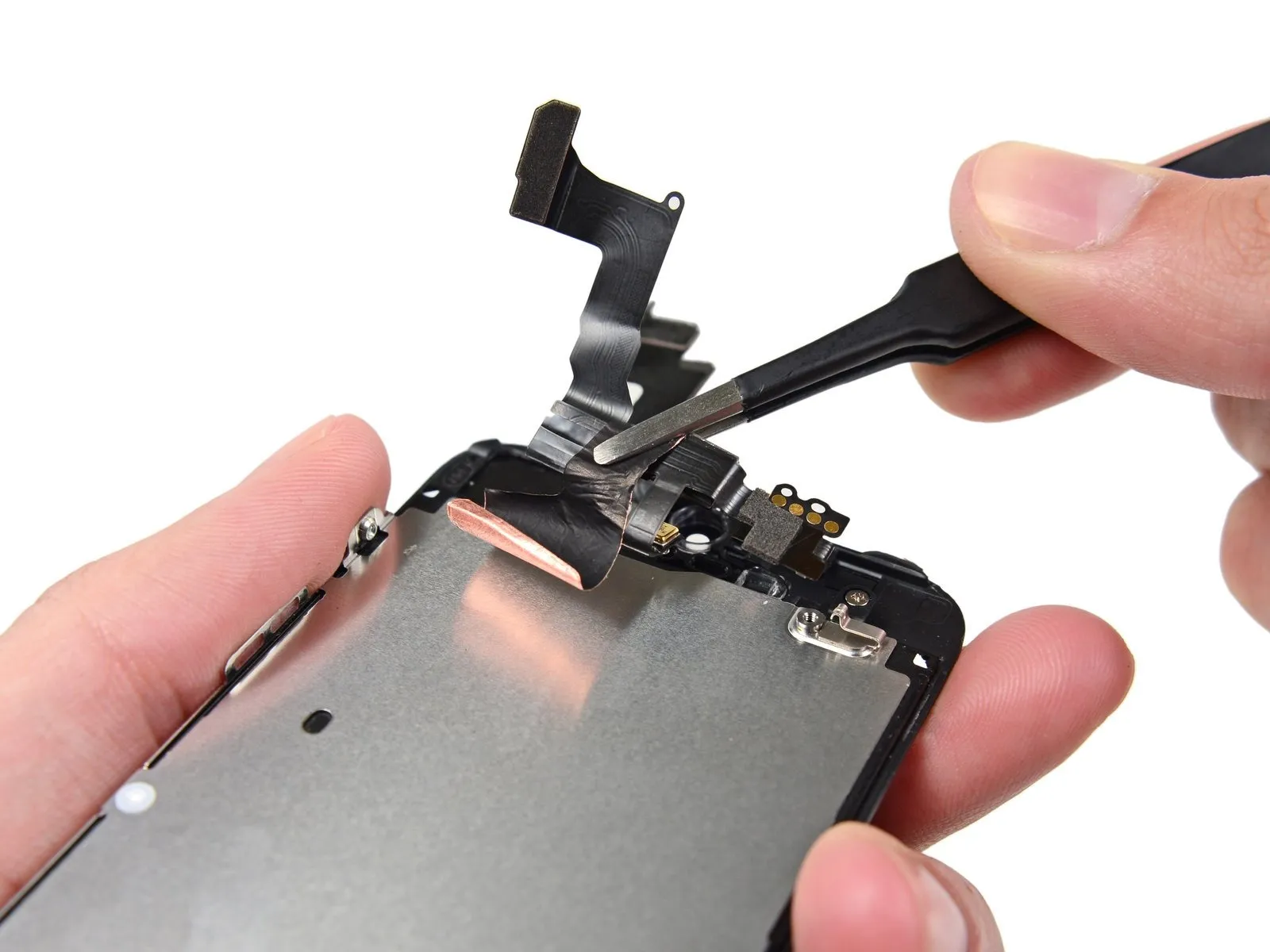

Employ the tool's planar edge.Use a plastic pry tool, often referred to as a spudger, to separate components.Carefully separate the front camera cable from the display assembly, avoiding any forceful movement.

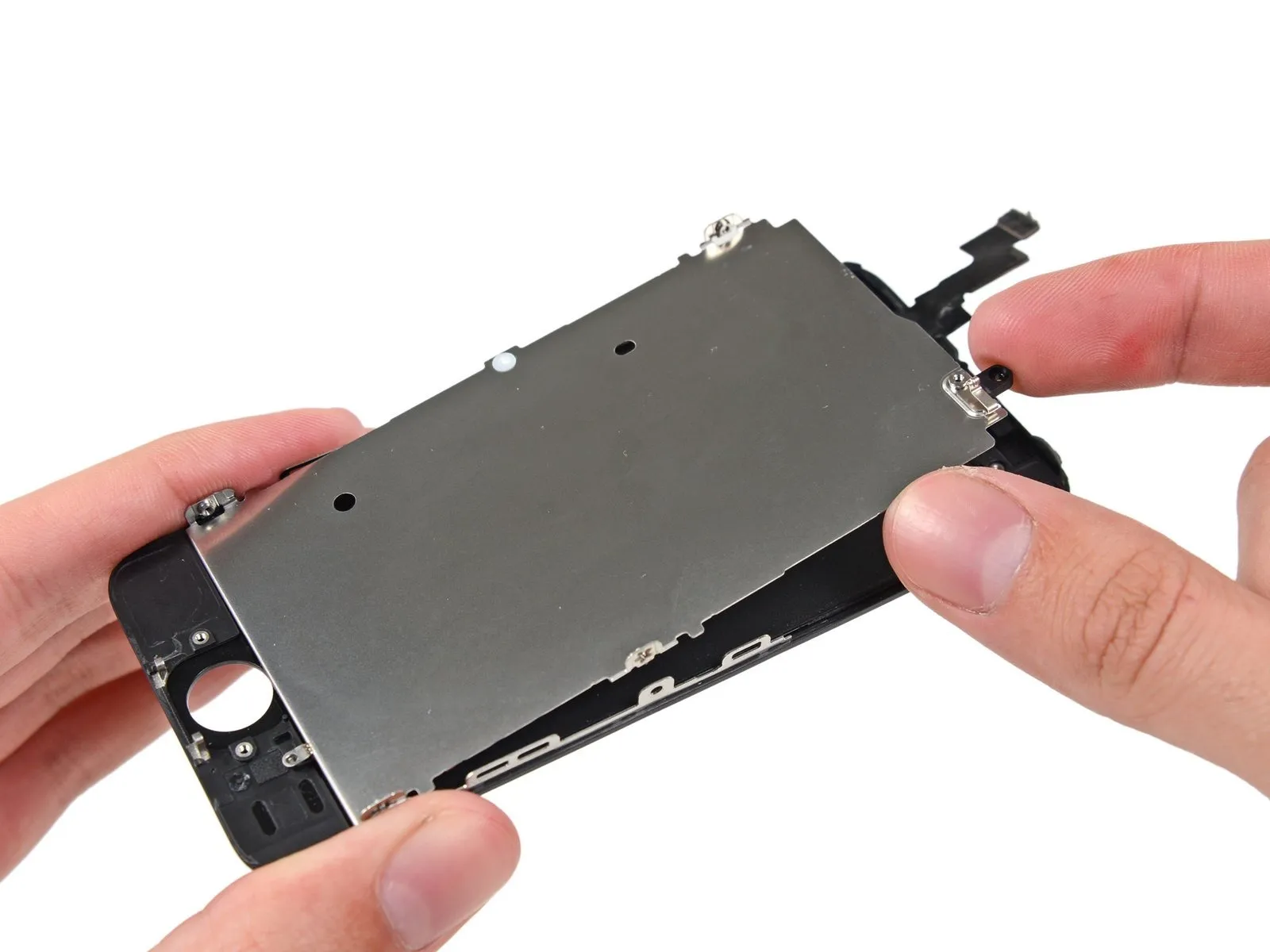

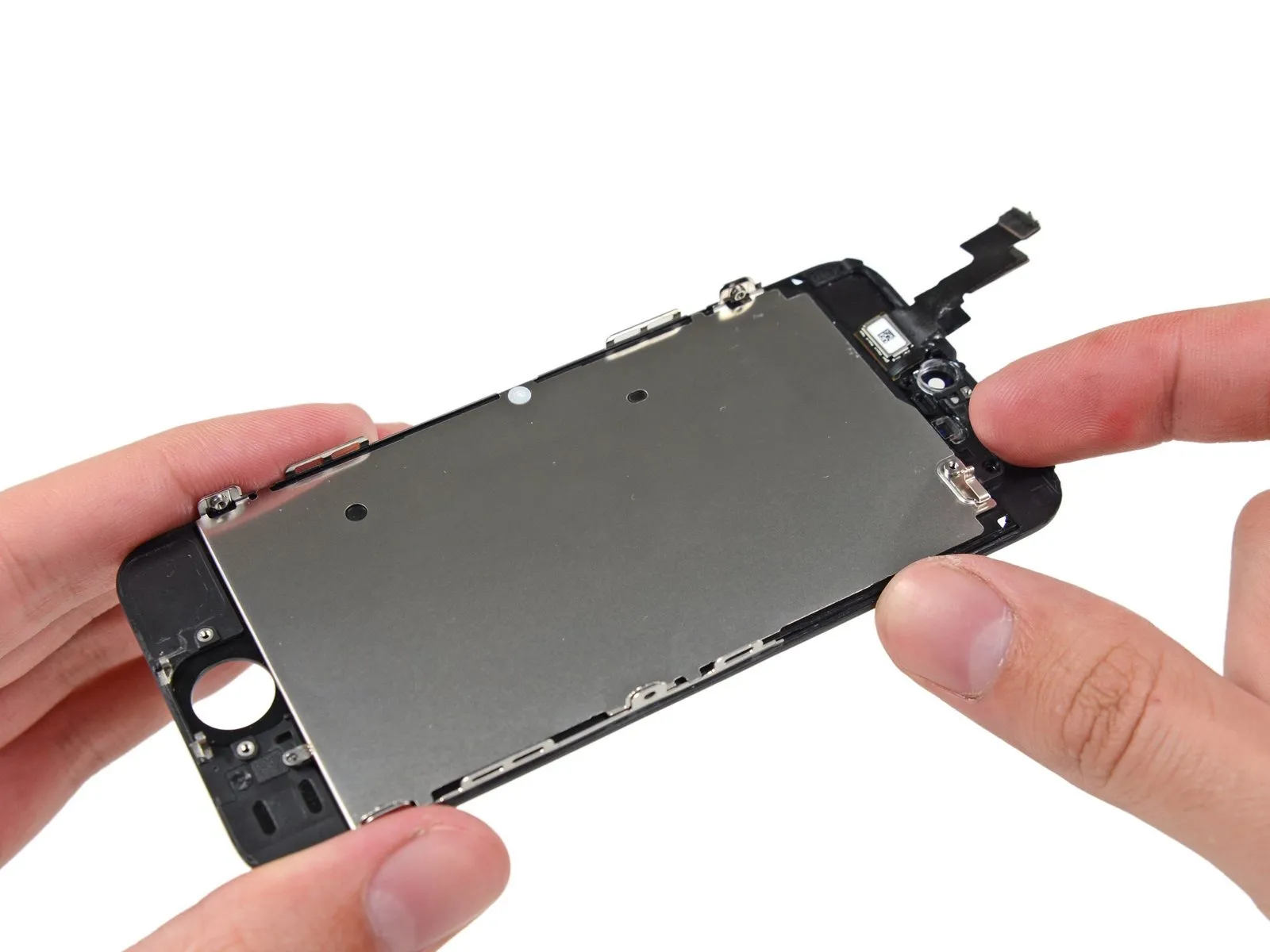

• When reusing a shield plate on a replacement display panel, proceed to the next instruction without repeating this one.

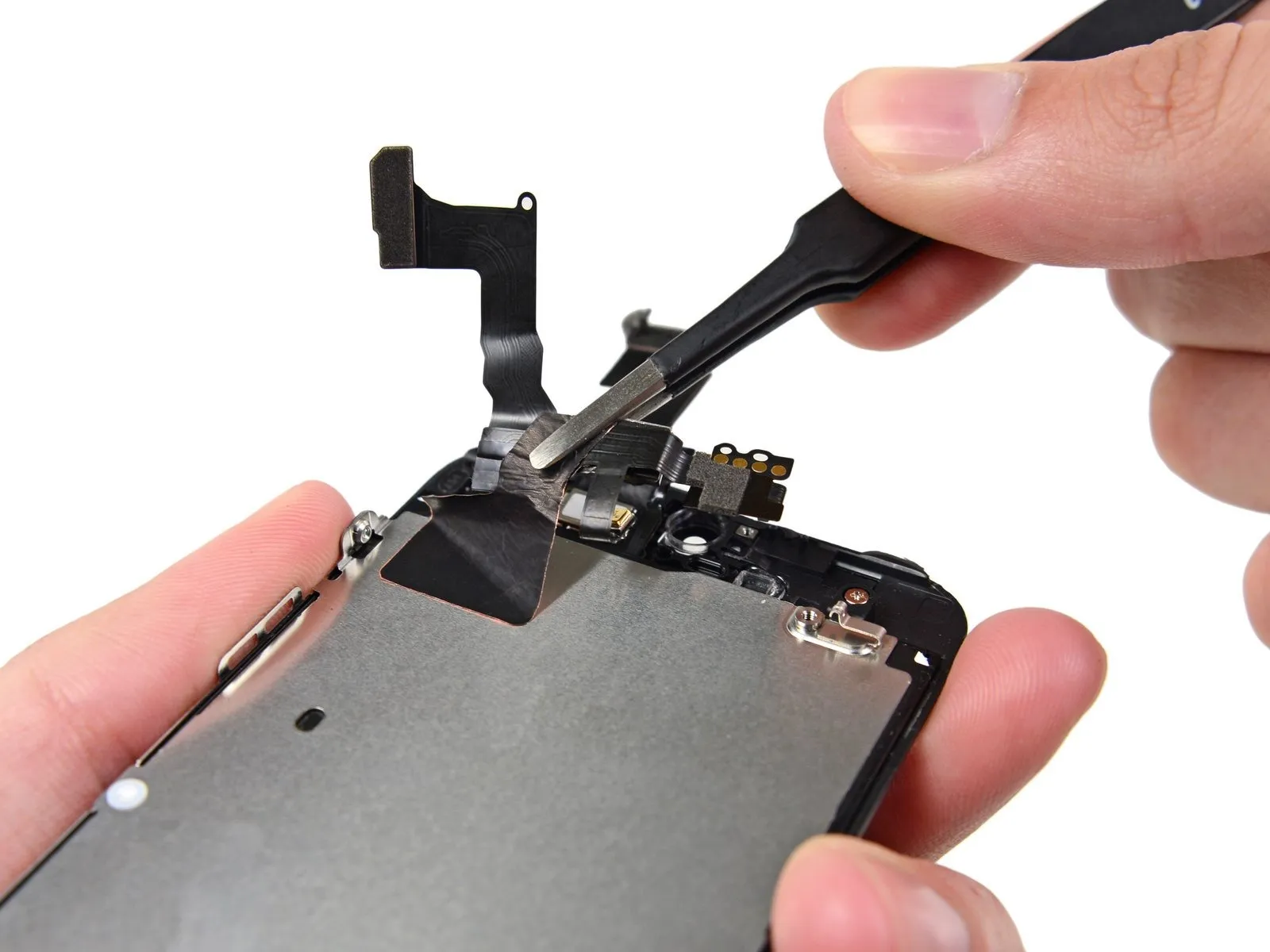

• Detach the cable assembly from the LCD shield plate by gently separating them.
• Avoid contact between your fingers and the digitizer cable during removal of the front-facing camera and sensor assembly.

• Loosen the single, retained fastener by rotating it counterclockwise.Use a Phillips head screwdriver, size 000.Using the Phillips #00 screwdriver, fasten the home button cable with the screw.
• To secure the captive screw to the home button cable, a spring contact provides the necessary pressure; when reassembling, position this contact so it faces toward the LCD, aligning it with the screw's closest side.
• Ensure the new component includes the retaining screw and spring contact; if absent, carefully move these parts from the old cable to the replacement.

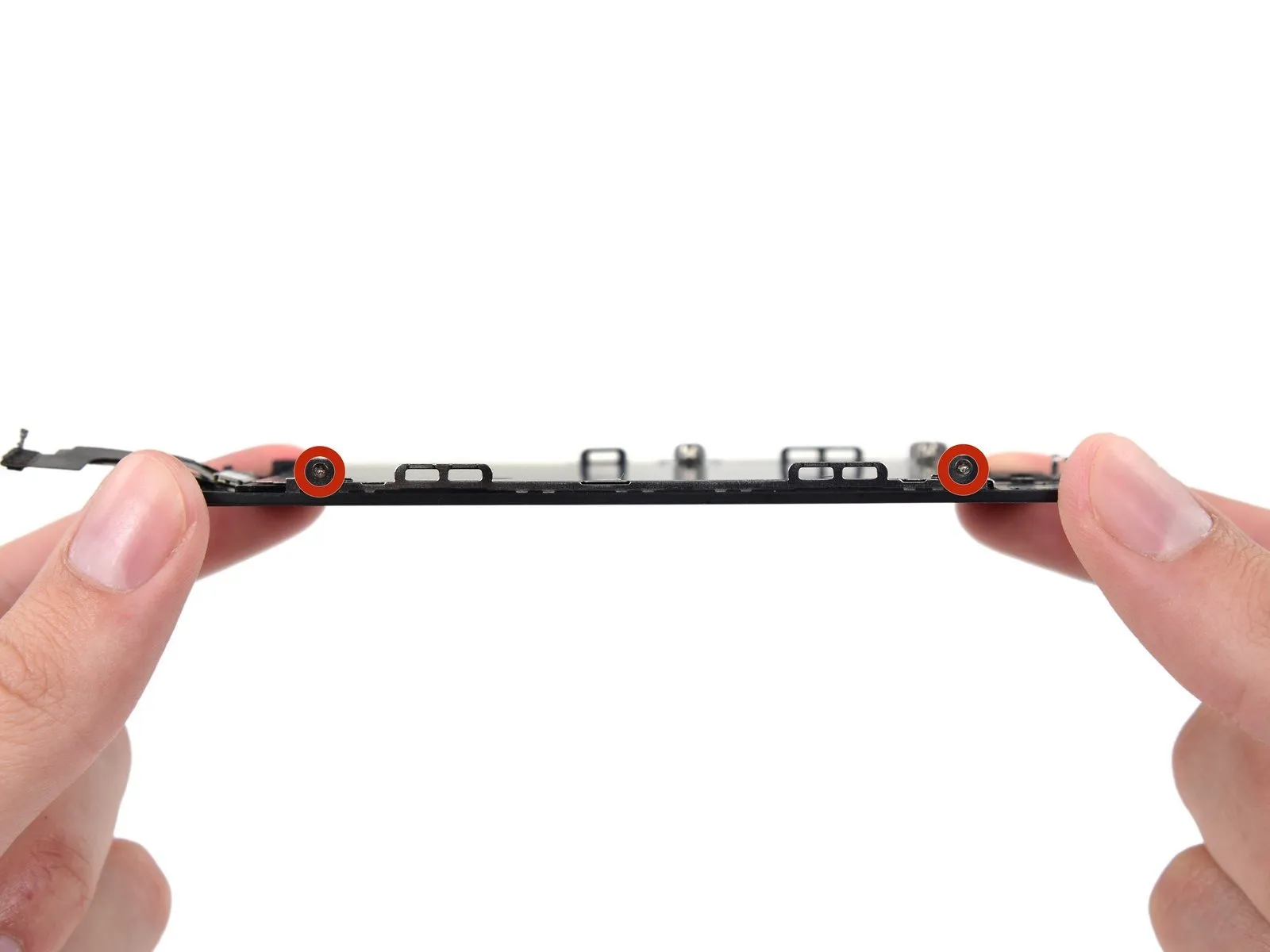

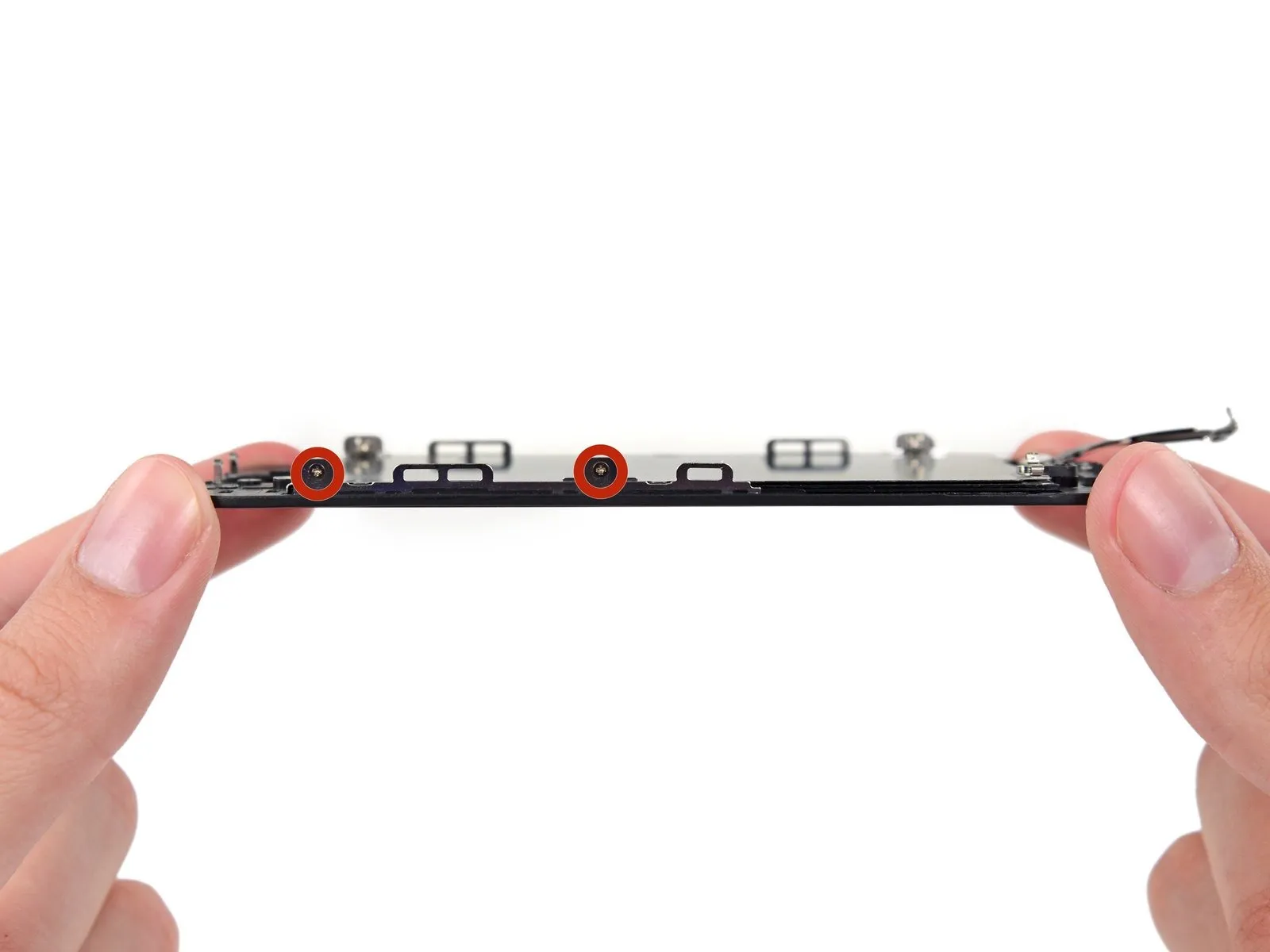

• Using a screwdriver, detach the two 3.5mm screws.Use a Phillips head screwdriver, size #000, with a tip measuring 1.4 millimeters.Carefully remove the screws securing the home button bracket.

• Carefully insert the end of aUse a spudger.Locate the area directly below the home button cable assembly.
• A light adhesive secures the home button cable.
• Carefully maneuver theUse a plastic pry tool to gently separate.Carefully lift the cable to detach the home button cable from the front panel assembly.
• The front panel assembly retains the home button; therefore, avoid detaching it at this stage.

• Carefully peel away any protective tape covering the home button located on the exterior of the damaged front panel assembly, if present.
• Using careful, even pressure, lift the upper-left portion of the home button assembly, separating it from the display assembly.
• Instead of fully depressing the home button, release pressure once a corner becomes exposed, allowing for leverage with a spudger to separate it.Use a plastic pry tool, often referred to as a spudger, to gently separate components..
• Due to its delicate nature, the membrane is prone to damage; should you encounter resistance or a sensation of impending tearing while handling it, gently apply heat and attempt the process once more.

Carefully separate the display from the chassis by using a spudger to gently lift the home button completely free.Use a plastic pry tool, often referred to as a spudger..

Carefully detach the front panel's home button assembly.

Carefully detach theUse a Phillips head screwdriver, size #000, to tighten or loosen the 2.7-millimeter screw.Access the component from the rear side of the display assembly.

• Detach two.Use a Phillips screwdriver with a 1.2 mm tip.Secure the LCD frame with a total of four fasteners, one on each side.
• Before attempting removal, a preliminary loosening of all four screws is recommended to minimize the risk of damage to the screw heads.

Carefully detach the component, ensuring no damage occurs.The display panel is an LCD shield.Carefully detach the display assembly.
The LCD panel and digitizer assembly are still attached.
