iPhone X Charging Pad / Volume Button Assembly Replacement

• To begin, slide a SIM card eject tool, or a straightened paperclip, into the tiny aperture situated on the SIM card tray, which is positioned close to the side button along the iPhone's edge.Apply consistent pressure to release the tray from its slot.
• The tray will then pop out.

• Extract the SIM card tray from the iPhone's housing.
• The SIM card should detach from the tray with minimal effort.
• During the process of placing the SIM card back into the tray, confirm its alignment is correct.
• A flexible, thin seal made of rubber encircles the SIM tray, safeguarding the iPhone's interior from moisture and particulate matter; should this seal become compromised or be absent, substitute it or the SIM tray assembly to maintain the iPhone's internal component protection.

As a crucial safety precaution prior to commencing the repair, ensure your iPhone's battery is depleted to a level below 25%; a fully charged lithium-ion battery presents a fire hazard and potential explosion risk if it sustains accidental physical damage.
To ensure safety and prevent short circuits, completely de-energize the iPhone by powering it down before you start taking it apart.
Carefully remove the twopentalobe screws, each measuring 6.9 mm in length,which are located along the bottom edge of the iPhone's casing.

• Should the pentalobe screws exhibit signs of damage or stripping, it is necessary to substitute them with replacements to maintain proper device integrity.

Disassembly of the iPhone's display assembly will inevitably damage the factory-installed waterproof seals; therefore, it is strongly advised to have replacement seals on hand before proceeding beyond this stage, or to exercise extreme caution to prevent moisture ingress if you intend to reassemble the iPhone without new seals.

To avoid potential harm to your device, ensure the opening pick does not penetrate excessively; this procedure details how to identify the safe insertion depth by marking the pick.
Determine the distance of3 mmfrom the pick's pointed end, then use a permanent marker to create a visible indicator on the opening pick.
For enhanced precision, consider marking other points on the pick with varying measurements to accommodate different tasks.
As another method, affix a coin to the pick's tip, positioning it precisely 3 mm from the end.

• To minimize additional damage and potential injury while repairing a fractured iPhone display, secure the broken glass with adhesive tape.
  Apply multiple layers of transparent packing tape across the iPhone's screen surface, ensuring complete coverage of the front face.
• Always utilize eye protection, specifically safety glasses, to guard against glass fragments that may become dislodged during the repair process.
• Should the suction cup fail to maintain adhesion during subsequent procedures, create a handle by folding a robust tape, like duct tape, and employ it to carefully elevate the screen.
• As a last resort, secure the suction cup directly to the screen's surface using superglue.

• To disengage the Anti-Clamp's gripping arms, retract the blue handle towards the rear.
• Carefully position the arms across either the left or right side of your iPhone.
• Place the suction cups close to the lower edge of the iPhone, ensuring one is situated on the front surface and the other on the rear.
• Apply pressure by compressing the cups together to establish a secure suction hold on the intended area.
• Should the iPhone's surface prove excessively smooth, hindering the Anti-Clamp's ability to maintain grip, applying adhesive tape can provide a more textured interface.

• Position the iOpener so that it rests along the lower edge of the iPhone’s casing.
• Allow a sixty-second interval to elapse, enabling the adhesive to loosen and generate a separation.
• Introduce an opening pick beneath the display and the surrounding plastic frame, ensuring it does not contact the screen directly.
• Should the Anti-Clamp fail to produce an adequate separation, increase the heat applied to the region and rotate the handle by ninety degrees.
• Avoid incremental rotations exceeding ninety degrees, and incorporate a sixty-second pause between each adjustment, allowing the Anti-Clamp and time to facilitate the separation process.

• Employing a hairdryer, heat gun, or iOpener, direct it towards the lower edge of the iPhone for approximately one minute to reduce the adhesive's tackiness.
• Excessive heat when utilizing a hairdryer or heat gun carries the risk of screen damage, so avoid overheating.

• Maintain steady, consistent upward force on the suction cup to generate a small separation between the display assembly and the device's surrounding structure.
• Carefully position an opening tool within the created space, ensuring it is inserted beneath the plastic trim surrounding the display, and avoiding direct contact with the display surface itself.
• Because the waterproof adhesive securing the display is exceptionally robust, establishing this initial separation requires considerable force; should you encounter difficulty, apply additional heat and gently oscillate the display to loosen the adhesive until sufficient separation is achieved for tool insertion.

• Using a separation tool, carefully maneuver it along the bottom-left perimeter of the iPhone's display and upward along the left side, severing the adhesive securing the display assembly.
• Exercise caution and limit the tool's insertion depth to a maximum of 3 millimeters to prevent potential harm to the internal components.

• Fragile wiring is situated along the right-hand side of the iPhone; avoid inserting any tools in this area to prevent potential cable damage.

• To proceed with disengaging the adhesive, reintroduce your opening tool at the lower boundary of the iPhone's display and advance it upwards along the right-hand side.
  Exercise caution to avoid inserting the tool beyond a depth of 3 millimeters, to prevent potential harm to the delicate display cable connections.

• Adhesive and retaining clips together fasten the uppermost border of the screen.
  Using a separation tool, maneuver it along the upper corner of the display, applying slight downward pressure while moving the screen towards the Lightning connector.
  Excessive force will cause the clips to fracture; therefore, proceed with caution and allow ample time.
• Limit the tool's insertion depth to a maximum of 3 millimeters to prevent potential harm to the front panel sensor array.
  Continue moving the separation tool to the opposing corner to sever any residual adhesive holding the display in place.

• Detach the suction cup from the front panel's surface by exerting traction on the small protrusion located on its body.

• To access the internal components, initiate the opening process by pivoting the display upwards from the left edge, mimicking the action of opening a book's cover.
• Refrain from completely detaching the display assembly at this stage, because multiple delicate ribbon cables remain connected to the iPhone's main circuit board.
• Confirm, as illustrated, that the frame lifts off with the display, preventing it from becoming lodged within the device's casing.
• Secure the display in an upright position using a support to maintain stability during the repair procedure.
• When reassembling the device, position the display, ensuring the retaining clips along the upper edge are properly aligned, and then gently apply pressure to the top edge before securing the remainder of the display. Should the display not seat easily, inspect the clips surrounding the display's border for any deformation and correct as needed.

• To detach the logic board connector bracket, first extract the five Y000 screws that hold it in place, noting the varying lengths of each fastener.
  Specifically, three screws measure 1.1 millimeters in length.
  A single screw is 3.1 millimeters long.
  Additionally, one screw has a length of 3.7 millimeters.

During the entire repair process, meticulously organize each screw and ensure its correct replacement in the original location to prevent potential damage to your iPhone.

• Detach the bracket.
  The bracket might be subtly affixed; employ a careful, yet resolute upward motion to disengage it.

As you reassemble the device, it's advisable to activate your iPhone and verify the operational status of every feature prior to securing the display. Ensure your iPhone is fully powered off before proceeding with further repairs.

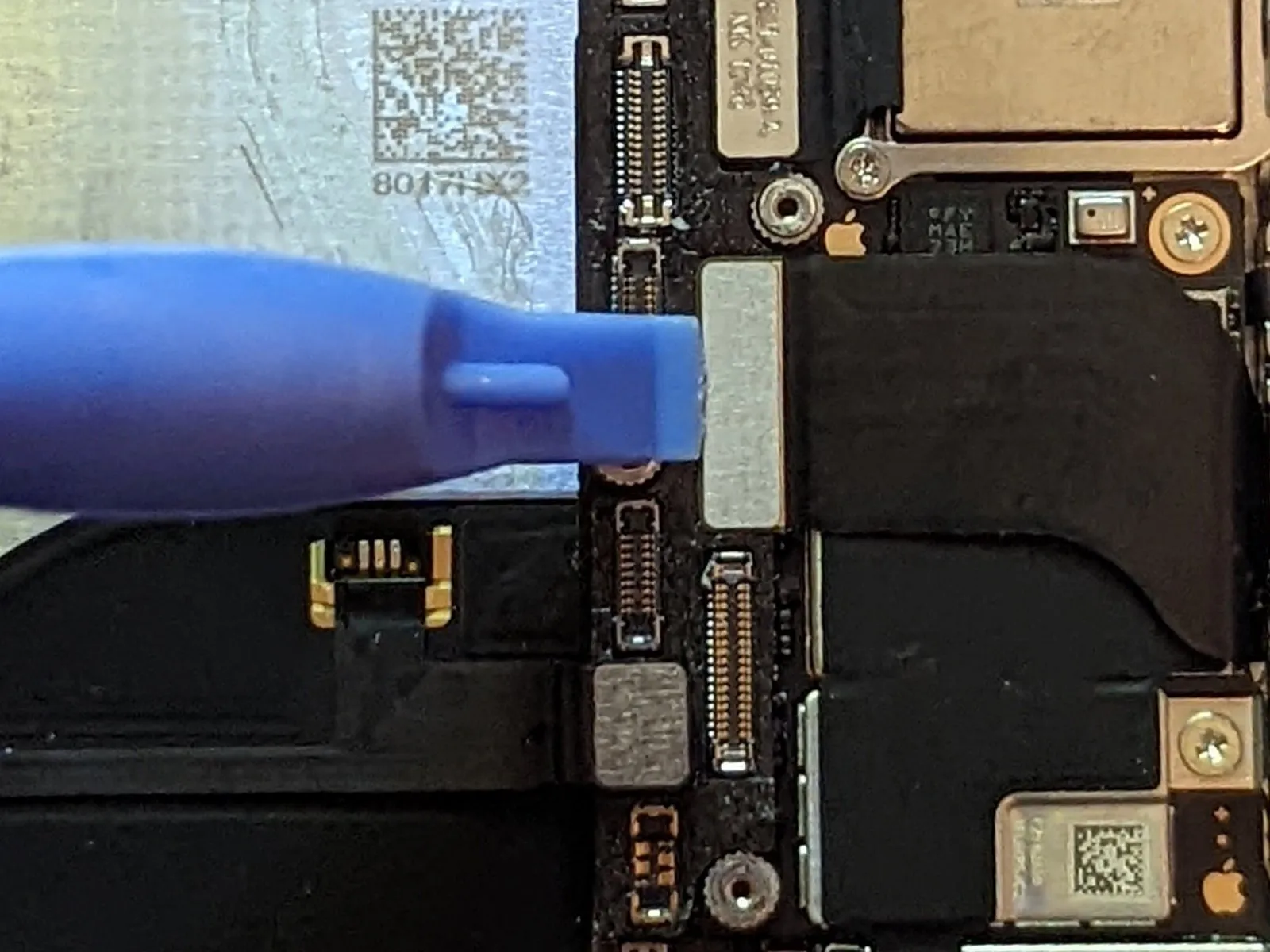

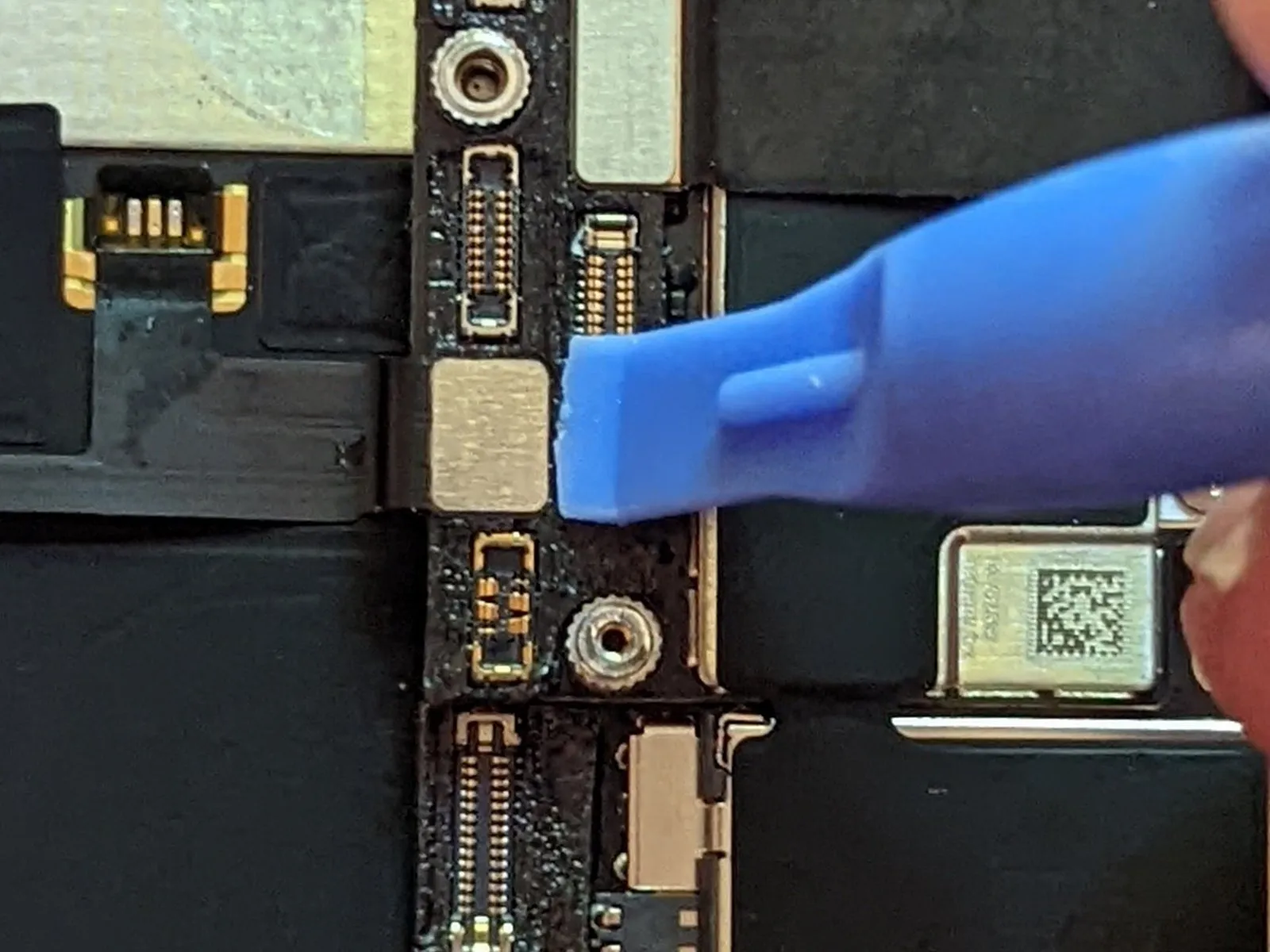

• Employing the tip of a spudger or a pristine fingernail, carefully lift the battery connector away from its corresponding receptacle on the logic board.
  Exercise caution to avoid harming the black silicone seals that encircle this connector and others on the board, as they offer supplemental defense against water and dust penetration.

Slightly deflect the connector outward from the logic board to ensure it remains disconnected and prevents unintended power delivery to the device during the repair process.

• Employ the tip of a spudgeror a fingernailto release the OLED panel cable connector's latching mechanism.
• For reassembly, position the connectors precisely and apply pressure to one edge until a distinct click is heard, subsequently repeating the process on the opposing edge; avoid applying pressure to the central portion. Incorrect alignment during reattachment risks bending the internal pins, which could result in irreversible component failure.

• Employ the tip of a spudgerto carefully lift the digitizer cable connector from its receptacle.
• Due to the connector's deeply set position, reattachment can be challenging; proceed deliberately, ensuring precise alignment before applying gentle pressure with your fingertip to secure it – initially one side, then the other – until you hear a distinct clicking sound indicating proper engagement.
• Should any portion of the screen exhibit a lack of touch responsiveness following the repair, initially detach the battery, then re-engage this connector, verifying a full click and confirming the absence of dust or any foreign material within the socket.

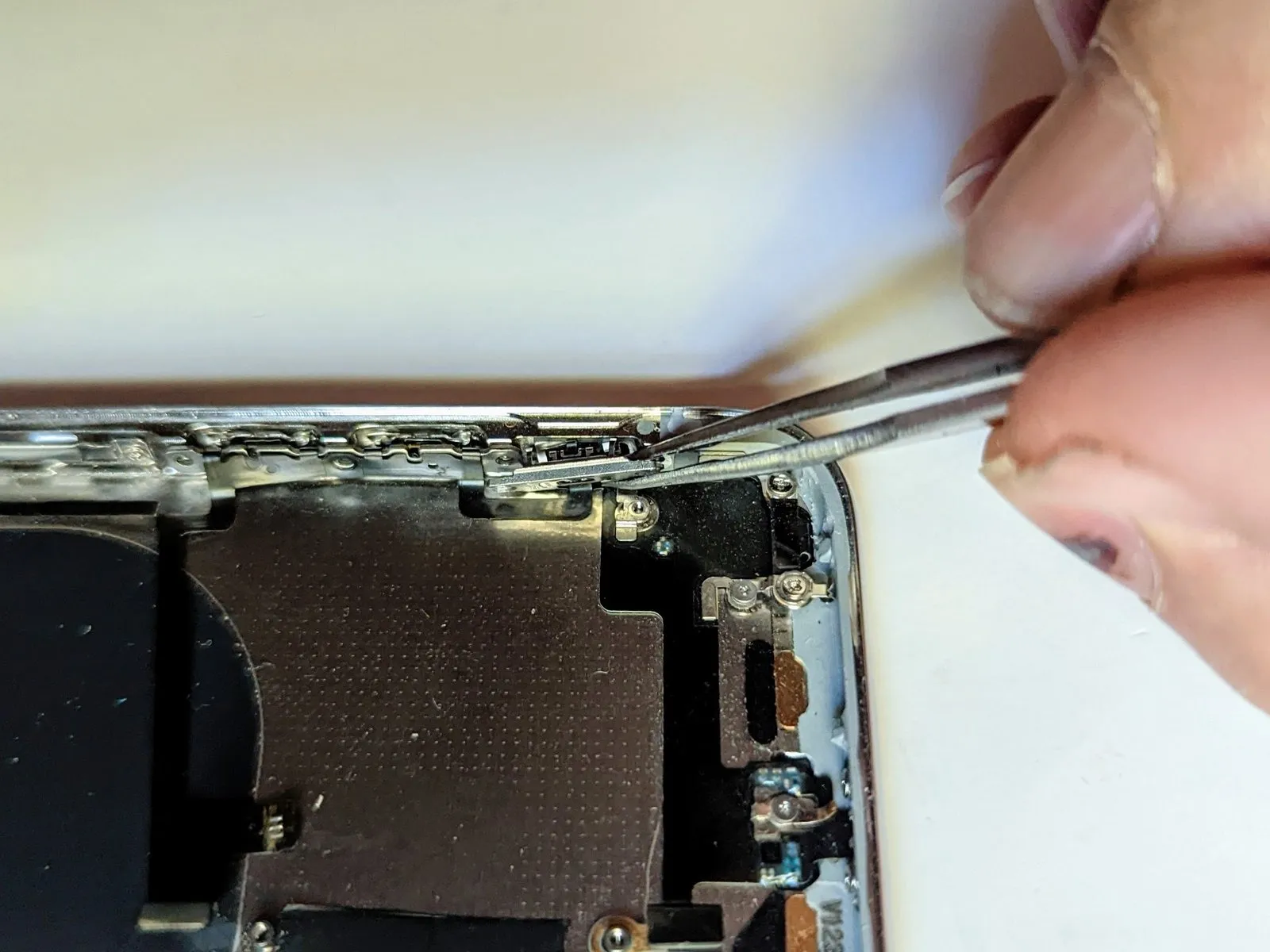

The assembly containing the front panel sensor is secured with a delicate adhesive along its flex cable.
Gently raise the cable to release the adhesive bond.

• Detach the display unit from the device.
• If you intend to substitute the waterproof adhesive sealant that borders the display during reassembly, halt the process at this stage.

• Exercise caution to avoid contact with the three rows of grounding contacts located close to the base of the iPhone.
• Detach the bracket situated beneath the Taptic Engine and speaker by unscrewing the seven fasteners it holds in place.
  • Two screws, utilizing a Y000 screwdriver with a 1.9 mm tip, are required.
  • A single Y000 screw, with a 1.2 mm tip, must also be removed.
  • One Y000 screw, featuring a 1.6 mm tip, is another fastener to be taken out.
  • A Phillips head screwdriver, sized at 2.4 mm, is needed for one of the screws.
  • One Phillips screw, measuring 1.7 mm, also needs to be removed.
  • Finally, a Phillips screw with a 1.5 mm dimension must be detached.

• To access the component, elevate the retaining clip originating from the battery's closest periphery.
• Avoid complete detachment during this initial step, because a short, flexible cable maintains its connection.

• To prevent interference from the bracket, secure it aside, then utilize the tip of a spudger to carefully lift and detach the flex cable situated beneath.

• Detach the2.1-millimeter Y000 screwwhich fastens the speaker connector cover in place.

• Employ the pointed end of a spudgerto carefully lift and detach the speaker's electrical connector.

Exercise caution while separating the speaker from the device, preventing any harm to the flex cable that was recently detached; if needed, secure the cable to the side to facilitate speaker removal.

• Position a spudger beneath the upper boundary of the speaker, situated close to the iPhone's casing.
• Apply a delicate upward force and elevate the speaker's top edge.

During the speaker's reinstallation, verify the flex cable's alignment and confirm it remains free from entrapment beneath the speaker.

Grasp the speaker firmly along its lateral borders, gently oscillating it to disengage the adhesive that bonds it to the iPhone's lower rim.

• Continue moving the speaker outward from the iPhone's base until the adhesive gasket releases its hold.

Detach the speaker component from the device.

The speaker's gasket is designed for single use and cannot be reused; adhere to the following procedure when reassembling to ensure proper replacement.

• Employing tweezers, detach and eliminate all remnants of the existing gasket material from both the frame and the speaker.
• Thoroughly cleanse any adhesive residue left by the old gasket from the frame and speaker surfaces utilizing a microfiber cloth dampened with isopropyl alcohol.
• Prior to installing the replacement gasket, identify its correct positioning on the speaker's underside, noting that the substantial recess should align with the speaker grille mesh.
• Detach the larger, transparent protective liner from the gasket and, with the assistance of tweezers, precisely position the gasket onto the speaker's underside.
• To prevent contamination of the adhesive surface, only handle the gasket by its liner's peripheral regions.
• Secure the gasket with its adhesive by applying firm pressure across its surface using your fingers or a spudger.
• Discard the remaining liner and install the speaker, exercising caution to prevent the speaker connector from becoming trapped beneath.

• To detach the component, eliminate the2.3-millimeter Phillips screwthat holds the Taptic Engine in place.

• Employ a spudger to release the Taptic Engine flex cable, carefully separating it from its connector by applying upward pressure.

• Carefully detach the Taptic Engine component.

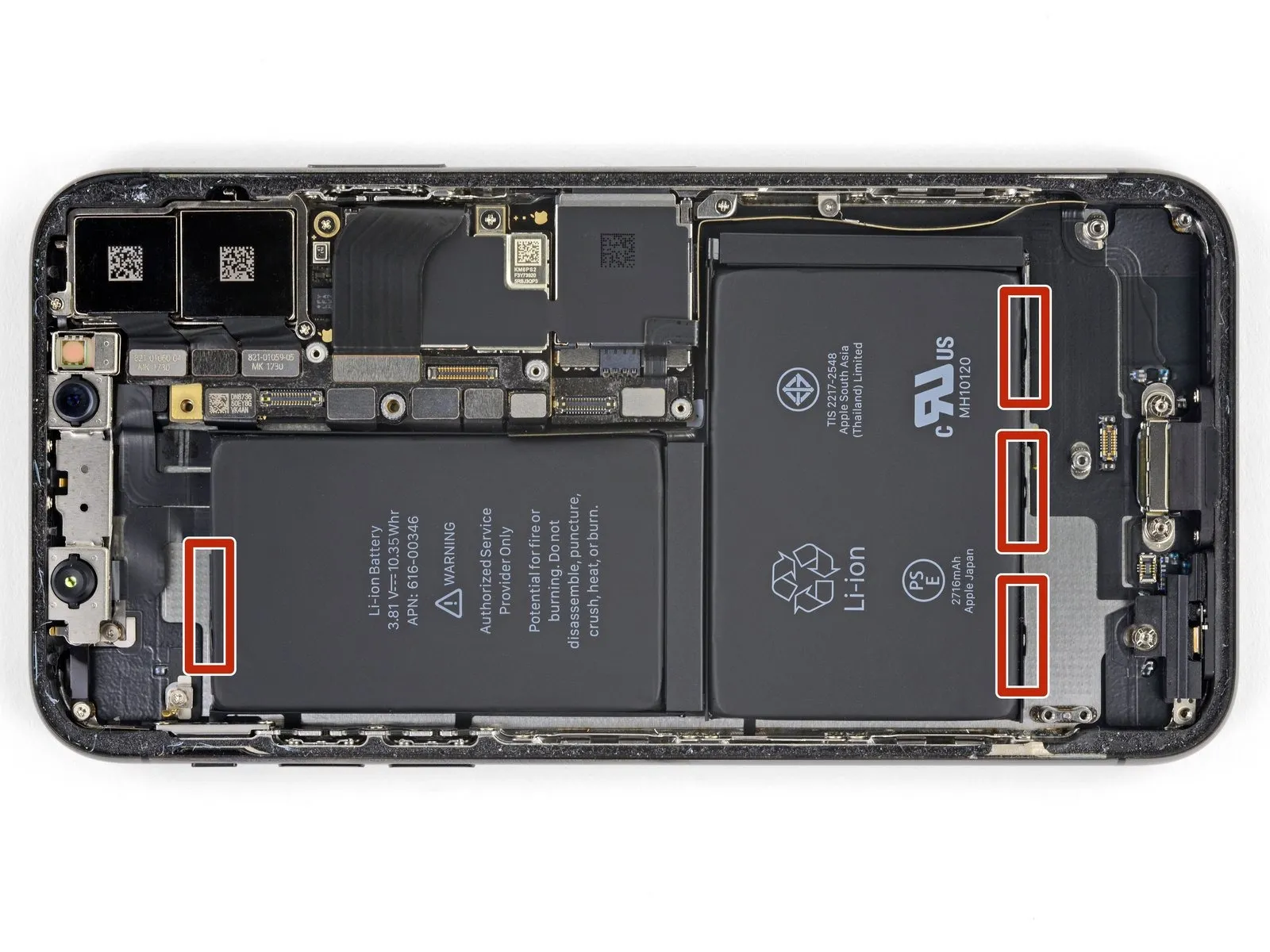

Four strips of stretch-release adhesive fasten the iPhone X's battery to the back cover; a single strip secures the upper battery cell, while three secure the lower portion.

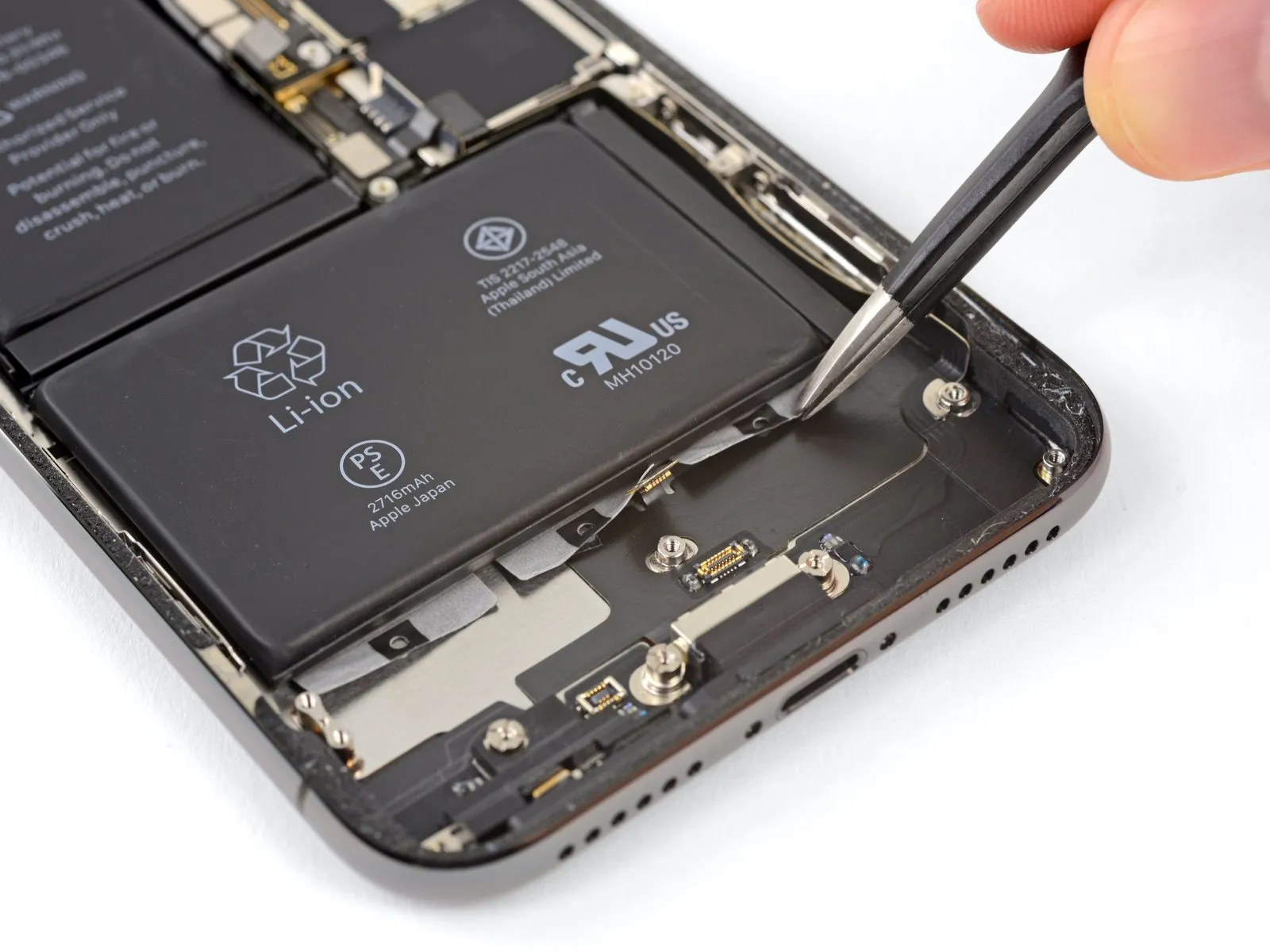

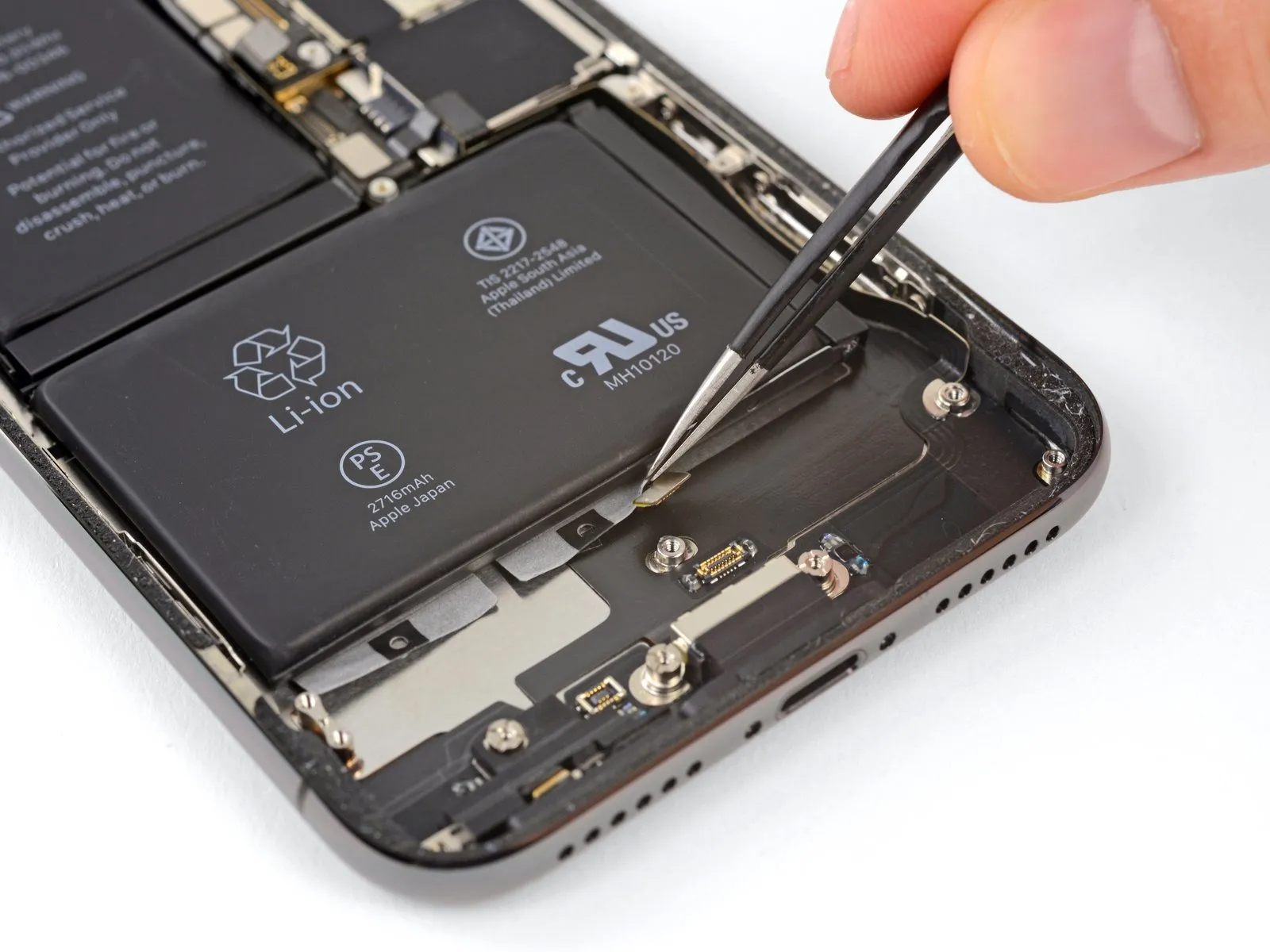

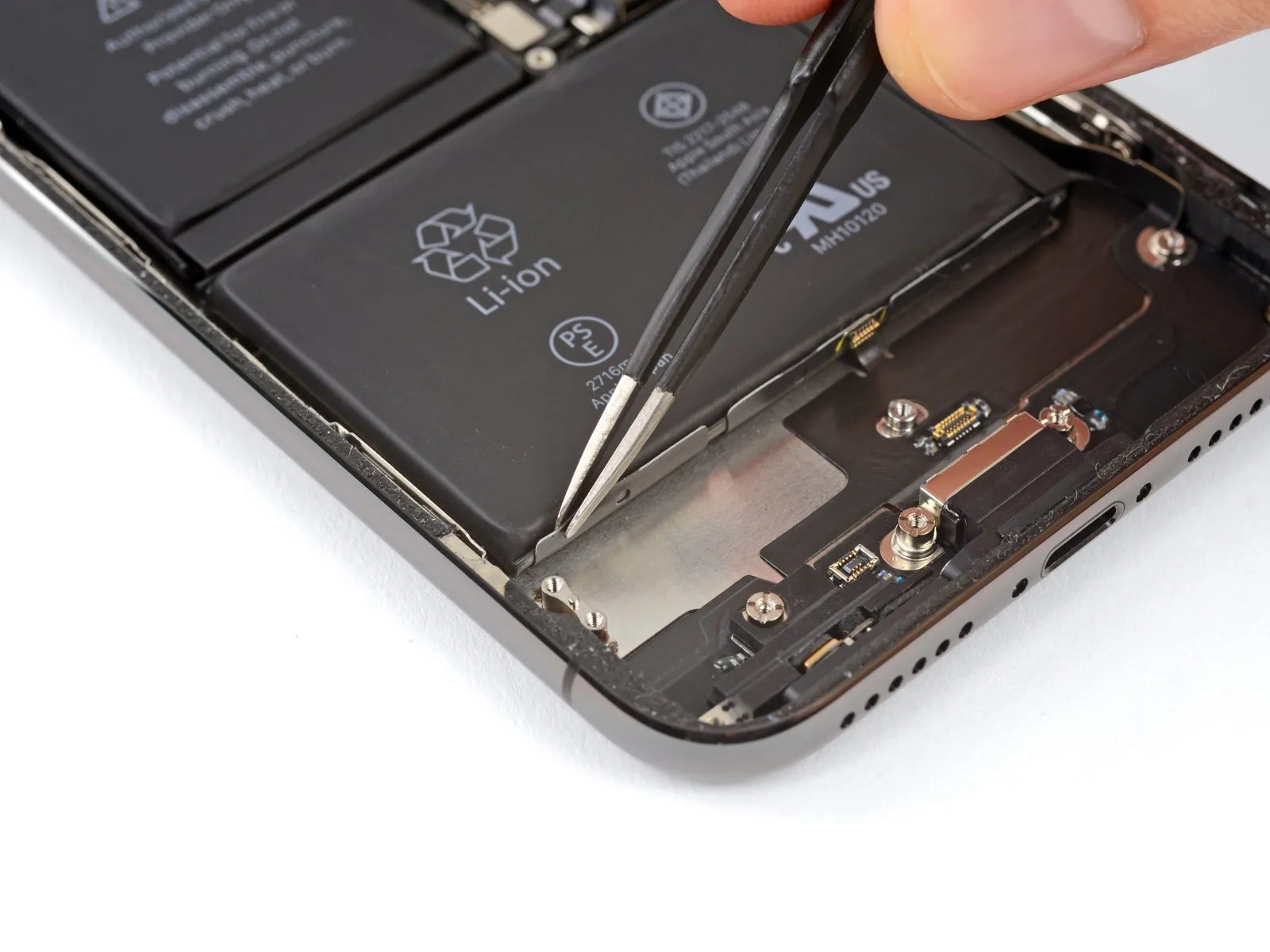

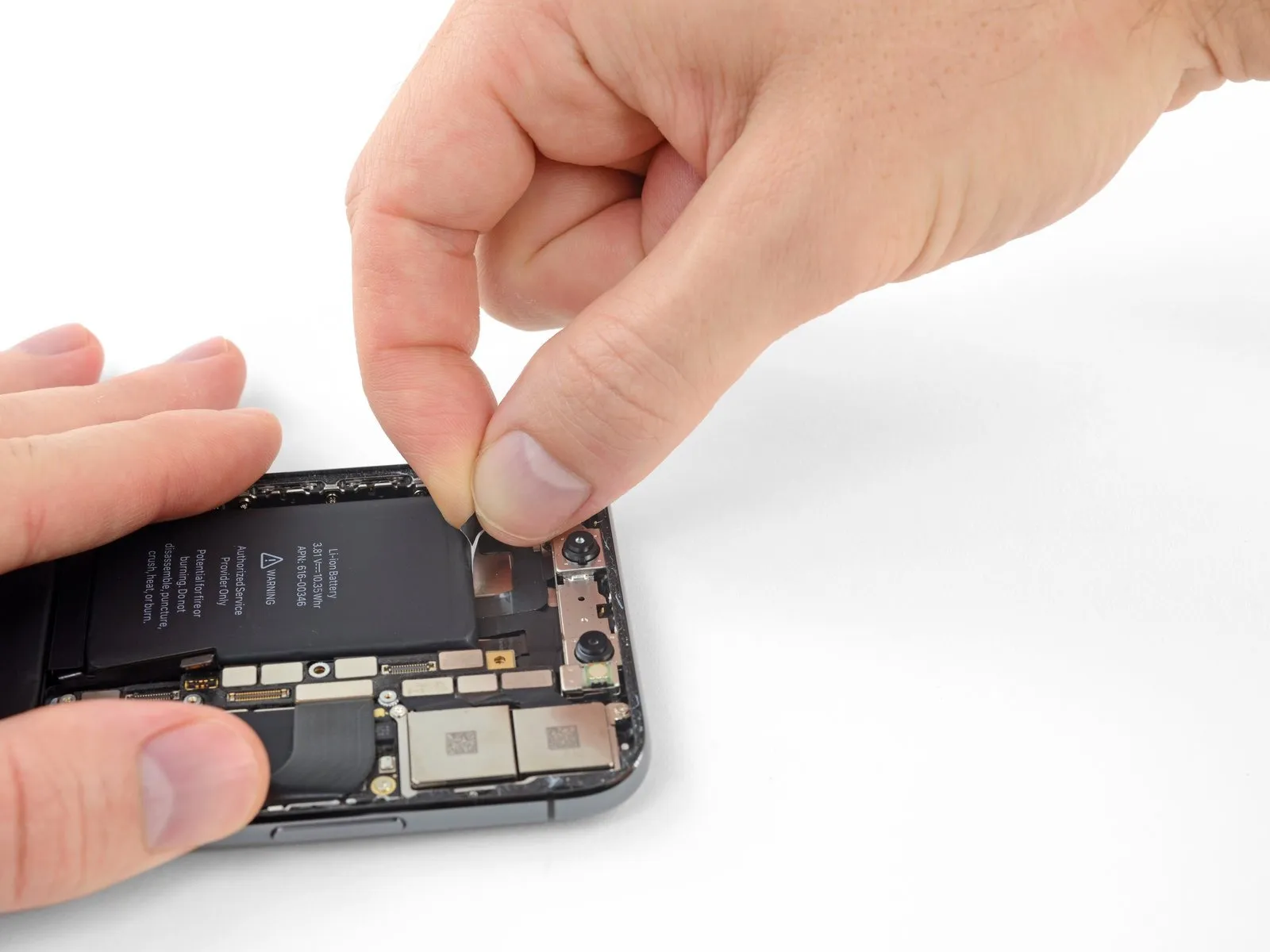

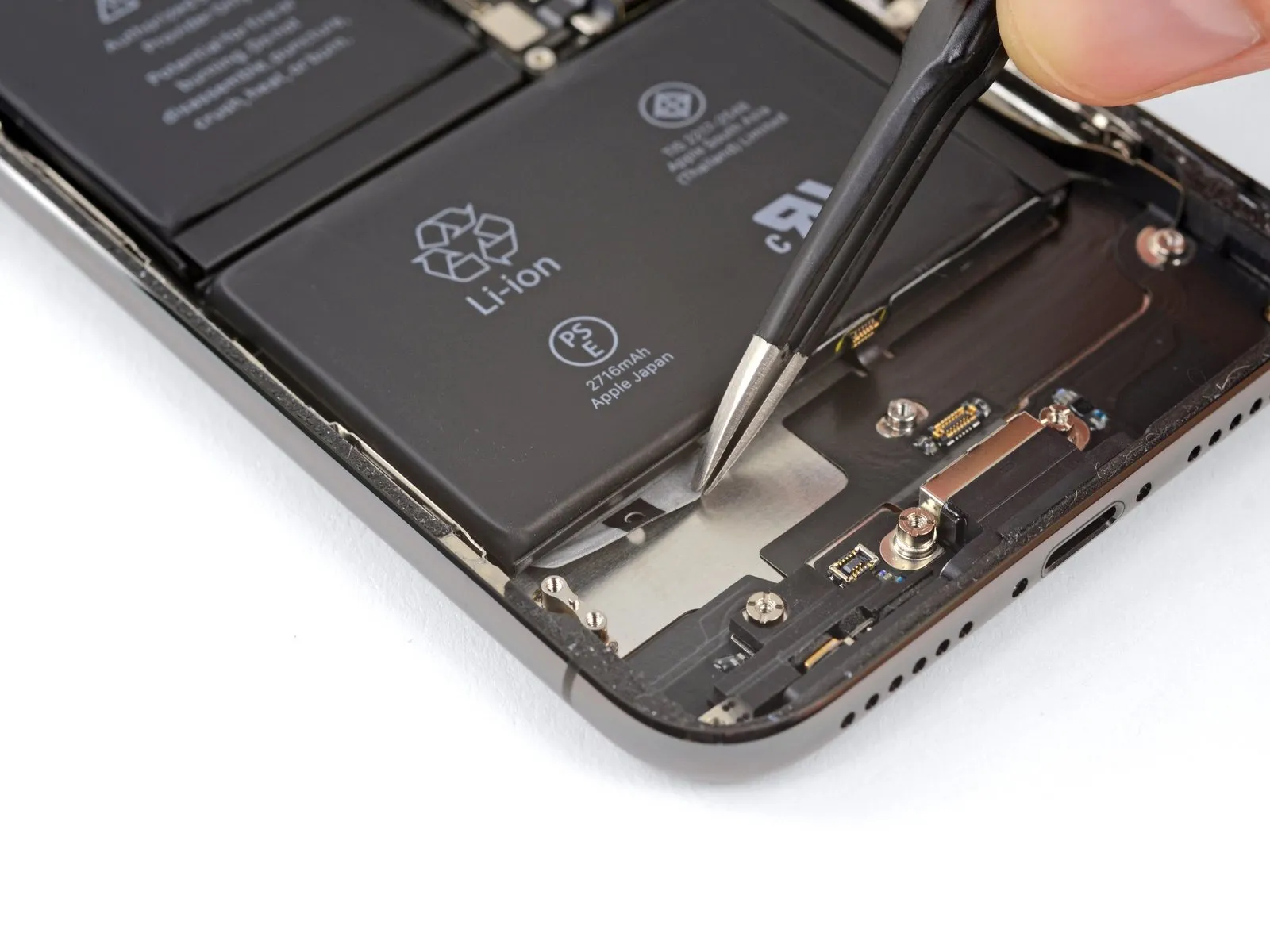

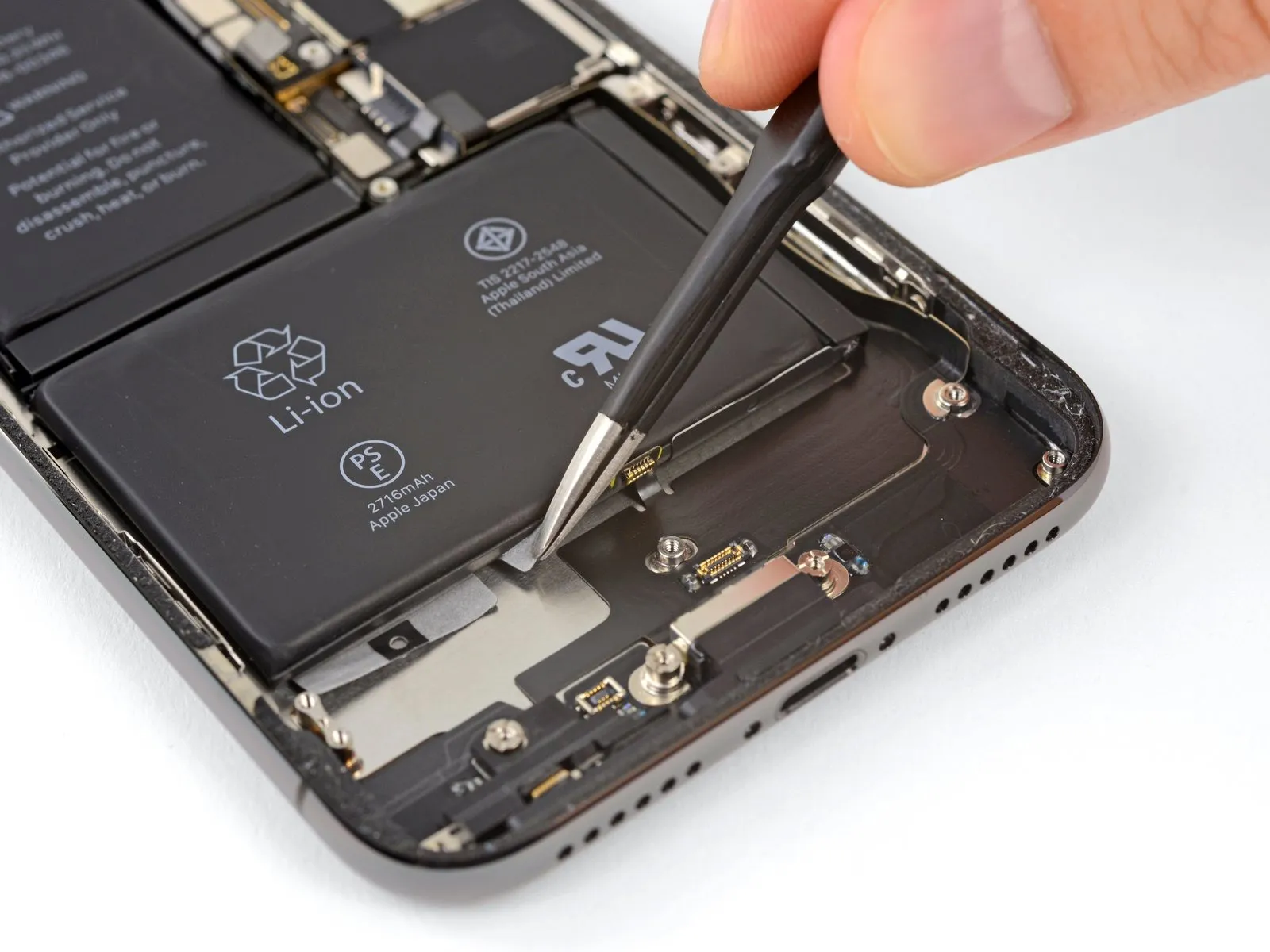

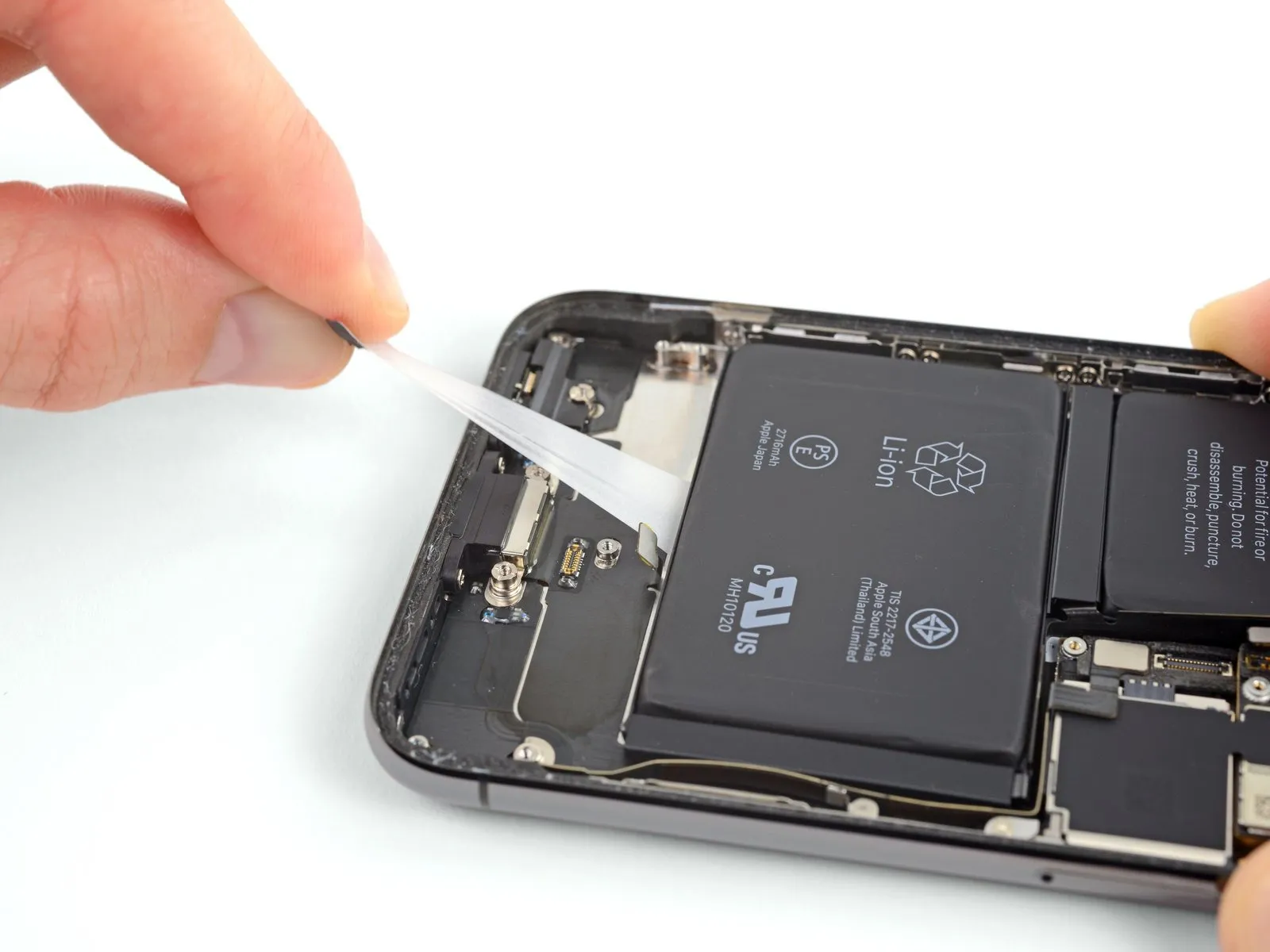

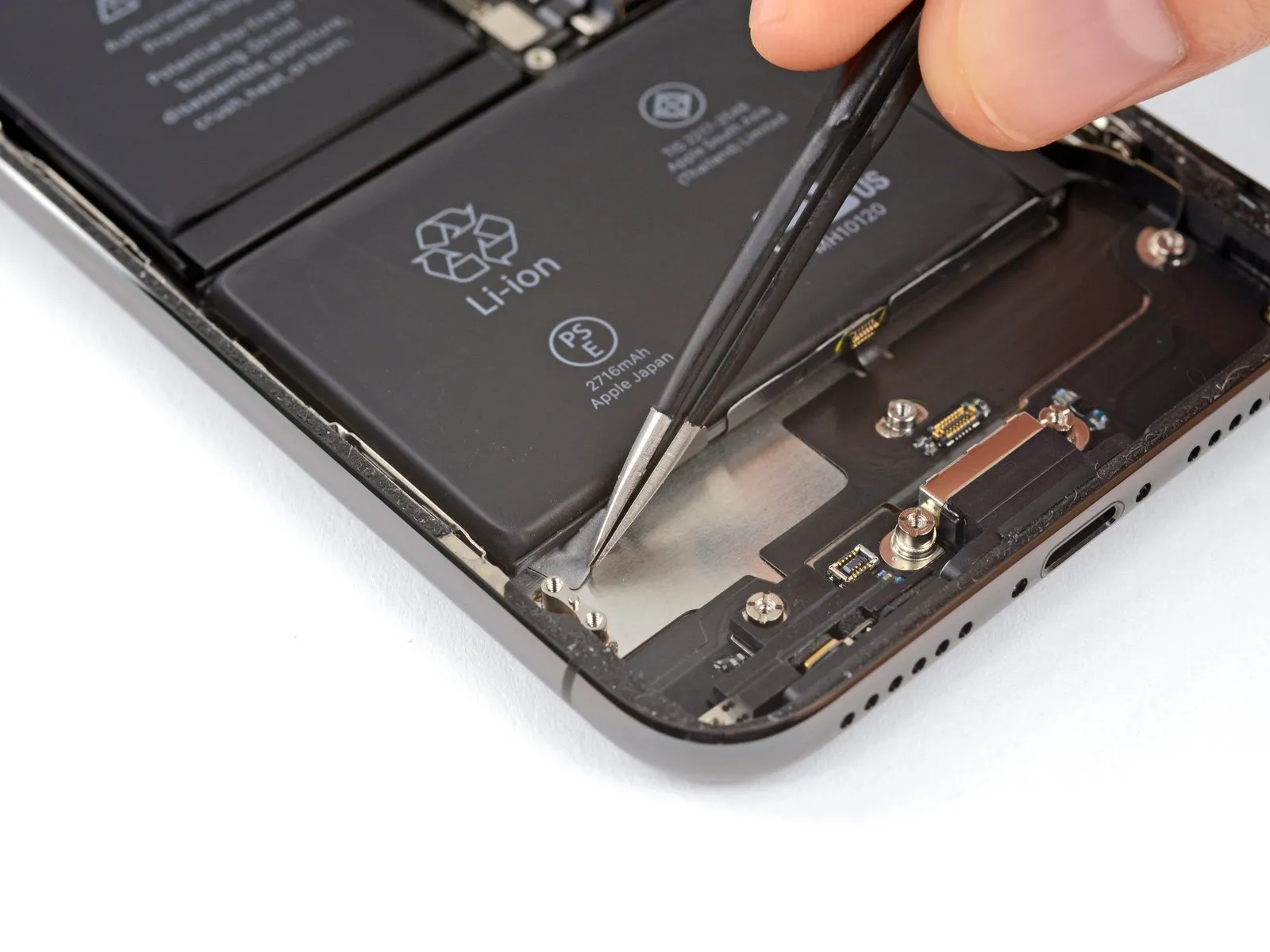

• Detach the initial battery adhesive tab from the battery's lower border using a separation technique.
• If grasping the tab proves difficult, utilize a specialized tool to pass through the small, central loop present on every tab.
• Exercise caution to prevent puncturing the battery with pointed instruments, as such damage could result in the release of hazardous substances or ignition.

• To detach the remaining two adhesive tabs, perform the previously described procedure once more, ensuring they are fully released from the battery's lower edge.
• Exercise caution during this process to prevent any harm to the speaker cable connector, which is situated directly beneath the central adhesive tab.

The subsequent instructions detail how to gently extend each adhesive tab, facilitating the separation of the adhesive layer from the battery's surface. This unique stretch-release adhesive diminishes its stickiness when extended, enabling it to be removed cleanly from the device, simplifying battery extraction.

Should any of the adhesive strips fracture during the process, remain composed; their functionality isn't guaranteed. Proceed to the subsequent instructions for alternative methods to address broken strips.
To maximize the likelihood of a successful repair:
Avoid applying downward pressure to the battery; instead, maintain a secure grip on the iPhone's frame.
Ensure the adhesive strips remain smooth and free of creases throughout the pulling procedure.
Exercise extreme caution and pull with deliberate slowness, allowing sufficient time for the strip to extend and disengage; each strip typically requires 15 to 30 seconds of stretching for complete removal.
Maintain a shallow pulling angle to prevent the strip from catching on the battery's lower edge.
If a strip breaks and remains adhered to the battery's underside, preventing its retrieval, proceed to the remaining strips and then follow the supplementary instructions provided below.

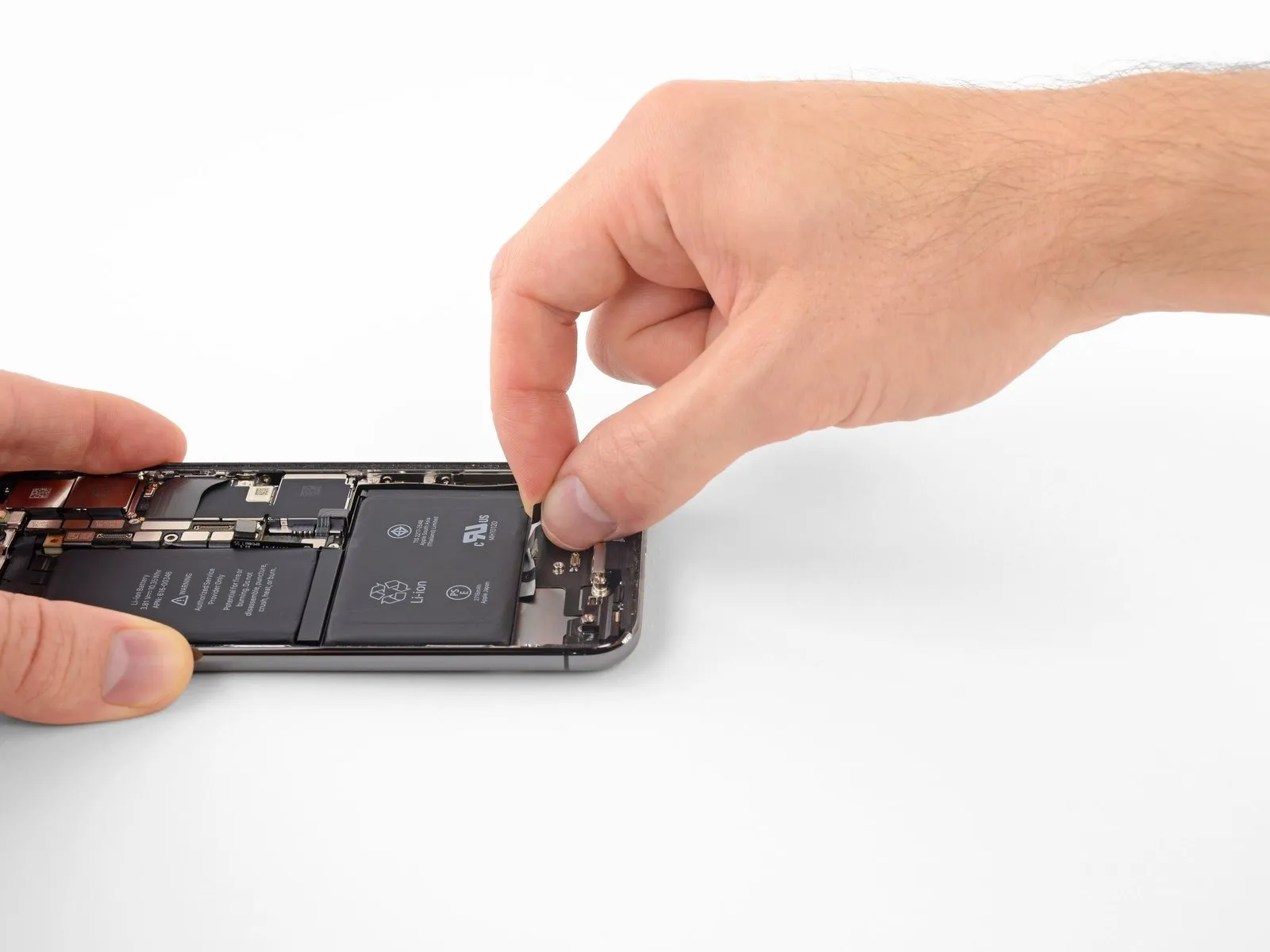

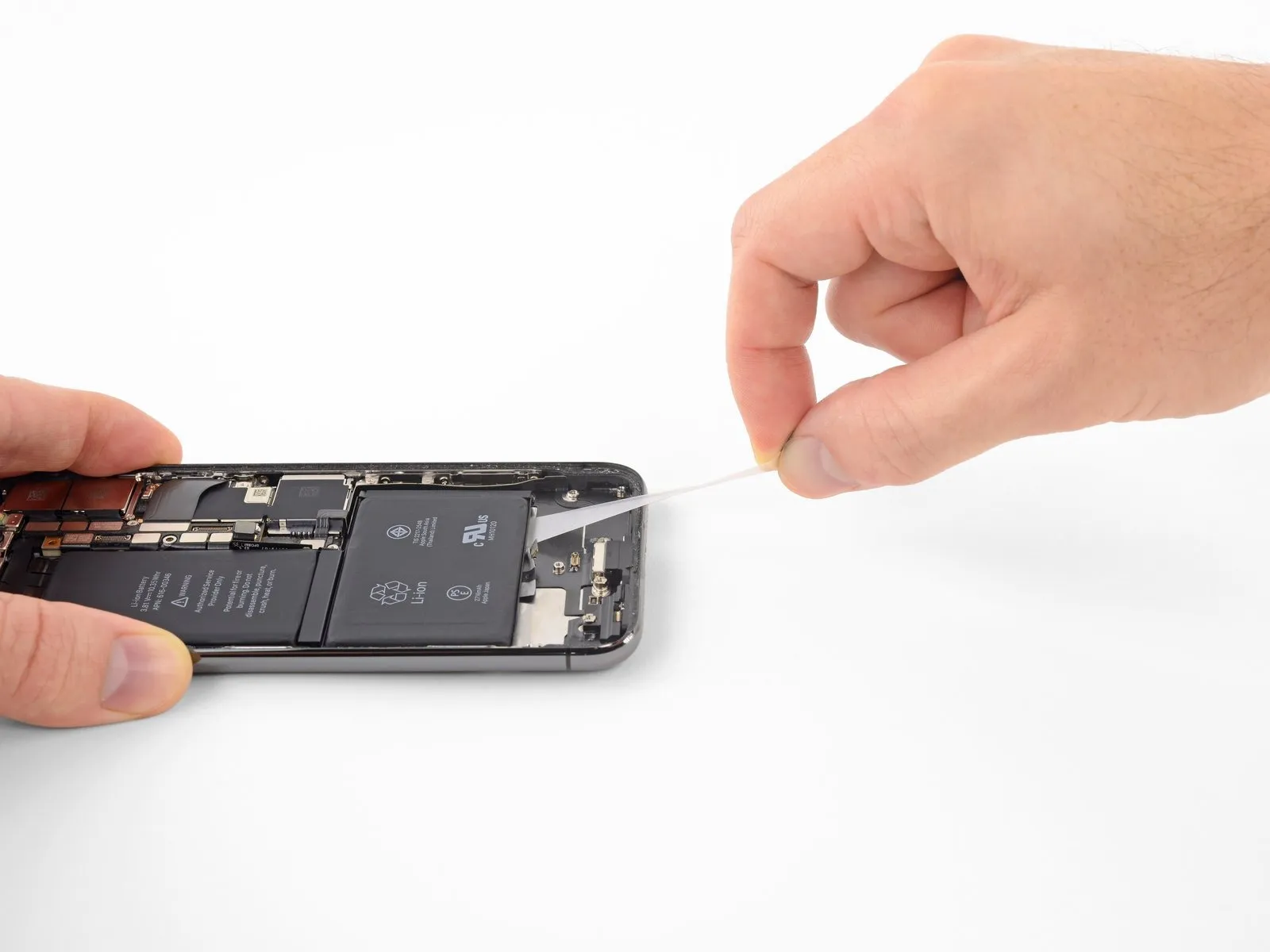

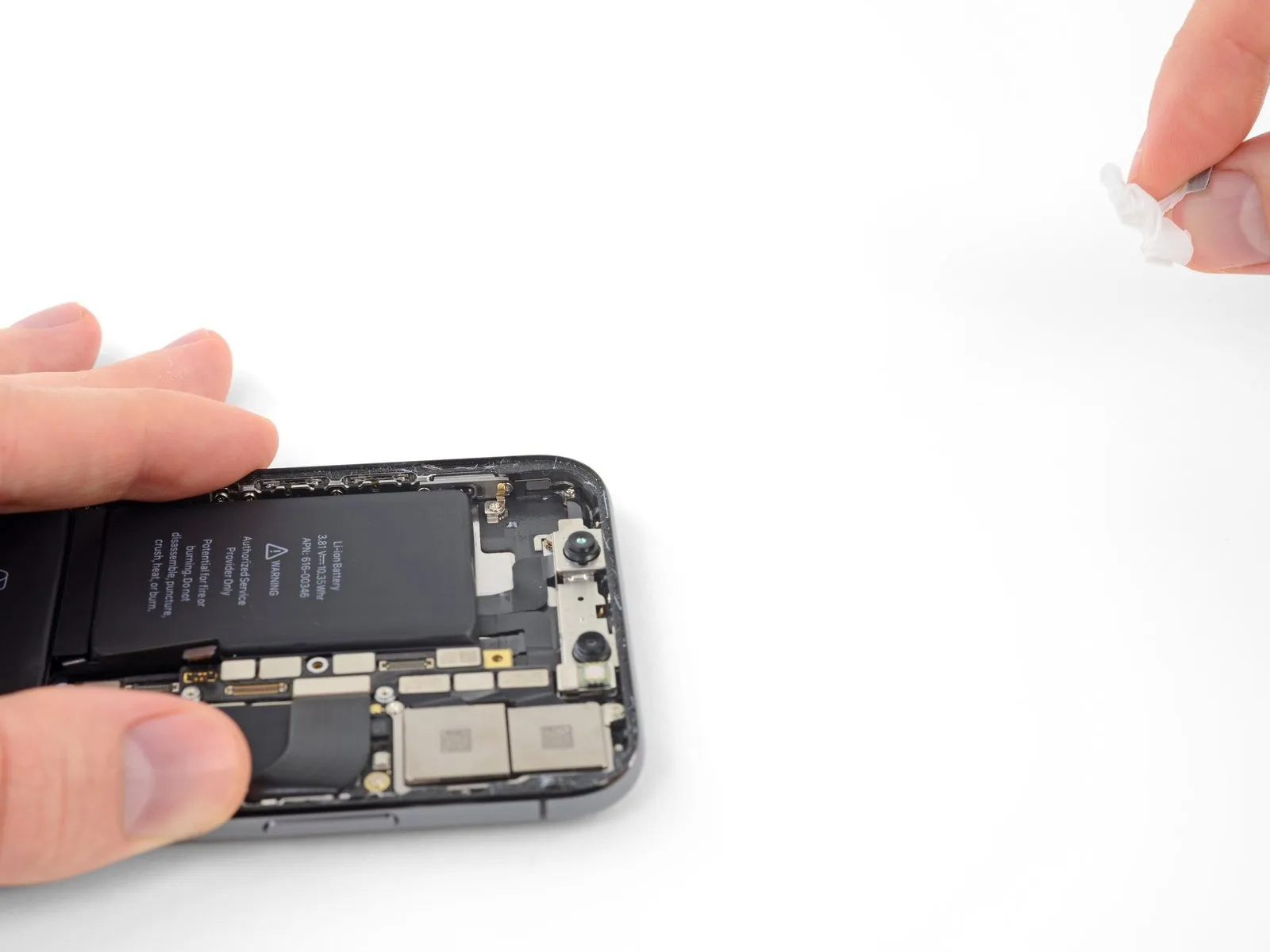

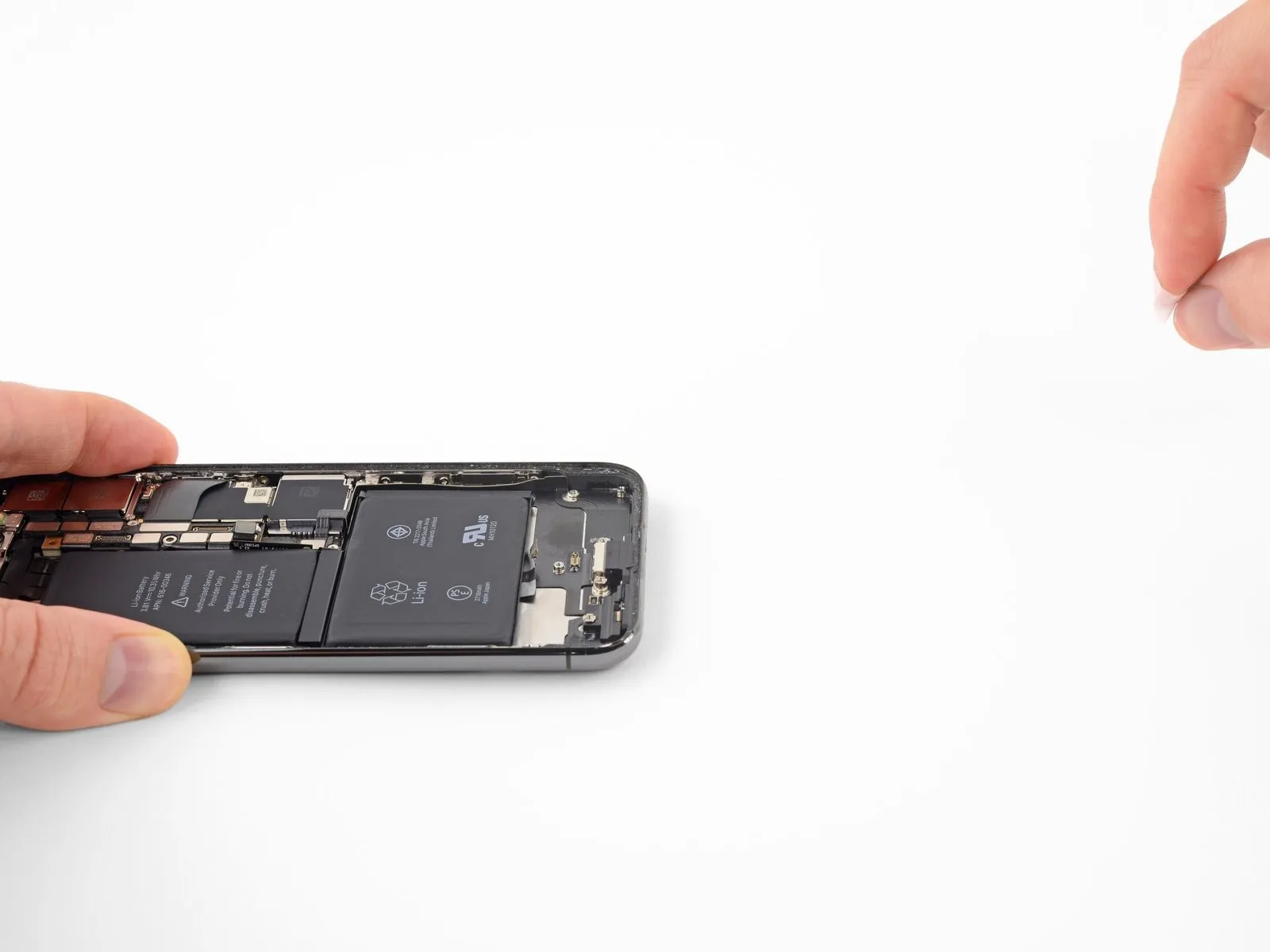

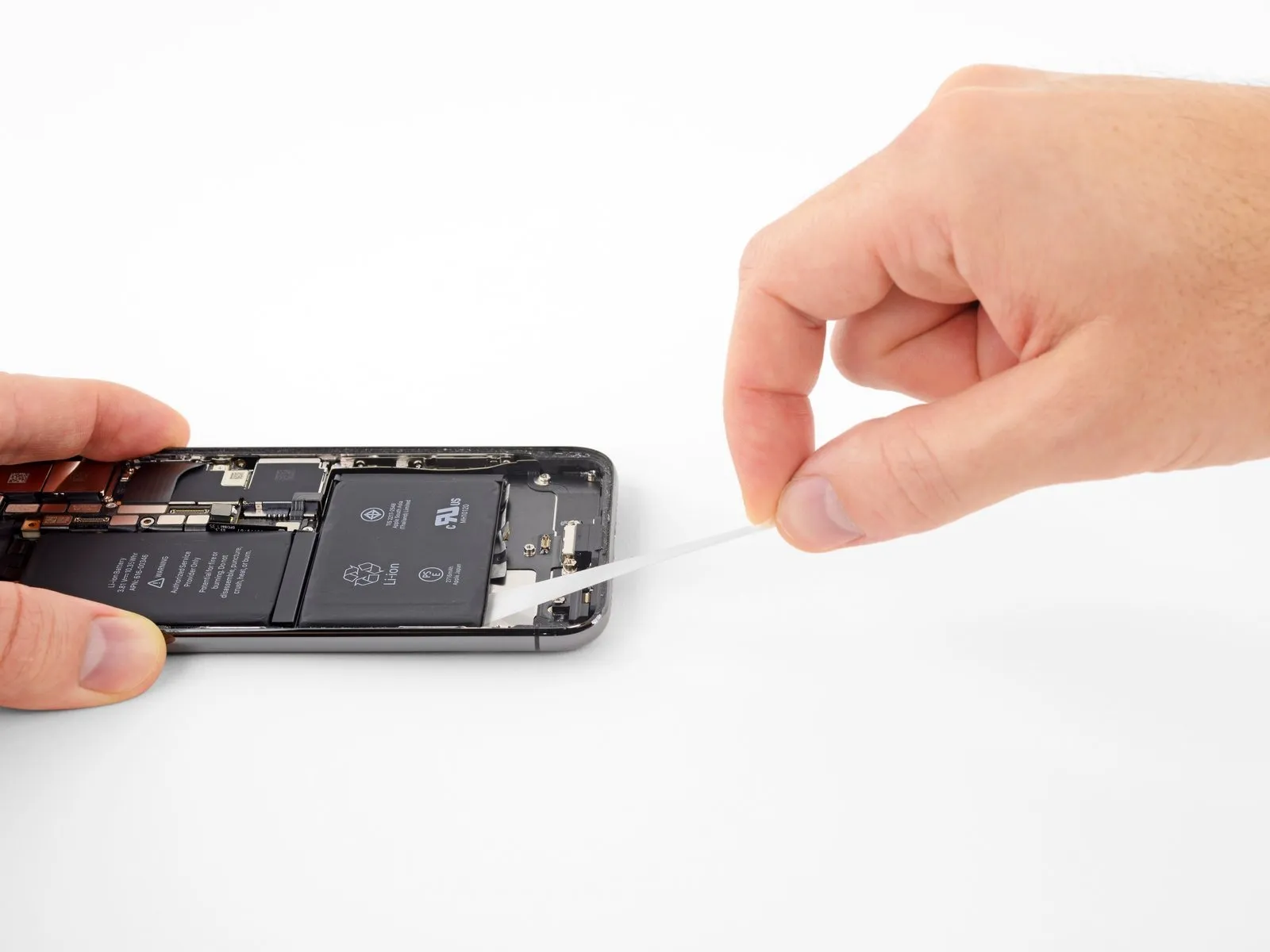

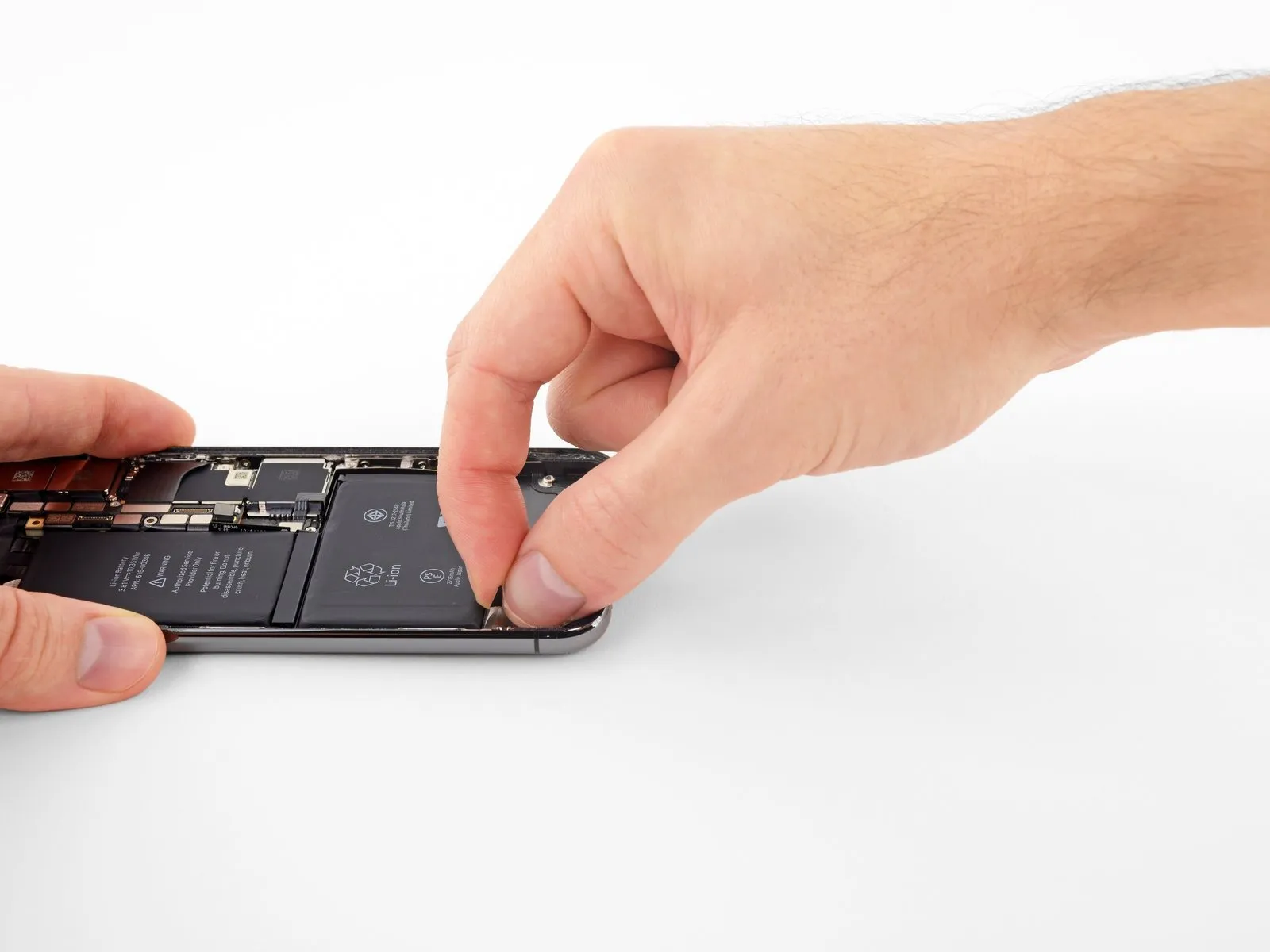

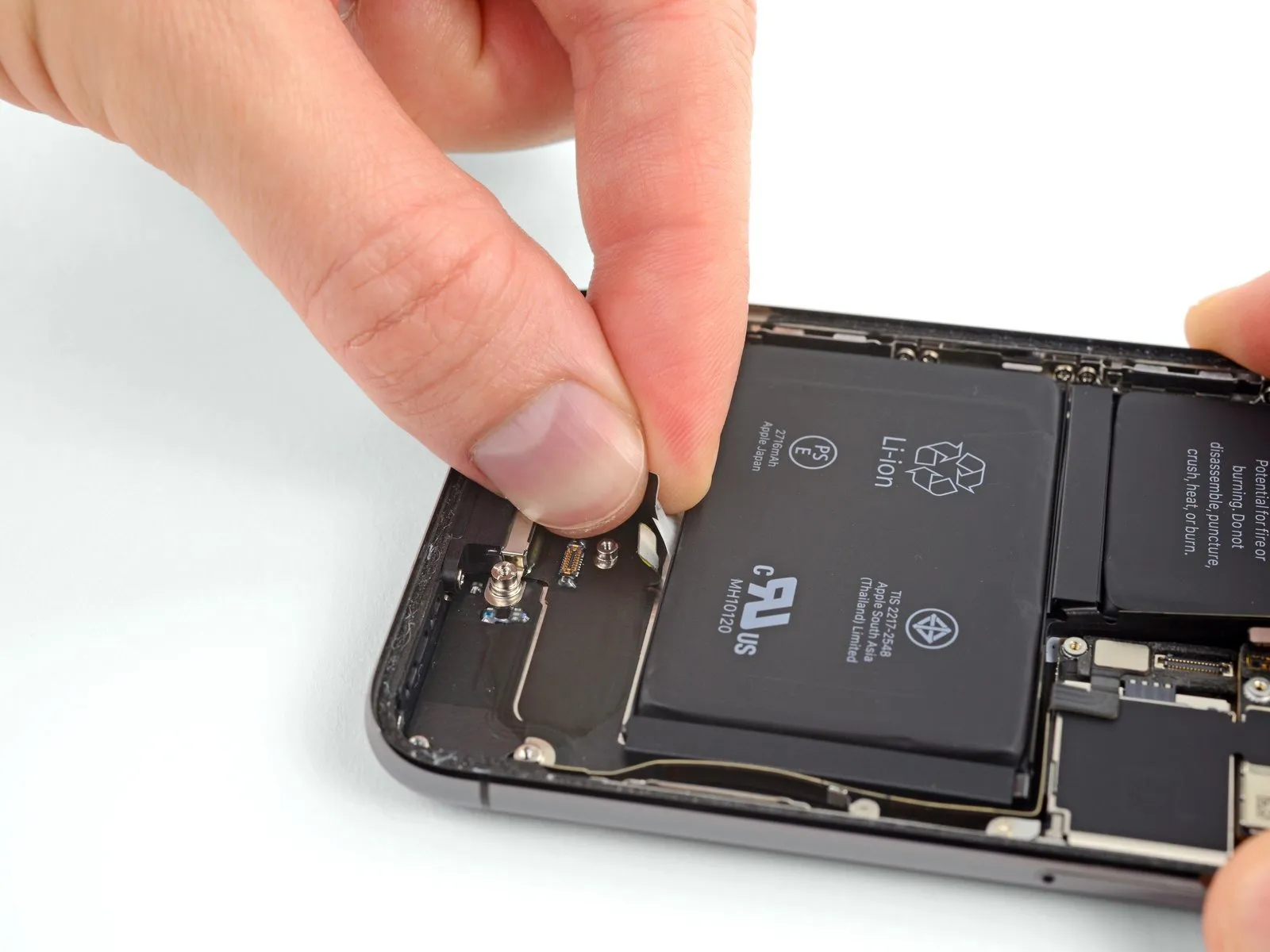

• Carefully detach one of the external battery adhesive strips by gently drawing it away from the battery surface, directing its movement towards the lower portion of the iPhone’s chassis.
• Apply consistent, even force while pulling the strip, ensuring it remains taut until it disengages from the space between the battery and the rear enclosure.

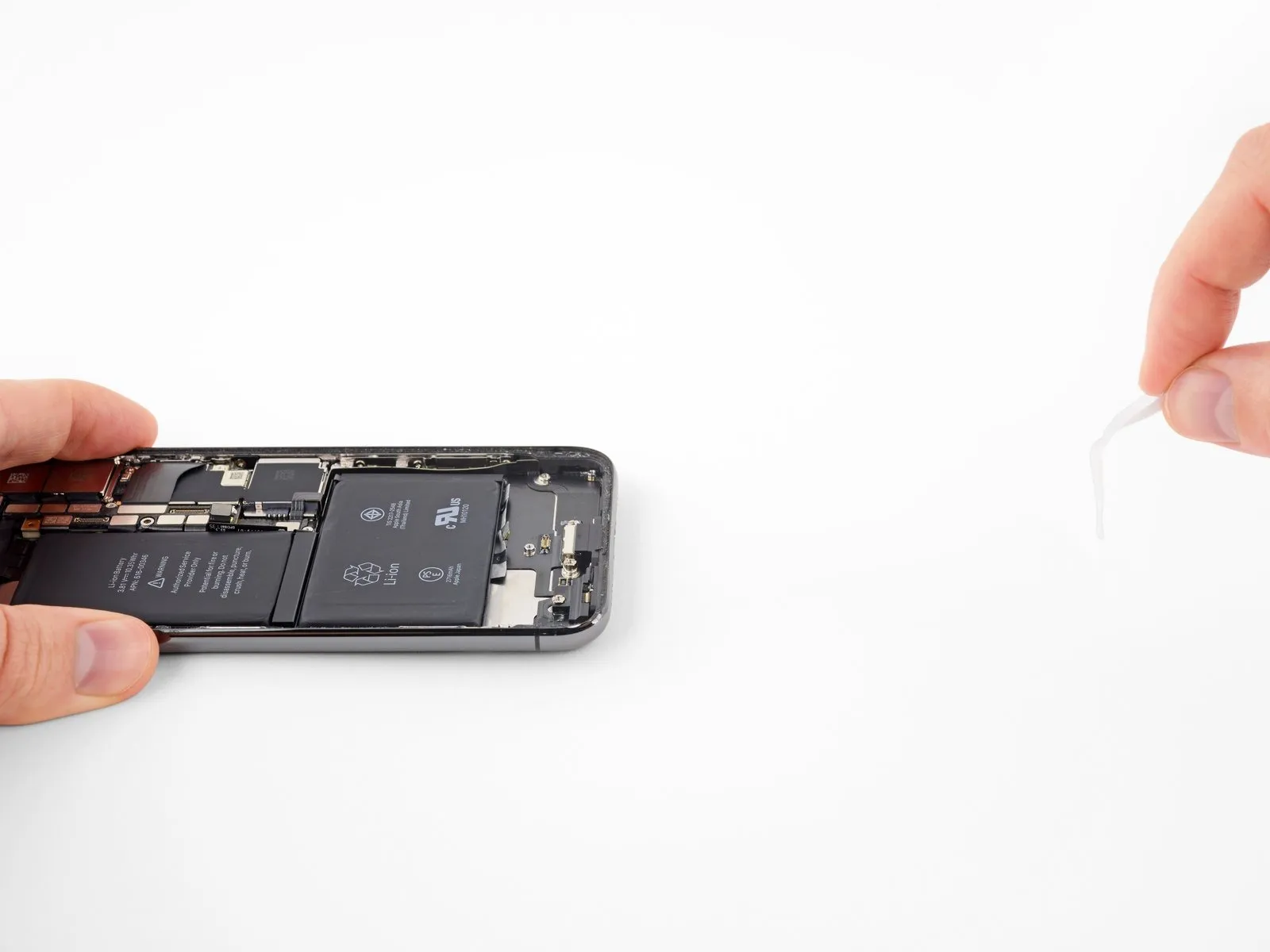

• Expect the adhesive strip to elongate significantly, potentially extending to several times its initial size; persist in pulling and reposition your grip along the strip’s length as needed to maintain traction.
• Should any of the battery adhesive strips fracture during removal, utilize your fingers or non-piercing tweezers to recover the detached adhesive fragments, and resume the pulling action.
• In the event that adhesive strips tear and become inaccessible beneath the battery, attempt to extract the remaining strips and then follow the subsequent instructions.

• Detach the central section of material.
• Exercise caution to prevent the speaker flex cable from being damaged during removal.

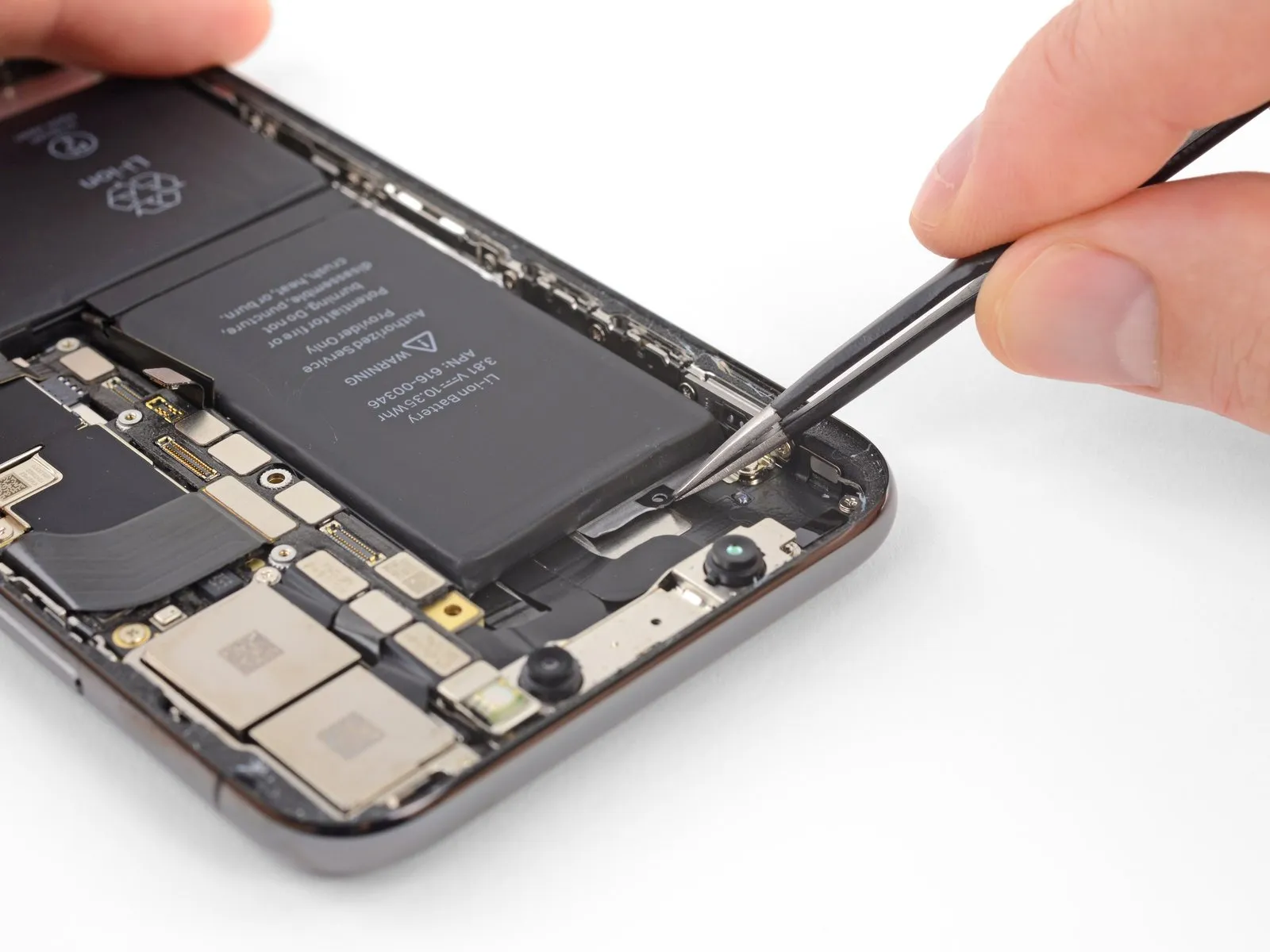

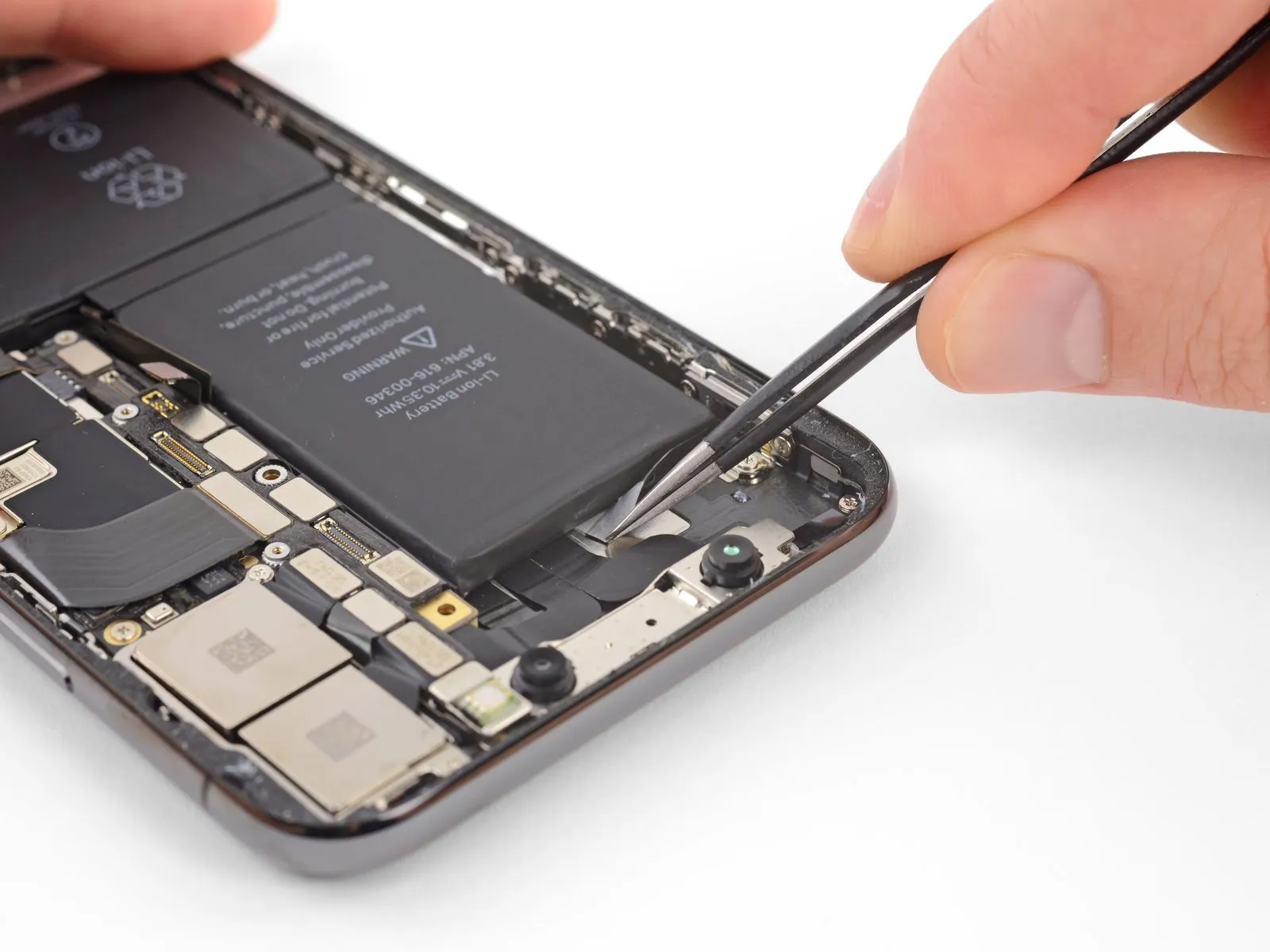

• The last retaining tab is situated in close proximity to the Face ID components, and any damage to it can compromise functionality.Due to the complexity of the system, Face ID malfunctions necessitate repair exclusively by Apple technicians.Exercise extreme caution throughout this procedure to prevent unintended harm.

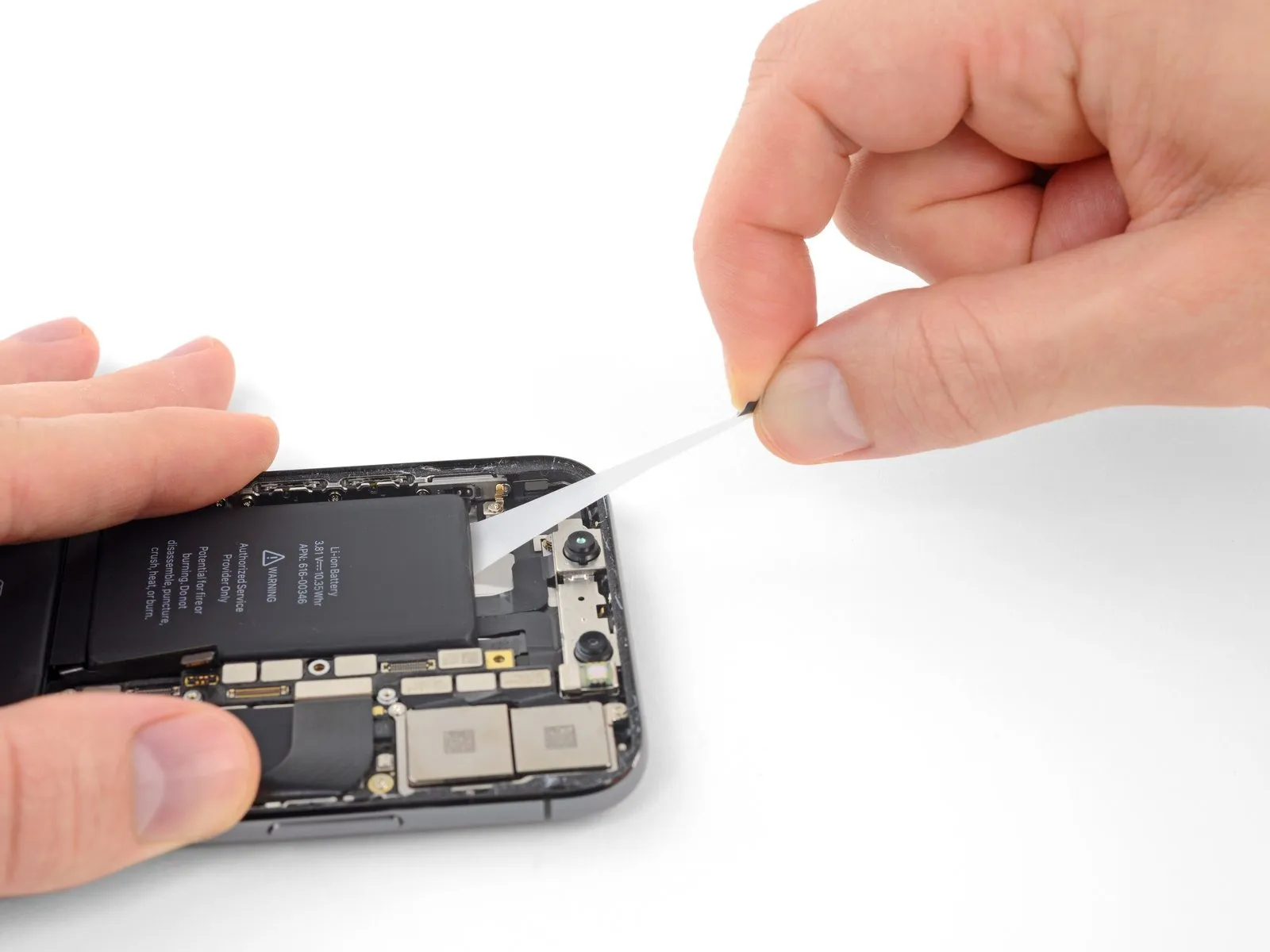

• Carefully detach the pull tab from the final adhesive layer, which is positioned along the superior edge of the upper battery cell.

• Carefully detach and eliminate the last adhesive strip.
• As the strip releases, the battery could be ejected from the iPhone; therefore, position your hand above the battery to keep it in place, but avoid applying downward pressure, which might cause the adhesive strip to fracture and remain beneath the battery.
• Should you manage to remove all four adhesive strips, proceed past the following instruction.
• Should any portion of the adhesive become detached from beneath the battery and prove impossible to recover, carefully introduce a small quantity of high concentration isopropyl alcohol (exceeding 90%) beneath the battery's edge, specifically targeting the location of the fractured adhesive strip(s).
• Allow approximately one minute for the alcohol to diminish the adhesive's strength. Subsequently, utilize the planar end of a spudger to delicately elevate the battery.
• Refrain from employing excessive force to dislodge the battery; if necessary, introduce a few additional drops of alcohol to further reduce the adhesive's hold. Under no circumstances should you deform or puncture the battery with your prying instrument.
• Exercise caution to prevent damage to the ribbon cables or the wireless charging coil, which are situated directly beneath the battery.
• For different techniques to separate the battery from the device's casing, refer to the subsequent instructions.

• Should any of the adhesive strips detach and the battery remains adhered to the rear case, utilize an iOpener or apply heat to the rear case's surface immediately behind the battery with a hair dryer.

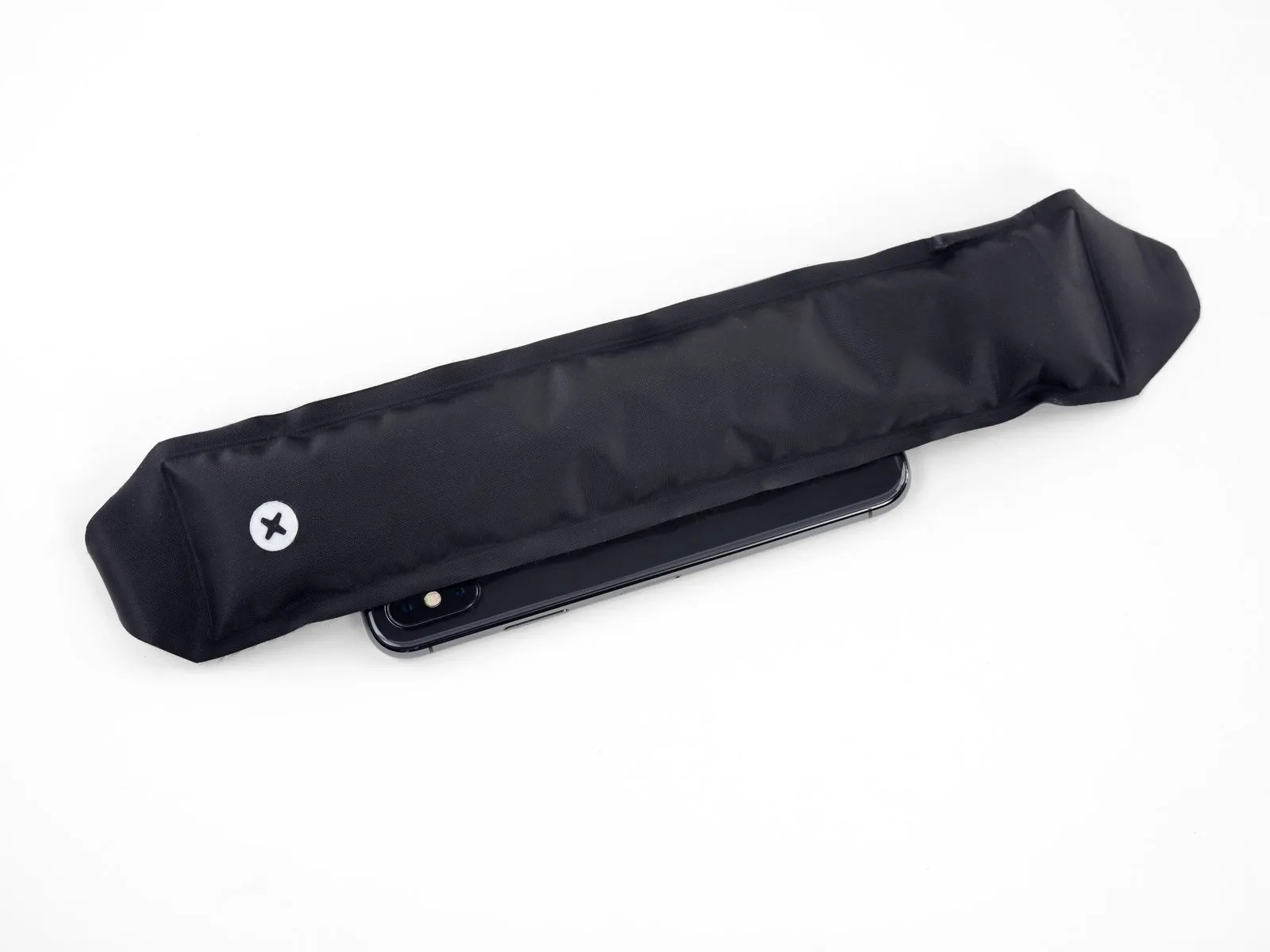

• Warm the iPhone's exterior until the rear case reaches a temperature that is slightly uncomfortable to touch; avoid excessive heat, as this could potentially cause a battery fire.

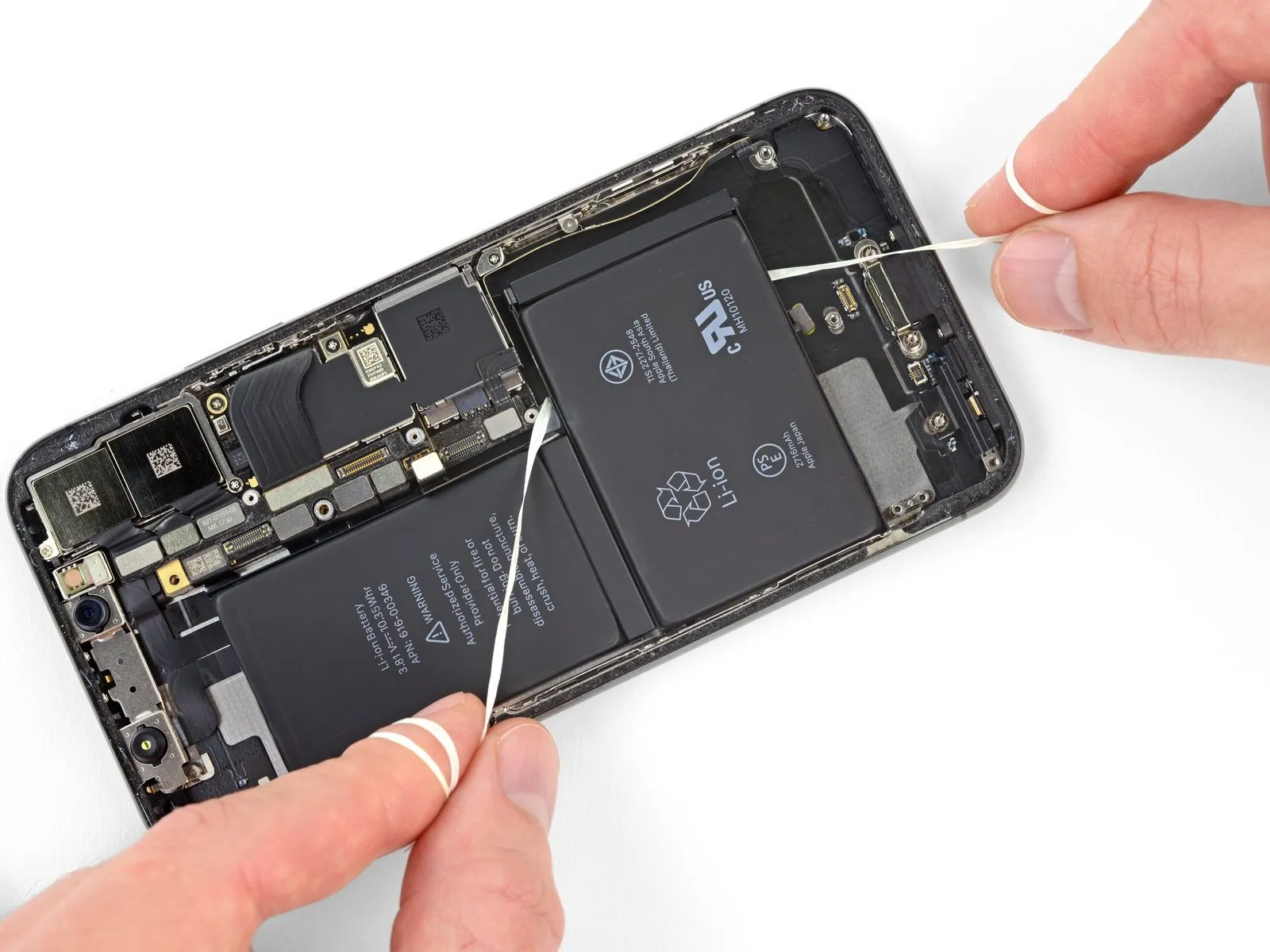

• Return the iPhone to its original orientation and carefully slide a durable string – such as dental floss or a slender guitar string – beneath the battery.
• Protect your hands by covering the string's ends with a cloth or by wearing gloves.
• Employ a sawing motion, moving the string horizontally across the battery's entire length, to sever the adhesive bond; this process requires persistence, as the adhesive resists deformation, but it will eventually release without causing harm to the battery.
• Should you opt to employ prying implements to extract the battery, exercise utmost care to prevent damage to the delicate ribbon cables or the wireless charging coil located directly beneath the battery.

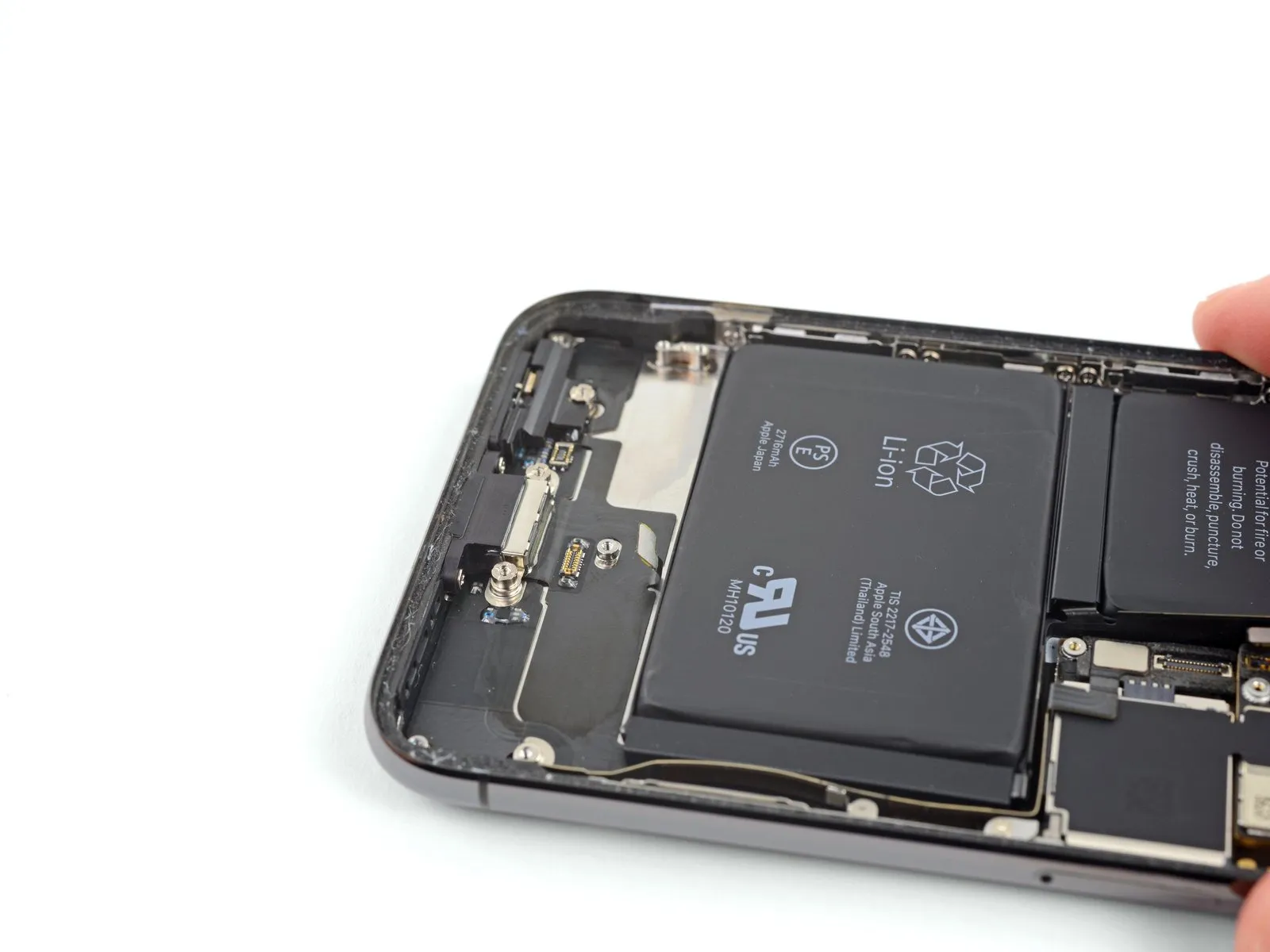

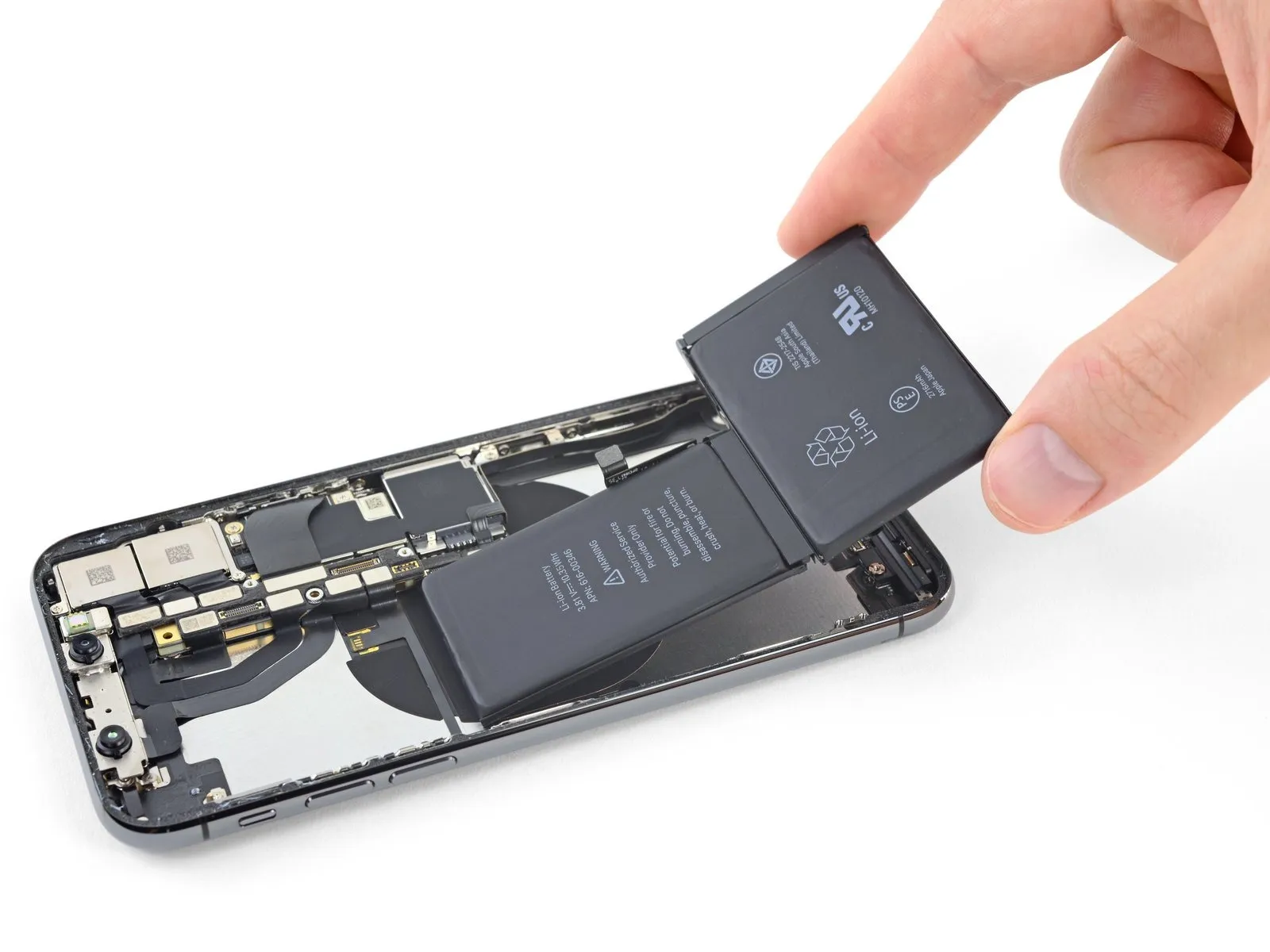

• Securely hold the battery from its lower edge and detach it from the iPhone.
• Should any alcohol residue persist within the device, meticulously clean it away or permit it to evaporate completely prior to installing the new battery.
• Prior to installing a new battery, reinstall the Taptic Engine and speaker; this maintains accurate battery positioning during the installation process.
• To guarantee proper alignment within its designated space, briefly reconnect the battery connector to the logic board socket before securing the replacement battery.
• Attach the replacement battery, then disconnect it, and proceed with the remaining reassembly steps for your device.
• Should your replacement battery lack pre-applied adhesive, consult this guide for instructions on replacing the adhesive strips.
• Following complete reassembly, execute a force restart to proactively avoid potential problems and streamline any necessary troubleshooting.

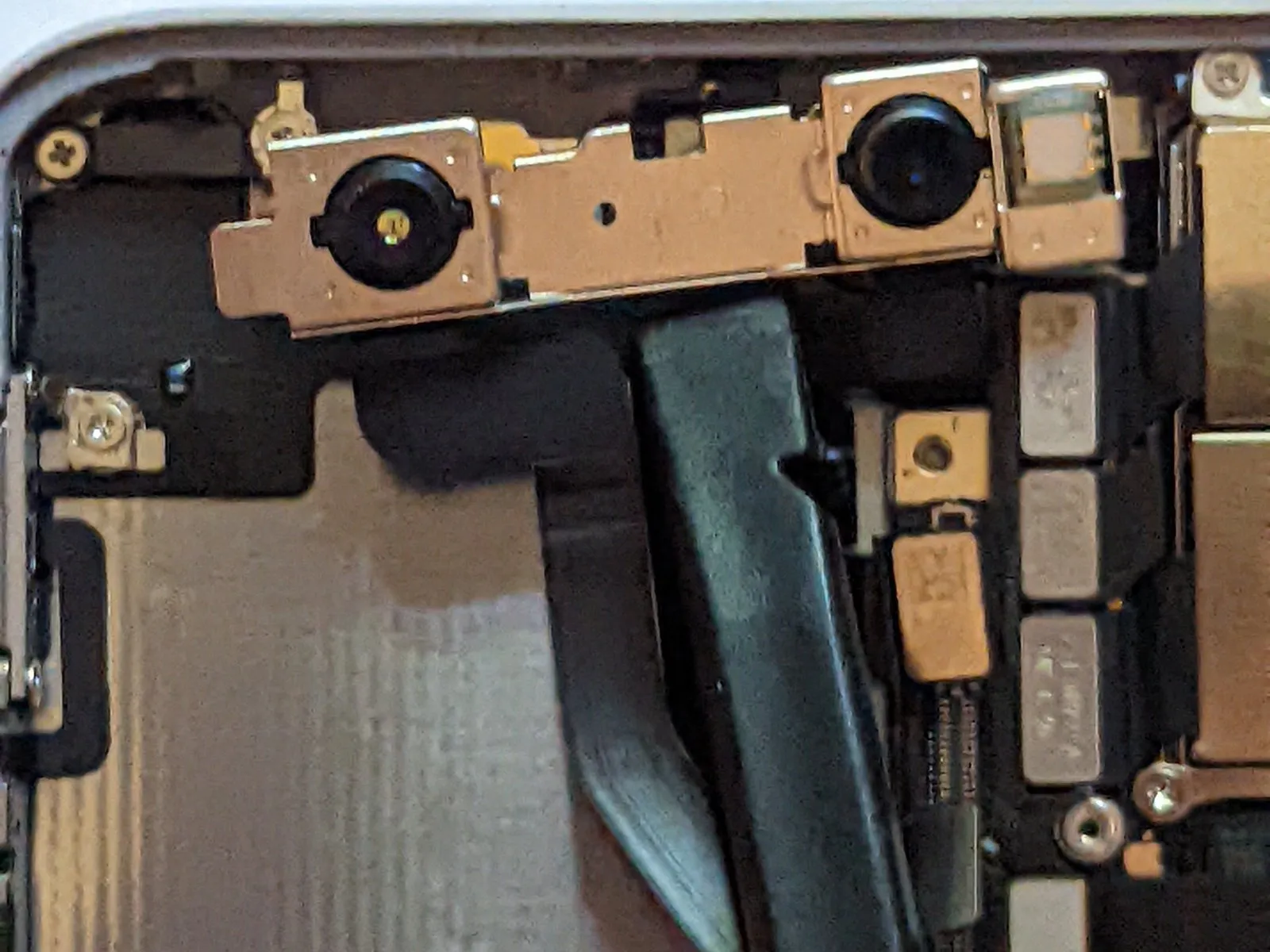

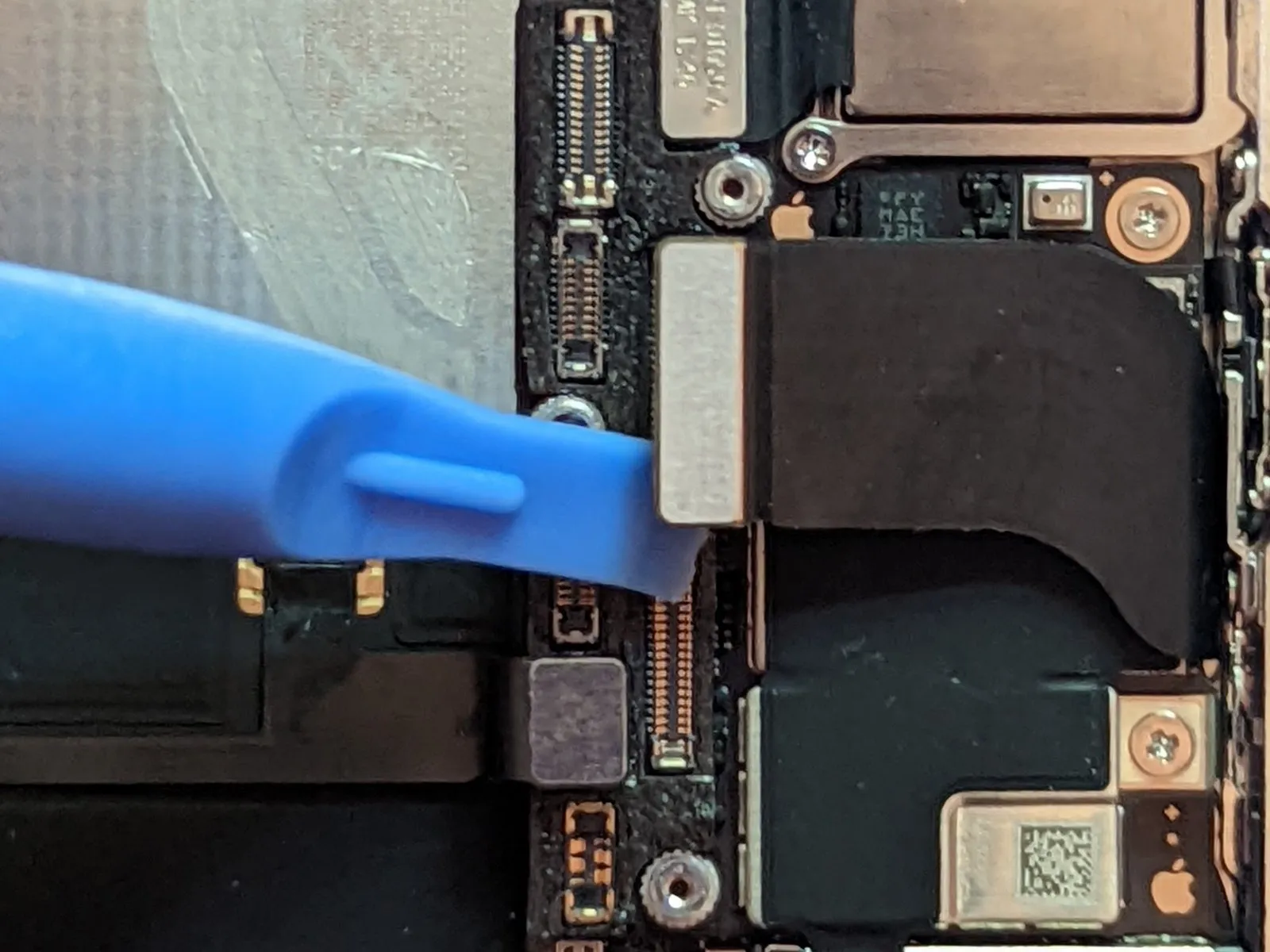

1. Employing the planar edge of a spudger tool, carefully release the connectors securing the three cables linked to the front camera assembly.
   • The dot projector component.
   • The primary front-facing camera.
   • The infrared camera module.

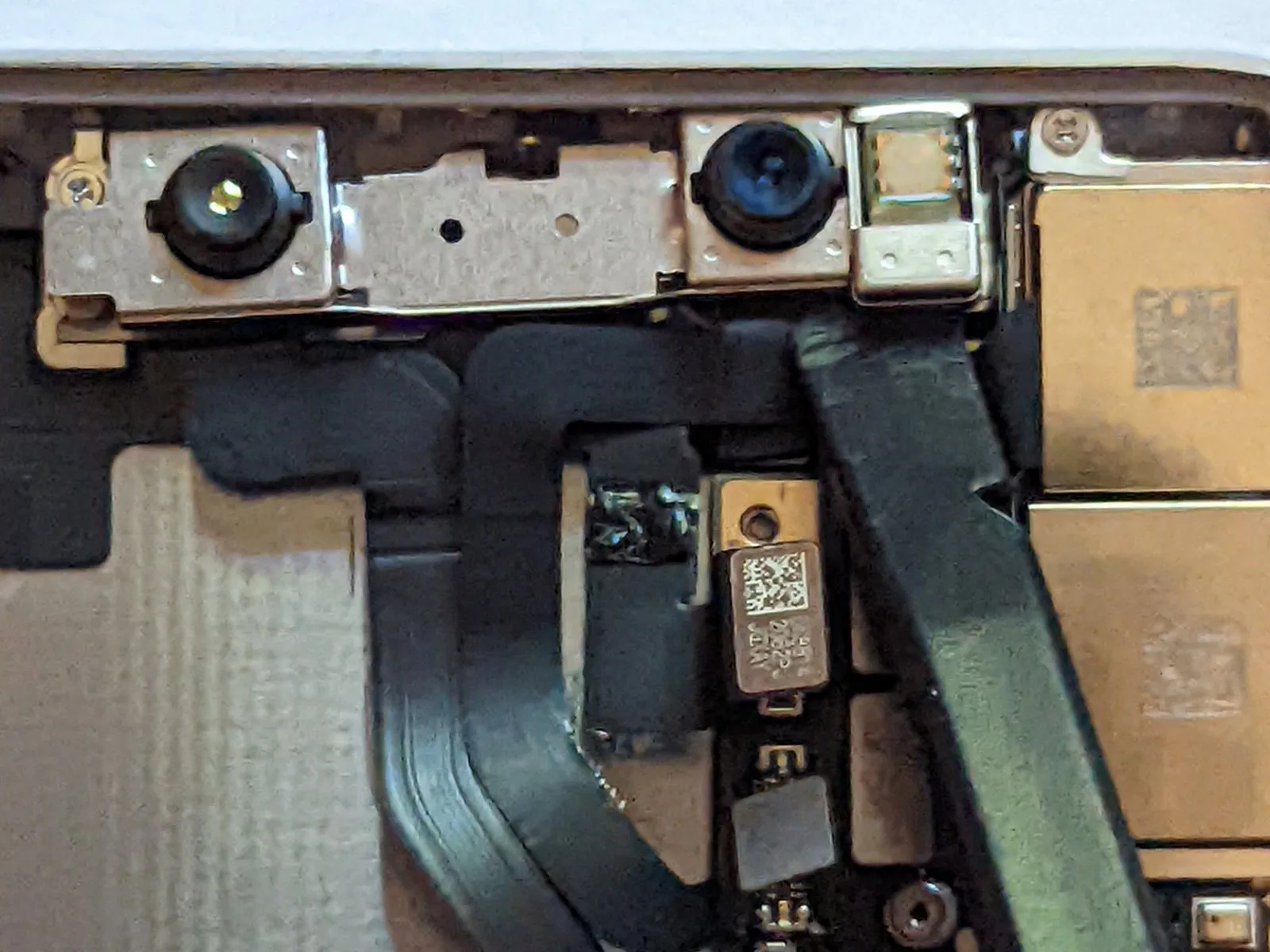

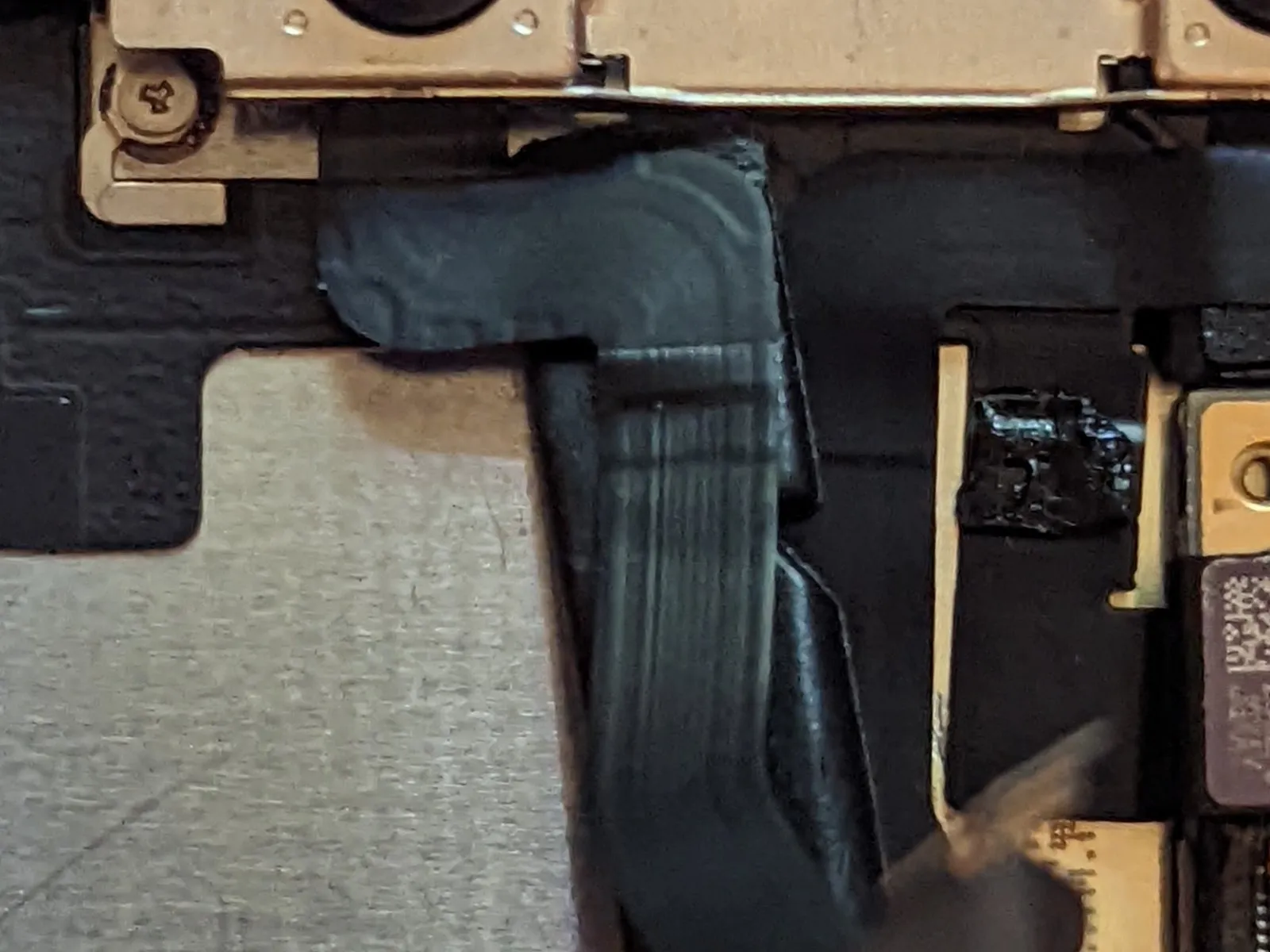

Adhesion secures the camera wiring harnesses to the midframe with a minimal bond.
Employing the pointed end of a spudger tool, initiate the separation process at the connector location, then carefully move the spudger's tip into the space between the infrared camera cable and the device casing to detach the cable.
Perform this detachment procedure again for the front-facing camera cable.

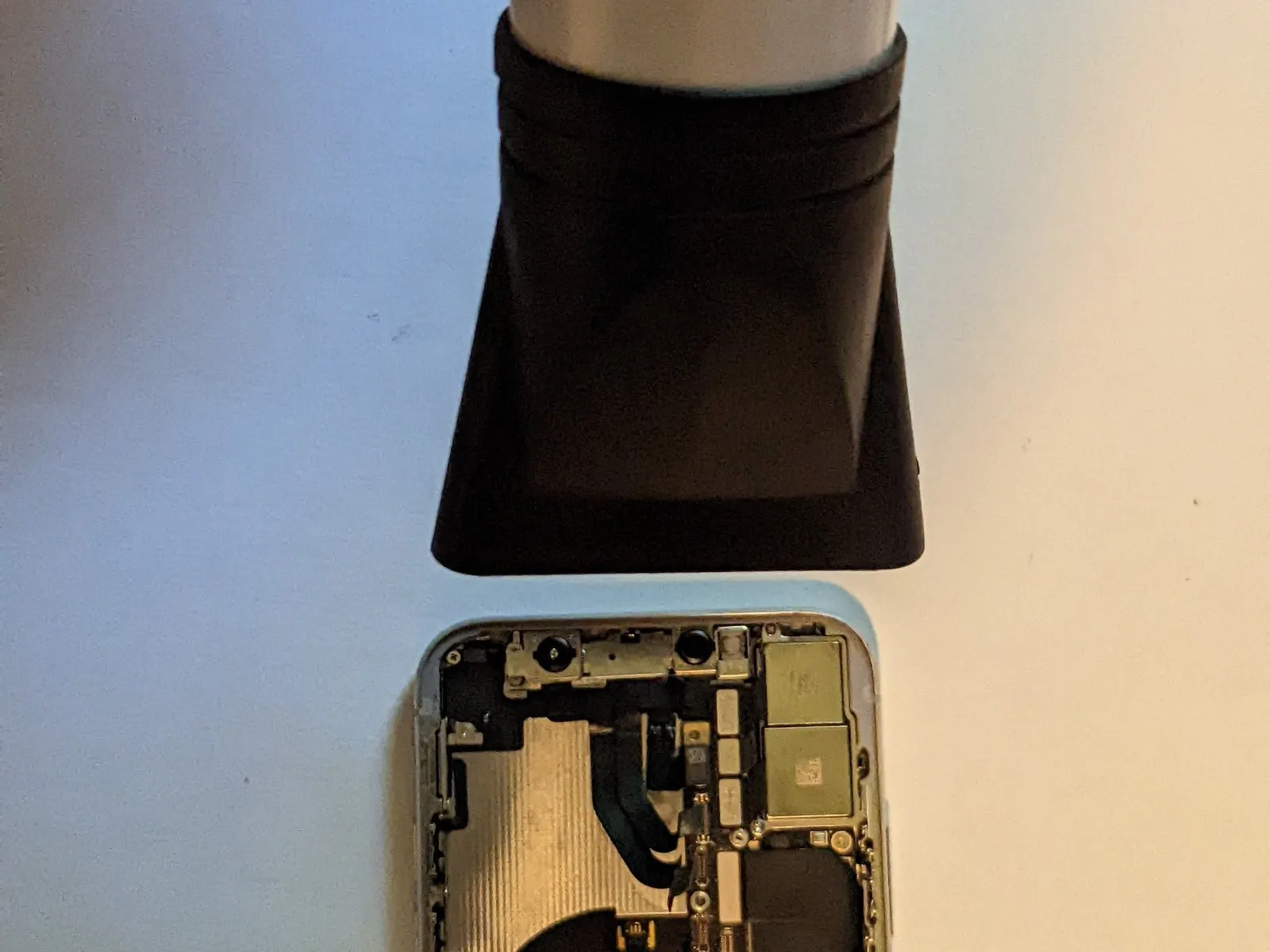

To release the bonding agent, direct heat onto the front camera assembly.

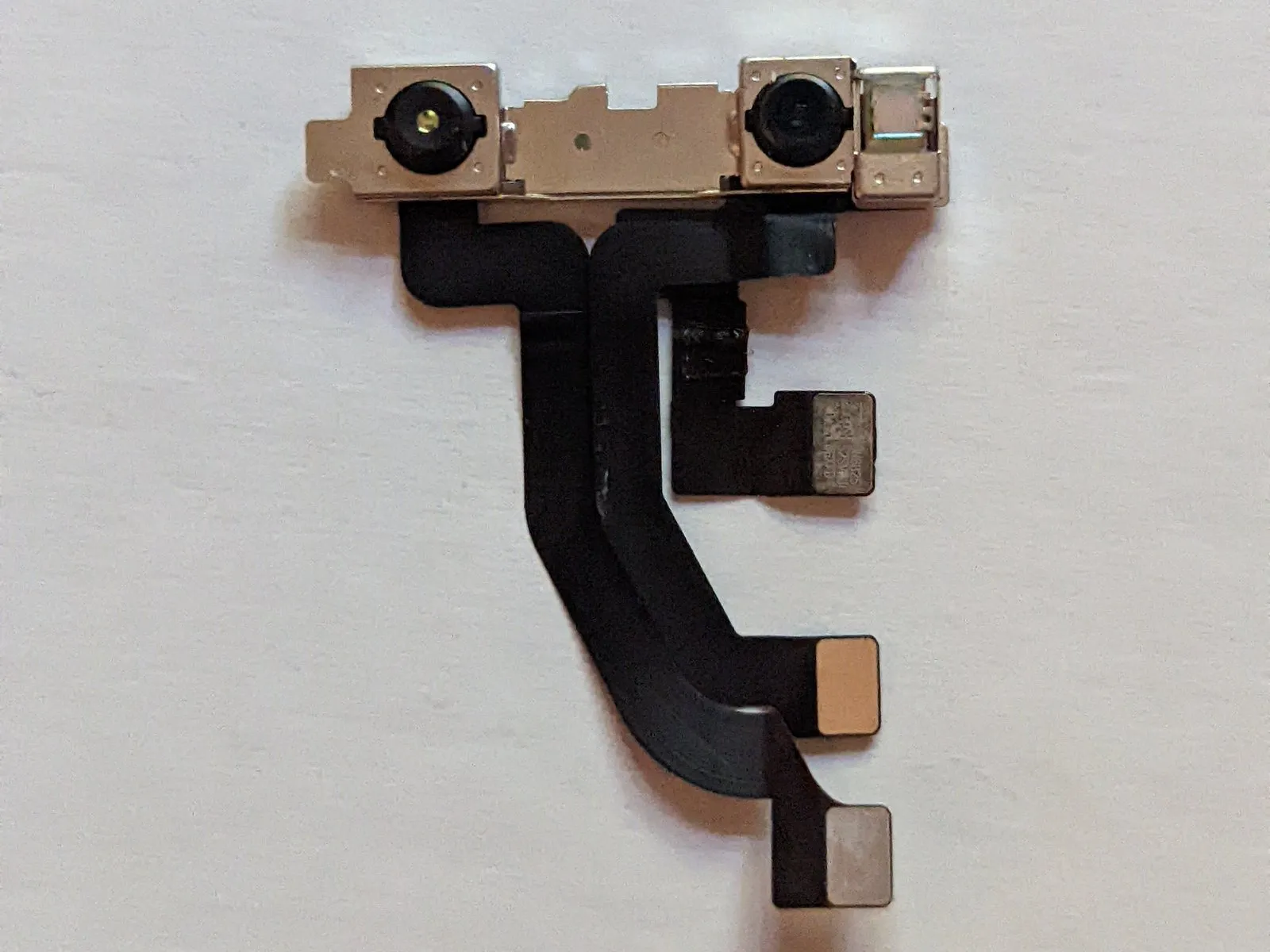

Carefully detach the front-facing camera module.

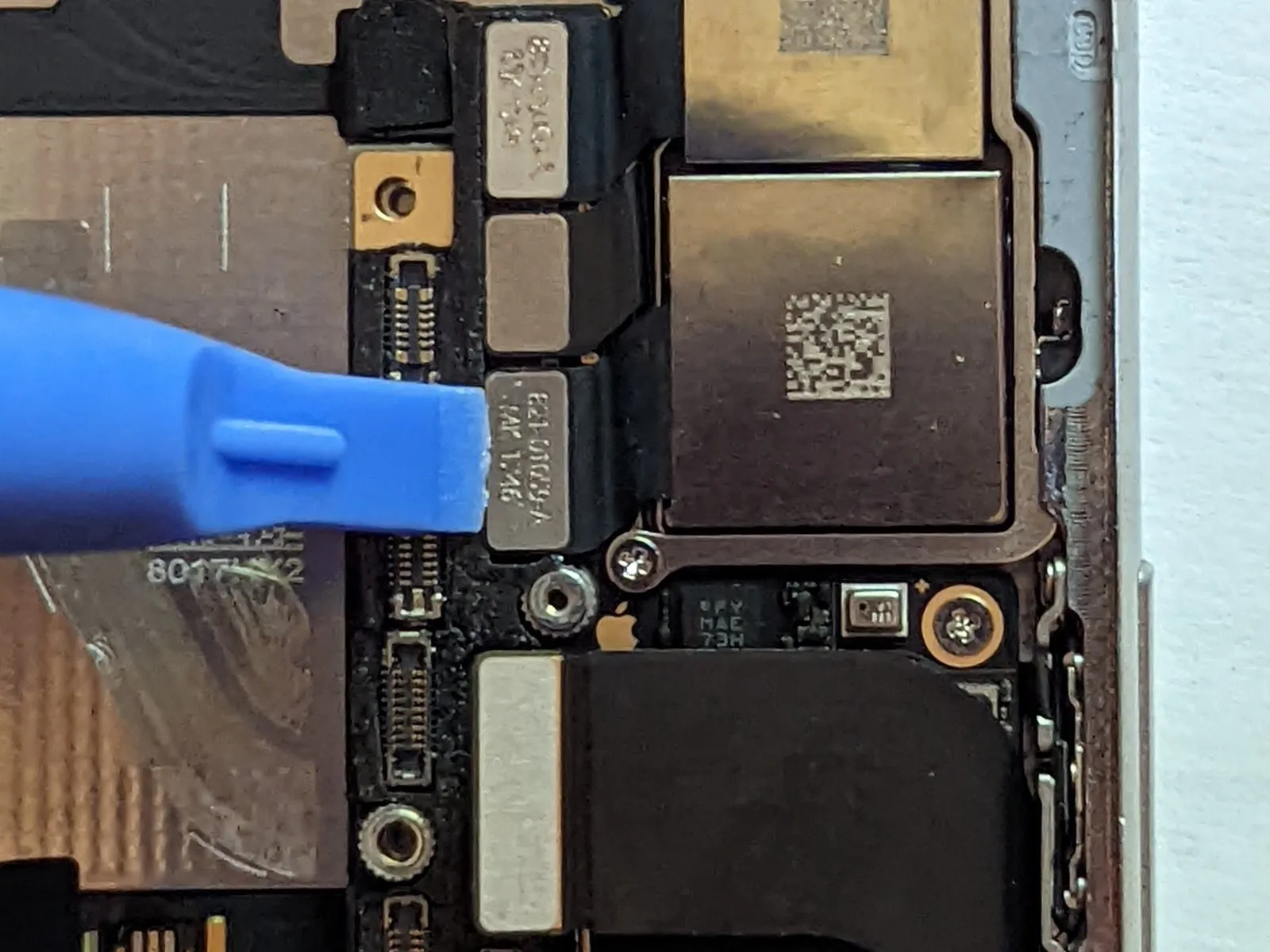

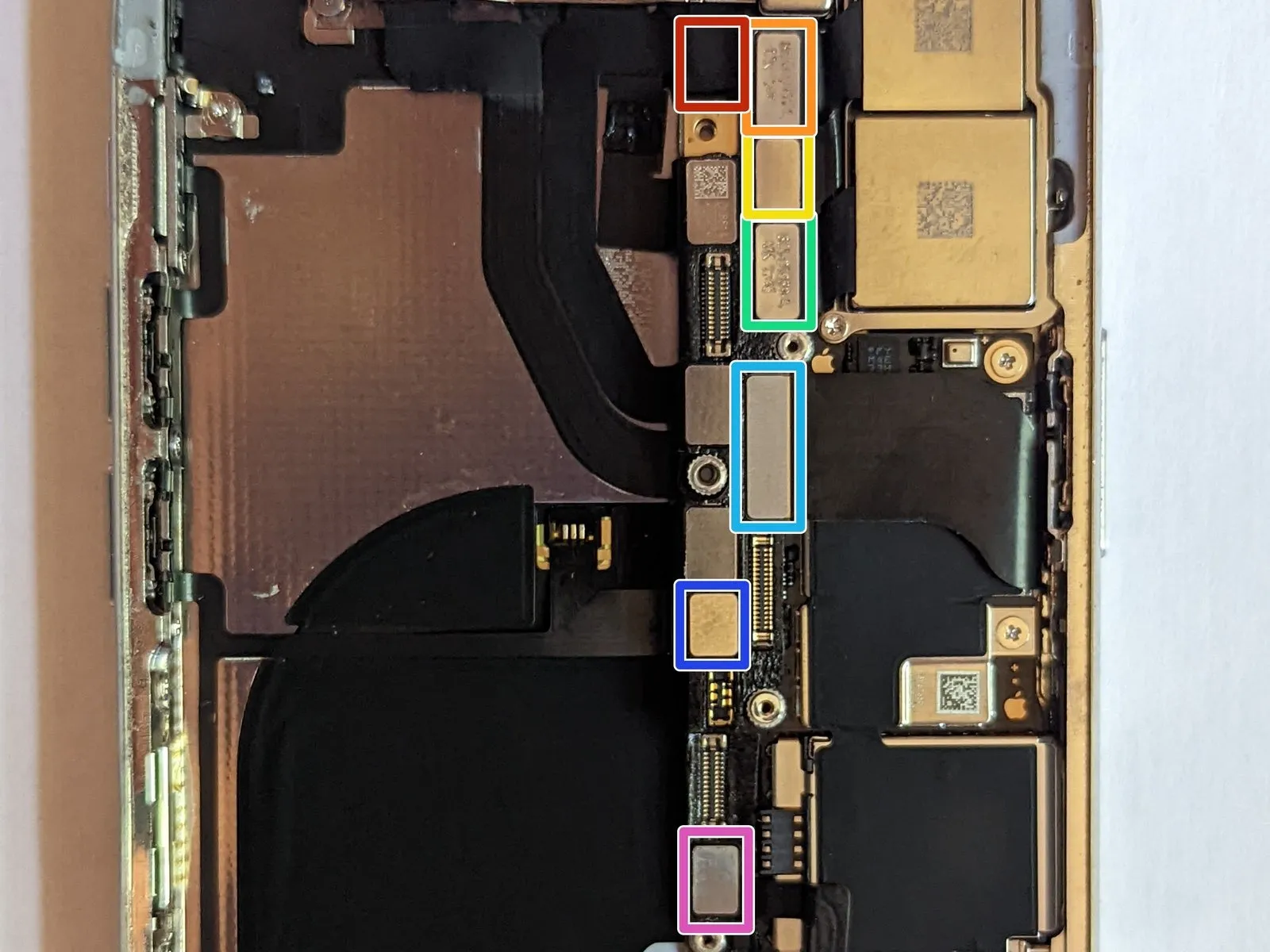

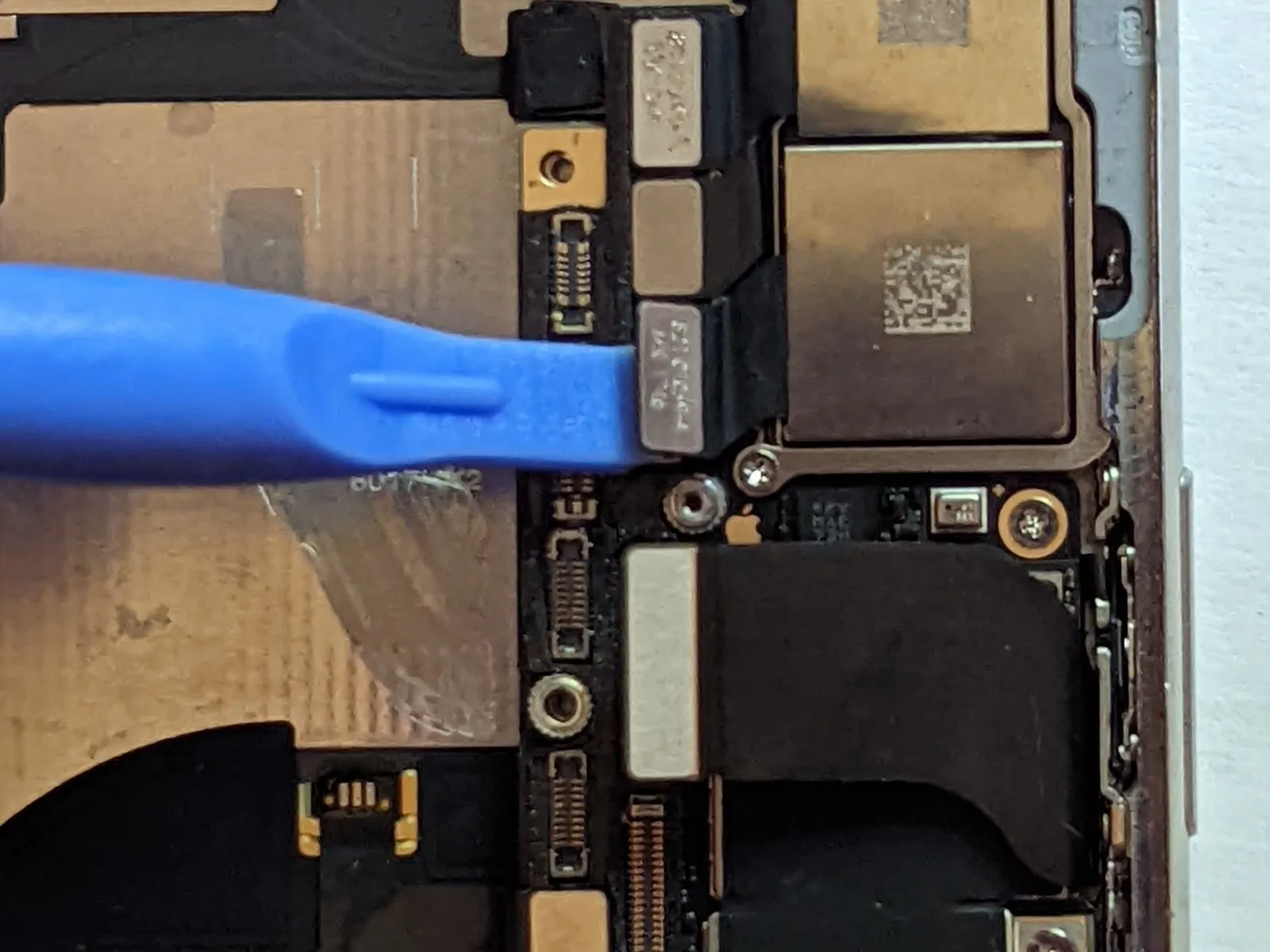

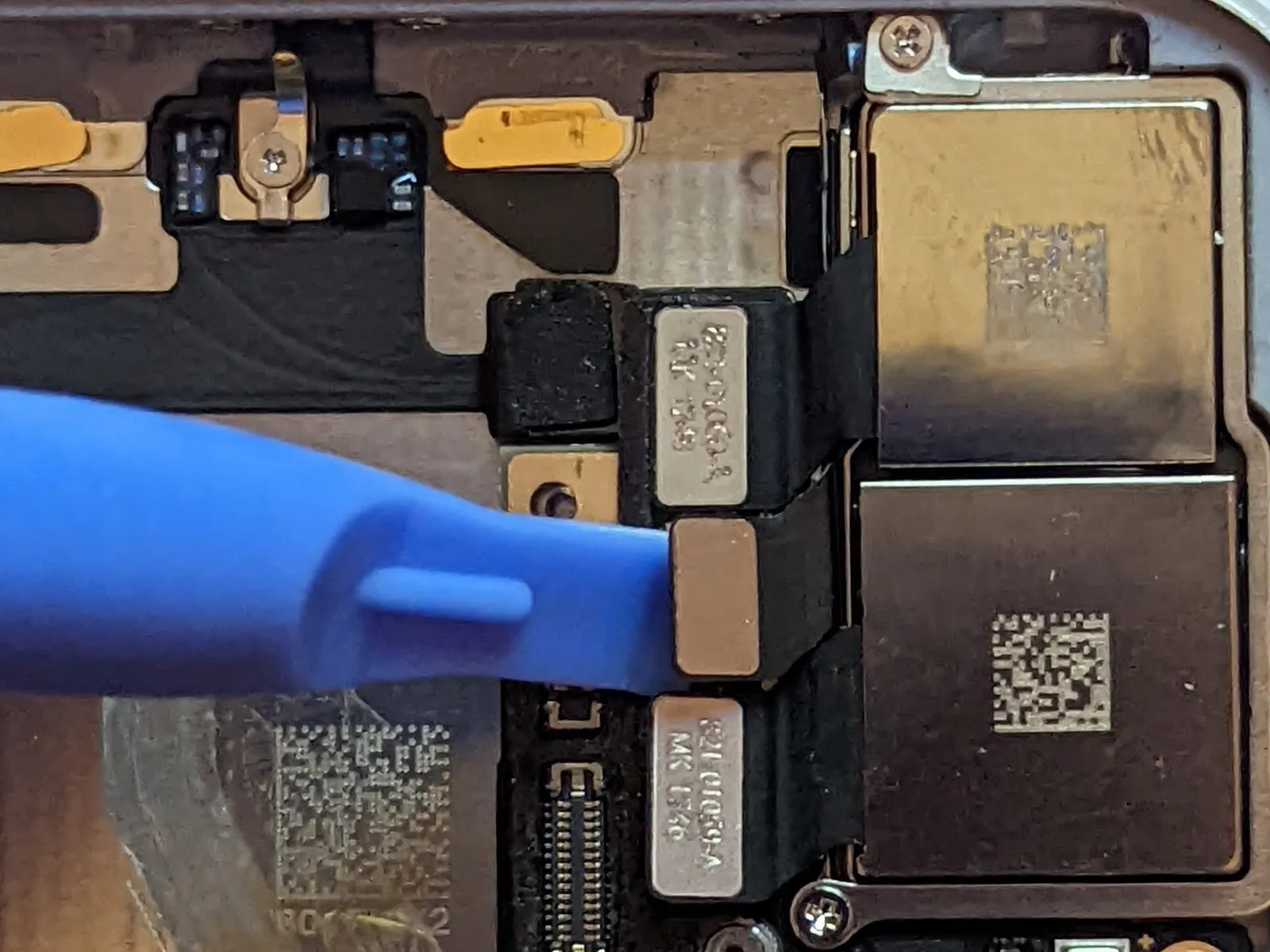

• To proceed with the repair, first, carefully detach these cable connectors:
  • The WiFi Antenna connector must be disconnected.
  • The Wide-Angle Camera connector requires separation.
  • The Power Button / Flash / Microphone connector needs to be detached.
  • Ensure the Telephoto Camera connector is disconnected.
  • The Dock Flex connector should be carefully removed.
  • The Button / Wireless Charging connector needs to be disconnected.
  • The Cellular Antenna connector must also be detached.

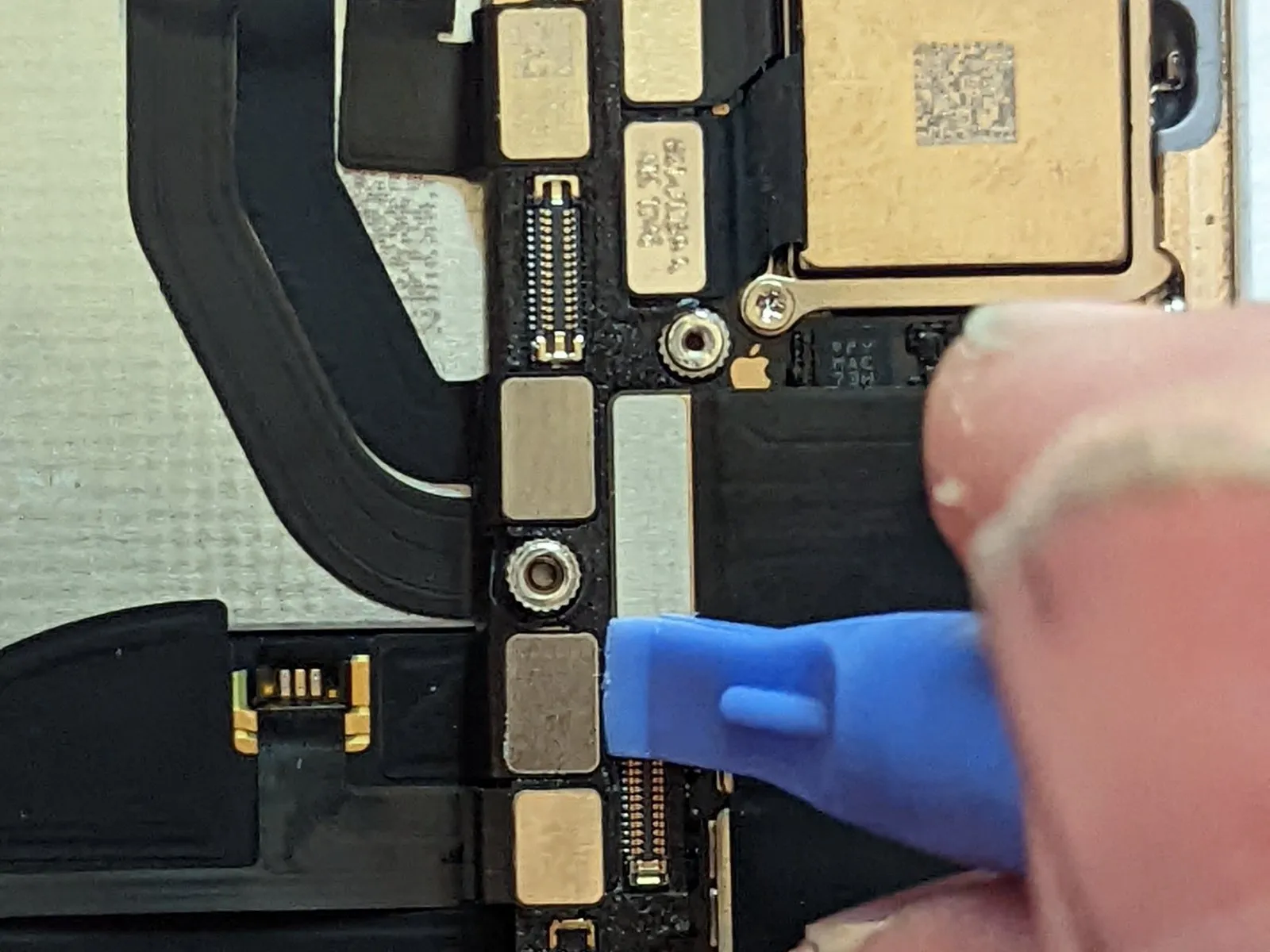

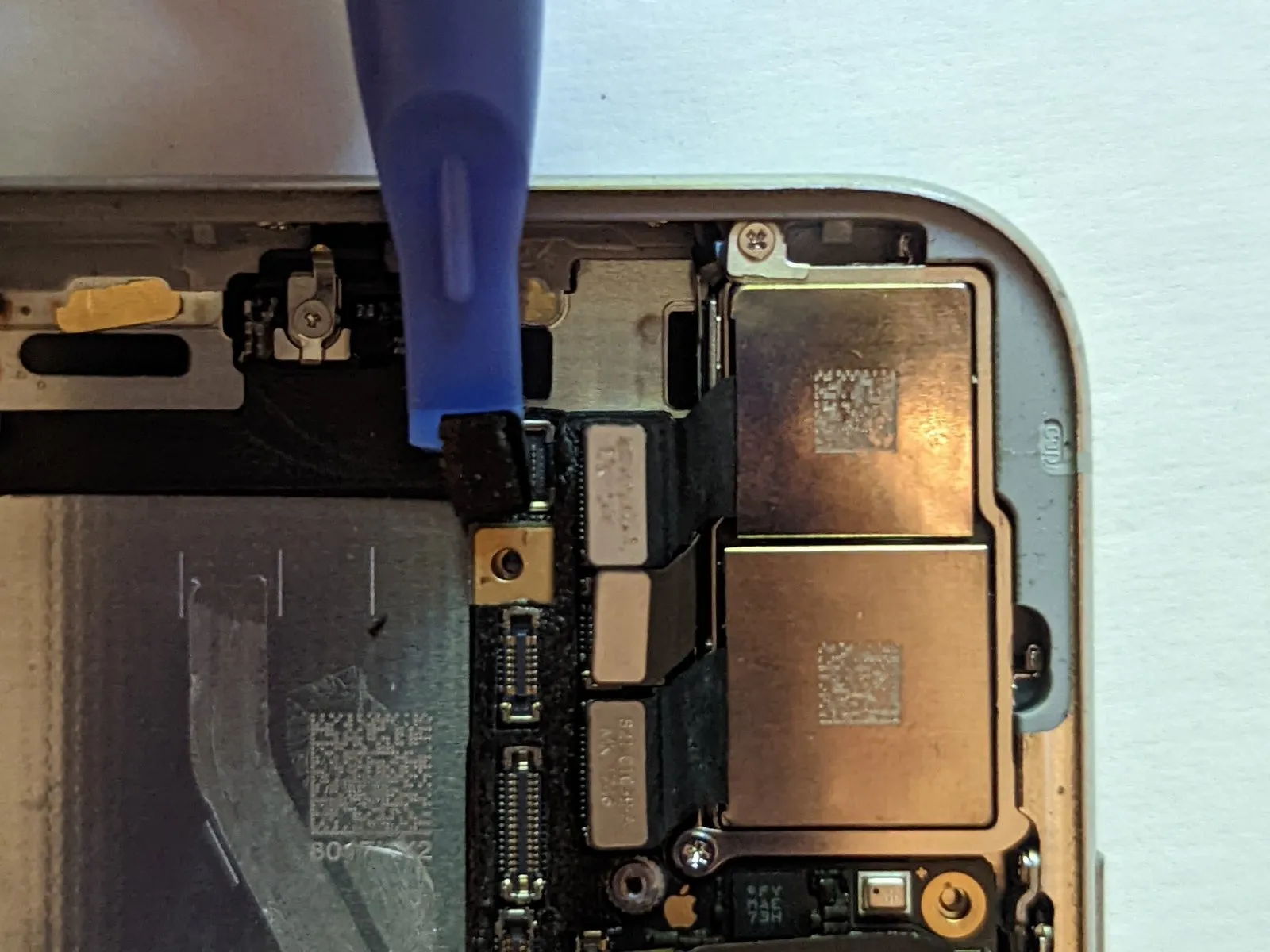

To proceed, detach the WiFi antenna cable from its corresponding connector.

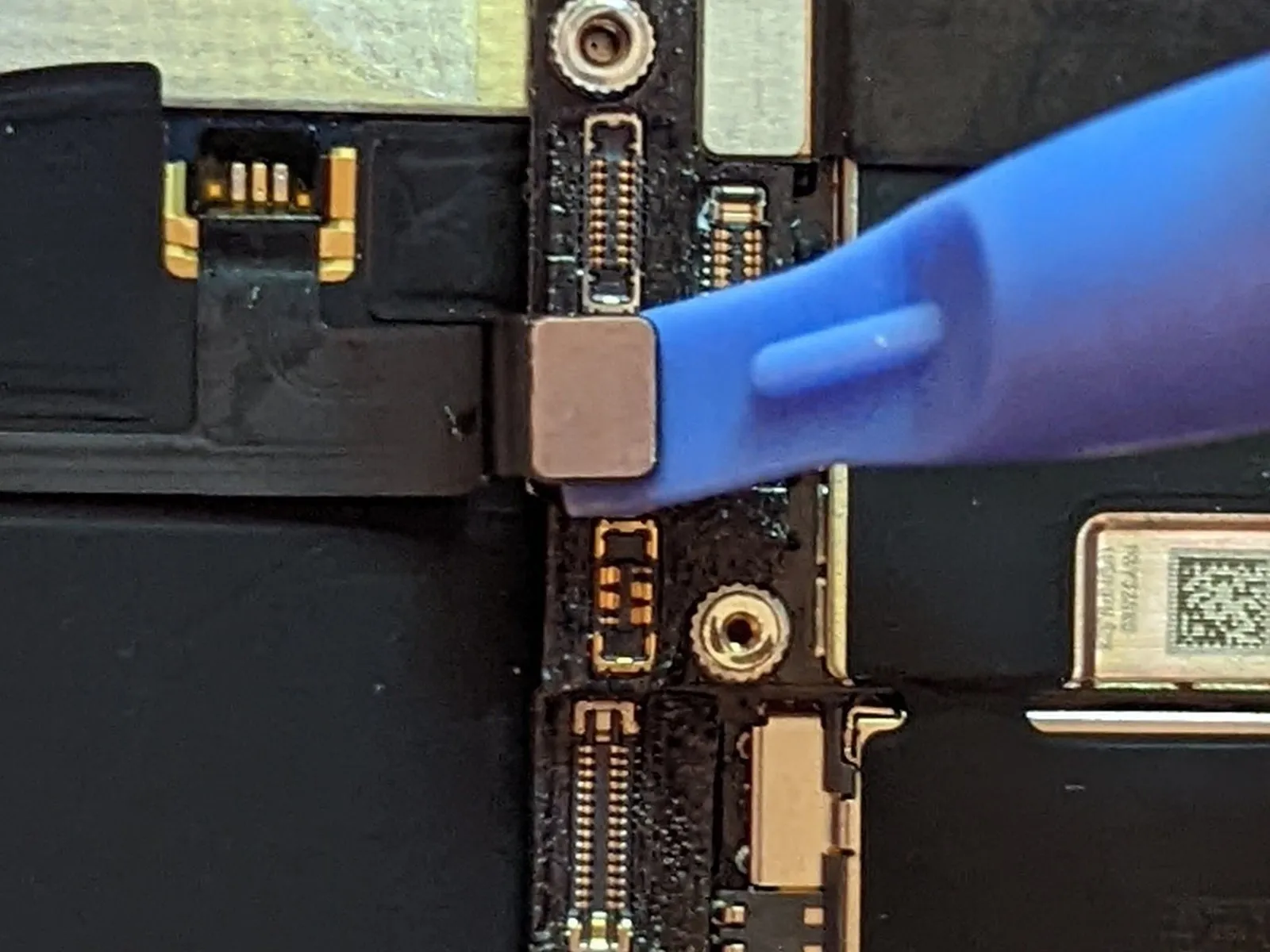

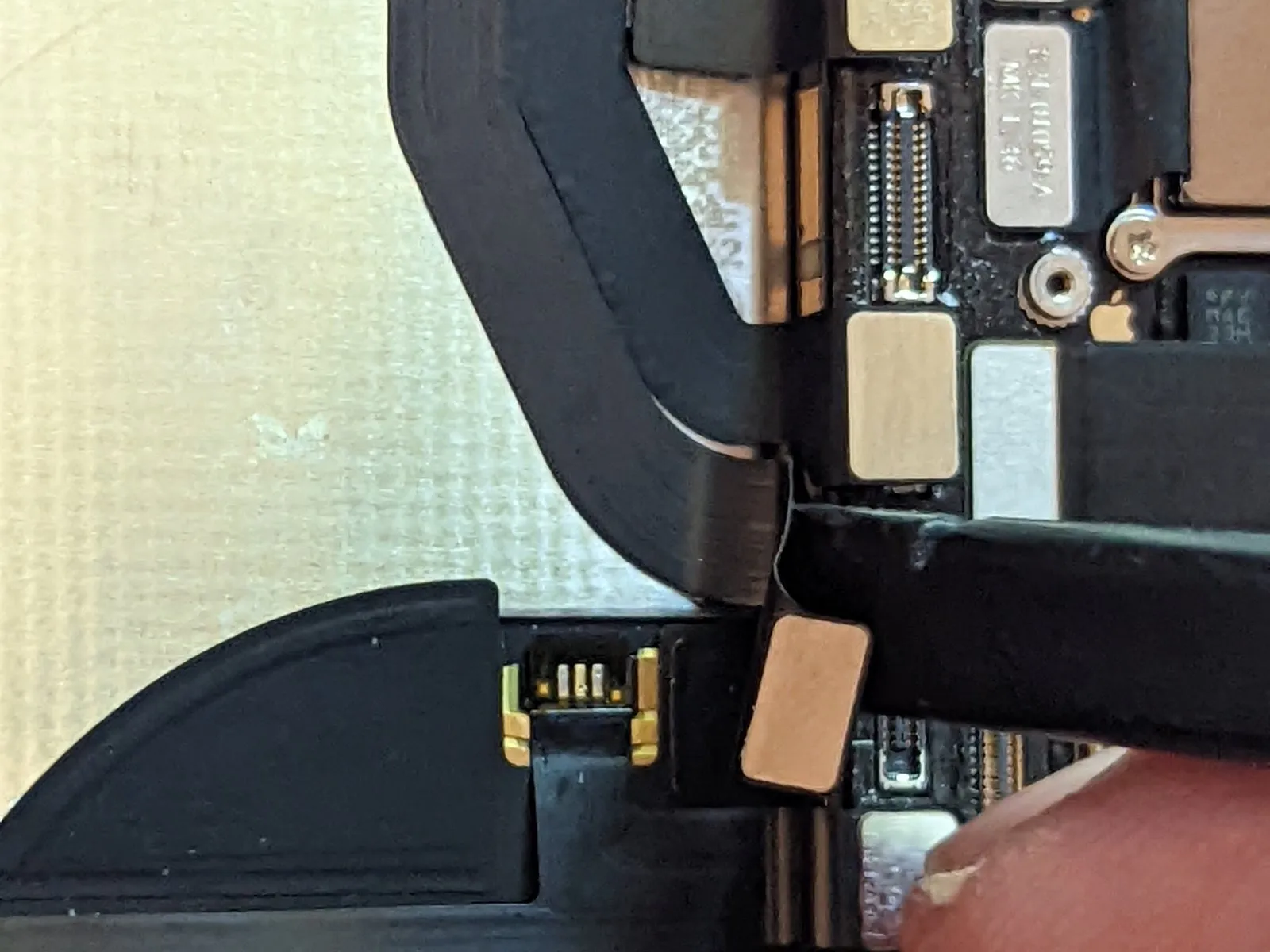

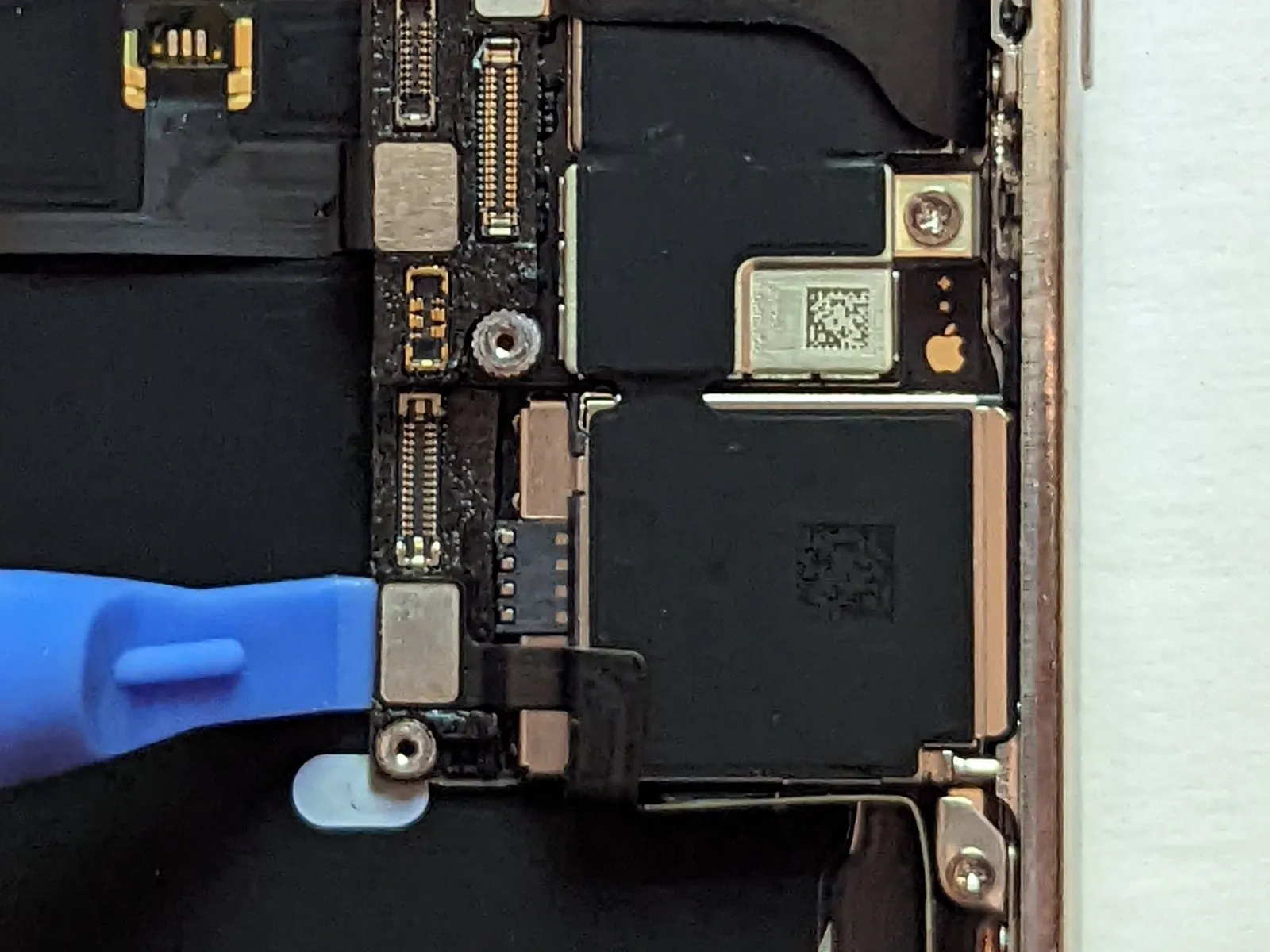

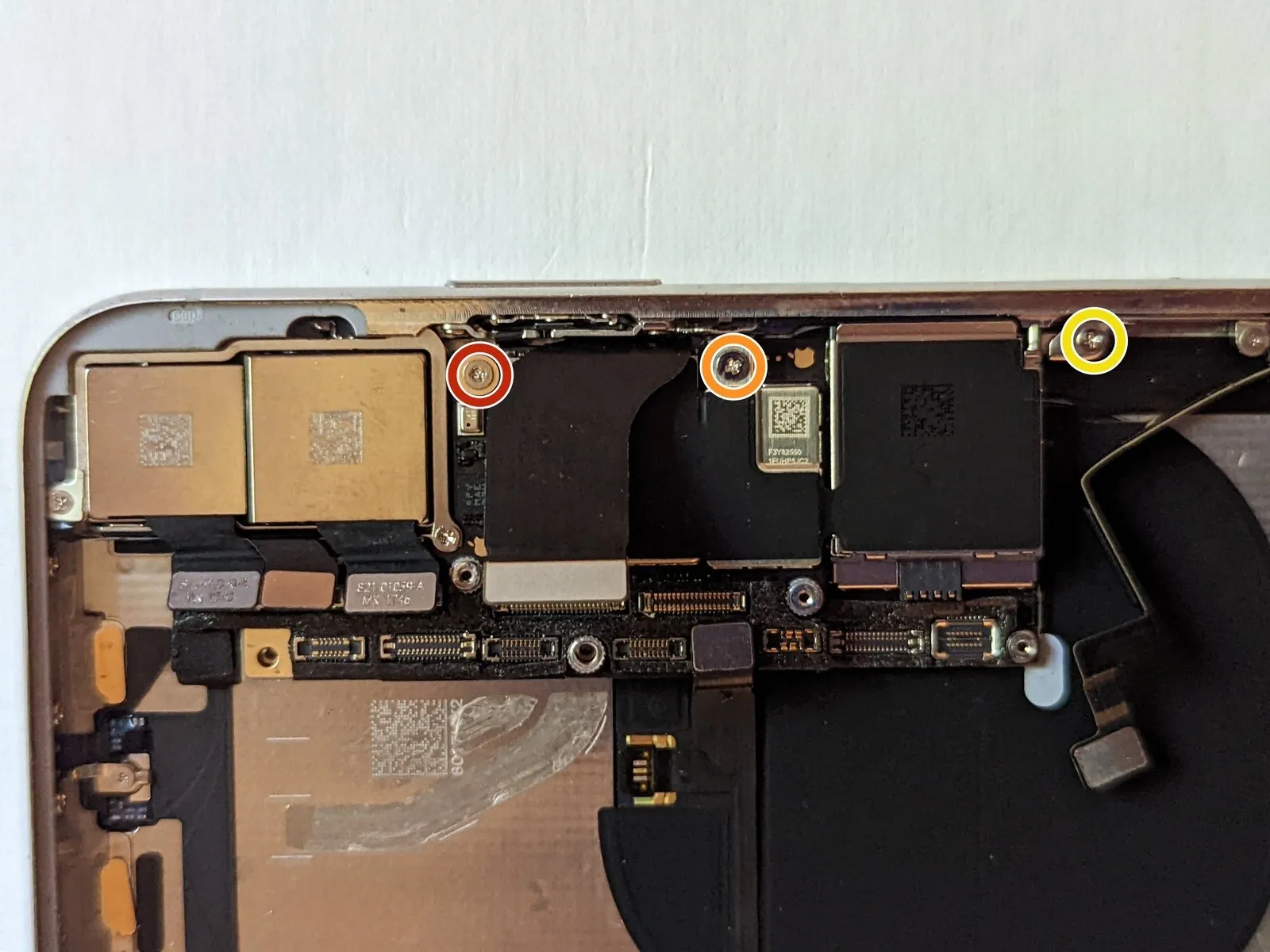

• To proceed with the logic board removal, first, detach the Dock Flex cable connector.
• Carefully flex the cable's form,creating a 90-degree angle,then orient it vertically to provide sufficient space for the logic board's extraction.

• To prevent damage, detach the connector securing the Cellular Antenna cable.
• Carefully maneuver the cable aside to avoid obstruction.

Ensure the SIM card tray is extracted before attempting to detach the logic board, as its presence will obstruct removal; if this step was not completed previously, perform it now.
Detach the two Phillips screws that secure the component.
A single Phillips screw with a 2.7 mm head is required.
A single Phillips screw with a 2.1 mm head is also necessary.

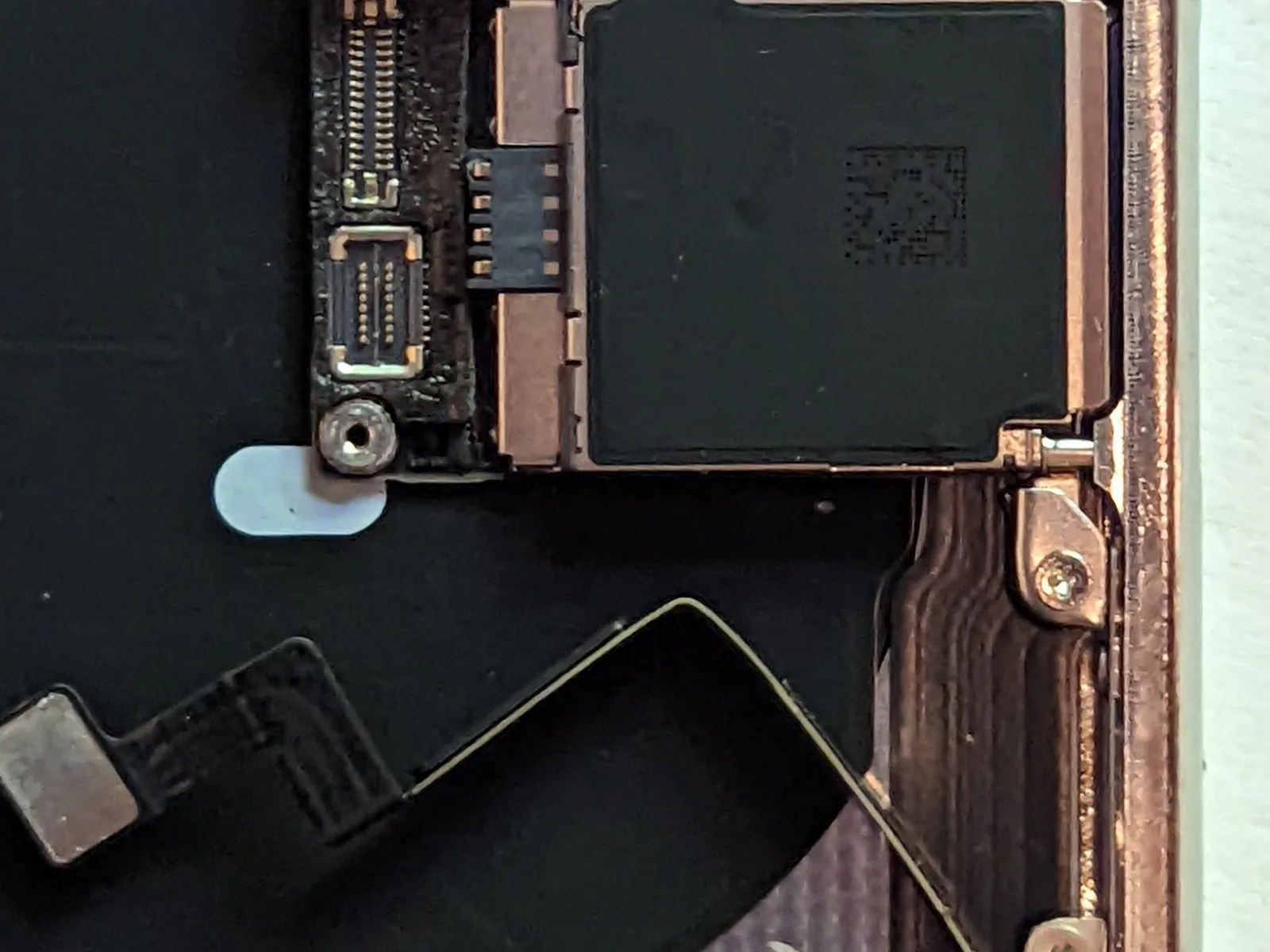

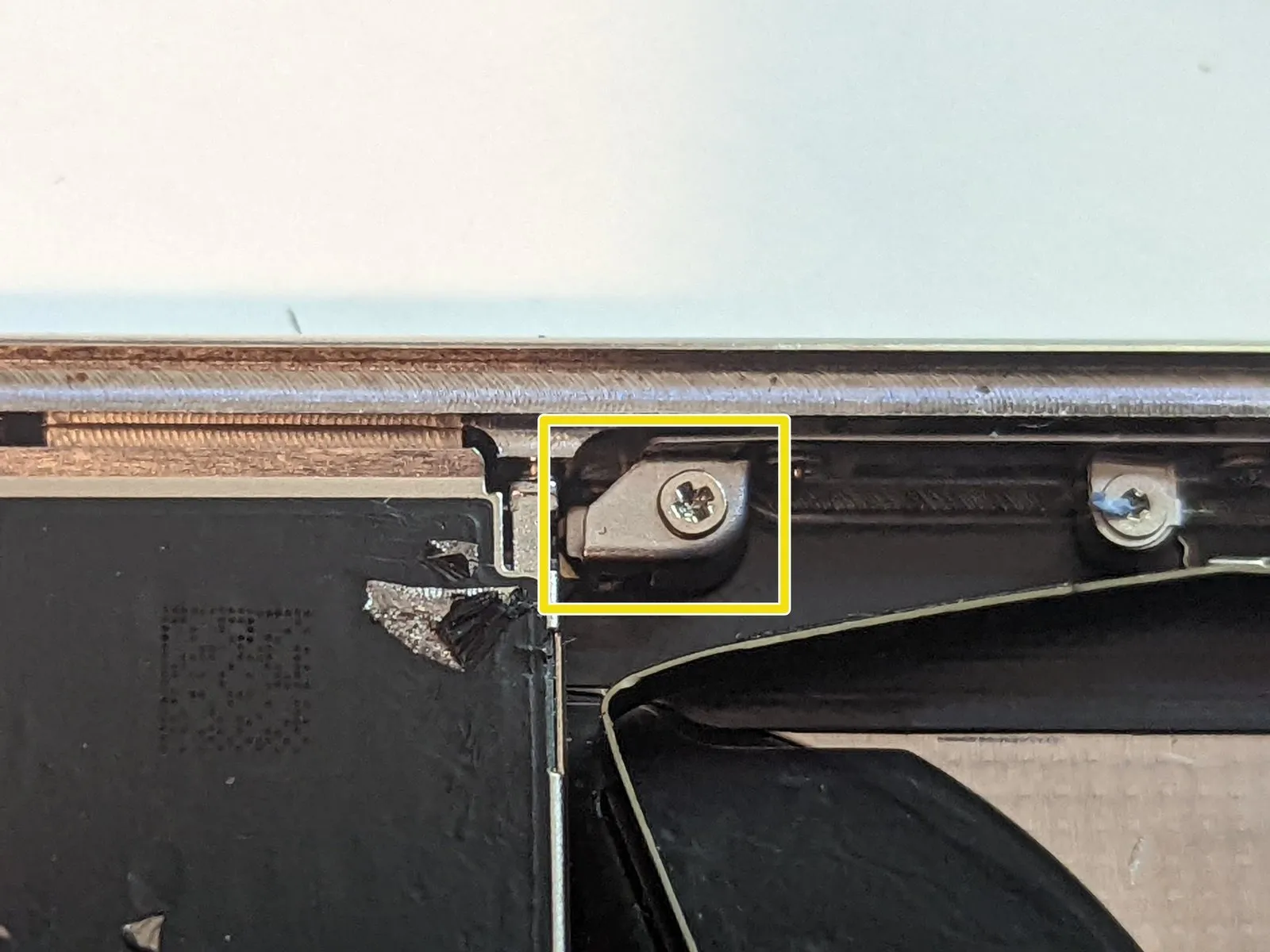

Extract the 2.0 mm Phillips screw that provides grounding..
Carefully remove the grounding tab.
Reinstall the metallic grounding tab, ensuring it maintains its original position.

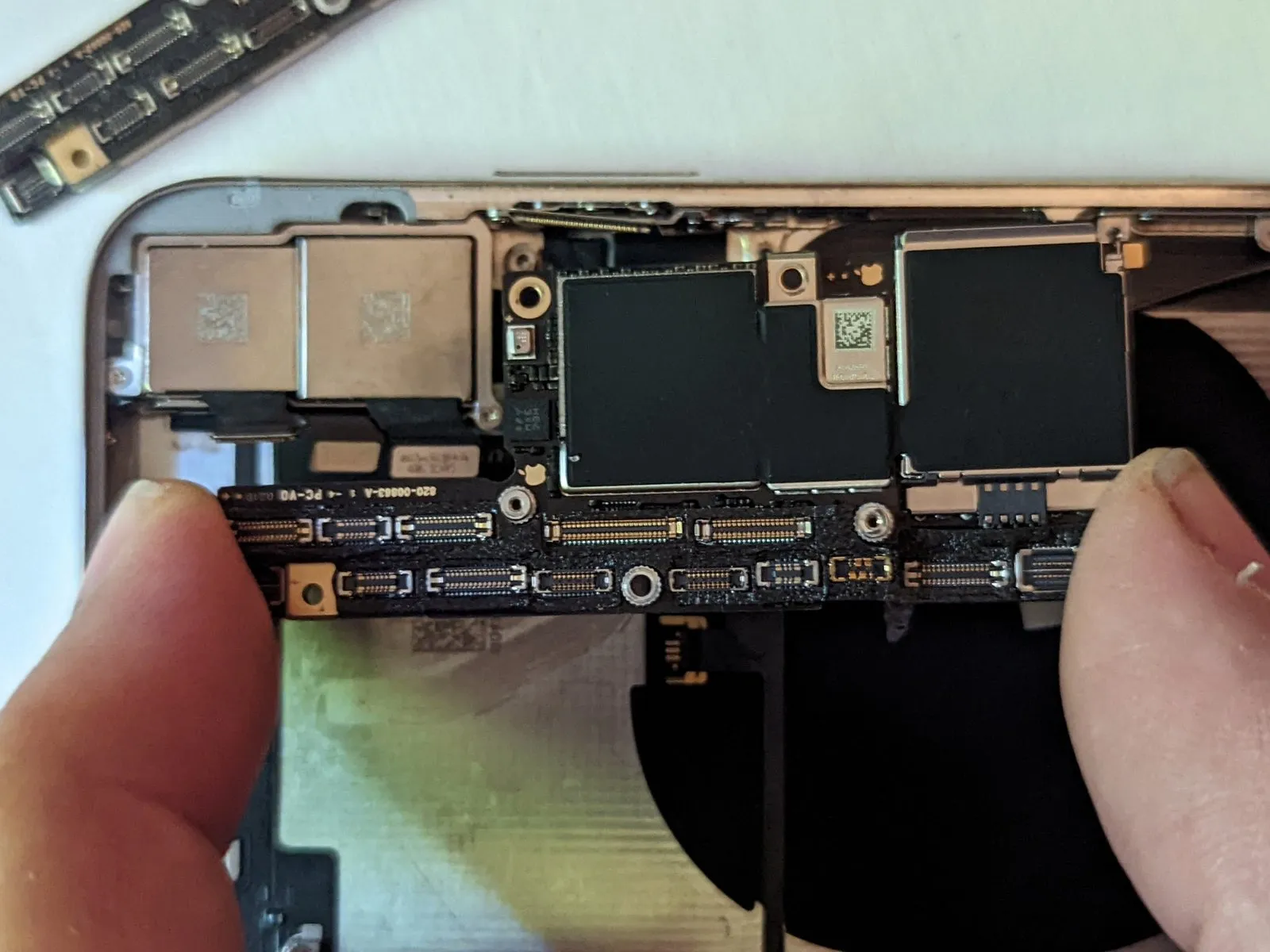

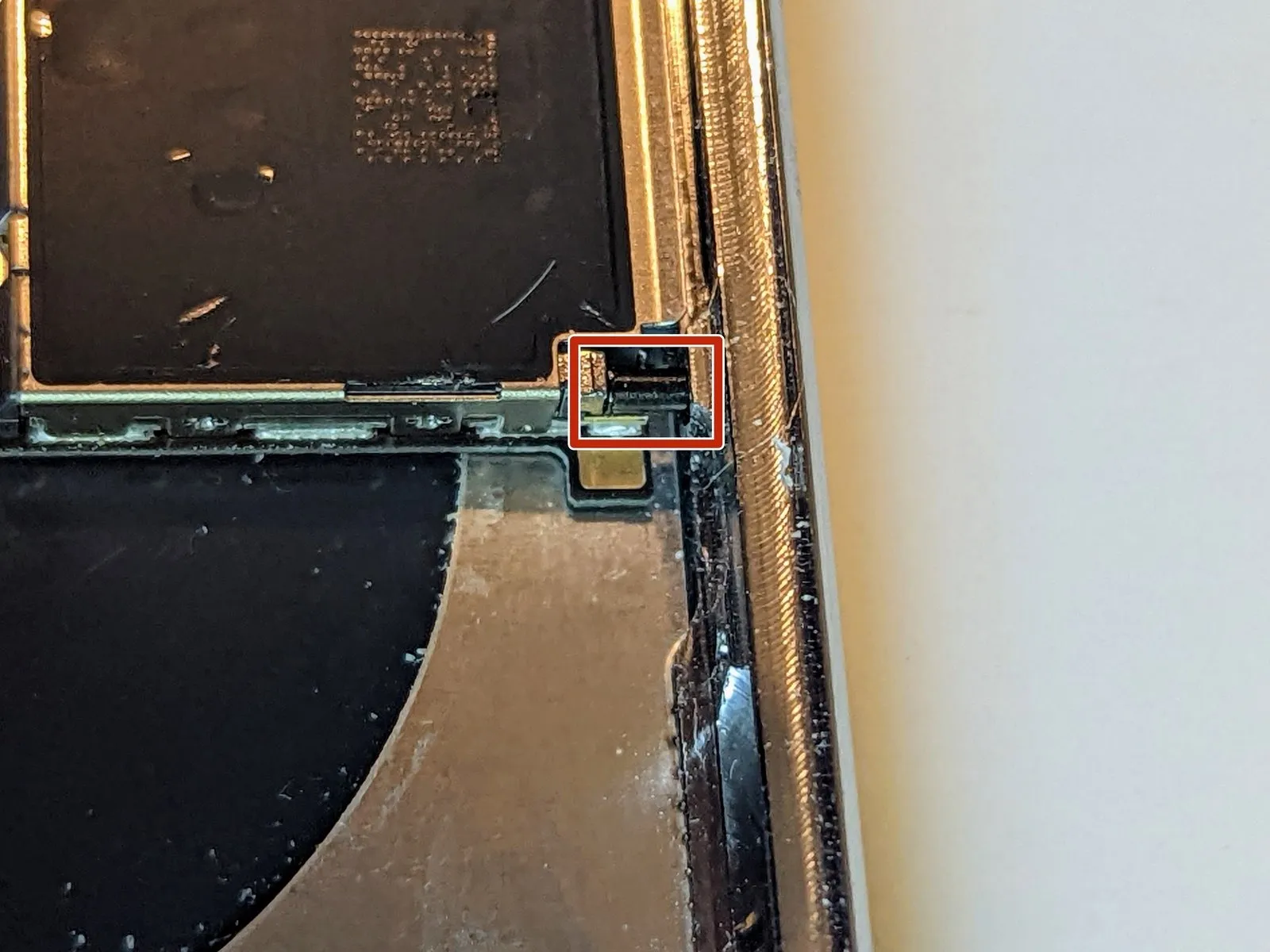

Upon SIM card removal, a retaining pin extends from the device's chassis, engaging the release lever within the SIM card holder. To facilitate logic board disassembly, this pin must be manually retracted back into its housing, preventing obstruction.

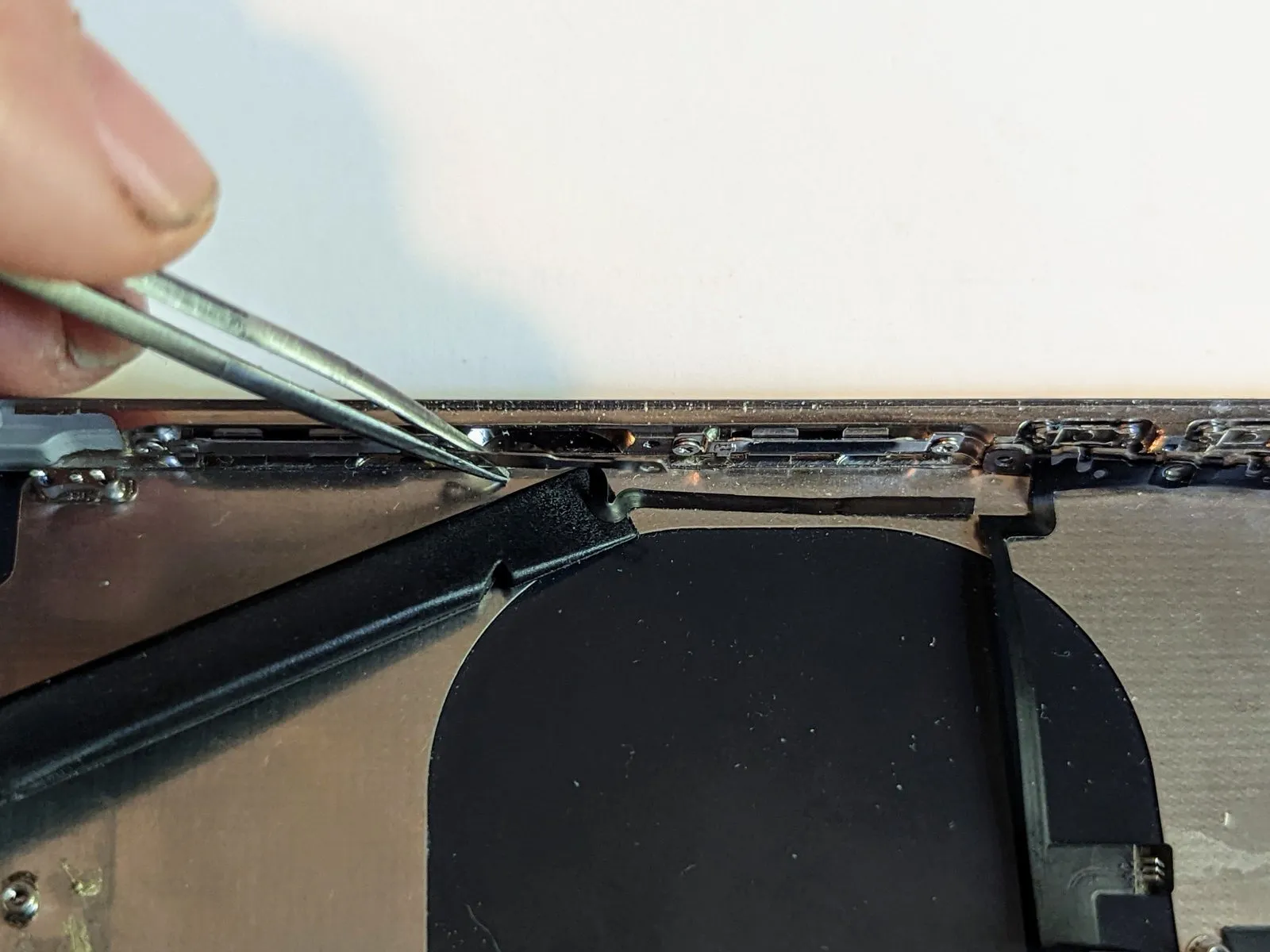

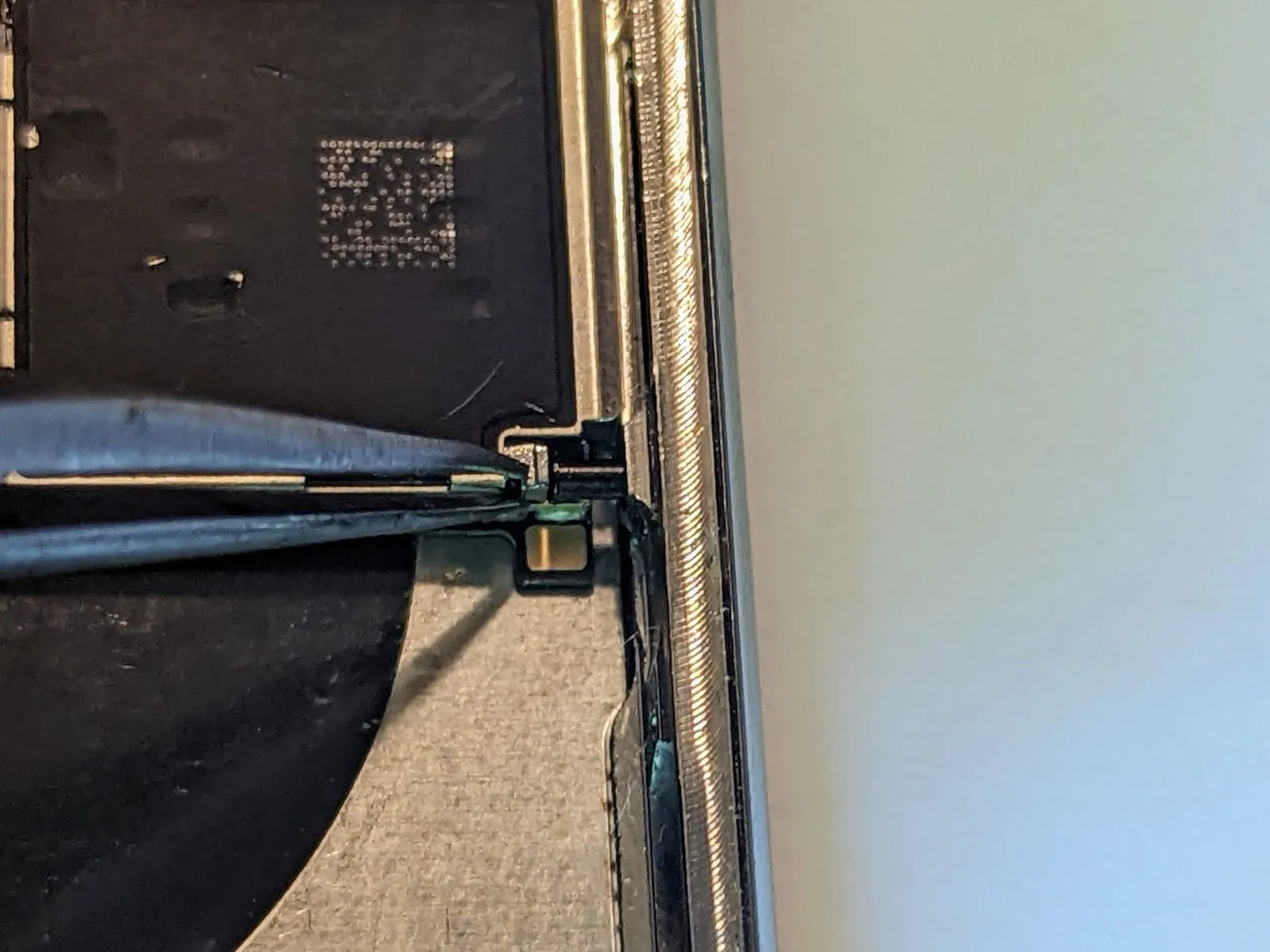

• Employing a set of precision tweezers, carefully maneuver the SIM card ejection lever in a direction parallel to the device's casing.
• The lever's final position should match the illustration provided; this ensures the retaining pin no longer obstructs the logic board's extraction.

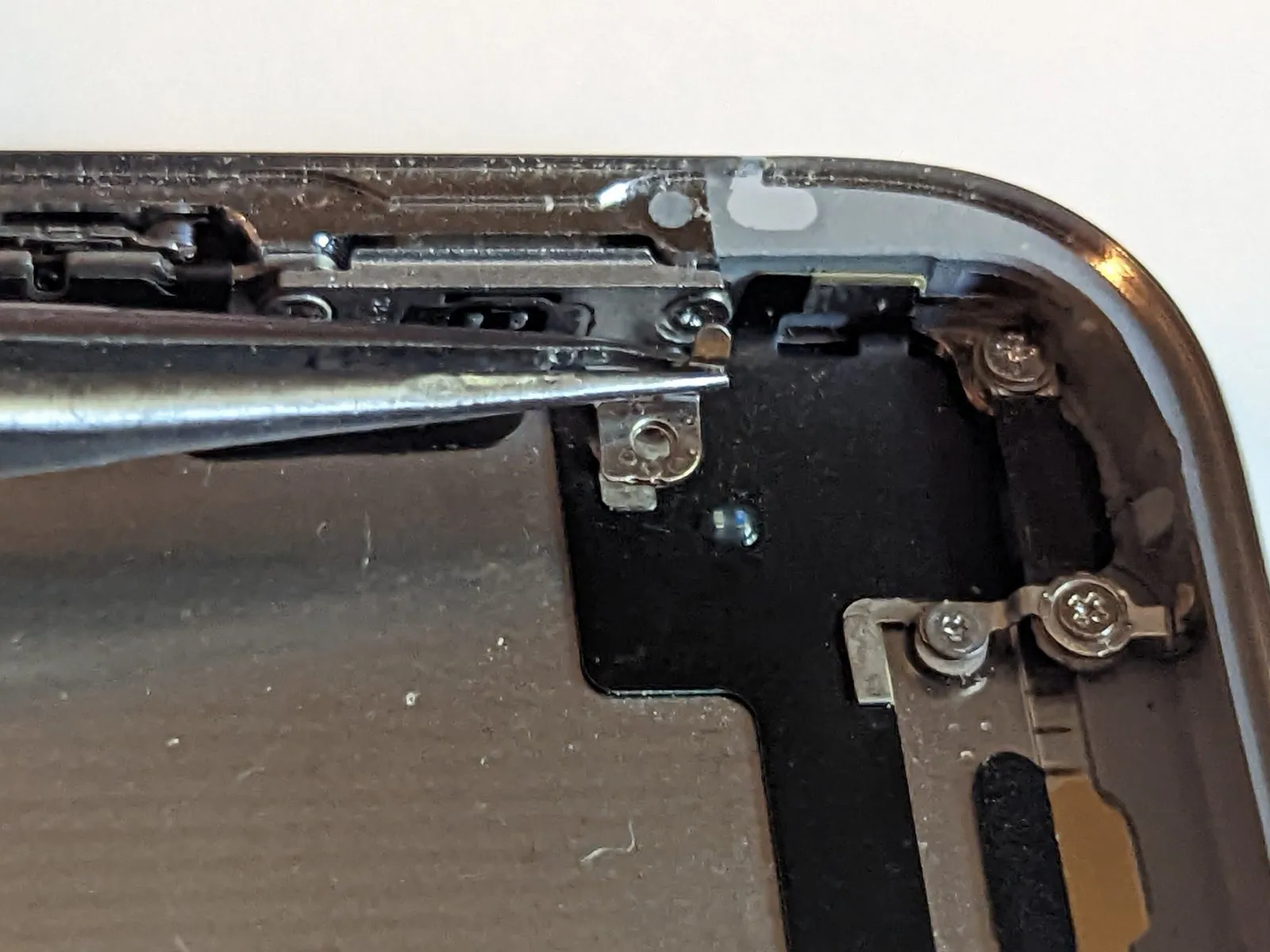

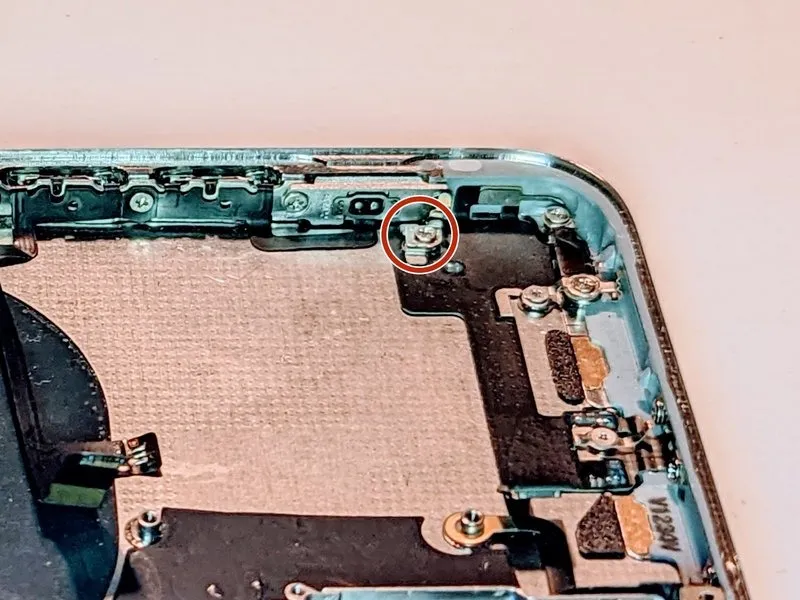

• Detach the1.4-millimeter Phillips screwsecuring the grounding tab.

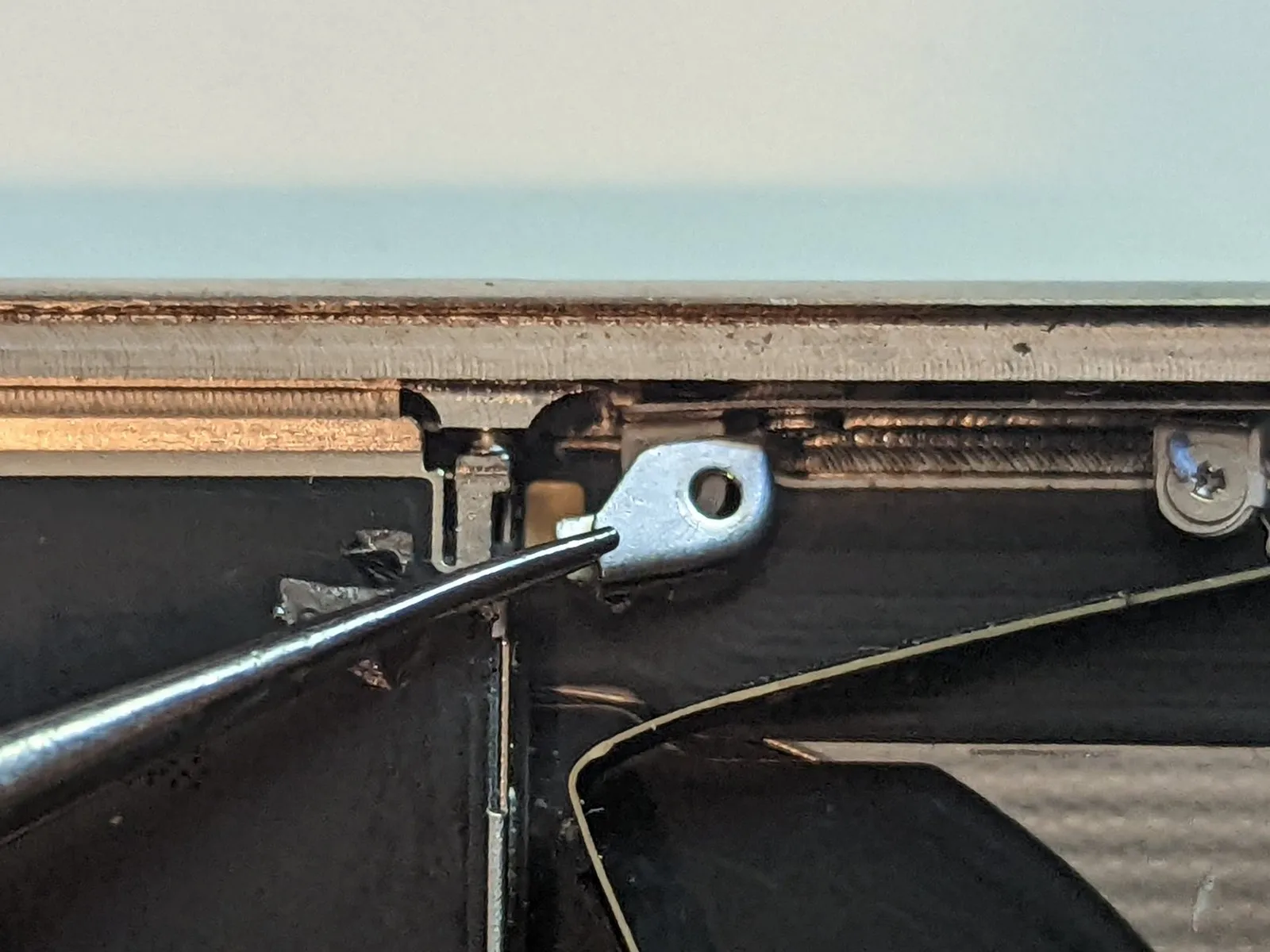

• Extract the grounding tab.
• Pay close attention to the tab's original positioning, ensuring accurate placement when reassembling the device.

• To detach the buttons, begin by eliminating the six screws that hold them in place.
• Utilize two Phillips head screwdrivers, each with a 1.5 mm shaft..
• Employ two additional Phillips head screwdrivers, sized at 1.9 mm..
• A single Phillips screwdriver with a 2.4 mm tip is also required..
• Furthermore, a Phillips screwdriver measuring 1.7 mm will be necessary..

• To deactivate the ringer or silent mode, move the switch located on the device's exterior.

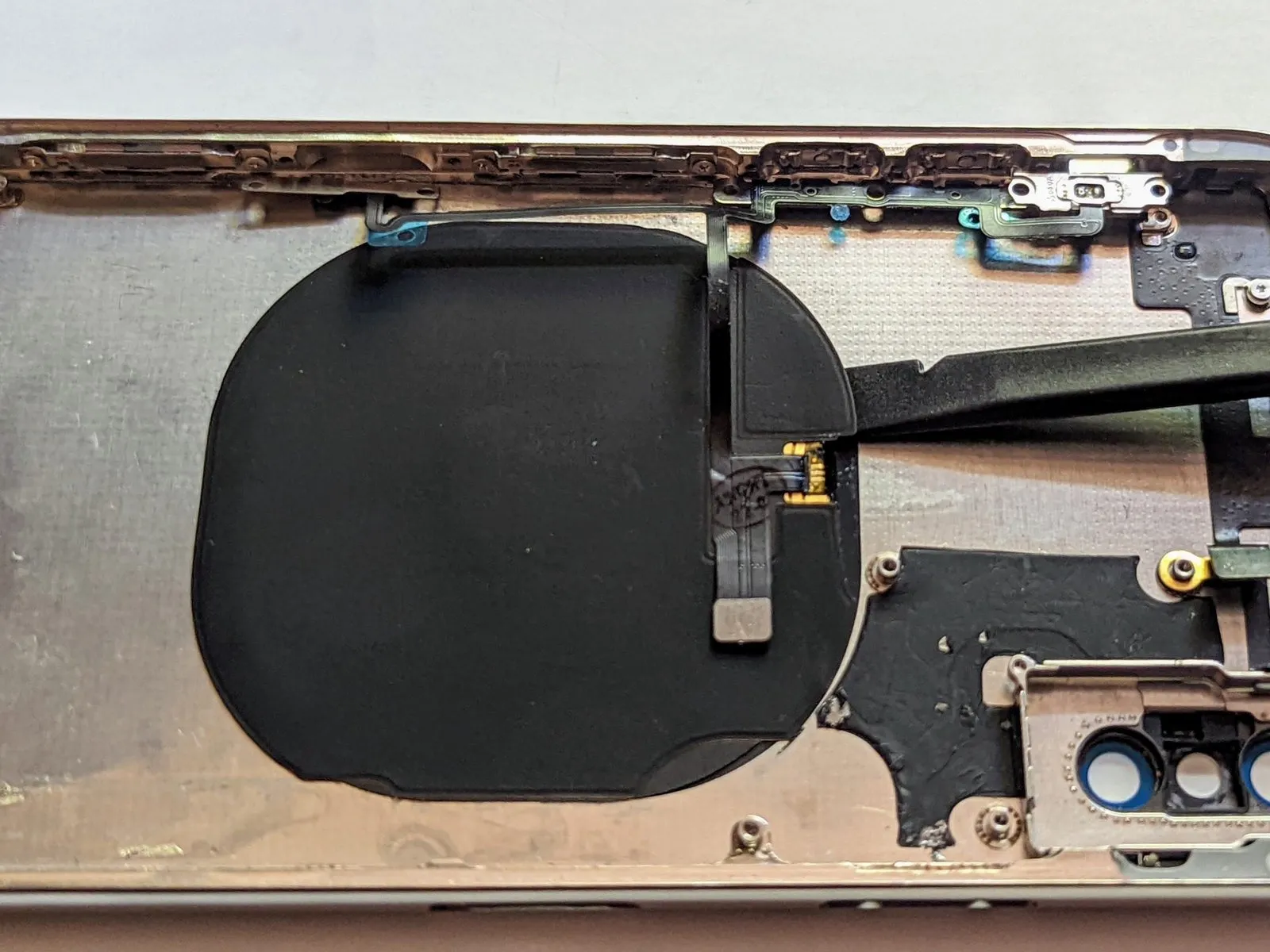

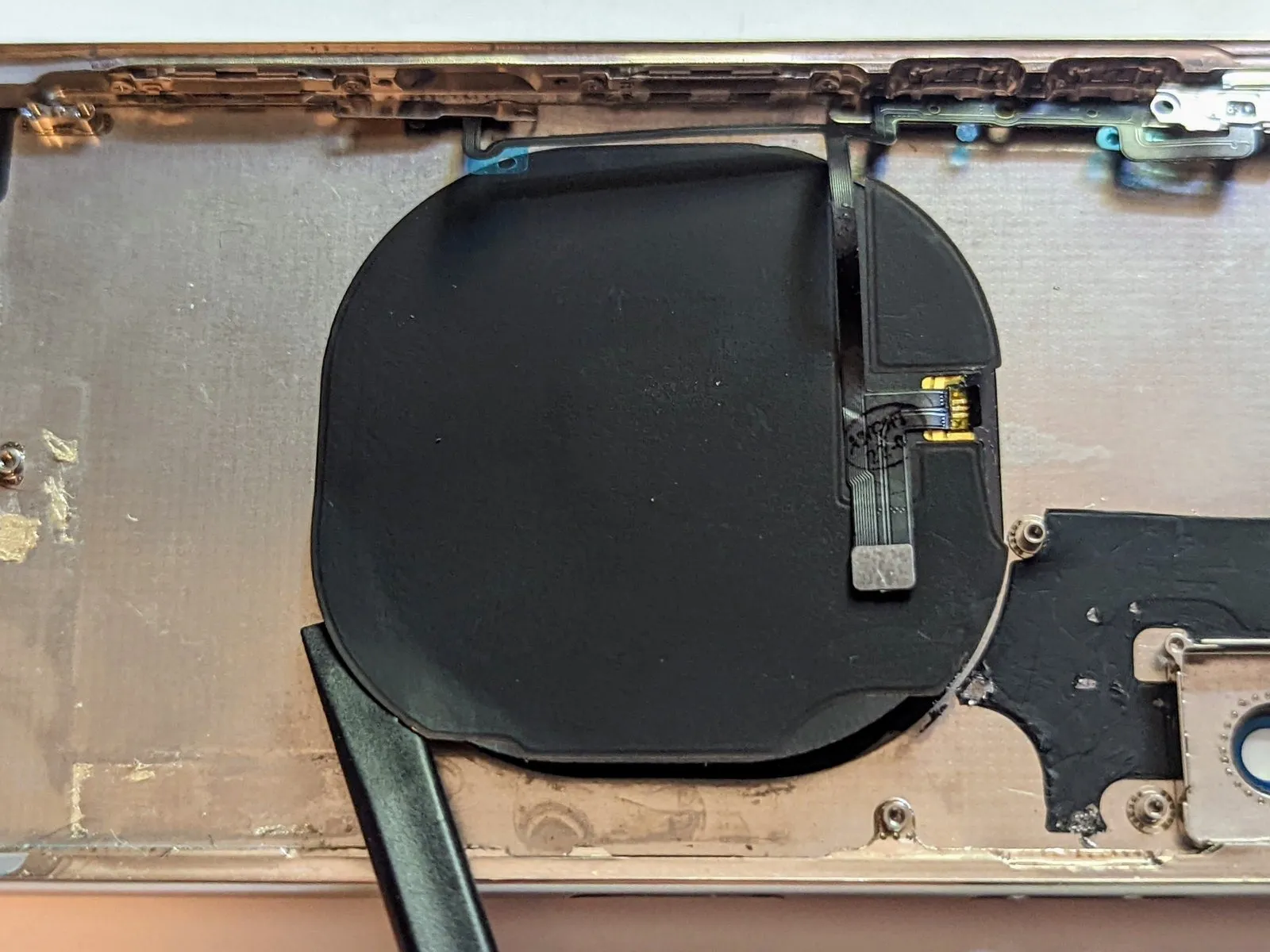

• Employing a specialized plastic pry tool, carefully separate the flexible circuit connector from the case's underside.

• Applying heat to the device's casing utilizing an iOpener, a hot air gun, or a hair dryer will assist in softening the adhesive, facilitating easier removal.
• Detach the button cable from its connection.

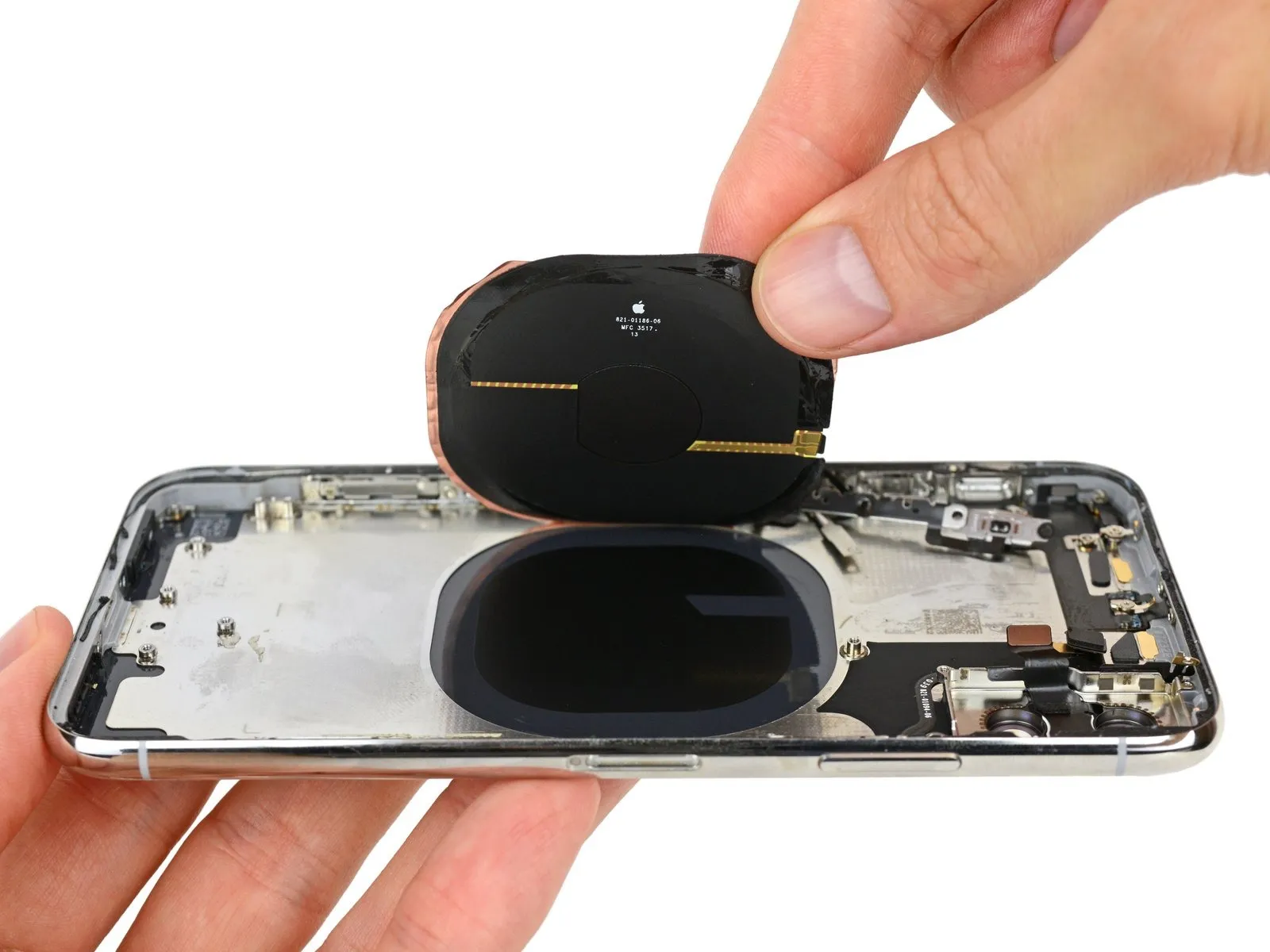

• Should you intend to reinstall the button/charging coil assembly, exercise utmost caution during the removal process; this cable is exceptionally thin and prone to damage. Proceed deliberately and gently, minimizing any strain on the cable.

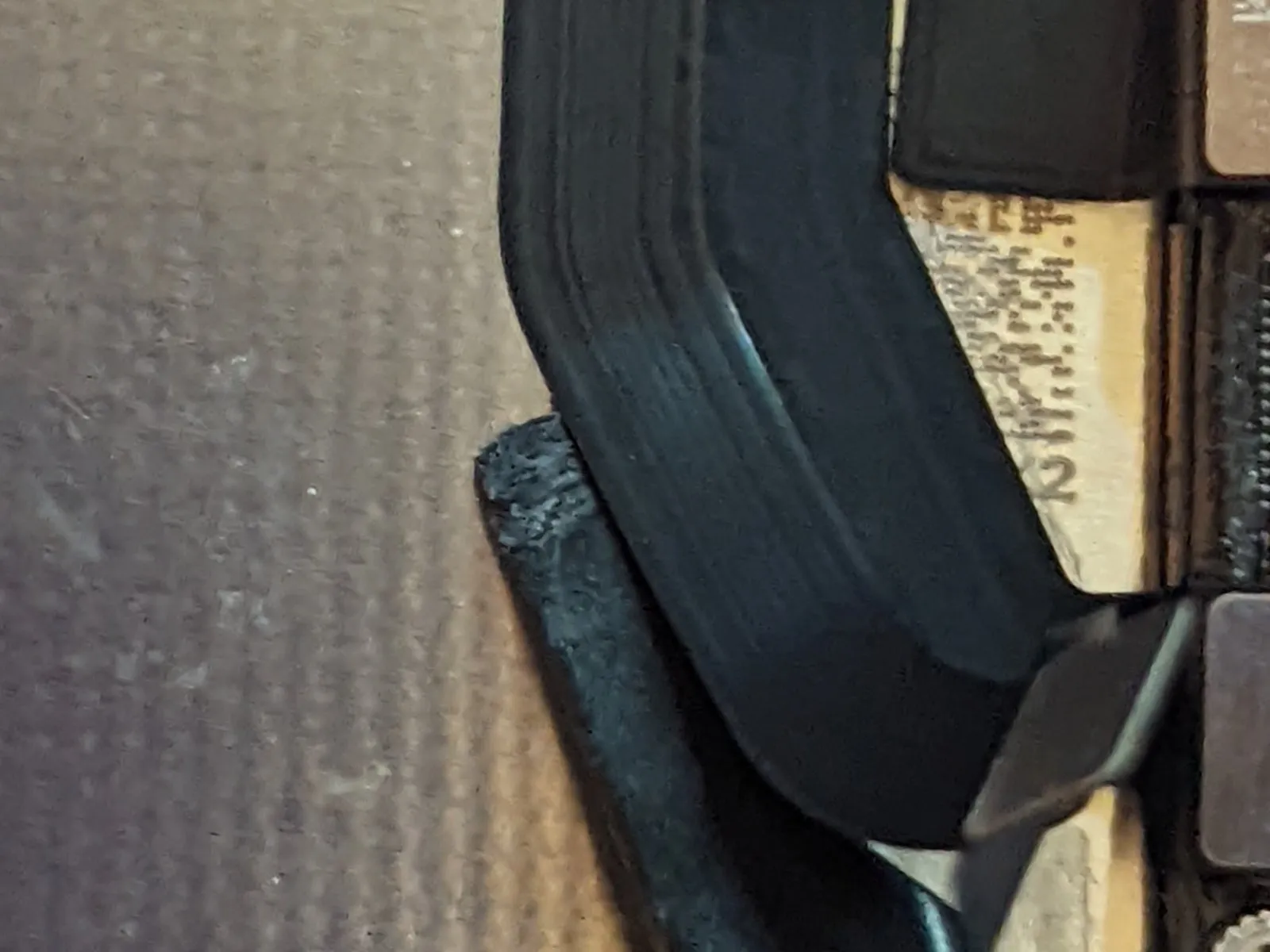

• Secure the cable with tweezers while employing a spudger to lift and slide between the cable and the device's casing.

• During the button assembly replacement procedure, it is essential to relocate the ring/silent switch component from the original assembly to the replacement unit.
• Refer to the detailed instructions provided in the iPhone X Power and Audio Exterior Buttons guide to learn the process of detaching the exterior switch from the button assembly.
