iPhone X Power Button and Flash Cable Replacement

• Apply consistent pressure to release the SIM card tray.

• Determine the distance of3 mmfrom the tool's distal end and use a permanent marker to create a visible indicator on the separation tool.
• For additional reference, consider marking the tool's other corners with varying measurements.
• As an alternative method, affix a coin to the separation tool, positioning it precisely 3 mm from the tip.

• Apply multiple layers of transparent packing tape across the iPhone's screen surface, ensuring complete coverage of the display's front.
• Always utilize eye protection, specifically safety glasses, to guard against glass shards that may become dislodged during the repair process.
• Should the suction cup fail to maintain adhesion during subsequent actions, create a handle by folding a robust tape, like duct tape, and use this to carefully separate the screen.
• As a last resort, secure the suction cup to the screen using superglue to facilitate lifting.

• Detailed instructions regarding the Anti-Clamp's operation can be found in a separate, dedicated guide.
• To release the Anti-Clamp’s securing arms, draw the blue handle in a rearward direction.
• Position the arms across either the left or right side of your iPhone.
• Place the suction cups close to the lower edge of the iPhone, ensuring one is situated on the front surface and the other on the rear.
• Apply suction to the intended area by compressing the cups together.
• Should the iPhone’s surface prove excessively slick, preventing adequate adhesion by the Anti-Clamp, applying adhesive tape can provide a more textured interface.

• Rotate the handle a full 360 degrees, or continue turning until the suction cups begin to deform.
• Maintain the parallel positioning of the suction cups; should they become misaligned, slightly release the suction cups and readjust the arms.

• Alternative heat sources, such as a hair dryer, heat gun, or hot plate, may be utilized; however, excessive heat poses a risk of display or internal battery damage, necessitating cautious operation.
• Position the iOpener so that it rests along the lower edge of the iPhone’s casing.
• Allow a sixty-second interval to elapse, permitting the adhesive to loosen and establish a separation.
• Introduce an opening pick beneath the display and the surrounding plastic frame, ensuring it does not contact the screen's surface directly.
• Should the Anti-Clamp fail to generate an adequate separation, increase the heat applied to the region and incrementally rotate the handle by ninety degrees.
• Avoid rotations exceeding ninety degrees at a time, and observe a sixty-second pause between adjustments; rely on the Anti-Clamp’s mechanism and time to facilitate the separation.

• Employing a hairdryer, heat gun, or iOpener is recommended; direct heat to the lower edge of the iPhone for approximately one minute to reduce the adhesive's tackiness.
• Excessive heat from a hairdryer or heat gun can harm the display; therefore, avoid overheating.

• Apply steady, consistent upward force to the suction cup to generate a small separation between the display assembly and the device's surrounding structure.
• Carefully slide an opening tool into the newly formed space, positioning it beneath the plastic trim that borders the display, ensuring it does not contact the display glass itself.
• Due to the robust, waterproof sealant securing the display, establishing this initial separation requires considerable effort; if you encounter difficulty, apply additional heat and gently oscillate the display to loosen the adhesive until a sufficient gap is achieved for tool insertion.

• Using a separation tool, carefully maneuver it along the bottom-left perimeter of the iPhone's display and upwards along the left side, severing the adhesive securing the display assembly.
• Maintain a maximum insertion depth of 3 millimeters for the separation tool to prevent potential harm to the device's internal components.

• Fragile wiring is situated along the right-hand side of the iPhone; avoid inserting any tools in this area to prevent potential cable damage.

• Position your opening tool once again at the lower boundary of the iPhone's display and advance it upwards along the right-hand side to further release the adhesive bond.
• Ensure the tool's insertion depth remains under 3 millimeters to prevent potential harm to the delicate display cable connections.

• Adhesive and retaining clips both fasten the uppermost border of the screen assembly.
• Employing a specialized opening tool, maneuver it along the upper corner of the display, applying slight downward pressure with gentle movements towards the Lightning connector.
• Excessive force applied to the retaining clips will result in their breakage; therefore, proceed with caution and deliberate care.
• Limit the insertion depth of your tool to a maximum of 3 millimeters to prevent potential harm to the front panel sensor array.
• Continue the tool's movement to the opposing corner, severing any residual adhesive that is holding the display in place.

• To access the internal components of the iPhone, initiate the opening process by pivoting the display upwards from the left side, employing a motion similar to opening a book's cover.
• Refrain from completely detaching the display assembly at this stage, because multiple delicate ribbon cables remain connected to the iPhone's logic board.
• Confirm, as illustrated in the provided imagery, that the frame is lifted away from the device along with the display, preventing it from becoming lodged inside.
• Secure the display in an upright position using a support to maintain it while performing subsequent repair steps.
• When reassembling the device, position the display, ensuring proper alignment of the clips along the upper edge, and apply gentle pressure to the top edge to secure it before engaging the remaining clips around the perimeter; if resistance is encountered, inspect the clips for any deformation and correct as needed.

• To detach the logic board connector bracket, first extract the five Y000 screws that hold it in place, noting the varying lengths of each.
  Specifically, three screws measure 1.1 millimeters in length.
  A single screw is 3.1 millimeters long.
  Additionally, one screw has a length of 3.7 millimeters.

During the entire repair process, meticulously organize and document the location of each screw, ensuring correct reinstallation to prevent potential damage to your iPhone.

• Detach the bracket from its position.
  The bracket could be subtly affixed; apply a careful, yet resolute upward force to disengage it.

As you put the iPhone back together, it's advisable to activate the device and verify all its operational capabilities prior to securing the display. Ensure the iPhone is fully powered off before proceeding with the remaining steps.

• Employing the tip of a spudger or a pristine fingernail, carefully lift the battery connector from its corresponding receptacle on the logic board.
  Exercise caution to avoid harming the black silicone seals that encircle this connector and others; these seals offer supplemental defense against water and dust penetration.

Slightly deflect the connector away from the logic board's surface to ensure it does not inadvertently establish an electrical connection and supply power to the device during the repair process.

• Employ the tip of aspudgeror afingernailto release the OLED panel cable connector's latching mechanism.
• For reassembly, position the connectors precisely, then apply pressure to one edge until a distinct click is heard, followed by repeating the process on the opposing edge; avoid applying pressure to the central portion. Incorrect alignment risks bending the internal pins, which could result in irreversible component failure.

• Employ the tip of a spudgerto carefully lift the digitizer cable connector from its receptacle.
• Due to the connector's deeply set position, reattachment can be challenging; proceed deliberately, ensuring precise alignment before applying gentle pressure with your fingertip to secure it – initially one side, then the other, observing an audible click confirming its proper engagement.
• Should any area of the screen exhibit a lack of touch responsiveness following the repair, first remove the battery, then re-engage this connector, verifying a full, audible click and confirming the absence of dust or any other impediment within the socket.

The assembly containing the front panel sensor is secured with a delicate adhesive along its flex cable.
Gently raise the cable, ensuring the adhesive bond releases without damage.

• Detach the display assembly from the device.
• If you intend to substitute the waterproof adhesive that seals the display's perimeter during reassembly, temporarily halt the process at this stage.

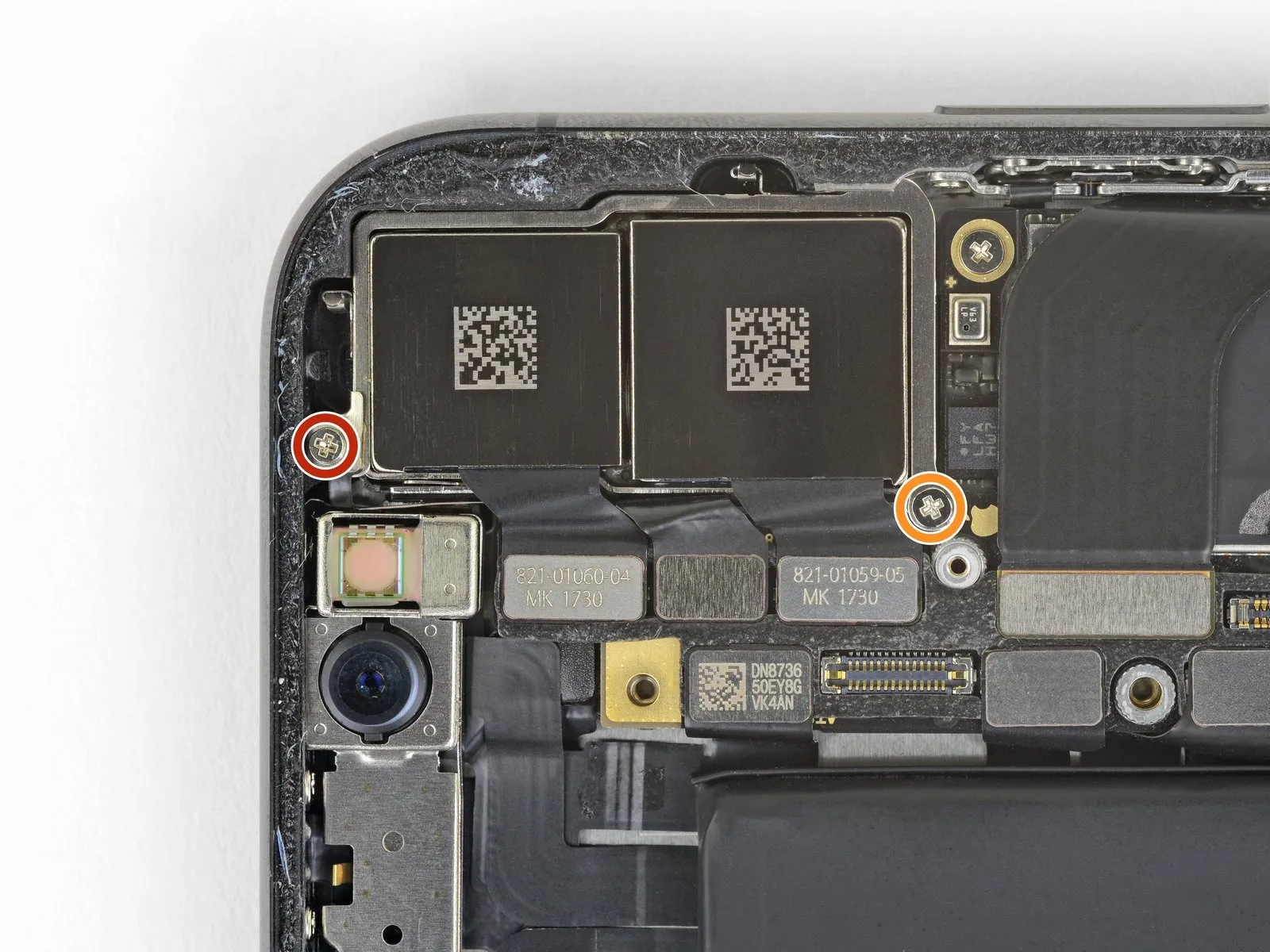

• Two Y000 1.9 mm screws
• One Y000 1.2 mm screw
• One Y000 1.6 mm screw
• One Phillips 2.4 mm screw
• One Phillips 1.7 mm screw
• One Phillips 1.5 mm screw

• To detach the speaker connector cover, first eliminate the Y000 screwdriver bit secured by the 2.1-millimeter screw.

Exercise caution while separating the speaker from the device, preventing harm to the flex cable that was recently detached; if needed, secure the cable to the side to facilitate speaker removal.

• Position a spudger beneath the upper boundary of the speaker, situated close to the iPhone's casing.
• Apply slight upward pressure and elevate the speaker's top edge with care.

During reinstallation of the speaker, verify the flex cable's alignment and confirm it remains free from entrapment beneath the speaker.

Grasp the speaker firmly along its lateral borders, gently oscillating it to disengage the adhesive that bonds it to the iPhone's lower rim.

• Continue moving the speaker outward from the iPhone's base until the adhesive gasket, which provides a seal, releases completely.

Detach the speaker component.

The speaker's sealing gasket is designed for single use and cannot be reused; adhere to the following procedure for replacement during reassembly.

• Employing tweezers, detach and eliminate all remnants of the previous gasket material from both the speaker and its surrounding frame.
• Thoroughly cleanse any remaining adhesive from the speaker and frame surfaces utilizing a microfiber cloth dampened with isopropyl alcohol.
• Prior to installing the replacement gasket, determine its correct alignment on the speaker's underside, ensuring the prominent recess is positioned around the speaker grille's meshwork.
• Carefully peel away the larger, transparent protective layer from the new gasket and, using tweezers, position it precisely onto the speaker's bottom surface.
• To prevent contamination of the adhesive, only handle the gasket by grasping the outer perimeter of its protective liner.
• Apply firm pressure with your fingers or a specialized spudger to embed the gasket securely within the adhesive.
• Discard the remaining liner and reinstall the speaker assembly, exercising caution to prevent the speaker connector from becoming trapped.

• To detach the component, eliminate the2.3-millimeter Phillips-head screwthat holds the Taptic Engine in place.

• Employ a spudger to release the Taptic Engine flex cable, achieving disconnection by applying upward force directly to it as it separates from its connector.

• Carefully detach the Taptic Engine component.

Four strips of stretch-release adhesive fasten the iPhone X's battery to the back cover; specifically, one secures the upper cell, while three secure the lower portion. A small, black pull-tab, lightly bonded to the battery's side edge, is attached to the end of each adhesive strip.

• Detach the initial battery adhesive tab from the battery's lower border.
• If grasping the tab proves difficult, utilize a tool to pass through the small loop situated centrally on each tab.
• Exercise caution to avoid puncturing the battery with any pointed instruments, as this could result in the release of hazardous substances or ignition.

• To detach the remaining two adhesive strips, perform the previous procedure once more, carefully peeling them away from the battery's lower border.
• Exercise caution to prevent any harm to the speaker cable connector, which is situated directly beneath the central adhesive tab.

The subsequent instructions detail how to gently extend each adhesive tab, facilitating separation from the battery's underside. This unique stretch-release adhesive diminishes its stickiness when extended, enabling it to be removed cleanly and allowing for straightforward battery removal.

Should the adhesive strips fracture, remain composed; their functionality isn't guaranteed. Refer to the subsequent instructions for alternative methods to address broken strips.
To maximize the likelihood of a successful repair:
Avoid applying pressure to the battery surface; instead, maintain a secure grip on the iPhone's sides.
Ensure the strips remain smooth and without creases during the pulling process.
Exercise extreme caution and pull with deliberate slowness, permitting the strip adequate time to stretch and detach. Each strip typically requires approximately 15 to 30 seconds of stretching for complete removal.
Maintain a shallow pulling angle to prevent the strip from catching on the battery's lower edge.
If a portion of a strip breaks off and remains inaccessible beneath the battery, proceed to the remaining strips and then follow the supplementary instructions provided afterward.

• Carefully detach one of the battery's external adhesive strips by gently drawing it away from the battery surface, directing the movement towards the iPhone's lower edge.
• Maintain a consistent, even force while pulling the strip, ensuring it remains taut until it disengages from the space between the battery and the rear enclosure.
• Expect the adhesive strip to elongate significantly, potentially stretching to several times its initial size; if needed, reposition your grip along the strip's length as you continue pulling.
• Should the battery adhesive strips tear during removal, employ your fingers or flat-tipped tweezers to collect any detached adhesive fragments, and then resume the pulling action.
• In the event that adhesive strips fracture beneath the battery and are inaccessible, attempt to remove the remaining strips and then follow the subsequent instructions.

• Detach the central portion of the assembly, exercising caution to prevent the speaker flex cable from being damaged.

• The last retaining tab is situated in immediate proximity to the Face ID components, and any harm to it necessitates extreme caution.Due to the complexity of the system, Face ID functionality is exclusively serviceable by Apple technicians.Proceed with meticulous attention to detail to prevent unintended damage.
• Carefully lift and detach the pull tab from the uppermost adhesive strip, which is positioned along the top border of the upper battery cell.

• Detach and eliminate the last adhesive strip.
• During separation from the iPhone, the strip's release could propel the battery; therefore, position your hand above the battery to maintain its stability, but avoid applying downward pressure, as this might cause the adhesive strip to fracture and remain beneath the battery.
• Should you manage to remove all four adhesive strips, proceed to bypass the subsequent instruction.
• Should the adhesive become detached and inaccessible beneath the battery, introduce a small quantity of isopropyl alcohol with a concentration exceeding 90% beneath the battery's edge, specifically targeting the area where the adhesive strip(s) fractured.
• Allow approximately one minute for the alcohol to diminish the adhesive's strength. Subsequently, utilize the planar end of a spudger to delicately elevate the battery.
• Refrain from employing excessive force to dislodge the battery. If necessary, introduce additional drops of alcohol to further reduce the adhesive's hold; under no circumstances should you deform or compromise the battery's integrity with your prying instrument.
• Exercise caution to prevent damage to the ribbon cables or the wireless charging coil, which are situated directly beneath the battery.

• Should any of the adhesive strips detach and the battery remains adhered to the rear case, utilize an iOpener or apply heat to the rear case's surface immediately behind the battery with a hair dryer.
• Warm the iPhone until the rear case reaches a temperature that is slightly uncomfortable to touch, exercising care to avoid excessive heat that could potentially cause battery ignition.
• Turn the iPhone over and carefully insert a durable string – such as dental floss or a slender guitar string – beneath the battery.
• Protect your fingers by enveloping the string's ends with a cloth or by wearing gloves.
• Employ a sawing motion, drawing the string horizontally across the battery's entire length, to sever the adhesive bond; this process may require considerable time due to the adhesive's slow yielding characteristics, but persistence will result in its release, ensuring the battery remains undamaged.
• Should you opt to employ prying implements to extract the battery from the iPhone, exercise utmost caution to prevent damage to the delicate ribbon cables or the wireless charging coil situated directly beneath the battery.

• Securely hold the battery from its lower edge and detach it from the iPhone's internal structure.
• To prevent potential issues, thoroughly eliminate any residual alcohol solution from within the device, either by wiping it away or permitting it to evaporate completely, prior to installing the new battery.
• Prior to installing the replacement battery, ensure the Taptic Engine and speaker are reattached. Maintaining this order assists in proper battery alignment throughout the installation process.
• To guarantee accurate positioning within its designated space, briefly reconnect the battery connector to the logic board socket before securing the replacement battery.
• Attach the replacement battery, subsequently disconnect it, and proceed with the remaining reassembly steps for your device.
• Should your new battery lack pre-applied adhesive, consult this guide for instructions on replacing the adhesive strips.
• Following the complete reassembly, execute a forced restart; this action can proactively resolve potential problems and streamline any necessary troubleshooting.

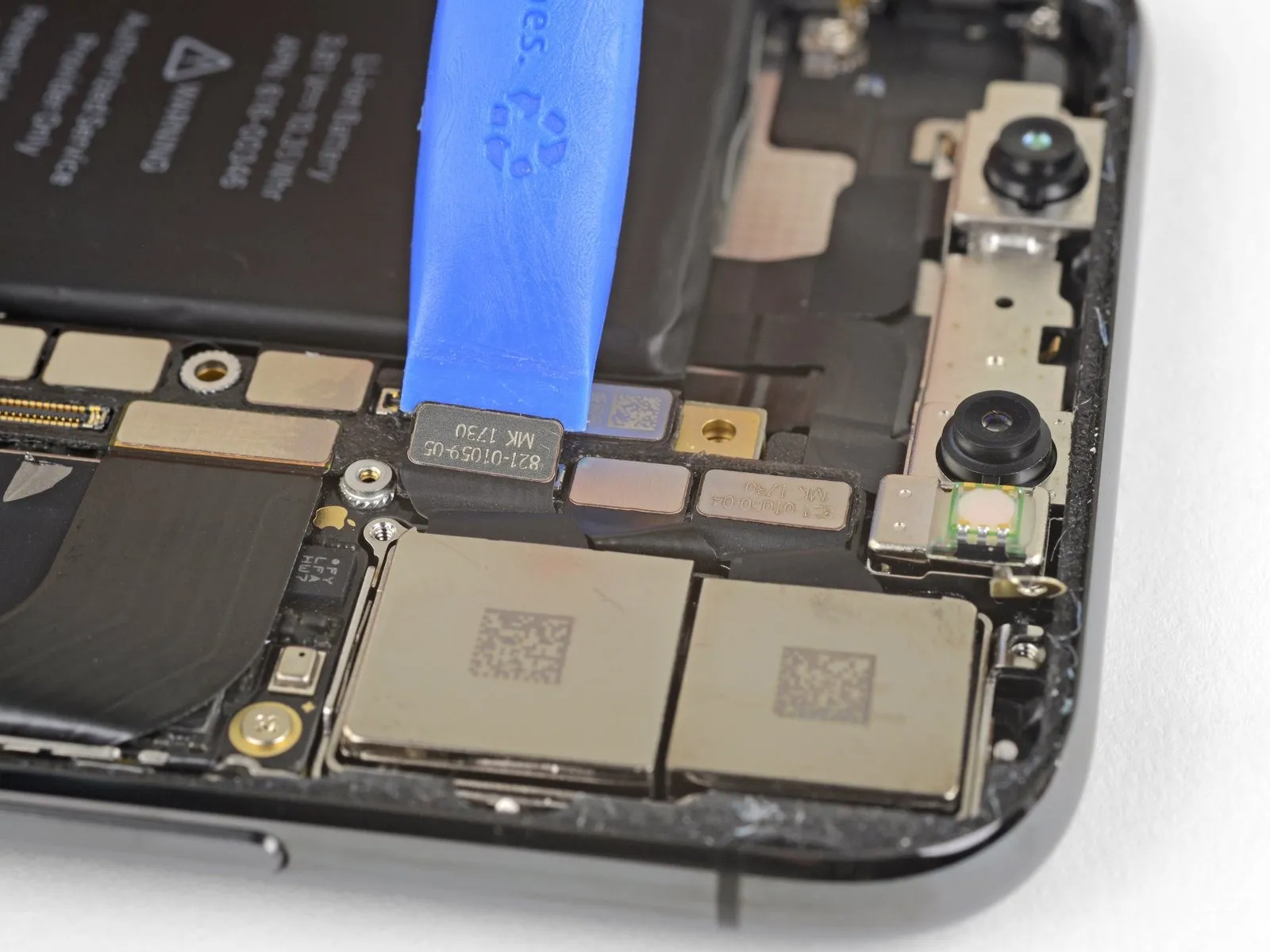

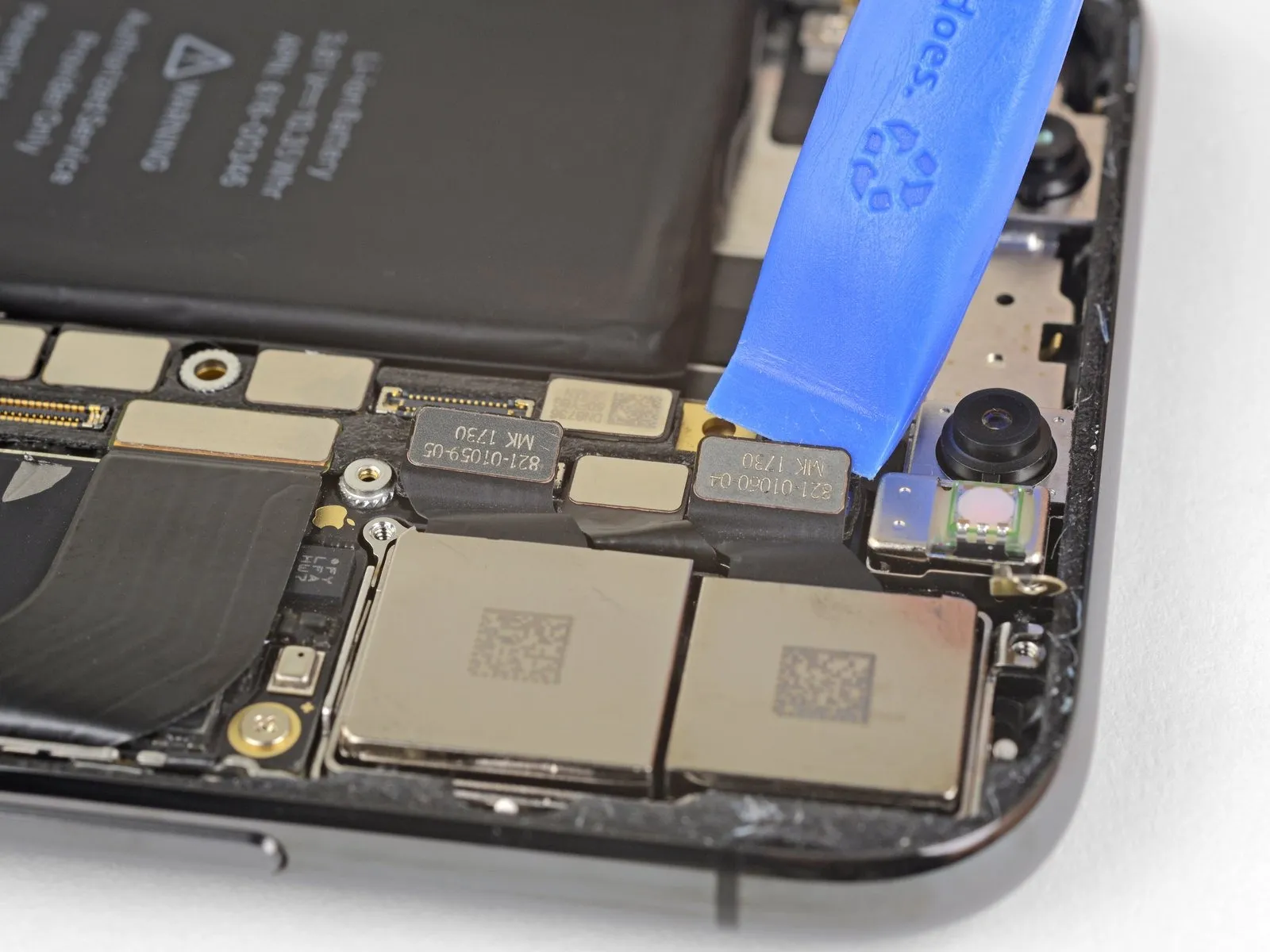

1. Employing the planar edge of a spudger tool, carefully release the connection points of the three cables linked to the front camera assembly.
   Specifically, detach the cable associated with the dot projector.
   Also, disconnect the cable connected to the front camera itself.
   Furthermore, release the cable that connects to the infrared camera.

The camera cables are affixed to the midframe with a minimal adhesive.

Employing the pointed end of a spudger, initiate the separation process at the connector, then carefully move the spudger's tip in between the infrared camera cable and the device casing to detach the cable.

Replicate this procedure for the front-facing camera cable.

To release the bonding agent, direct heat onto the front camera assembly.

Carefully detach the front-facing camera module.

• To proceed with the repair, first, carefully detach the listed cable connectors.
  The WiFi Antenna connection must be severed.
  The Wide-Angle Camera interface should be disconnected.
  The Power Button / Flash / Microphone link needs to be separated.
  The Telephoto Camera connection requires disconnection.
  The Dock Flex interface must be detached.
  The Button / Wireless Charging connection should be severed.
  The Cellular Antenna link needs to be disconnected.

To proceed with the repair, first detach theWiFi Antenna connector from its associated cable.

• To proceed with the logic board removal, first, detach the Dock Flex cable connector.
• Carefully flex the cable's form,to an angle of ninety degrees,then position it vertically to create sufficient space for the logic board's extraction.

• To prevent damage, detach the connector securing the Cellular Antenna cable.
• Carefully maneuver the cable aside to avoid obstruction.

Ensure the SIM card tray is extracted before attempting to detach the logic board, as its presence will obstruct removal. Should you have been unable to do so previously, proceed with its extraction at this time.
Detach the two Phillips screws that secure the component.
A single Phillips screw with a 2.7 mm head is required.
A single Phillips screw, measuring 2.1 mm in head size, is also needed.
Extract the 2.0 mm Phillips screw that provides grounding..
Carefully remove the grounding tab.
Reinstall the metal grounding tab, ensuring it maintains its original position.

Upon SIM card removal, a retaining pin extends from the device's chassis, engaging the release lever within the SIM card holder. To facilitate logic board extraction, this pin must be manually retracted and returned to its original position within the frame, preventing obstruction.

• Employa set of precision tweezersto move the SIM card release mechanism in a direction parallel to the device's exterior.
• The release mechanism's appearance after manipulation will resemble this image; the retaining pin will then be disengaged, allowing for logic board removal.

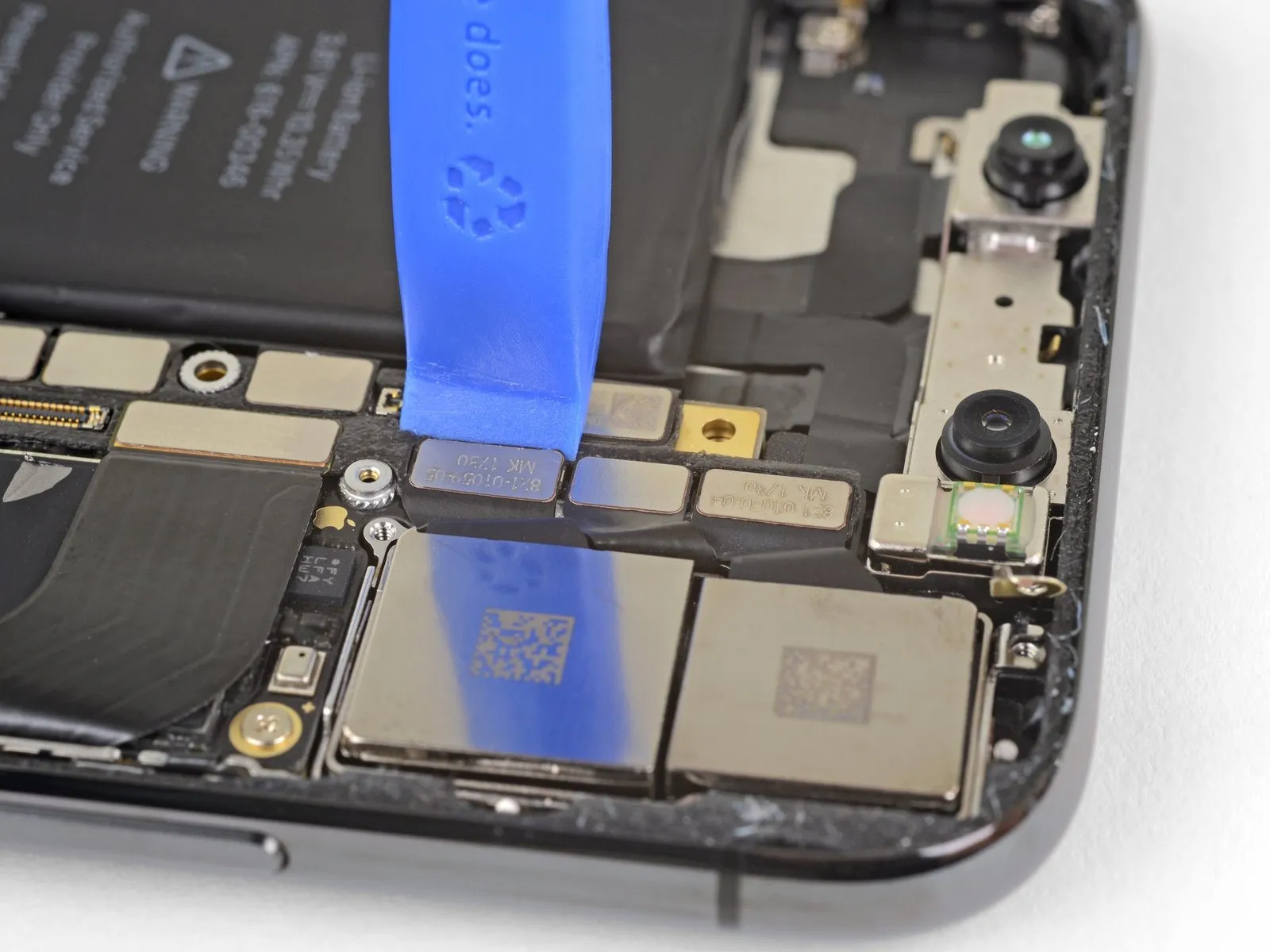

The logic board assembly is affixed to the lower board via two posts that extend through it and are fastened to the upper board. To detach it, elevate the assembly vertically and uniformly, ensuring it disengages from the stand-offs.

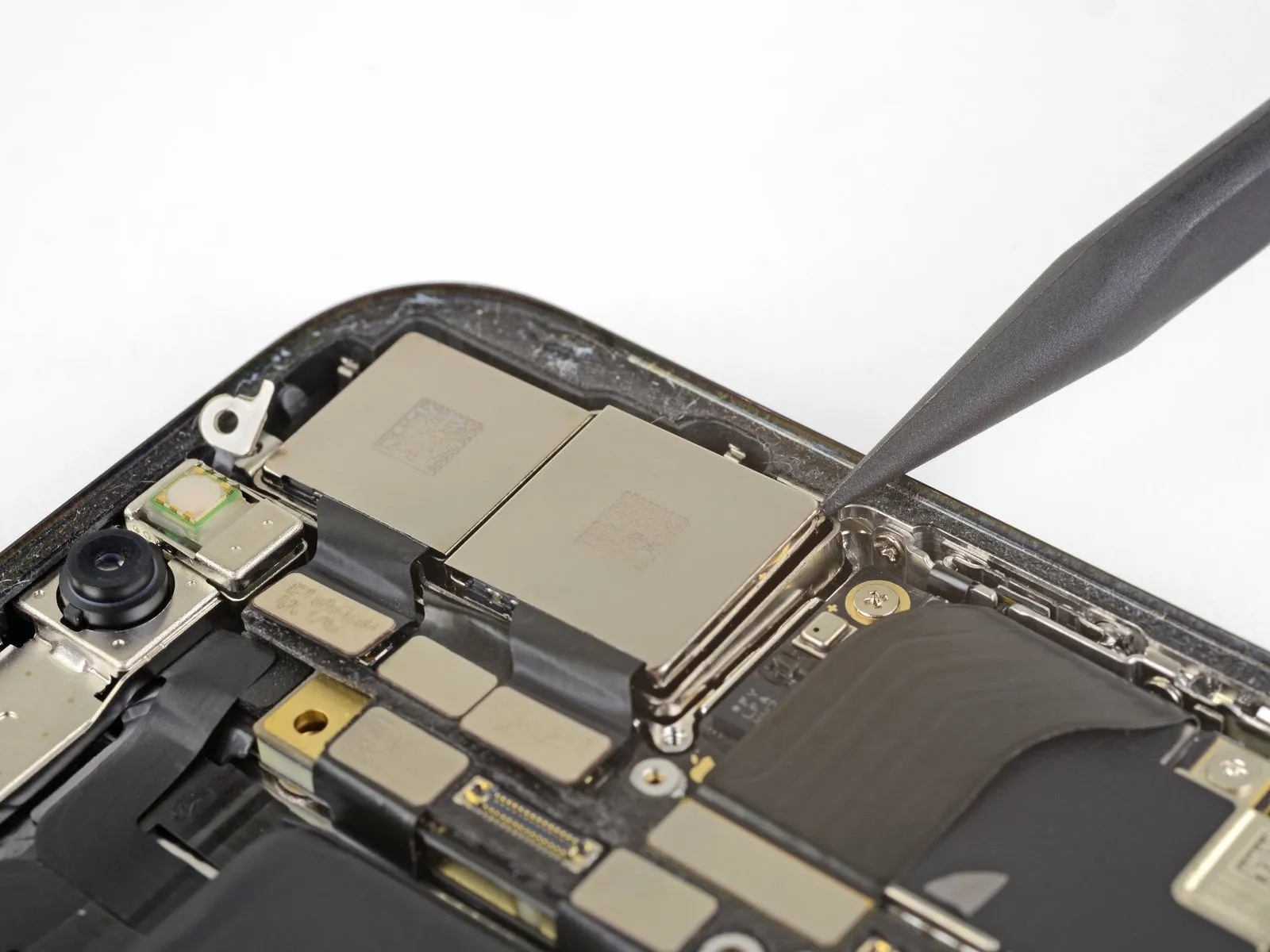

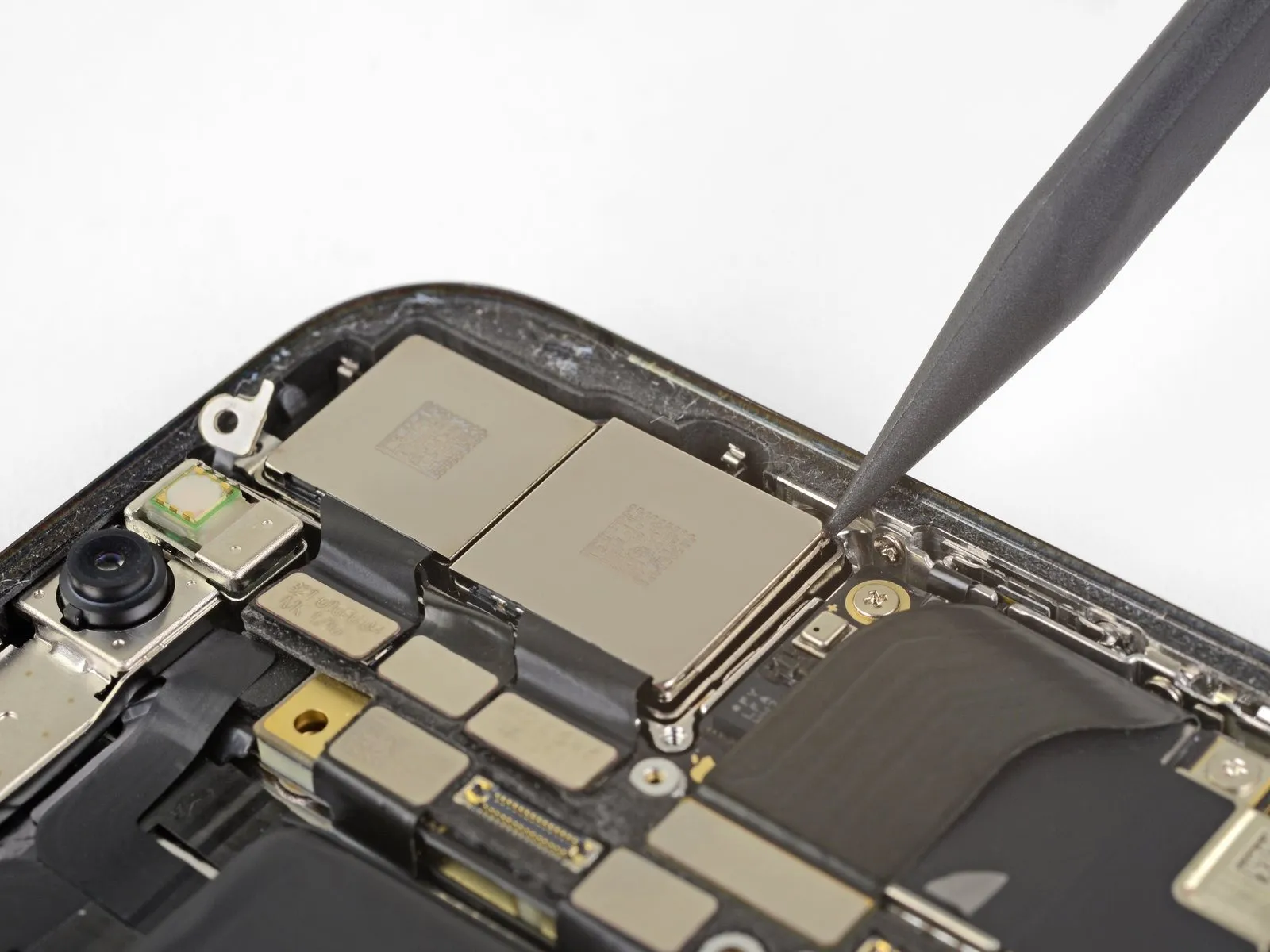

• To detach the camera bracket, begin by eliminating two fasteners.These fasteners are Phillips head screws.The camera bracket is held in place by these screws.
• A single screw, measuring 2.3 millimeters in diameter, is required for this step.Additionally, a 2.0-millimeter screw is also necessary.
• Both screws must be removed to proceed.The two screws are of differing sizes.

Carefully maneuver the diminutive metal grounding bracket aside utilizing tweezers, exercising caution to avoid lifting; this component is affixed to a delicate flex cable.

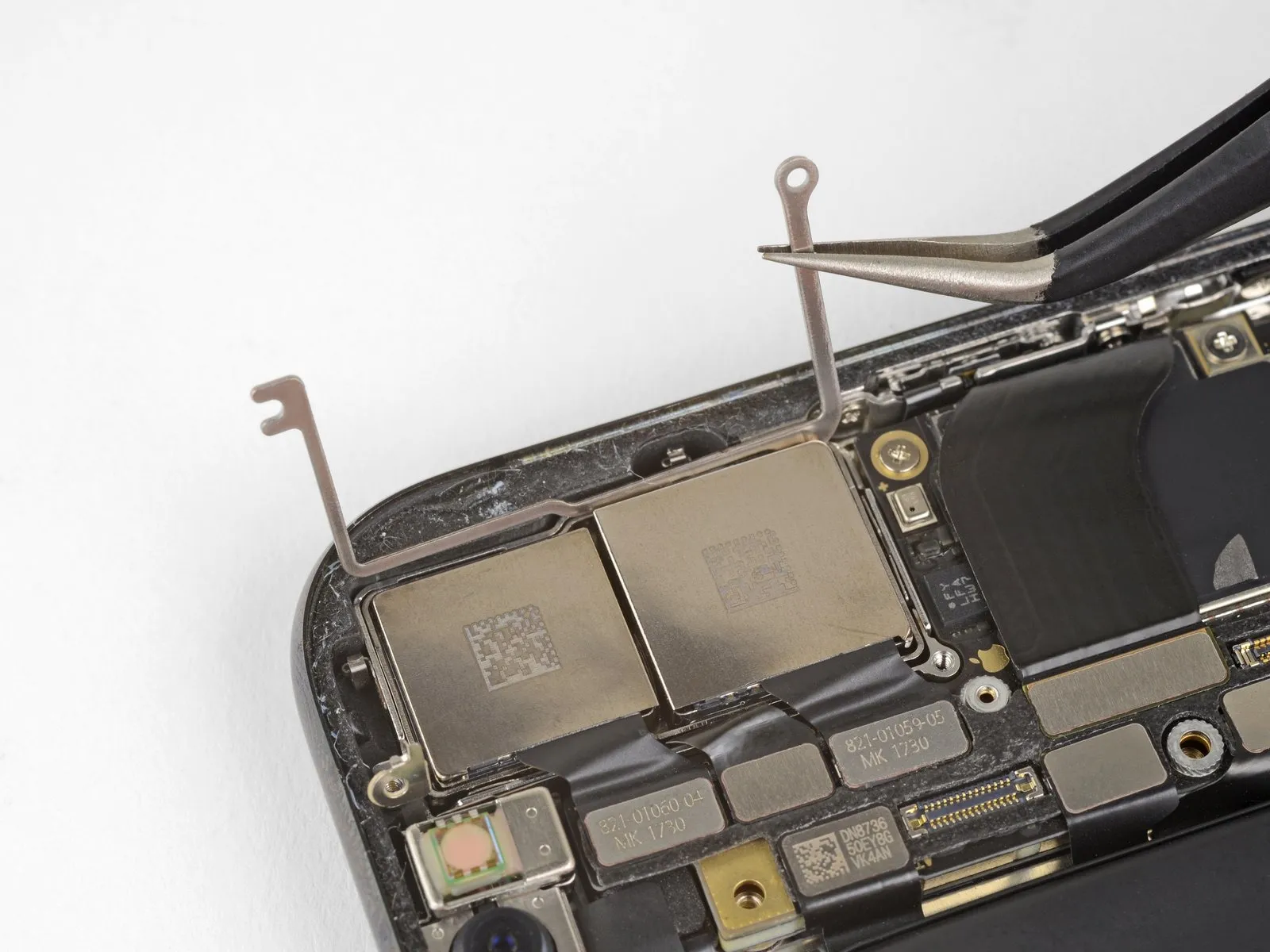

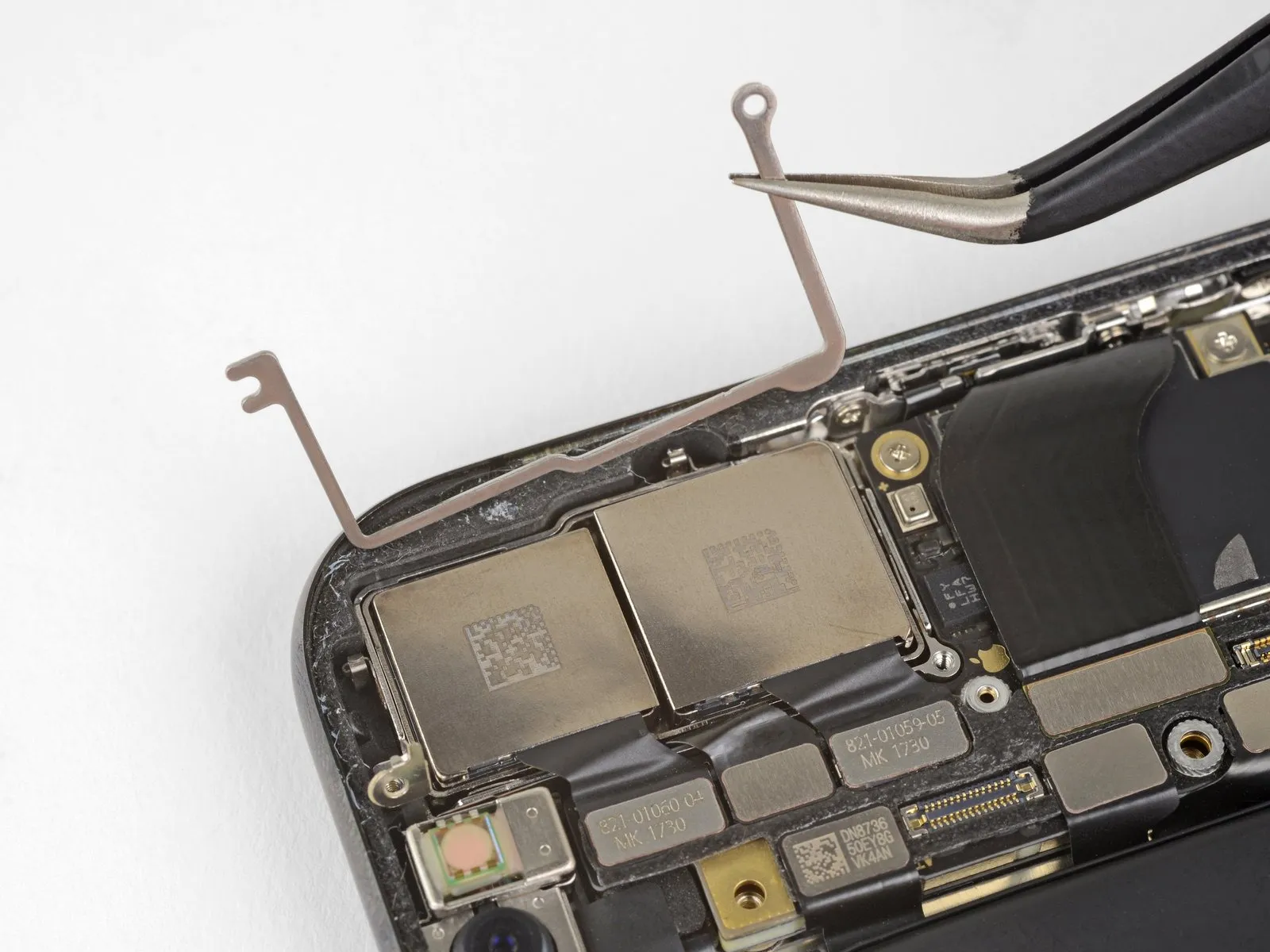

• Carefully detach the camera bracket by raising it from the side nearest the battery, subsequently removing it.
• Reattaching the camera bracket requires precise reversal of the disassembly steps; initially, position the outer edge, ensuring the right-side tab aligns with the space separating the phone's casing and the camera module, then pivot the bracket downwards to secure it over the camera module.

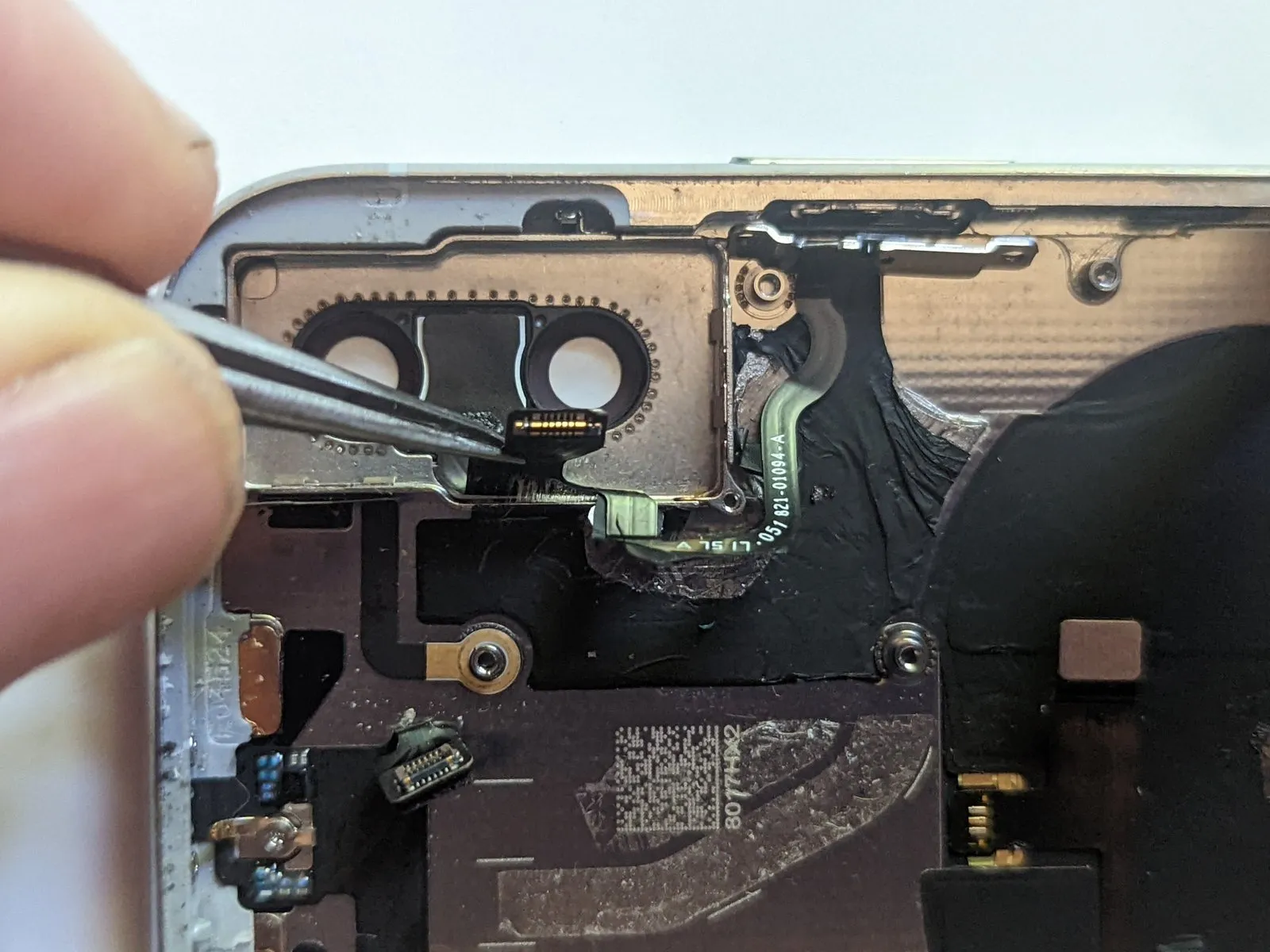

• Utilize the tip of a spudger to engage a minor indentation situated on the lower right side of the camera module.spudgerCarefully apply upward force to dislodge the camera assembly from the iPhone's internal structure.

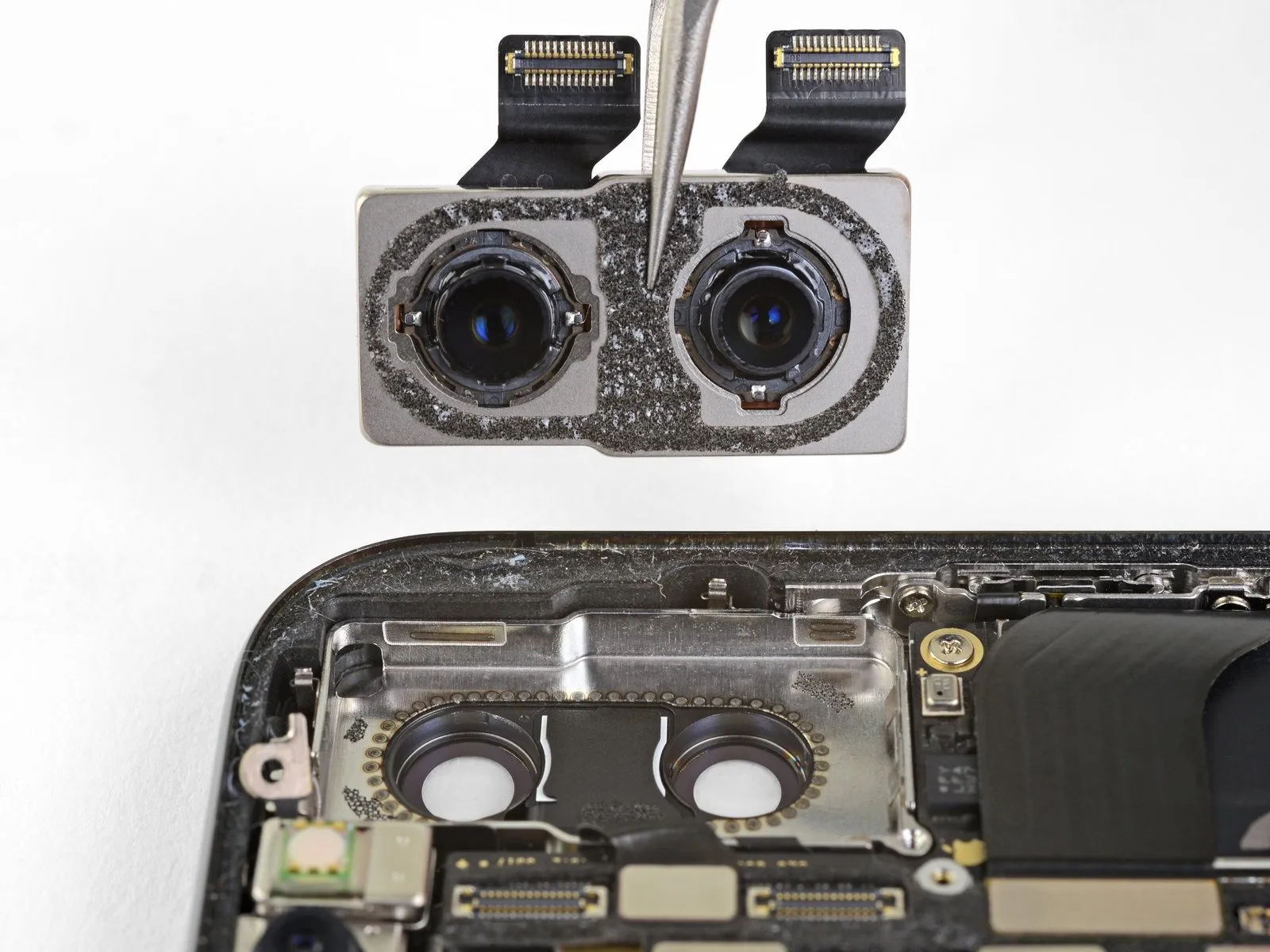

• Gently pry up to lever the camera out of the iPhone.

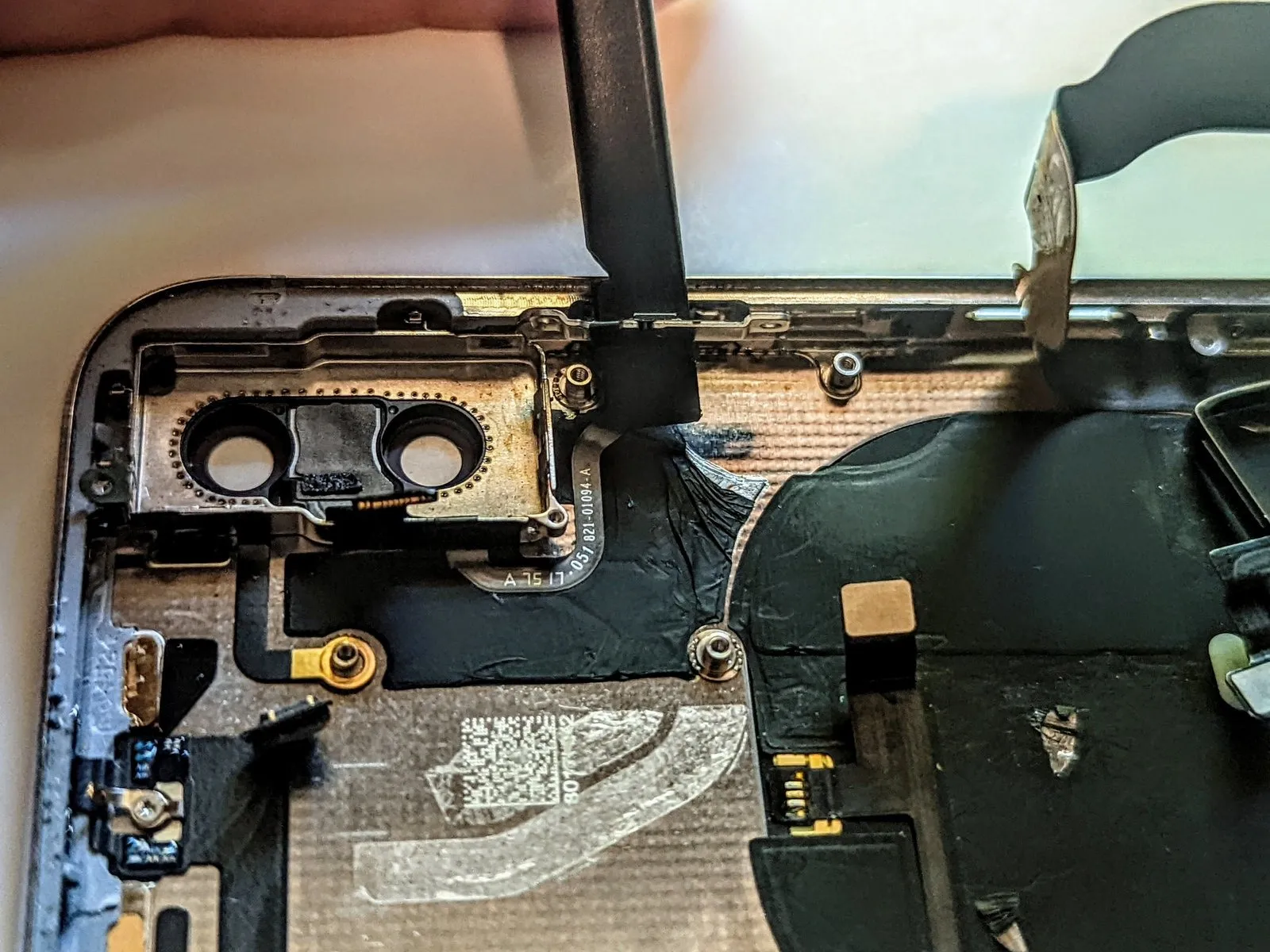

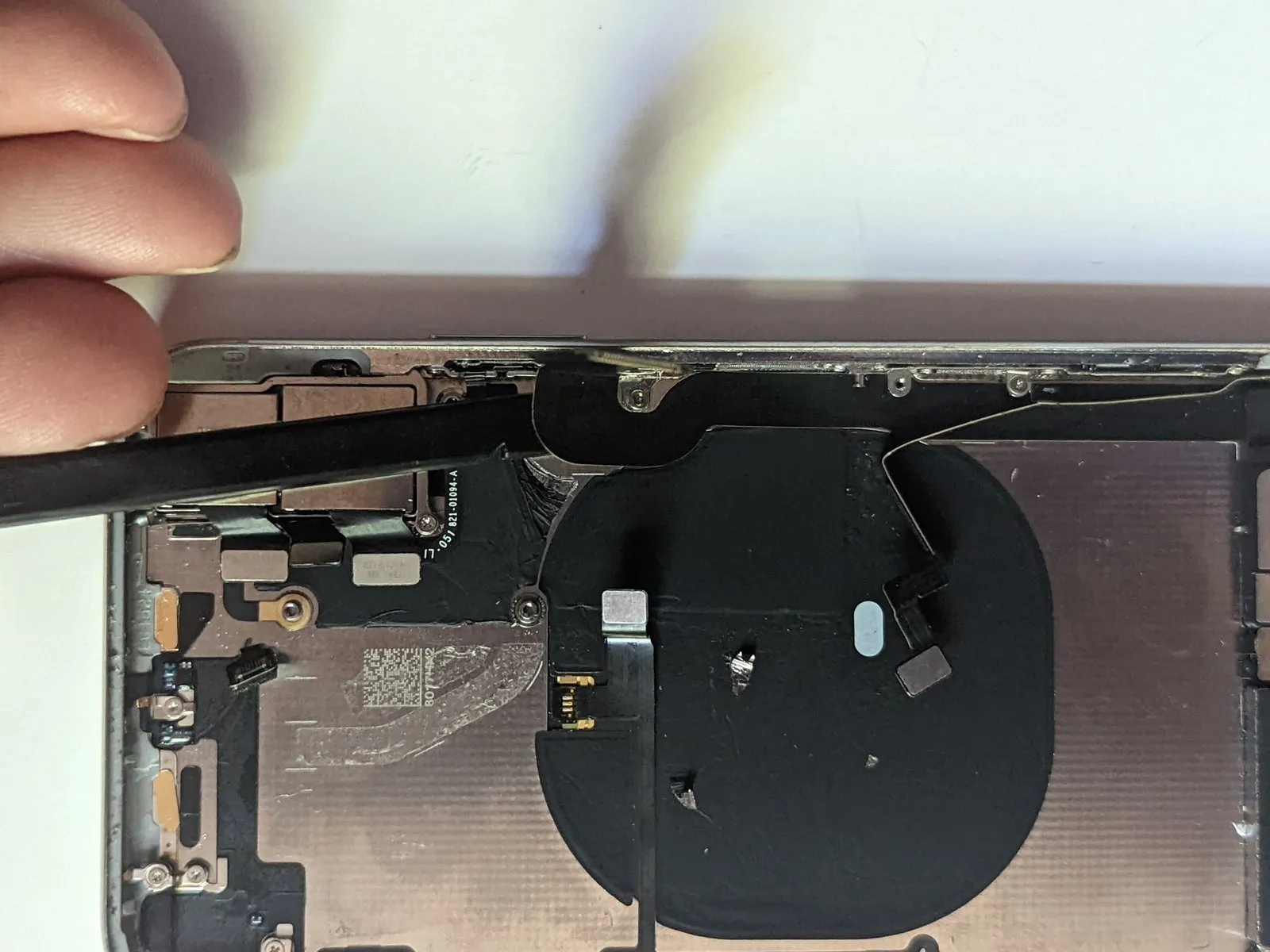

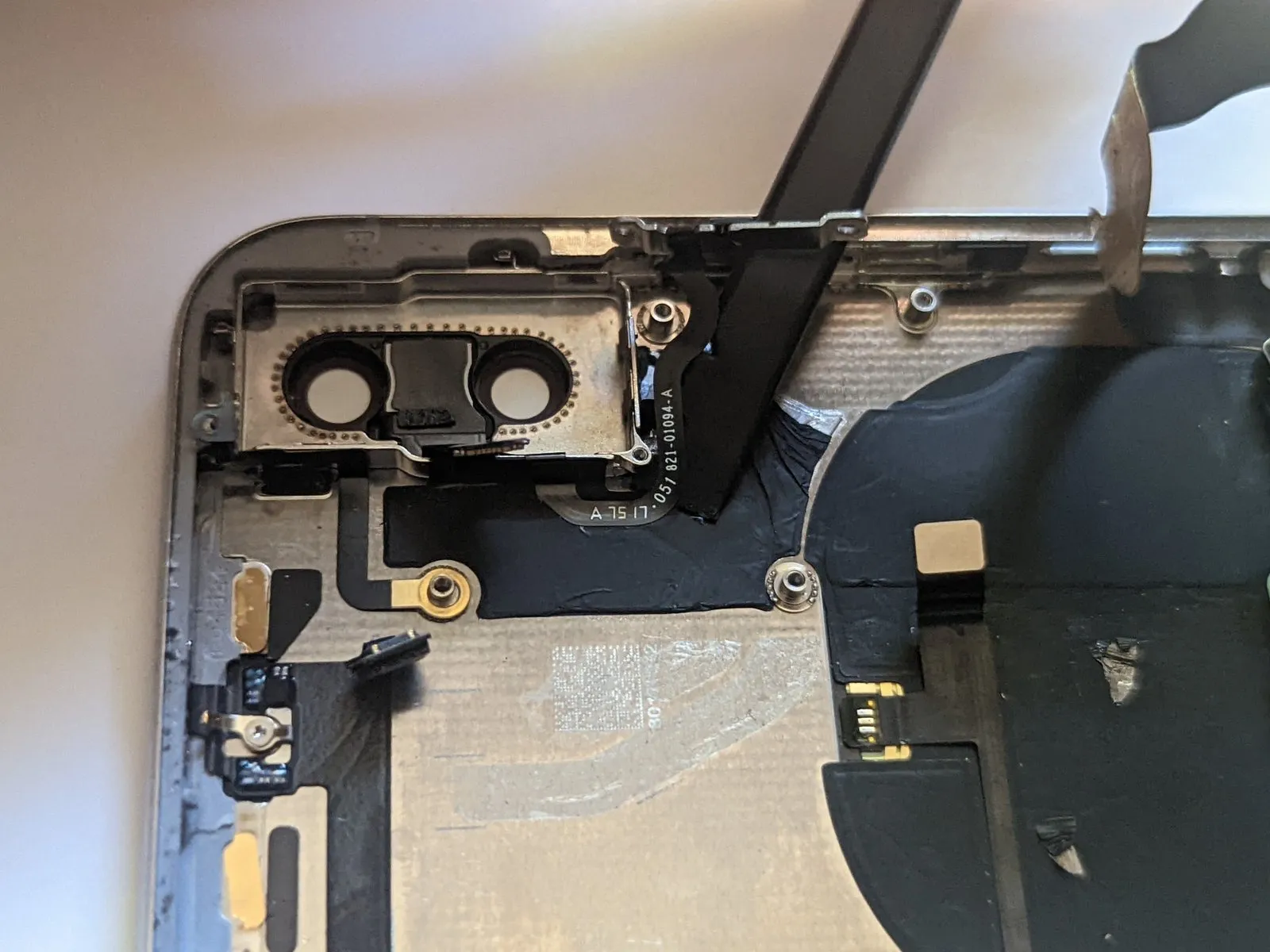

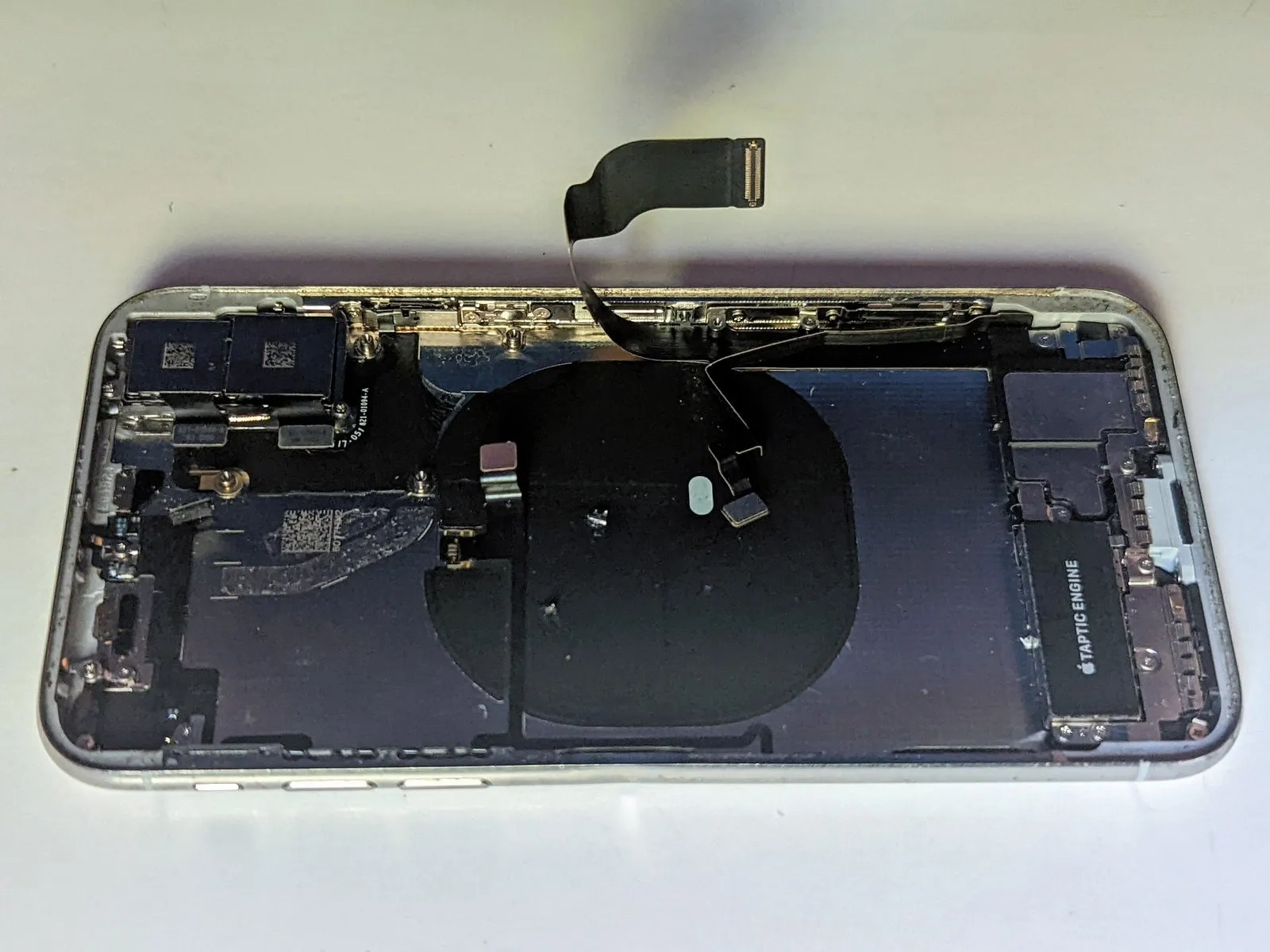

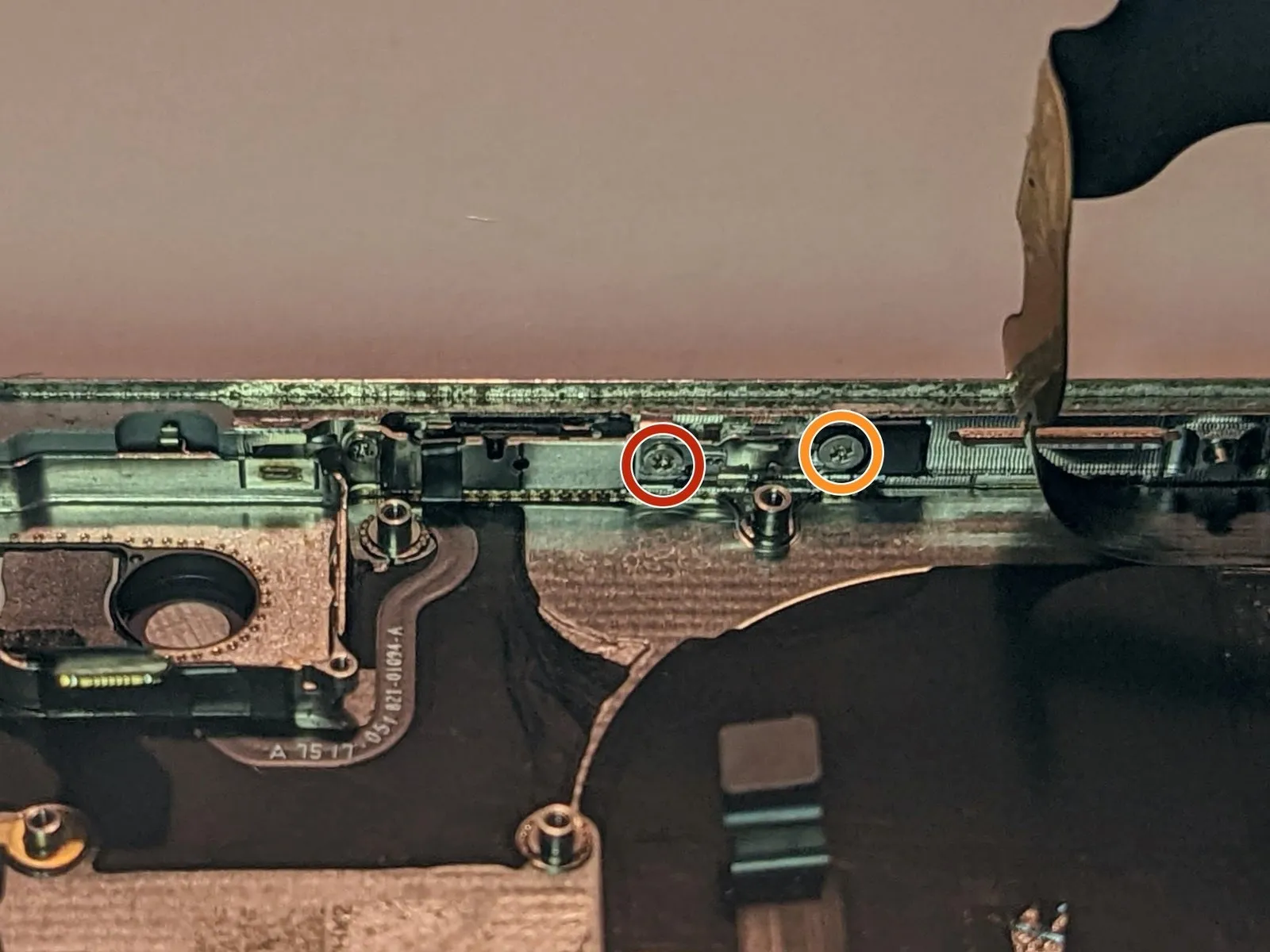

• To gain access to the power button and screen securing components, carefully lift the terminal end of the dock connector.
• To facilitate workspace visibility, maneuver the dock connector upwards and away from the device.

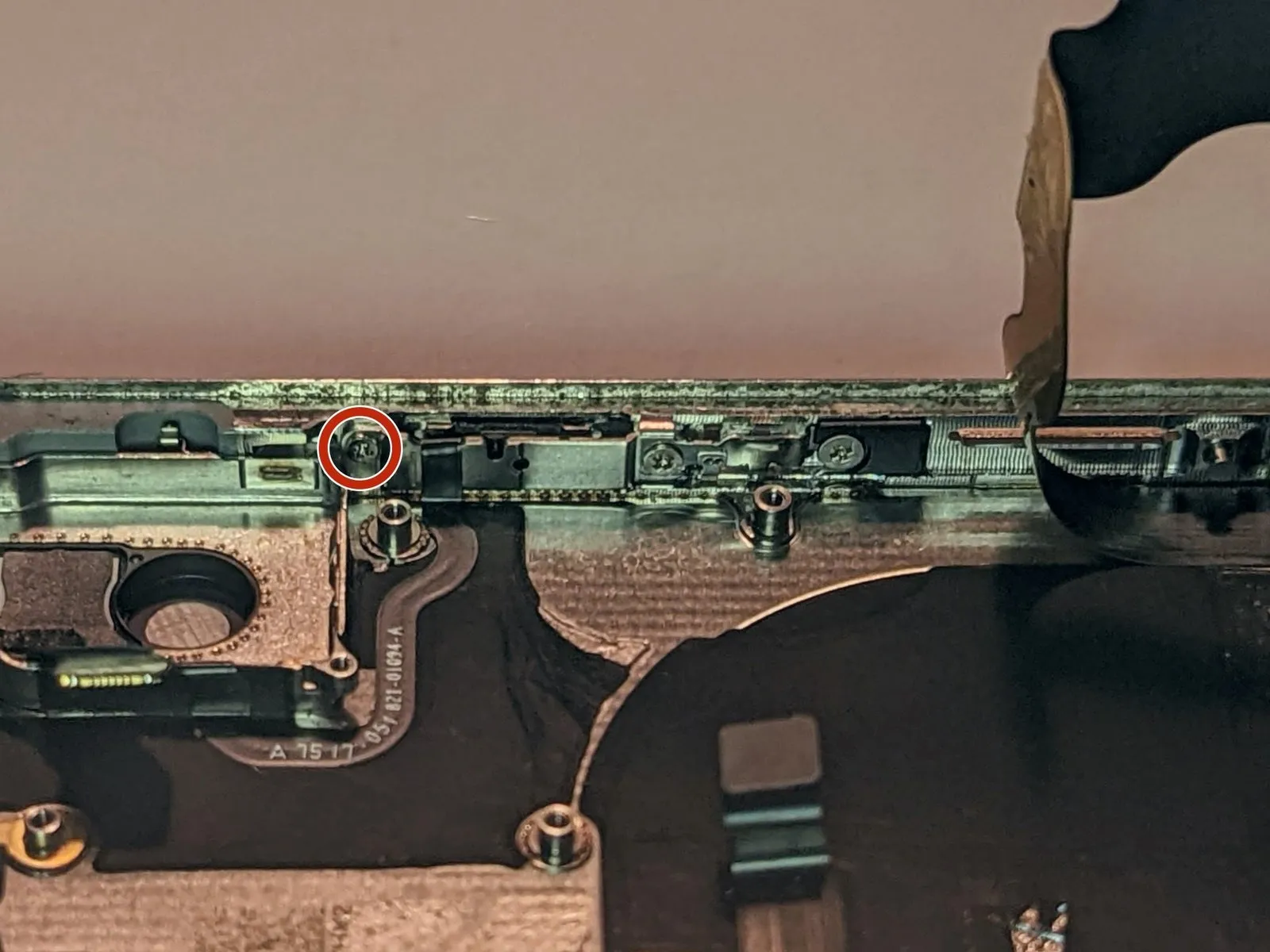

1. Detach the screen retaining clip by unscrewing the two fasteners that secure it.
   - A 2.1-millimeter Phillips head screw is required..
   - A 1.9-millimeter Phillips head screw is also needed..
2. Carefully extract the screen retainer from its position.
3. During reassembly, ensure the retainer is positioned correctly by sliding it past the black plastic component located at the end furthest from the power button.

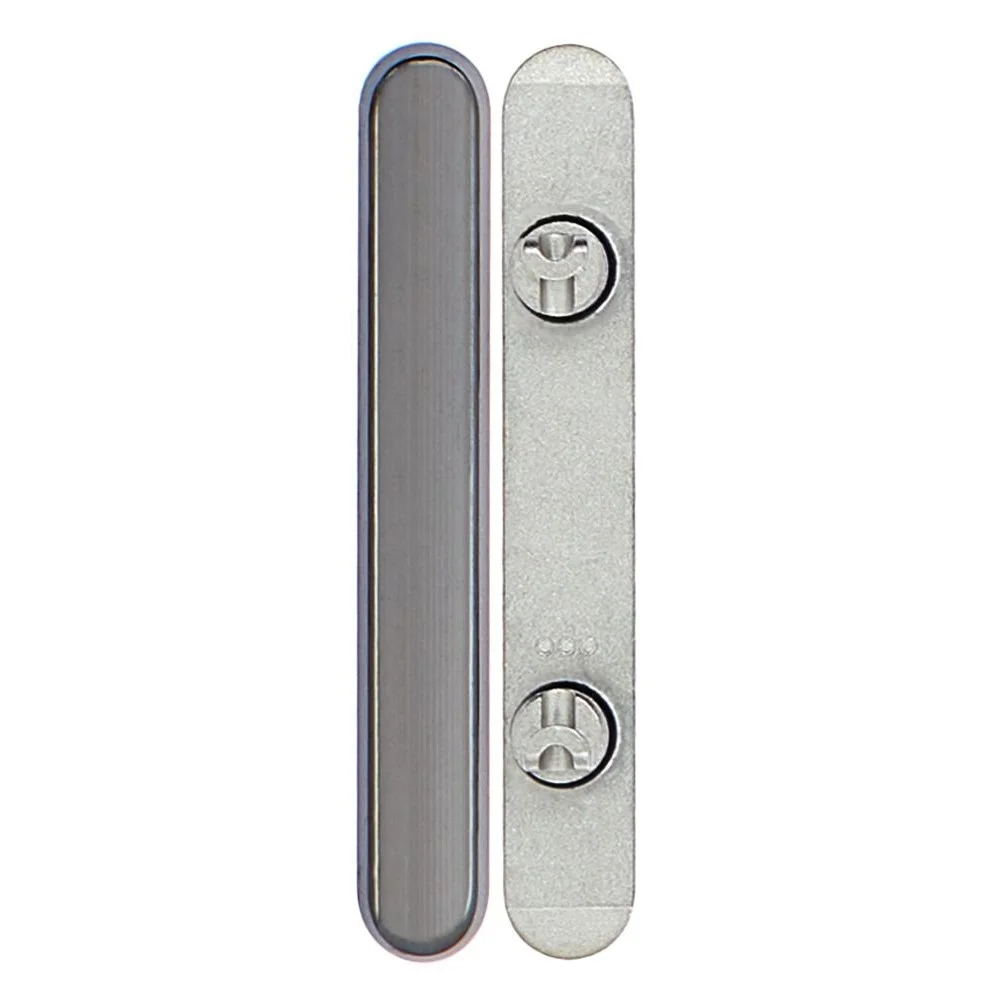

Eliminate any leftover2.0 mm Phillips screwthat holds the power button in place.

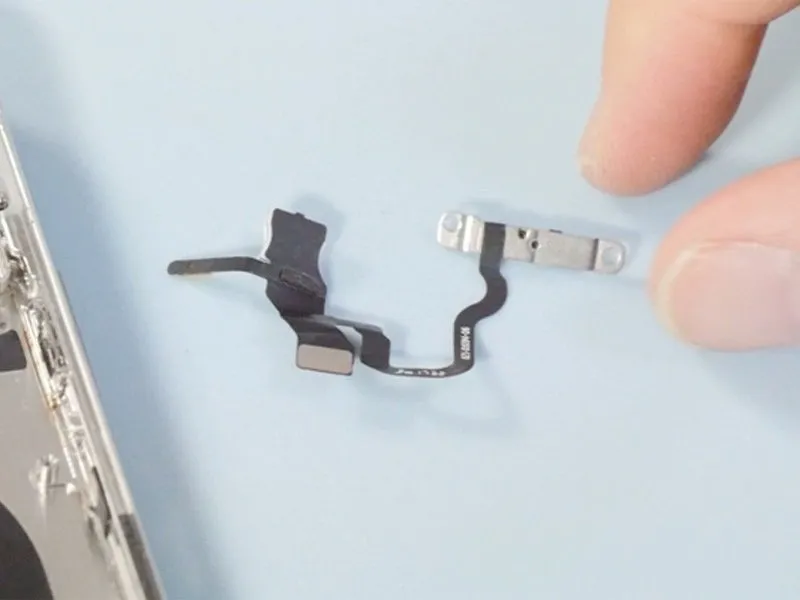

Carefully detach the flexible cable assembly from the chassis.

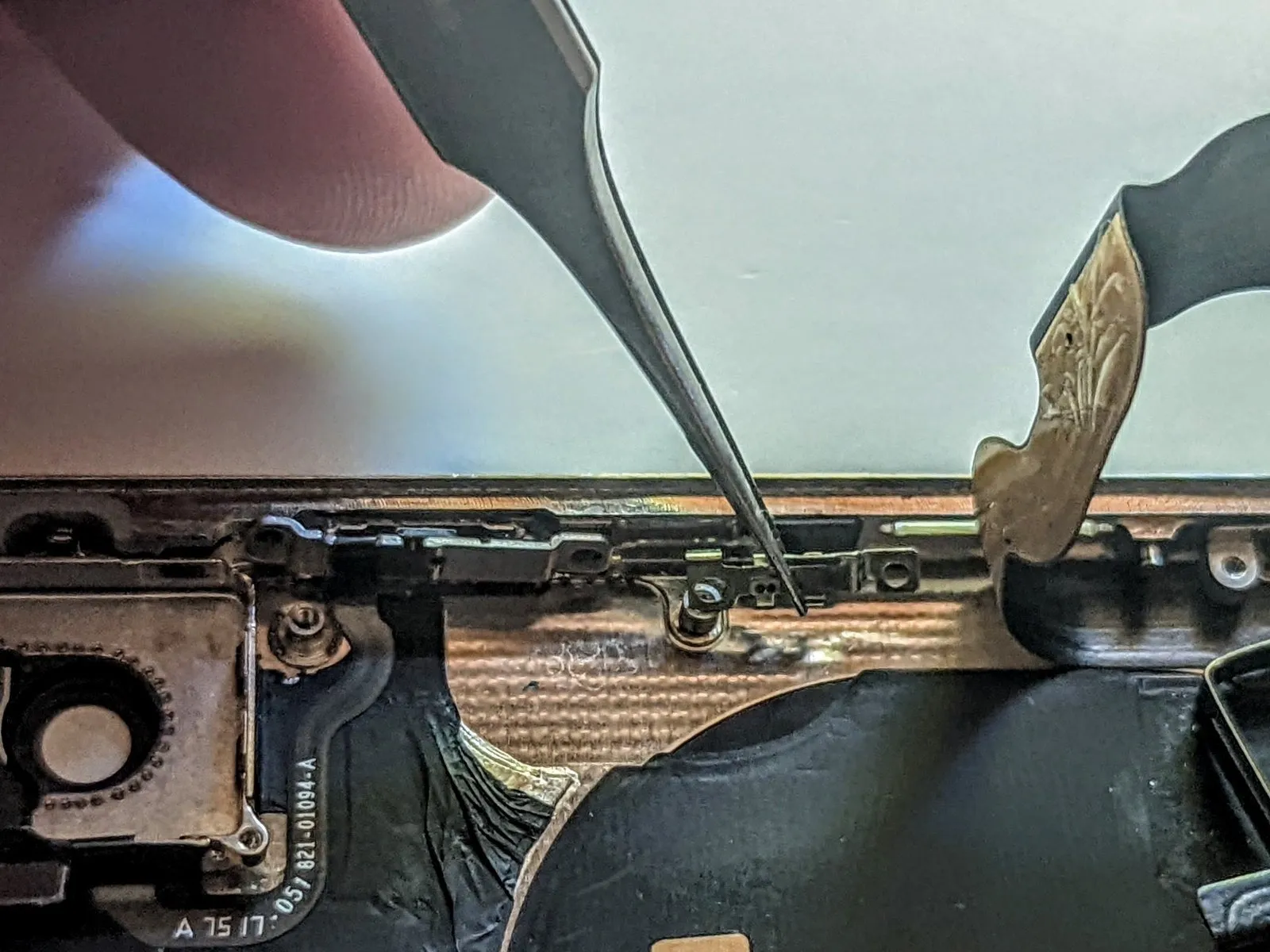

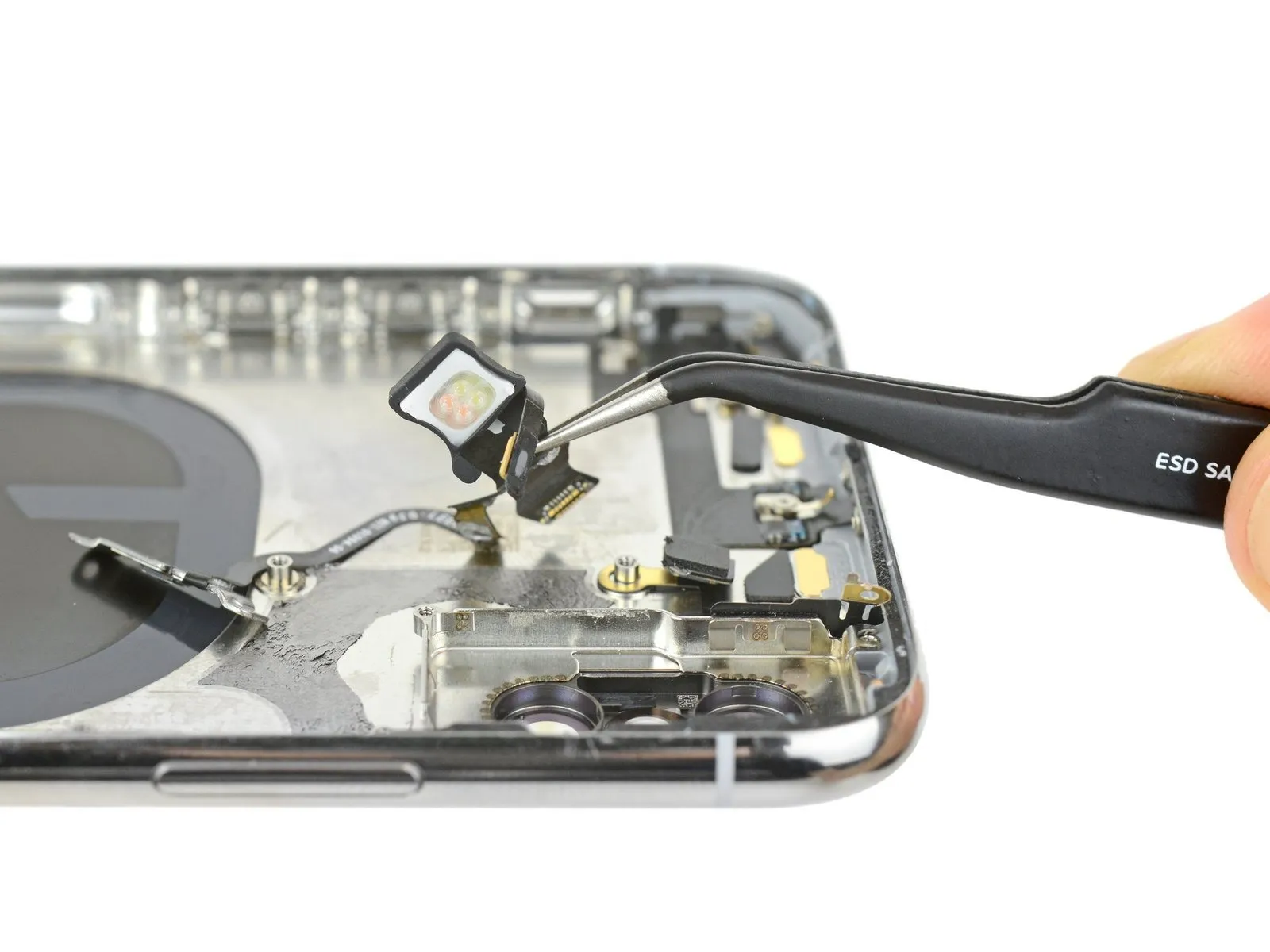

• Employing a spudger tool, carefully disengage the flash and microphone components. a spudger, pry out the flash and microphone.

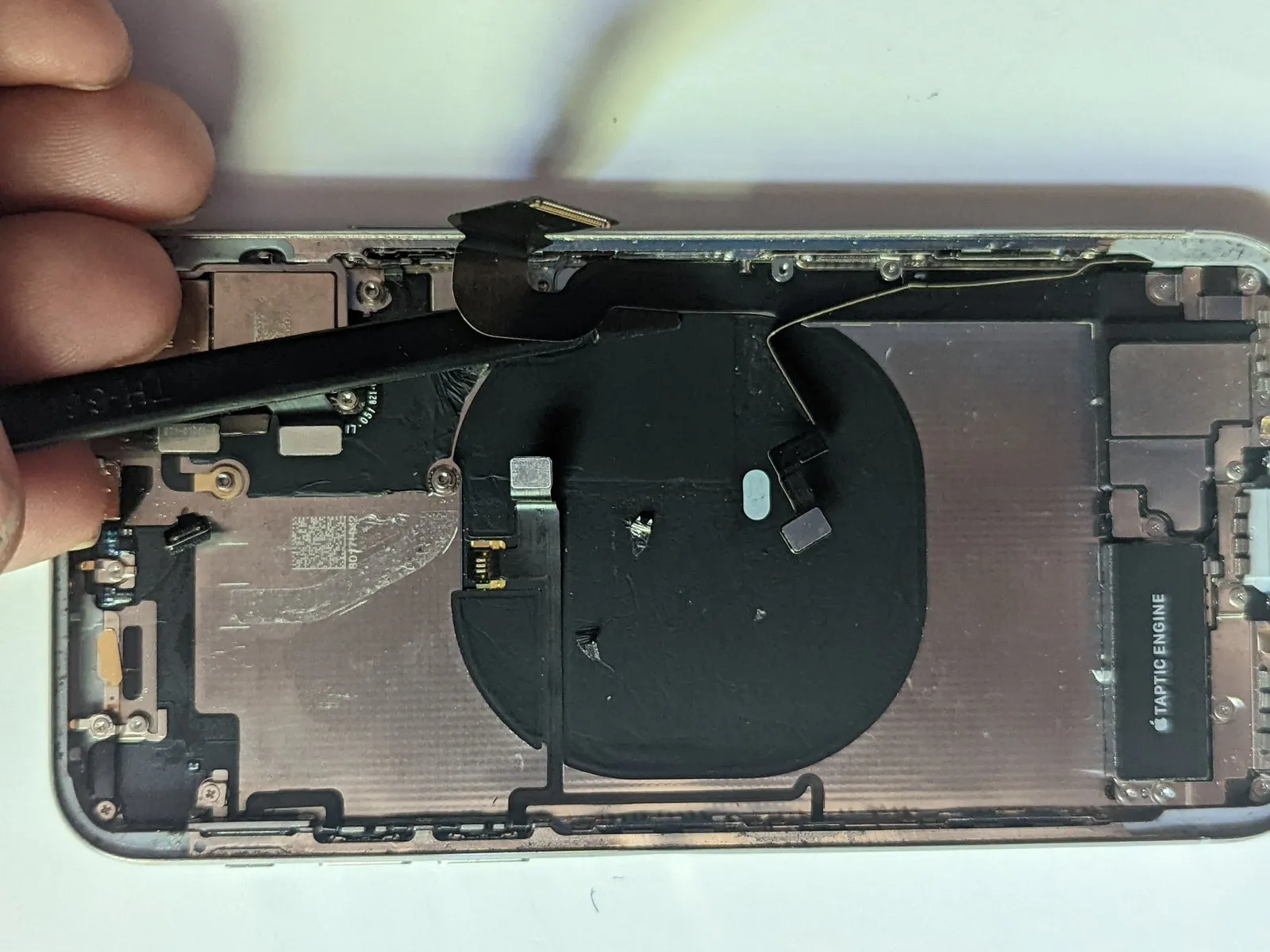

• Detach the entire component group. the assembly.
