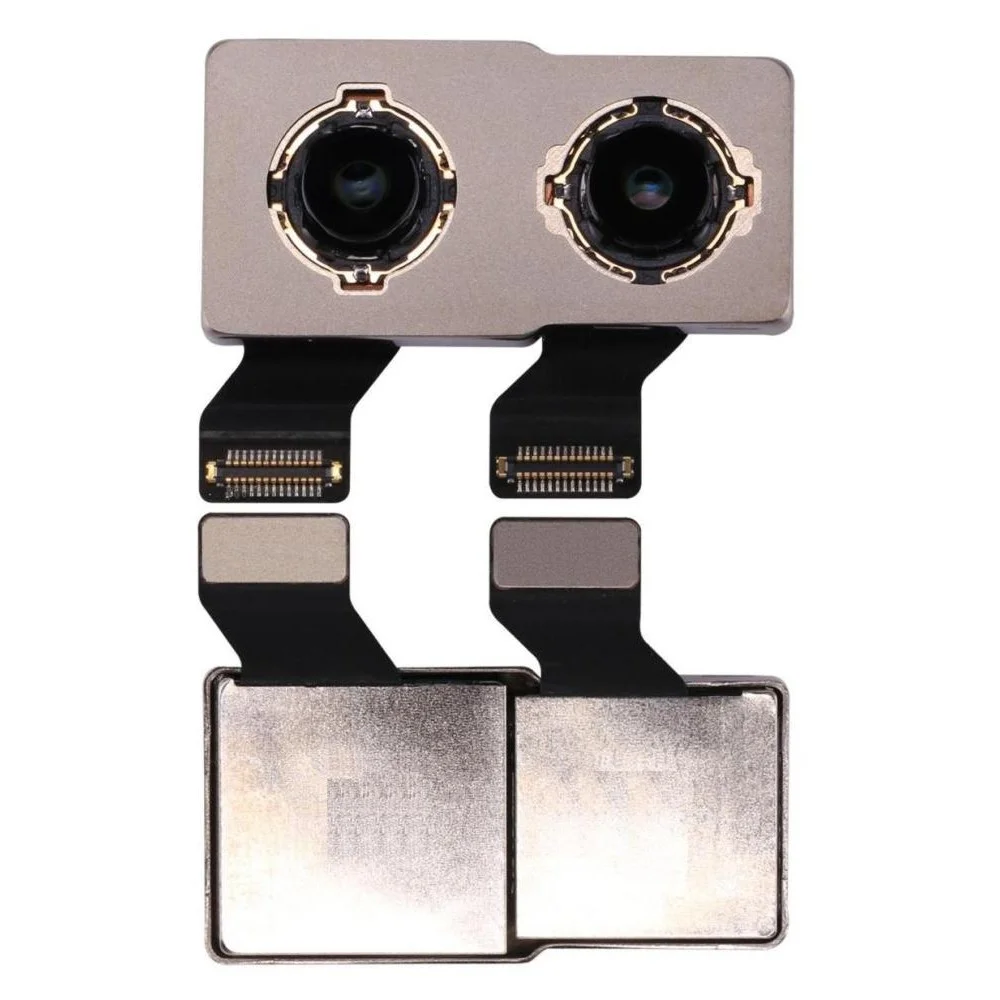

iPhone X Rear-Facing Cameras Replacement

This document serves as a detailed instruction for the removal and replacement of the rear cameras within an iPhone X. The rear camera assembly is comprised of two distinct components: a wide-angle camera and a telephoto camera. These two components must be exchanged simultaneously as a single, integrated unit.

  • Important Consideration:The following instructions require full disconnection of the display cables and removal of the display assembly to facilitate easier access to the rear camera components. However, experienced technicians can potentially replace the rear cameras without disconnecting the display, which can reduce the overall repair time; this is permissible provided the display is adequately supported and the display cables remain undamaged.

Step 1 | Pentalobe Screws

Step 1 image
  • As a preliminary safety measure, ensure your iPhone's battery is depleted to a level below 25% prior to commencing the repair process.A fully charged lithium-ion batteryposes a significant fire and/or explosion hazard if it sustains accidental physical damage, such as a puncture.
  • Deactivate your iPhone by powering it down completely before you start taking it apart.
  • Detach the pair of pentalobe screws, each measuring 6.9 mm in length, which are located along the iPhone's lower edge.
  • Should the screws exhibit signs of damage or stripping, it is necessary to substitute them with replacements.screws.
  • Disassembly of the iPhone's display assembly will inevitably damage the integrated waterproof seals; therefore, it is advisable to have replacement seals on hand before proceeding beyond this point, or to exercise extreme caution to prevent moisture ingress if you intend to reassemble the iPhone without new seals.

Step 2 | Mark your opening picks

Step 2 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • To avoid potential harm to your device, ensure the opening pick does not penetrate excessively; this procedure will help you identify a safe insertion depth.
  • Determine the distance of3 mmfrom the pick's leading edge and use a permanent marker to create a visible indicator on the opening pick.
  • Distinct markings can also be applied to the pick's other corners, each representing a differentmeasurement.
  • As an alternative method, affix a coin to the pick's tip, positioning it precisely 3 mm from the edge.

Step 3 | Tape over any cracks

Step 3 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • To minimize additional damage and potential injury while repairing a fractured iPhone display, secure the glass fragments with adhesive tape.
  • Apply multiple layers of transparent packing tape across the iPhone's screen surface, ensuring complete coverage of the entire face.
  • Always utilizesafety glassesto safeguard your vision from any dislodged glass shards that may occur during the repair process.
  • Should the suction cup fail to adhere properly in subsequent steps, create a handle by folding a robust tape (like duct tape) and employ it to gently elevate the screen.
  • As a last resort, you may secure thesuction cupdirectly to the screen using superglue.

Step 4 | Anti-Clamp instructions

Step 4 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

The following three procedures illustrate the function of the Anti-Clamp, a specialized tool developed to simplify the initial opening process. Should you choose not to utilize the Anti-Clamp, proceed to the steps located three sections later for an alternative approach.

  • Detailed guidance regarding the operation of the Anti-Clamp, is available in this separate document.
  • To release the locking mechanism, retract the blue handle, which will disengage the Anti-Clamp's arms.
  • Carefully position the arms across either the left or right side of your iPhone.
  • Place the suction cups close to the lower edge of the iPhone, ensuring one is situated on the front surface and the other on the rear.
  • Apply pressure by compressing the cups together to establish a secure suction hold on the intended area.
  • Should the iPhone's surface prove excessively smooth, preventing adequate adhesion by the Anti-Clamp, applying adhesive tape can provide a more textured surface for improved grip.

Step 5

Step 5 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • To engage the locking mechanism, draw the blue handlein a forward direction.
  • Rotate the handlethrough a full 360-degree rotation, or continue until you observe the suction cups beginning to deform.
  • Maintain proper alignment between the suction cups; should they become misaligned, gently release the suction cups and reposition the arms.

Step 6

Step 6 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Employing warmth, utilize aniOpenerand carefully guide it between the arms of the Anti-Clamp device.
    Alternative heat sources, such as a hair dryer, heat gun, or hot plate, are acceptable; however, exercise caution as excessive temperatures may compromise the display or internal battery.
  • Position theiOpenerin a folded position, ensuring it rests along the lower edge of the iPhone.
  • Allow a sixty-second interval to enable the adhesive to soften and create a separation.
  • Introduce an opening pick beneath the display and the surrounding plastic bezel, avoiding direct contact with the screen's surface.
  • Should the Anti-Clamp fail to generate an adequate separation, increase the heat applied to the region and rotate the handle by ninety degrees.
    Incremental handle rotations should not exceed ninety degrees, and a sixty-second pause is required between each adjustment; allow the Anti-Clamp and time to facilitate the separation.
  • Proceed past the following three instructions.

Step 7

Step 7 image

Applying warmth to the iPhone's bottom edge assists in loosening the adhesive that holds the display in place, which simplifies the opening process.
Employ ahairdryerorheat gunor alternatively, utilize aniOpenerand direct it to the lower edge of the iPhone for approximately one minute to reduce the adhesive's tackiness.
When using a hairdryer or heat gun, exercise caution to avoid excessive heat, as this could potentially harm the display.

Step 8

Step 8 image
Thumbnail 1
Thumbnail 2

When employing a solitary suction handle, position it against the lower rim of the device's display, ensuring the curved glass area remains untouched.The suction handle should be affixed to the lower edge of the phone's screen, carefully circumventing the rounded glass section.To prevent damage, attach the suction handle to the phone's lower border, steering clear of the curved glass surface.

Step 9

Step 9 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Apply steady, consistent upward force to the suction cup to generate a small separation between the display assembly and the device's surrounding structure.
  • Carefully slide an opening tool into the space formed beneath the screen's plastic trim, ensuring it does not contact the display surface itself.
  • The screen is secured by a robust, waterproof sealant; overcoming this bond requires considerable effort. Should you encounter difficulty in establishing this initial separation, additional heat application, coupled with gentle oscillating movement of the screen, can help to reduce the adhesive's strength, facilitating tool insertion.

Step 10

Step 10 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Carefully maneuver the opening pick along the bottom-left perimeter of the iPhone, progressing upwards along the left side, to sever the adhesive securing the display assembly.
  • Ensure the pick's insertion depth remains limited to3 mmto prevent potential harm to delicate internal parts.

Step 11 | Screen information

Step 11 image

Along the right side of your iPhone, you'll find sensitive wiring; avoid inserting any tools in this area to prevent potential cable damage.

Step 12

Step 12 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • To proceed with separating the adhesive, re-position your opening pick along the lower edge of the iPhone's casing and advance it upwards along the right side.
  • Ensure your opening pick does not penetrate deeper than 3 mm, to prevent potential harm to the delicate display cable connections.

Step 13

Step 13 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Adhesive and retaining clips together fasten the display's uppermost boundary.
  • Employing a separation tool, maneuver it along the upper corner of the display, concurrently applying slight downward traction or oscillating movements toward the Lightning port's location.
  • Excessive force applied to the retaining clips will result in their fracture; therefore, proceed with caution and deliberate care.
  • Limit the pick's insertion depth to a maximum of 3 millimeters to prevent potential damage to the front panel sensor array.
  • Continue the separation tool's movement to the opposing corner, severing any residual adhesive holding the display in place.

Step 14

Step 14 image
To detach the suction cup from the front panel, grasp and exert force on the small projection extending from its surface.

Step 15

Step 15 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • To access the internal components, initiate the display opening process by pivoting the screen upwards from the left edge, mimicking the action of opening a book's cover.
  • Refrain from completely detaching the display at this stage, because multiple delicate ribbon cables remain connected to the iPhone's logic board.
  • Confirm, as illustrated, that the frame is disengaged from the device along with the display, preventing it from becoming lodged inside.
  • Secure the display in an upright position using a support to maintain access to the internal components during the repair.
  • When reassembling, position the display, ensuring the clips along the upper edge are properly aligned, and then gently apply pressure to the top edge before securing the remainder of the display. Should the display not easily engage, inspect the clips surrounding the display's perimeter for any signs of deformation.

Step 16 | Display Assembly

Step 16 image
  • Detach the bracket that holds the logic board connector by first removing five screws, each requiring a Y000 screwdriver.
  • Utilize three screws, each measuring 1.1 millimeters in length.
  • A single screw with a 3.1-millimeter length is also necessary.
  • Additionally, one screw measuring 3.7 millimeters is required.
During the entire repair process, meticulously organize and document the location of every screw, ensuring their correct placement upon reassembly to prevent potential damage to your iPhone.

Step 17

Step 17 image
  • Detach the bracket.
  • Thebracketmight be subtly affixed; apply a careful, yet resolute upward force to disengage it.

As you put the iPhone back together, this juncture presents an opportune moment to activate the device and verify the operational status of all features, prior to securing the display. Ensure the iPhone is fully powered off before proceeding with subsequent steps.

Step 18

Step 18 image
Thumbnail 1
Thumbnail 2
  • Employ the tip of a spudgeror a pristine fingernail to lift the battery connector's retaining clip from its corresponding receptacle on the logic board.
  • Exercise caution to avoid harming the black silicone sealant that encases this and other board connections, as it offers supplemental defense against moisture and particulate contamination.
  • Gently deflect the connector slightly outward from the logic board to ensure it remains disconnected and prevents unintended power delivery to the device during the repair process.

Step 19

Step 19 image
Thumbnail 1
Thumbnail 2

Employ the tip of a spudger or a fingernail to release the front panel sensor assembly connector.spudgerDisconnect the front panel sensor assembly connector by utilizing the pointed end of a spudger or a fingernail.

Step 20

Step 20 image
Thumbnail 1
Thumbnail 2
  • Employ the tip of a spudgeror a fingernail to release the OLED panel cable connector's securing mechanism.
  • For reattachment, position the connectors similarly, meticulously aligning and applying pressure to a single edge until a distinct click is heard; subsequently, repeat this process on the opposing edge. Avoid applying pressure to the central portion of the connector, as misalignment can result in pin deformation and irreversible damage.

Step 21

Step 21 image
Thumbnail 1
Thumbnail 2
Proceed to step 21.Employ the tip of a spudger to carefully lift the digitizer cable connector from its receptacle.
  • Due to the connector's deeply situated design, reattachment can be challenging; proceed deliberately, ensuring precise alignment before applying gentle pressure with your fingertip to secure it—initially one side, then the opposite.
  • A distinct clicking sound will indicate successful engagement.
Should any area of the screen exhibit a lack of touch responsiveness following the repair, first detach the battery, then re-secure this connector, verifying a complete click and confirming the absence of dust or any other impediment within the socket.

Step 22

Step 22 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
Phase 22:The flexible cable connecting the front panel sensor assembly is secured with a minimal amount of adhesive.
  • Gently raise the cable to release the adhesive bond.

Step 23

Step 23 image
Phase 23 commences:Detach the display unit.
  • Should you intend to substitute the waterproof sealant bordering the display's perimeter during reinstallation, temporarily halt operations at this juncture.

Step 24 | Rear-Facing Cameras

Step 24 image
Proceed to step 24:Detach the two Phillips screws that fasten the camera bracket, noting their distinct sizes:
  • - A single screw measuring2.3 millimetersin length,
  • - Accompanied by another screw with a2.0-millimeterdimension.

Step 25

Step 25 image
Thumbnail 1
Thumbnail 2
Proceed to step 25:Employing tweezers, carefully maneuver the diminutive metal grounding bracket aside, avoiding any upward traction due to its connection with a delicate flex cable.tweezersTo prevent damage to the sensitive flex cable, refrain from lifting the small metal grounding bracket; instead, gently fold it to the side.

Step 26

Step 26 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  1. Carefully detach the camera bracket by raising it from the side nearest the battery, subsequently removing it.

  2. Reattaching the camera bracket requires precise reversal of the disassembly steps, as illustrated: initially, position the outer edge, ensuring the right-side tab aligns and engages within the space separating the phone's casing and the camera module; afterward, pivot the bracket downwards to secure it over the camera module.

Step 27

Step 27 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Employing a specialized opening tool, or alternatively a fingernail, carefully separate the two camera connectors by applying upward pressure to disengage them from their respective receptacles.opening tool or fingernailto disconnect the two camera connectors by prying them straight up from their sockets.

Step 28

Step 28 image
Thumbnail 1
Thumbnail 2
  1. Utilize the tip of a spudger to engage a minor indentation situated on the lower right side of the camera module.spudgerCarefully apply upward force to dislodge the camera assembly from the iPhone's internal structure.
    Gently pry up to lever the camera out of the iPhone.

Step 29

Step 29 image
Carefully detach the rear camera assembly from the device.
