iPhone XR Lower Speaker Replacement

• To initiate the repair process, ensure the iPhone's battery level is below 25% by fully depleting it.A fully charged lithium-ion battery presents a fire or explosion hazard if it sustains accidental physical damage.Deactivate the iPhone's power supply prior to commencing the disassembly procedure.
• Carefully extract the pair of 6.7 mm pentalobe fasteners located along the device's lower edge.
• Disassembly of the iPhone will irreversibly damage the factory-installed waterproof barriers; acquire replacement seals beforehand or exercise extreme caution to prevent liquid ingress during reassembly.
• Each pentalobe screw incorporates a small black rubber gasket immediately below its head; inspect these gaskets for wear and replace the screws to maintain optimal dust and water resistance.
• The integrity of the gaskets should be verified or the screws replaced during reassembly to guarantee the highest level of protection against dust and liquid contamination.

• Excessive insertion of a prying tool poses a risk of device damage; this procedure establishes a reference point to mitigate that risk.
• Using a precise measuring tool, determine a distance of3 millimetersfrom the tool's distal end and clearly indicate this point on the prying tool with a permanent marking instrument.
• For enhanced precision, consider marking additional corners of the tool with varying measurement distances.
• As an alternative method, affix a coin to the prying tool's tip, positioning it3 millimetersfrom the distal end.

• To minimize additional damage and potential injury while repairing a fractured iPhone display, secure the glass fragments with adhesive tape.
• Apply successive layers of transparent packing tape across the iPhone's screen surface, ensuring complete coverage of the entire front panel.
• Protect your vision by utilizing safety eyewear to guard against any dislodged glass shards that may become airborne during the repair process.
• Should the suction cup fail to maintain adhesion during subsequent procedures, create a handle from a durable tape, like duct tape, to facilitate screen lifting.
• As a last resort, secure the suction cup to the screen's surface using a small amount of superglue to ensure a stable grip.

• The subsequent three actions illustrate the operation of the Anti-Clamp, a specialized instrument developed to simplify the initial opening process; if this tool is not available, proceed to the alternative instructions located three steps further down.
• Detailed guidance regarding the Anti-Clamp's usage can be found in a separate, dedicated instructional document.
• Draw the blue handle in a rearward direction to disengage the locking mechanism of the Anti-Clamp's gripping arms.
• Move the arms across either the left or right side of the iPhone's casing.
• Place the suction cups in close proximity to the lower border of the iPhone, ensuring one is positioned on the front face and the other on the rear.
• Apply pressure by compressing the cups together to generate the necessary adhesion to the intended surface.
• Should the iPhone's exterior exhibit excessive slipperiness, preventing the Anti-Clamp from maintaining a secure hold, applying adhesive tape can enhance surface friction.

• To secure the arms, advance the blue handle.Rotate the handle a full 360-degree circle, observing when the cups begin to expand.Ensure the suction cups maintain their parallel positioning.
• Should the suction cups become misaligned, a minor adjustment is needed.Slightly release the suction cups to permit realignment of the arms.The arms should be brought back into proper alignment.
• Maintaining proper alignment of the suction cups is crucial for effective operation.A complete 360-degree rotation is necessary to engage the locking mechanism.Observe the deformation of the cups as an indicator of full rotation.The blue handle serves as the primary control for arm locking.Misalignment of the suction cups can compromise the device's functionality.

• Employing a heated iOpener, carefully guide it between the Anti-Clamp’s securing arms is necessary.Alternative heating methods, such as a hair dryer, heat gun, or hot plate, are permissible; however, excessive temperatures risk damaging the display assembly and/or internal battery, demanding cautious operation.Position the iOpener to rest along the lower edge of the iPhone’s chassis, bending it into a suitable configuration.
  Allow a sixty-second interval to permit the adhesive bond to weaken and create a separation.
• Introduce an opening pick beneath the display surface and the surrounding plastic frame, ensuring it does not contact the screen directly.Should the Anti-Clamp fail to generate an adequate separation, increase the applied heat and rotate the handle incrementally.Incremental handle rotations, limited to a quarter-turn maximum, are advised, accompanied by a sixty-second waiting period between adjustments.
• Rely on the Anti-Clamp’s mechanism and the passage of time to achieve the necessary separation, avoiding forceful manipulation.
• Proceeding to the subsequent three instructions is unnecessary.
• The iOpener’s thermal application facilitates separation of the Anti-Clamp’s arms.A one-minute pause allows the adhesive to soften, easing the separation process.Carefully insert a specialized opening tool to initiate the separation, targeting the space between the display and the frame.
  Incremental adjustments of the Anti-Clamp’s handle, no more than 90 degrees, are recommended to prevent damage.
• Allowing a sixty-second interval after each handle adjustment permits the adhesive to release further.

Applying warmth to the iPhone's bottom perimeter facilitates the loosening of the adhesive that holds the display in place, simplifying the opening process.
Employ a hairdryer, heat gun, or utilize an iOpener to introduce warmth.A hairdryer or heat gun can be used to apply heat, or an iOpener can be employed.The iOpener should be applied to the lower edge of the iPhone.Allow the heat to remain in contact with the lower edge for approximately one minute to reduce the adhesive's bond.This heating period is intended to soften the adhesive located beneath the display.

When employing a solitary suction handle, position it against the lower perimeter of the device's frame, ensuring the curved glass surface remains untouched.

• Maintain consistent, forceful upward traction on the suction cup to generate a minimal separation between the device's front panel and its rear enclosure.
• Position an opening tool beneath the display and the surrounding plastic trim, ensuring it does not contact the screen's surface directly.
• Due to the robust nature of the waterproof sealant securing the display, a considerable amount of force may be required to initially establish this separation; if difficulty arises, applying additional heat and gently oscillating the screen will help to reduce the adhesive's strength, facilitating tool insertion.

• To release the adhesive securing the display assembly, maneuver a specialized opening tool along the lower-left perimeter and upward along the left side of the iPhone’s casing.
• Ensure the pick's insertion depth remains below 3 mmto prevent potential harm to delicate internal components.

Fragile wiring is situated along the right-hand side of the iPhone's internal components; exercise caution to prevent harm.Avoid using a repair tool within the designated areas, as doing so carries a risk of compromising the integrity of the internal cabling.Damage to these cables can occur if a prying tool is inserted incorrectly.

• To proceed with separating the adhesive, re-position your opening tool along the lower edge of the iPhone's casing, then slide it upwards along the right-hand side.
• Ensure the opening tool's insertion depth remains limited to a maximum of 3 millimeters.Exceeding this depth carries a risk of harm to the delicate display cable connections.The display cables are susceptible to damage if the tool is inserted too far.Maintain careful control of the tool's movement to prevent injury to the internal components.Adherence to the specified depth restriction is crucial for preserving the integrity of the display assembly.

• Adhesive and retaining clips together fasten the display's uppermost boundary.
• Employing a separating tool, maneuver it along the display's upper corner, applying slight downward traction or oscillation towards the Lightning connector’s location.
• Excessive force applied to the retaining clips will cause their failure; therefore, proceed with caution and deliberate care.
• The separation tool's insertion depth must not exceed 3 millimeters to prevent potential harm to the front panel sensor assembly.
• Continue the separation tool's movement to the opposing corner, severing any residual adhesive holding the display in place.

• Initiate the iPhone's disassembly by pivoting the screen upwards from the left, mimicking the action of opening a book's cover.
• Refrain from completely detaching the display at this stage, because multiple delicate ribbon cables maintain its connection to the device's logic board.
• To maintain access during the repair process, secure the display in an upright position using a support.
• When reassembling, position the display, ensure the top edge clips are properly aligned, and then apply gentle pressure to secure the top edge before fully engaging the remainder of the display; if resistance is encountered, inspect the display's perimeter clips for any deformation.

1. Detach the battery connector cover bracket using three screws with a 1.2 mm Y000 driver.The bracket that secures the battery connector should now be removed.Carefully monitor the location of each screw throughout the repair process, ensuring correct placement during reassembly to prevent potential damage to the iPhone.
2. Prior to permanently reattaching the display, it's advisable to verify all iPhone functionalities by briefly powering it on at this stage.

Completely shut down the iPhone before proceeding with the remaining steps in the repair.
Successful completion of this repair requires meticulous attention to detail regarding screw placement and functional testing before final assembly.

• Employ the tip of a spudger to carefully lift the battery connector vertically from its corresponding receptacle.Exercise caution to avoid harming the black silicone sealant that encases this connector and others on the circuit board, as it safeguards against water and dust ingress.To preclude unintended electrical connection and power delivery to the device during the repair process, gently angle the connector away from the main circuit board.
  The silicone seals are critical for maintaining the device's environmental protection, so preserving their integrity is vital.
  Applying force with the spudger should be minimal to prevent damage to the connector or its socket.

• Detach the display connector bracket by eliminating the two screws.The screws used for securing are specifically sized at 1.2 millimeters and require a Y000 screwdriver for removal.The bracket's retention is achieved through these screws, necessitating their removal to proceed.
  Following screw removal, the display connector bracket can be taken off.

• Employ the pointed end of a spudger to gently lift and detach the digitizer cable's connection.For reattachment, position the connectors similarly, meticulously aligning and applying pressure to one edge until a secure click is heard, then repeat the process for the opposing edge; avoid applying pressure to the central portion.Misalignment of the connector can result in bent pins, leading to irreversible damage.
  Should any area of the display fail to register touch input following the repair, first remove the battery and subsequently reseat this connector, ensuring a complete and audible click and verifying the absence of debris within the socket.
  Confirm proper seating of the connector by listening for a distinct click and visually inspecting the socket for any obstructions that could impede contact.

• Employ the pointed end of a spudger to carefully separate the display cable's connector.The display cable connector must be detached using a spudger's tip to avoid damage.A spudger should be utilized, specifically its tip, for disconnecting the display cable connector.

1. To detach the logic board connector bracket from the rear case, you must first eliminate the five screws that hold it in place.
   • A single Phillips #000 screwdriver, sized at 1.3 millimeters, is required for this step.
   • Another Phillips #000 screwdriver, measuring 1.5 millimeters in width, is also needed.
   • Three screws, each 1.2 millimeters in size and utilizing a Y000 head, must be removed.
2. Following screw removal, the bracket itself can be taken off.
   Exercise caution to prevent the loss of the smaller bracket attached to the edge, which is held by a small clip and can easily become dislodged.

1. Detach the display unit from the device.
   If a replacement of the waterproof adhesive sealant bordering the display is desired, halt the reassembly process at this juncture.

1. To detach the bracket situated beneath the Taptic engine and speaker assembly, it is necessary to eliminate the seven fasteners holding it in place.
   • The bracket is affixed using three Phillips head screws, each measuring 1.4 millimeters in width.
   • Two additional Phillips head screws, each with a 1.7-millimeter shaft diameter, are also used for attachment.
   • A single Phillips head screw, possessing a 1.9-millimeter width, contributes to the bracket's securement.
   • One further Phillips head screw, with a 1.6-millimeter diameter, is part of the fastening system.

• To facilitate access, elevate the mounting bracket, initiating the lift from the side closest to the battery.
• Avoid complete detachment at this stage, because a short, flexible cable maintains the electrical connection.

To prevent interference, secure the bracket and subsequently utilize the pointed end of a spudger.Employing a spudger's tip facilitates the separation of the flex cable.The flex cable is located beneath the bracket and requires careful disconnection.A prying motion with the spudger is necessary to release the flex cable's connection.Ensure the bracket remains positioned to avoid damage during flex cable detachment.

Detach the bracket.

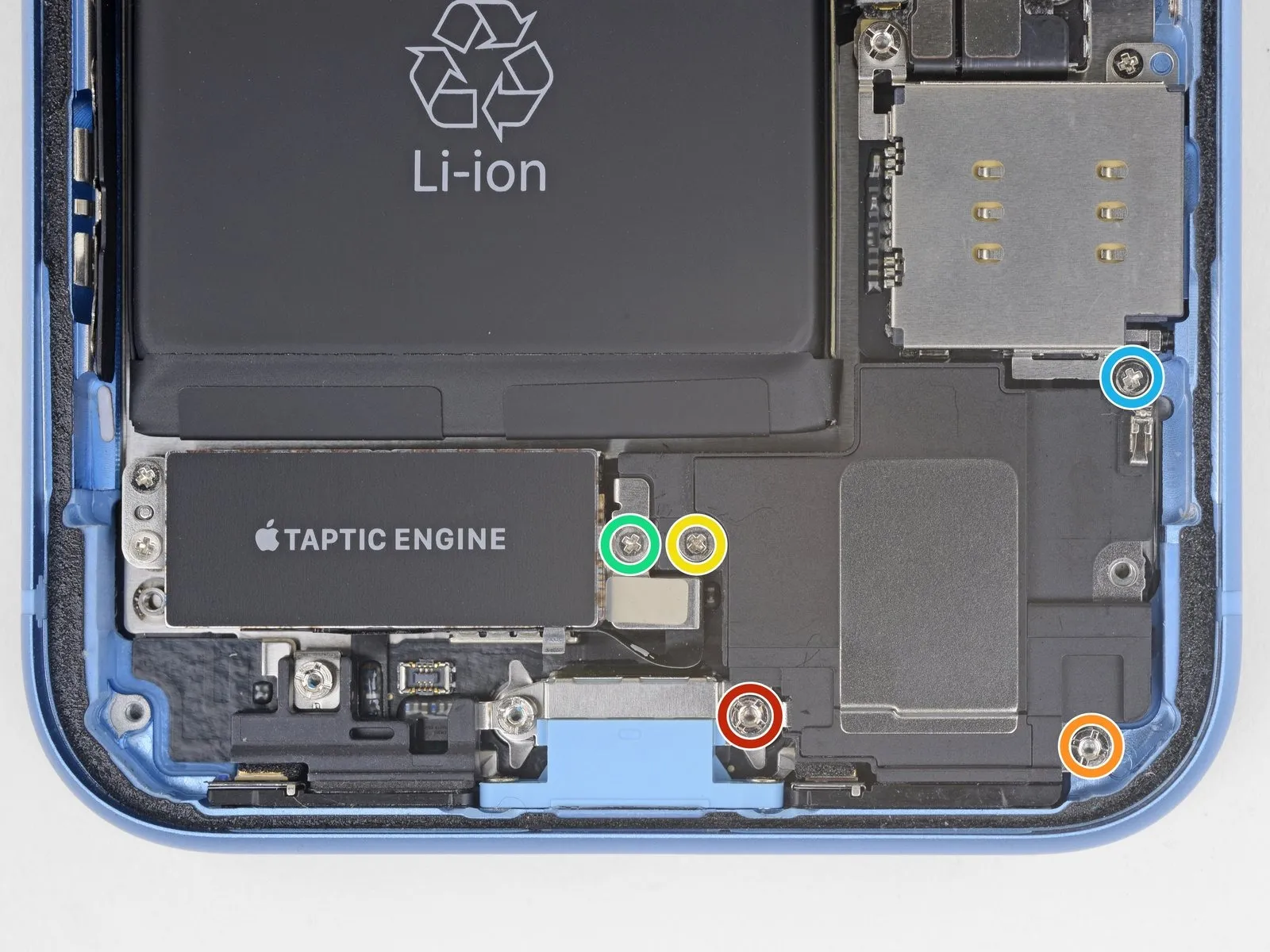

• Detach the lower speaker by unscrewing the five fasteners that hold it in place.
  A single 2.8-millimeter standoff screw is present.
  Employing a specialized standoff driver or bit is the preferred method for removing standoff screws.
  If a standoff driver is unavailable, a small flathead screwdriver can be utilized; however, exercise heightened care to prevent slippage and potential damage to nearby parts.
  A 2.3-millimeter standoff screw is also included.
  A 2.3-millimeter Phillips screw is another fastener to be removed.
  Additionally, a 1.8-millimeter Phillips screw requires removal.
  Finally, a 1.6-millimeter Phillips screw must be detached.

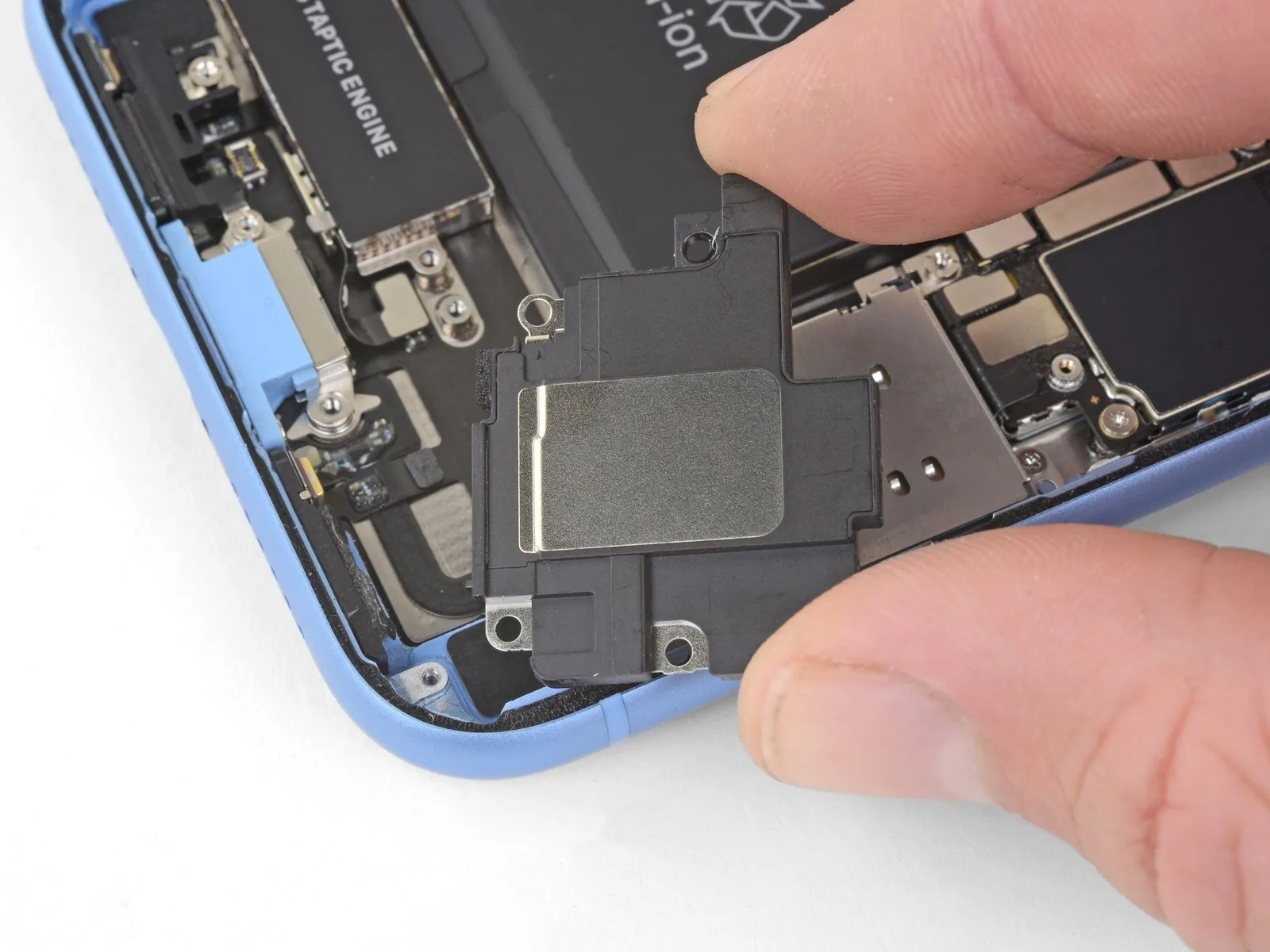

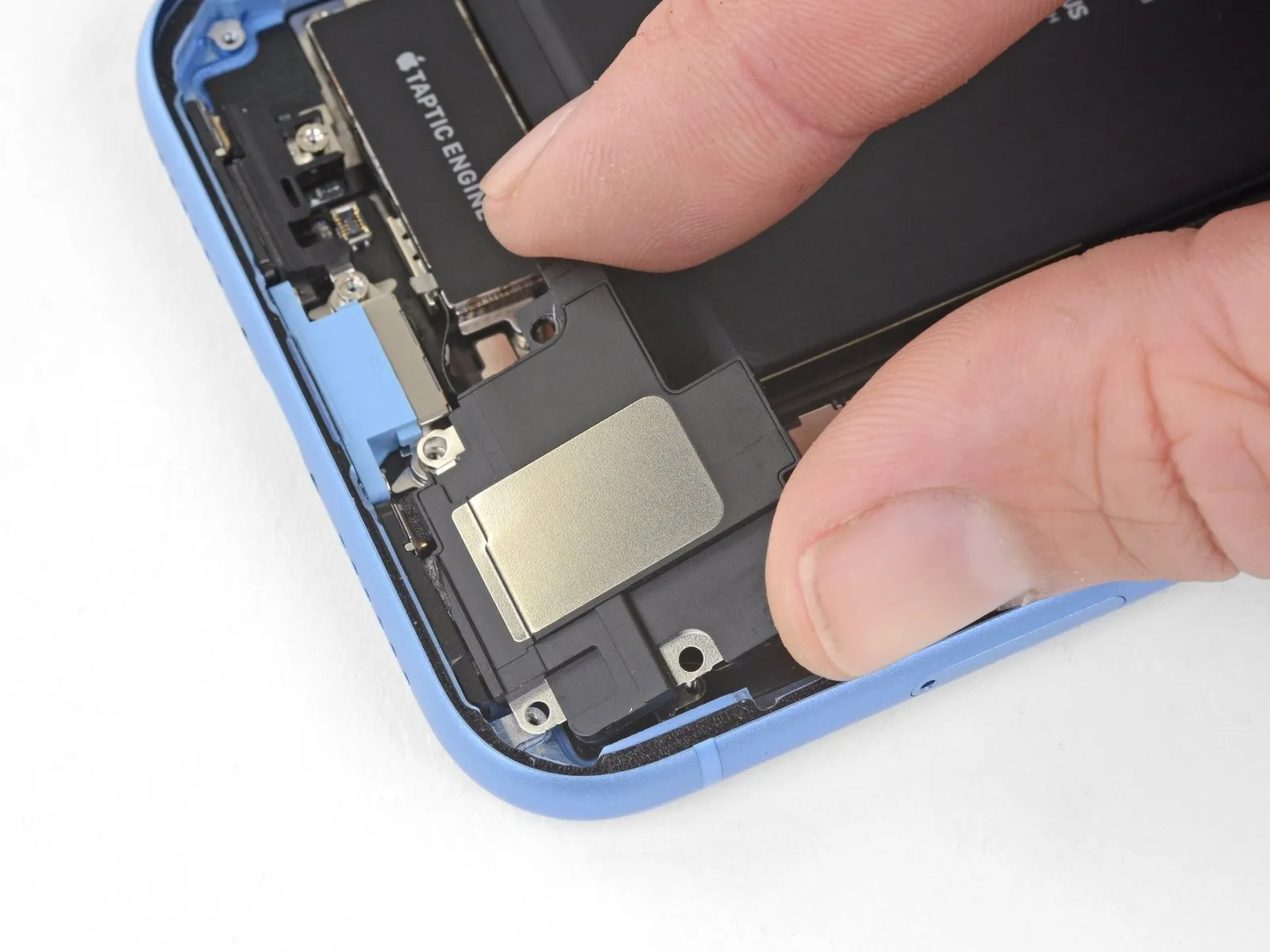

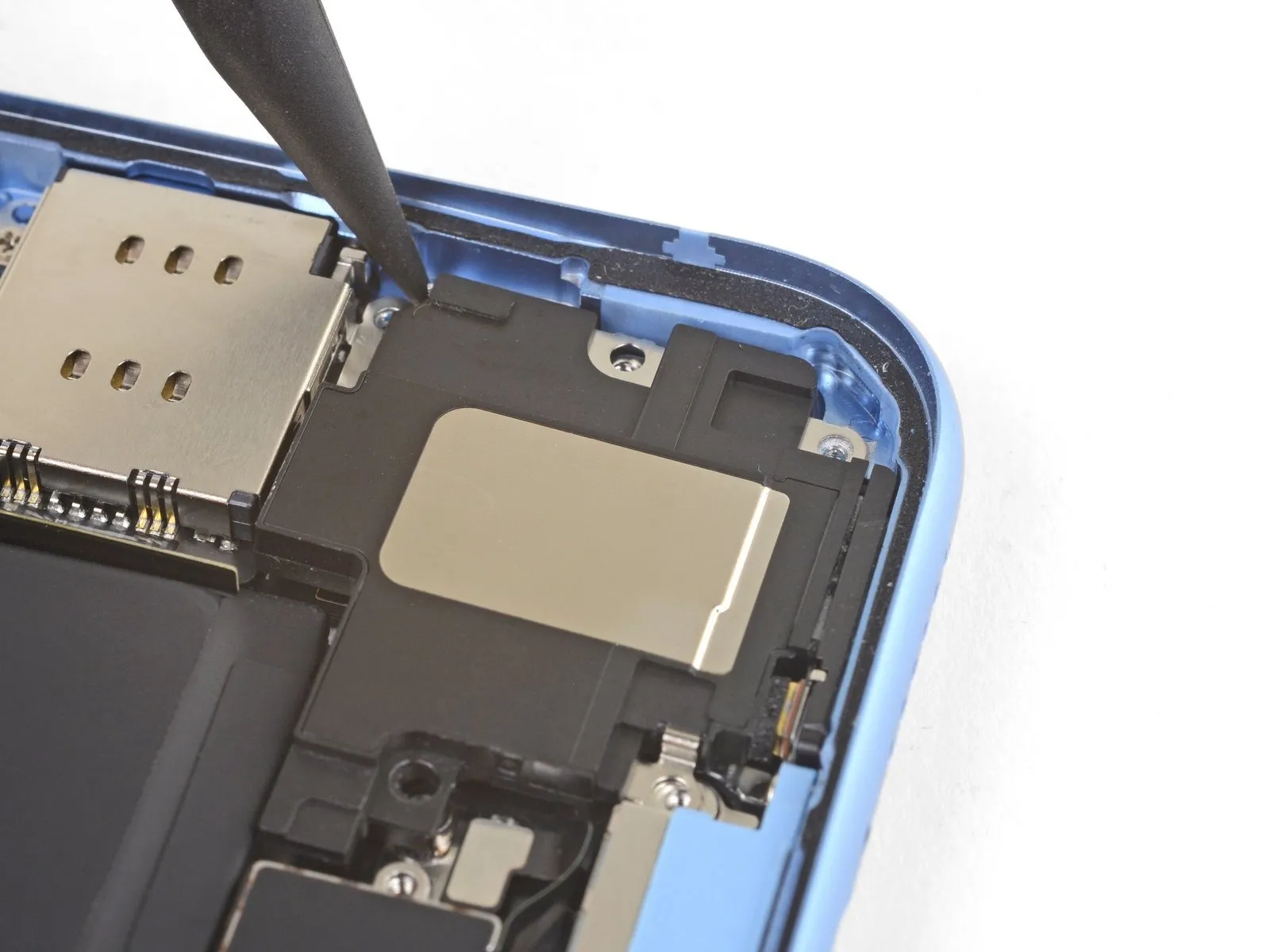

• Grasp the speaker assembly using its lateral edges, gently oscillating it to disengage the adhesive that bonds it to the iPhone's lower perimeter.

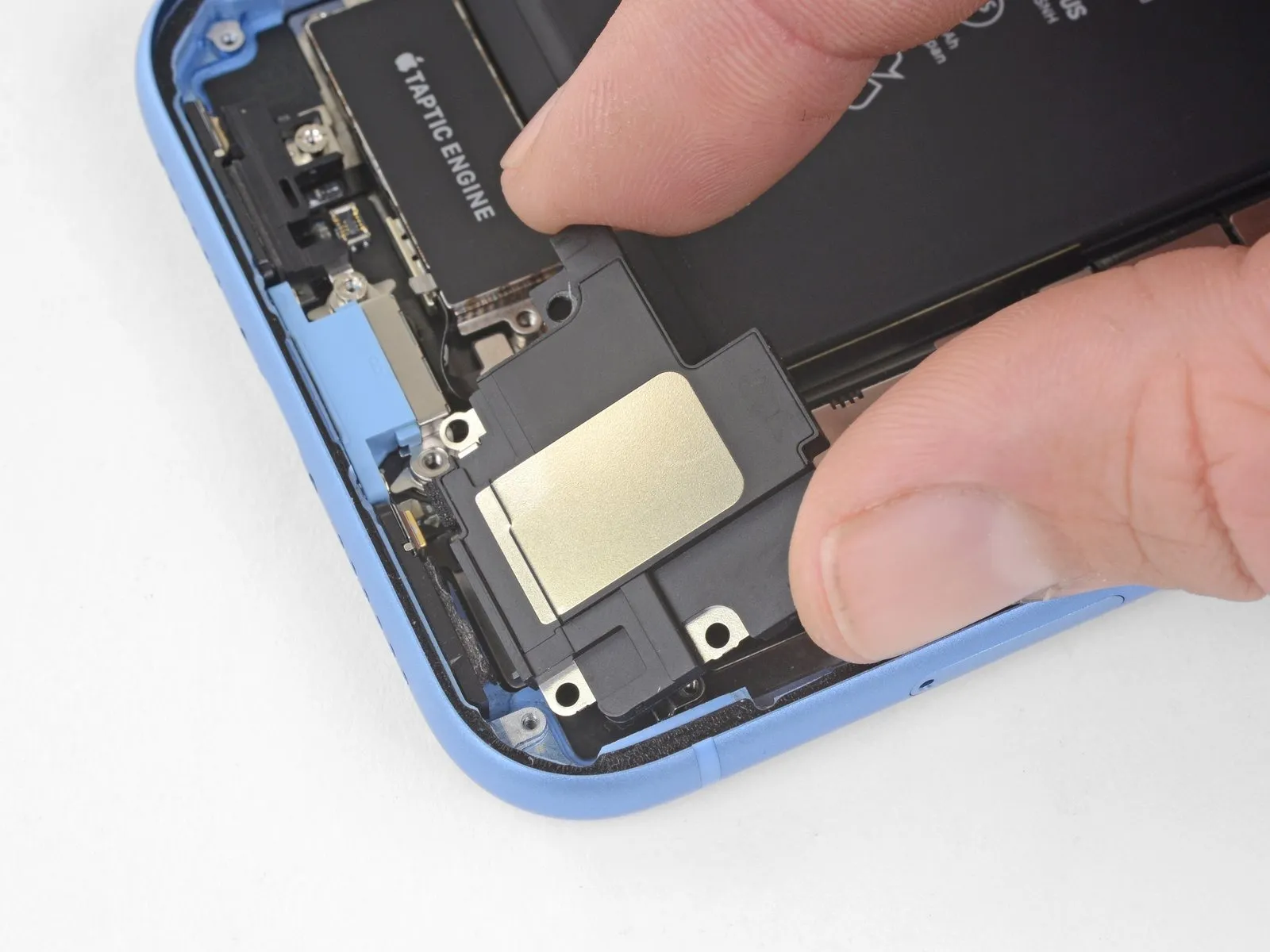

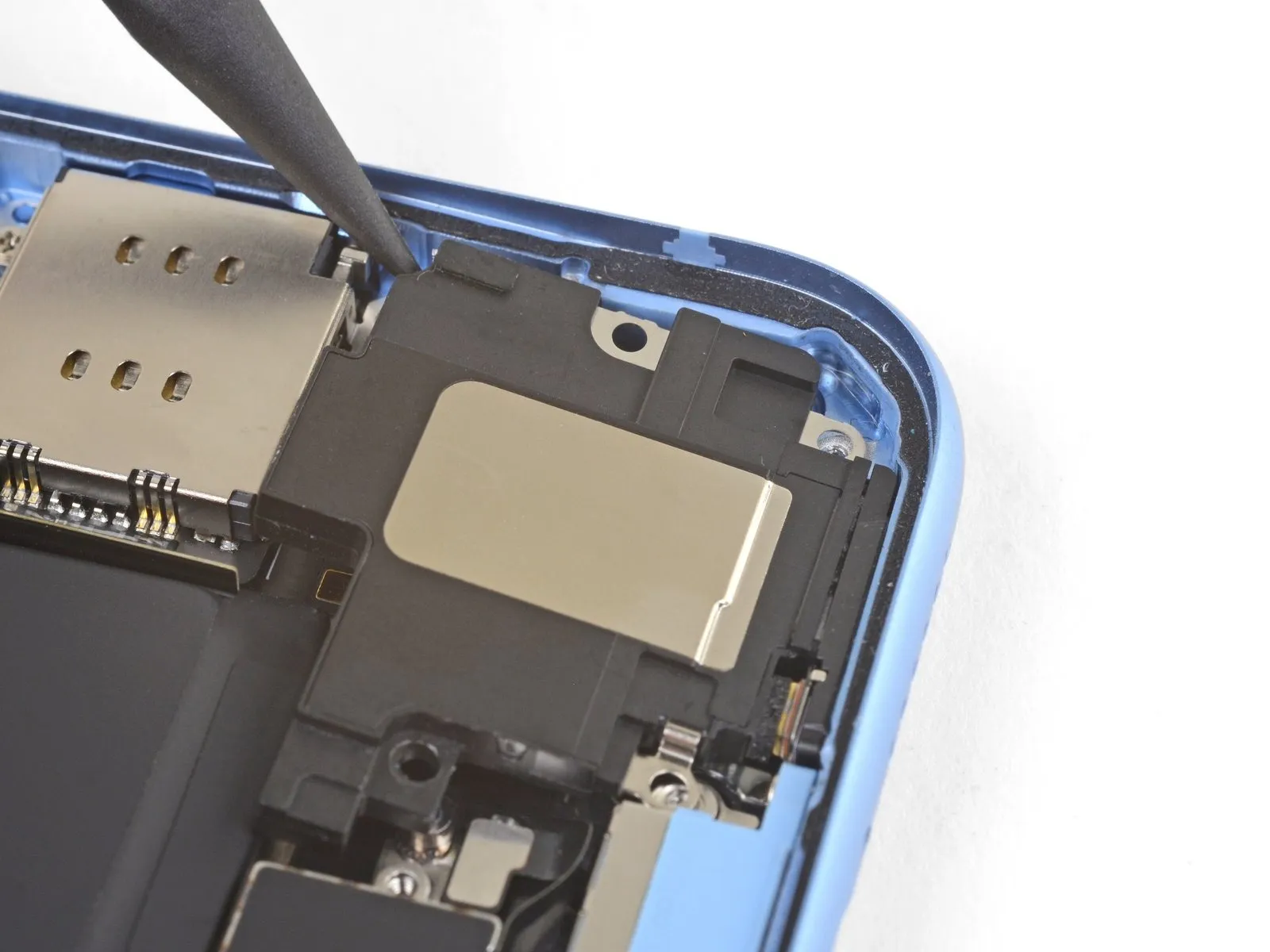

• Move the speaker outward from the iPhone’s base until the adhesive gasket releases from its position.

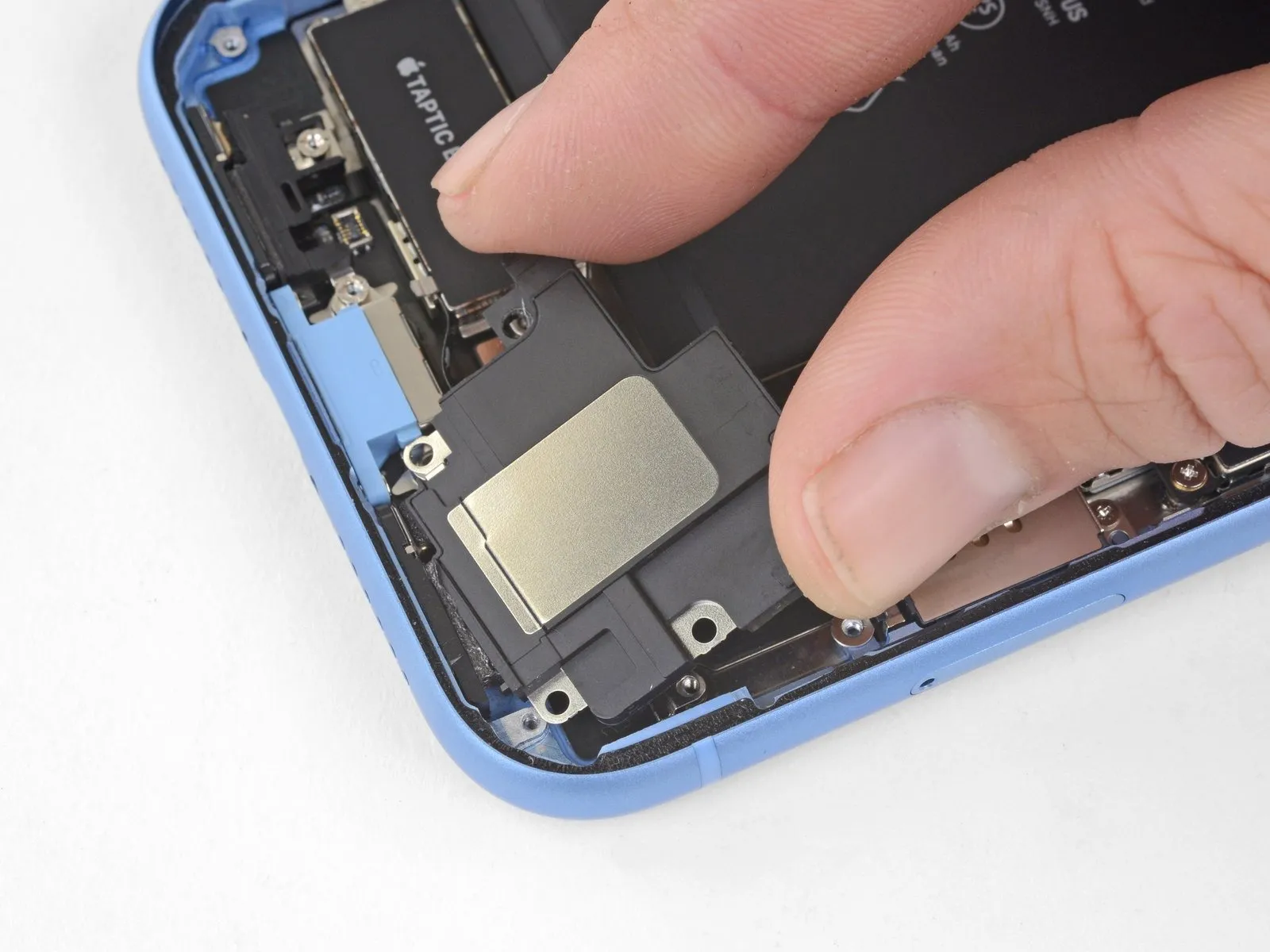

• Detach the speaker component.

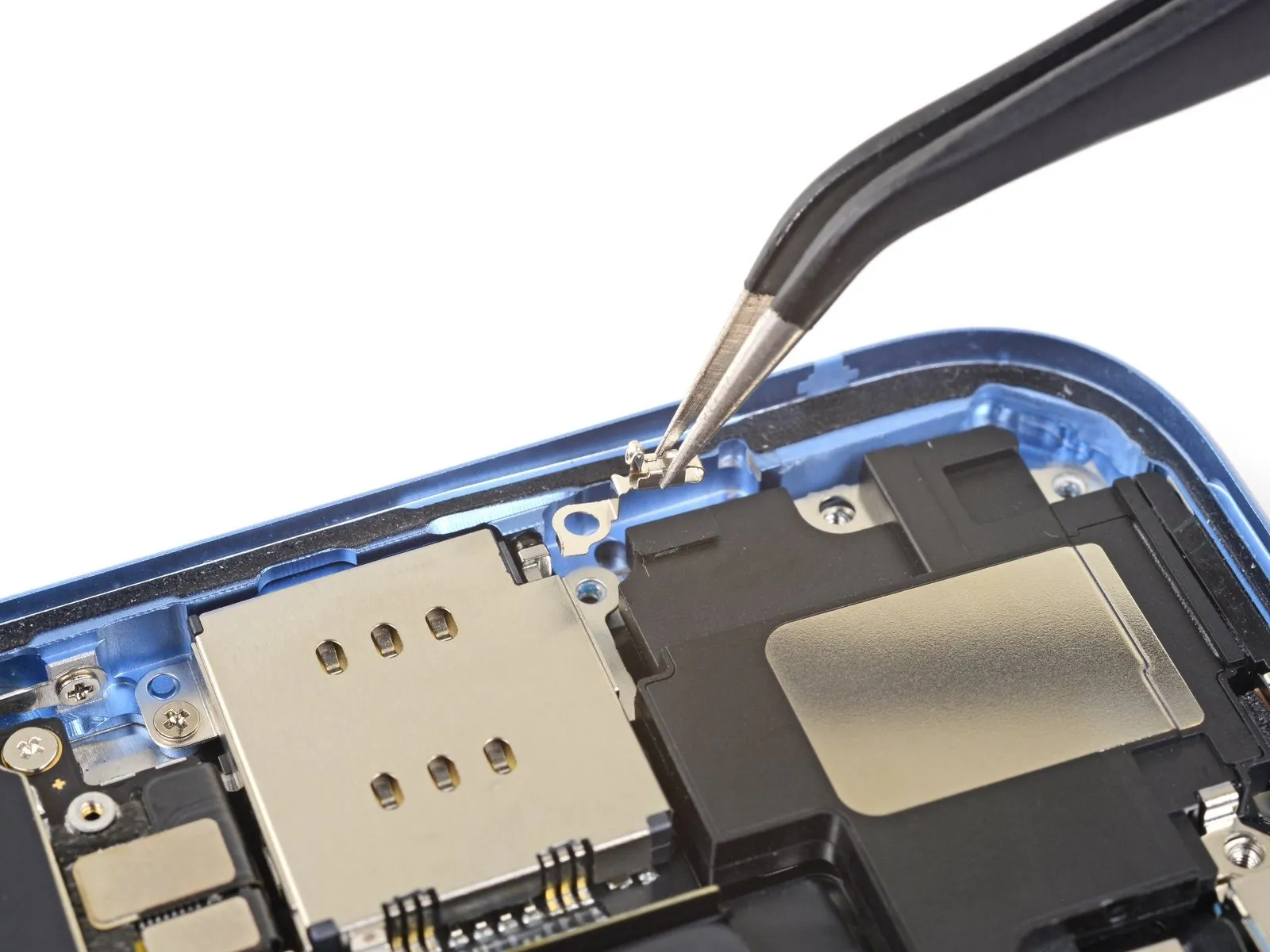

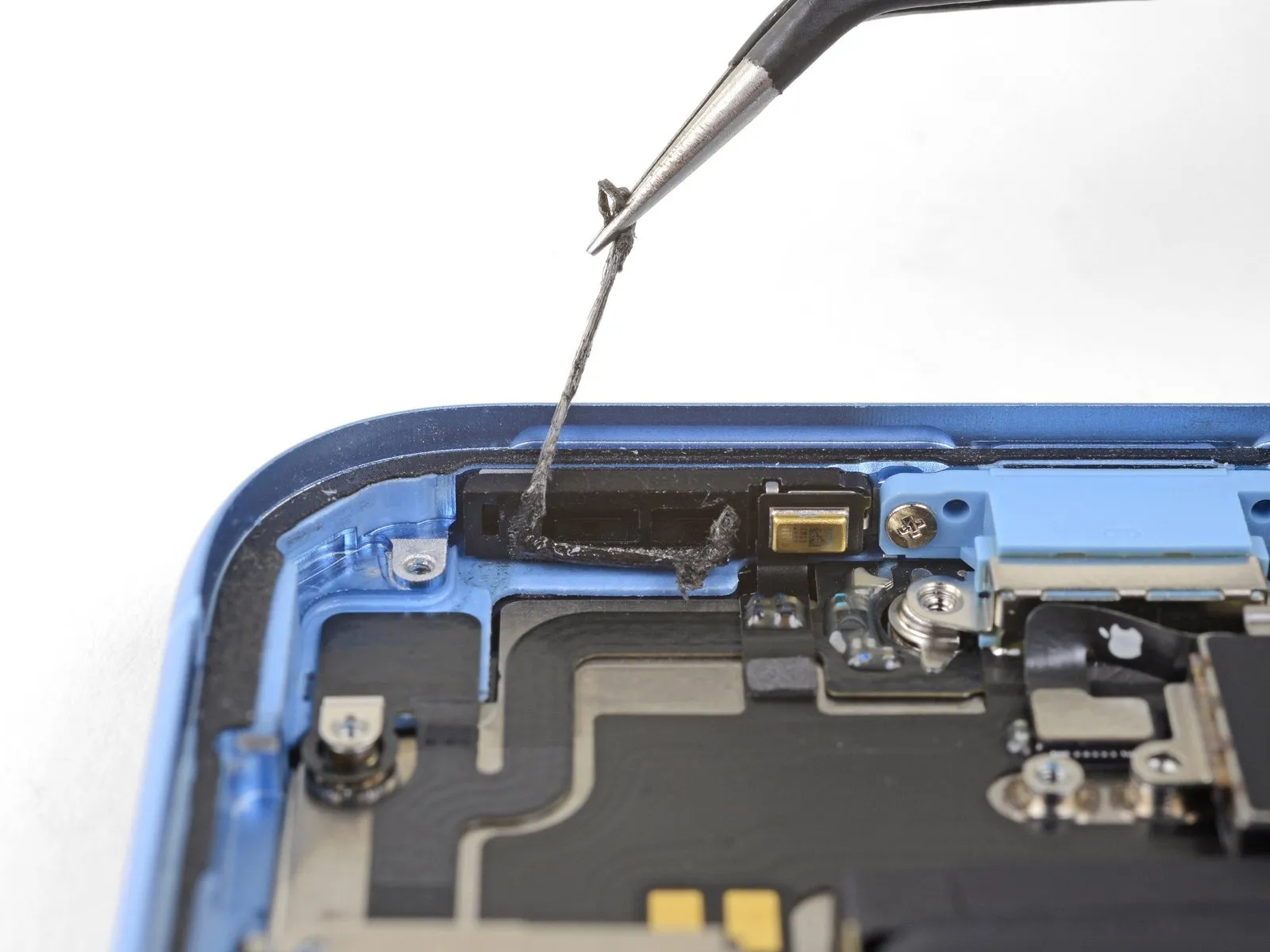

• The speaker's sealing gasket cannot be reused.Employ tweezers to eliminate any leftover adhesive material from the surface.Substitution of the adhesive gasket is recommended during reassembly to maintain water and dust resistance.
• Ensure proper adhesion of the gasket by cleaning the mounting area with a small amount of isopropyl alcohol and a lint-free cloth or coffee filter.Apply a fresh gasket to the speaker's mounting surface.Secure the speaker in place after the gasket installation.
