iPhone XR Taptic Engine Replacement

• To start, ensure your iPhone's battery is depleted to a level below 25% to prevent potential hazards.A fully charged lithium-ion batteryposes a risk of fire and/or explosion if it sustains accidental physical damage.
• Deactivate your iPhone by powering it down completely prior to commencing the disassembly process.
• Detach the pair of pentalobe screws, each measuring 6.7 mm in length, located along the iPhone's lower edge.
• Disassembly of the iPhone will inevitably damage the factory-installed waterproof seals; therefore, prepare replacement seals beforehand, or exercise extreme caution to prevent liquid ingress if you intend to reassemble the device without new seals.

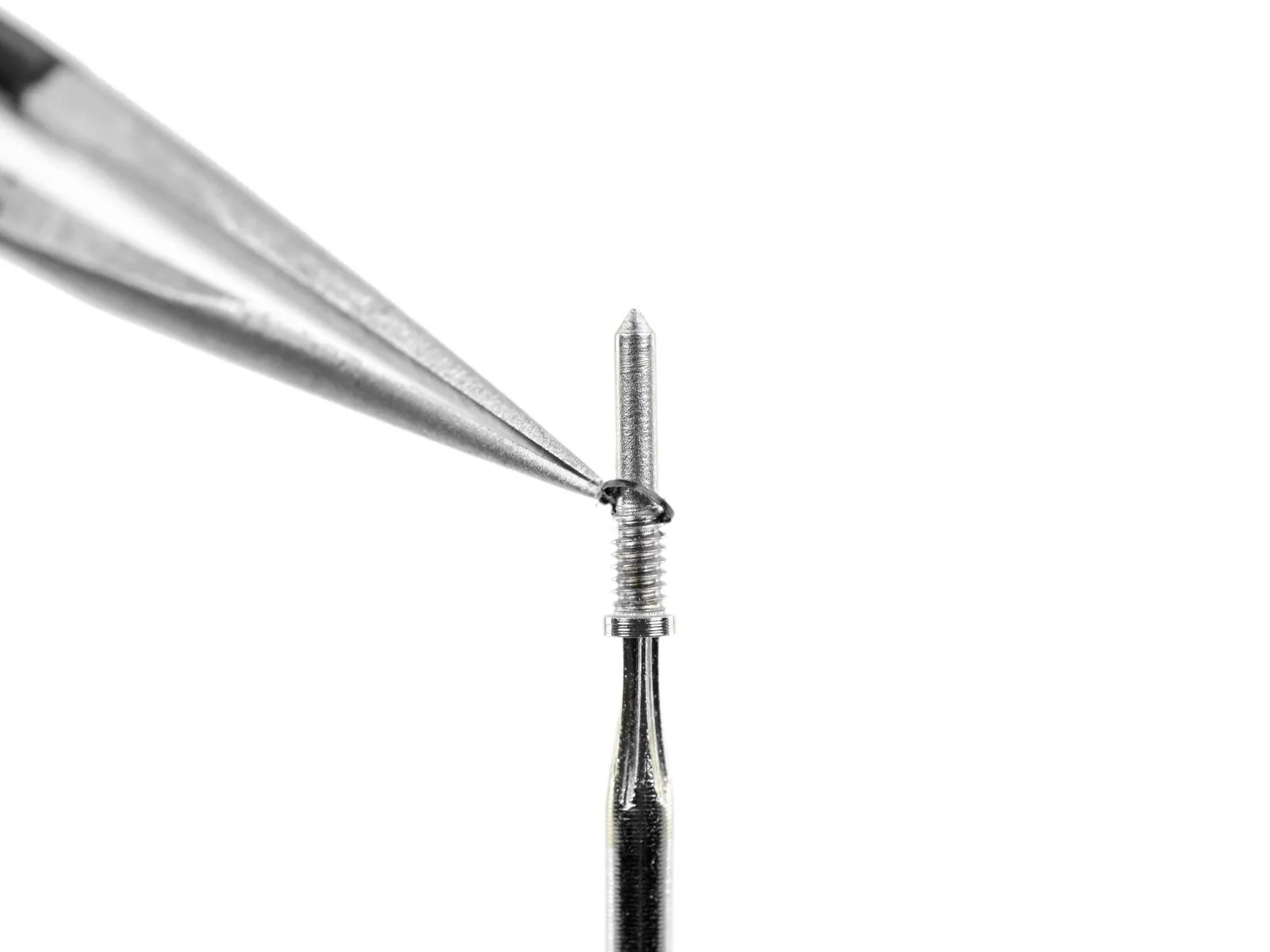

• Each pentalobe screw is accompanied by a black rubber gasket situated directly below its head; to maintain optimal protection from dust and moisture, inspect these gaskets and consider replacing the screws during reassembly.

• To avoid potential harm to your device, ensure the opening pick isn't inserted beyond its intended depth; this procedure details how to mark the pick to ensure safe operation.
• Determine the measurement of3 mmfrom the pick's leading edge, then use a permanent marker to create a visible indicator on the opening pick.
• For enhanced precision, consider marking additional points on the pick's corners with varying measurements.
• As an alternative method, affix a coin to the pick's shaft,3 mmaway from its tip.

• To minimize additional damage and potential injury while repairing a fractured iPhone display, secure the broken glass with tape.
• Apply multiple layers of transparent packing tape across the iPhone's screen surface, ensuring complete coverage of the entire front face.
• Always utilize safety eyewear to guard against glass fragments that may become dislodged during the repair process.
• Should the suction cup fail to adhere properly in subsequent steps, create a handle by folding a durable tape, like duct tape, and use this to carefully elevate the screen.
• As a last resort, secure the suction cup to the screen using superglue.

• The following three procedures illustrate the function of the Anti-Clamp, a specialized tool developed to simplify the opening process; if this tool is not available, proceed to the subsequent three steps for an alternative approach.
• Detailed instructions regarding the Anti-Clamp's operation are available in a separate, dedicated guide.
• Grasp theblue handleand move it in a rearward direction to disengage the Anti-Clamp's arms.
• Carefully position the arms across either the left or right side of the iPhone's frame.
• Place the suction cups close to the lower edge of the iPhone, ensuring one is situated on the front surface and the other on the rear.
• Apply pressure by compressing the cups together to create a secure vacuum seal on the intended area.
• Should the iPhone's surface prove excessively smooth, preventing adequate adhesion by the Anti-Clamp, applying adhesive tape can provide a more textured surface for improved grip.

• To engage the locking mechanism, draw theblue handlein a forward direction.
• Rotate thehandlethrough a complete 360-degree rotation, or until you observe the suction cups beginning to expand.
• Maintain proper alignment of the suction cups with one another; should they become misaligned, gently release the suction cups and reposition the arms.

• Apply heat to aniOpenerand guide it between the arms of the Anti-Clamp; alternatively, a hair dryer, heat gun, or hot plate can be utilized, however, excessive temperatures risk damage to the display assembly and/or the internal battery, necessitating cautious operation.
• Bend theiOpenerto position it along the lower edge of the iPhone.
• Allow a sixty-second interval to permit the adhesive to soften and create a separation.

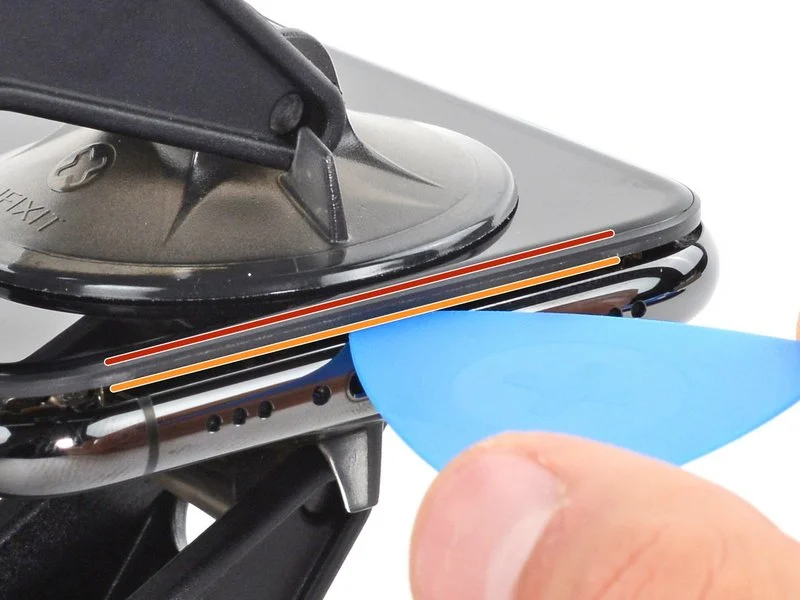

• Carefully slide an opening pick beneath the display and the surrounding plastic frame, avoiding direct contact with the screen's surface.
• Should the Anti-Clamp fail to establish an adequate separation, increase the heat applied to the region and rotate the handle by ninety degrees.
• Avoid incremental rotations exceeding ninety degrees, and allow a sixty-second pause between each adjustment; rely on the Anti-Clamp's mechanism and time to facilitate the separation.
• Omit the subsequent three steps.

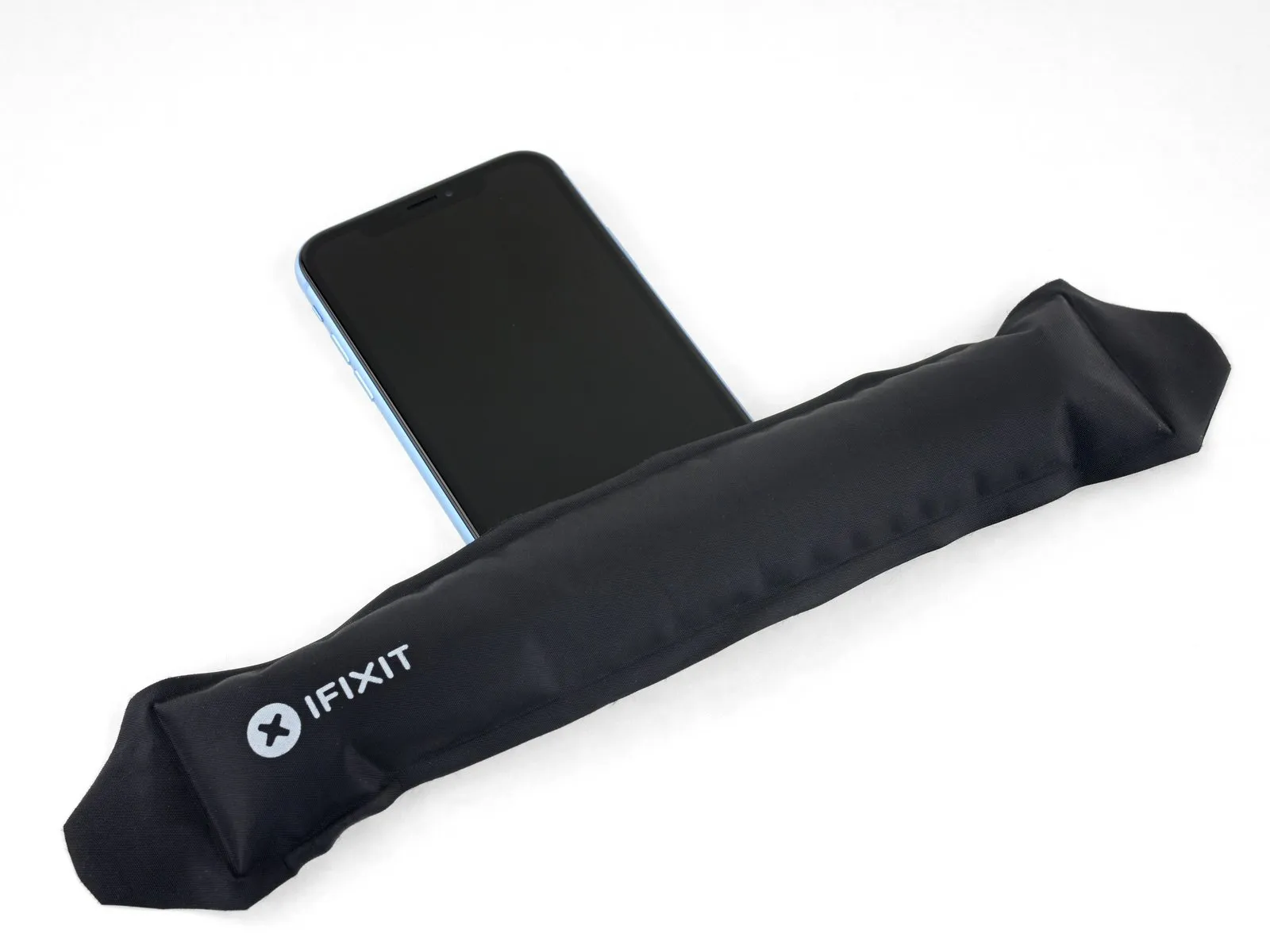

• Applying warmth to the iPhone's bottom edge facilitates the separation of the display, as it loosens the adhesive holding it in place.
• Employing a hairdryer, heat gun, or utilizing aniOpeneris recommended; apply heat to the lower edge for approximately one minute to reduce the adhesive's tackiness.

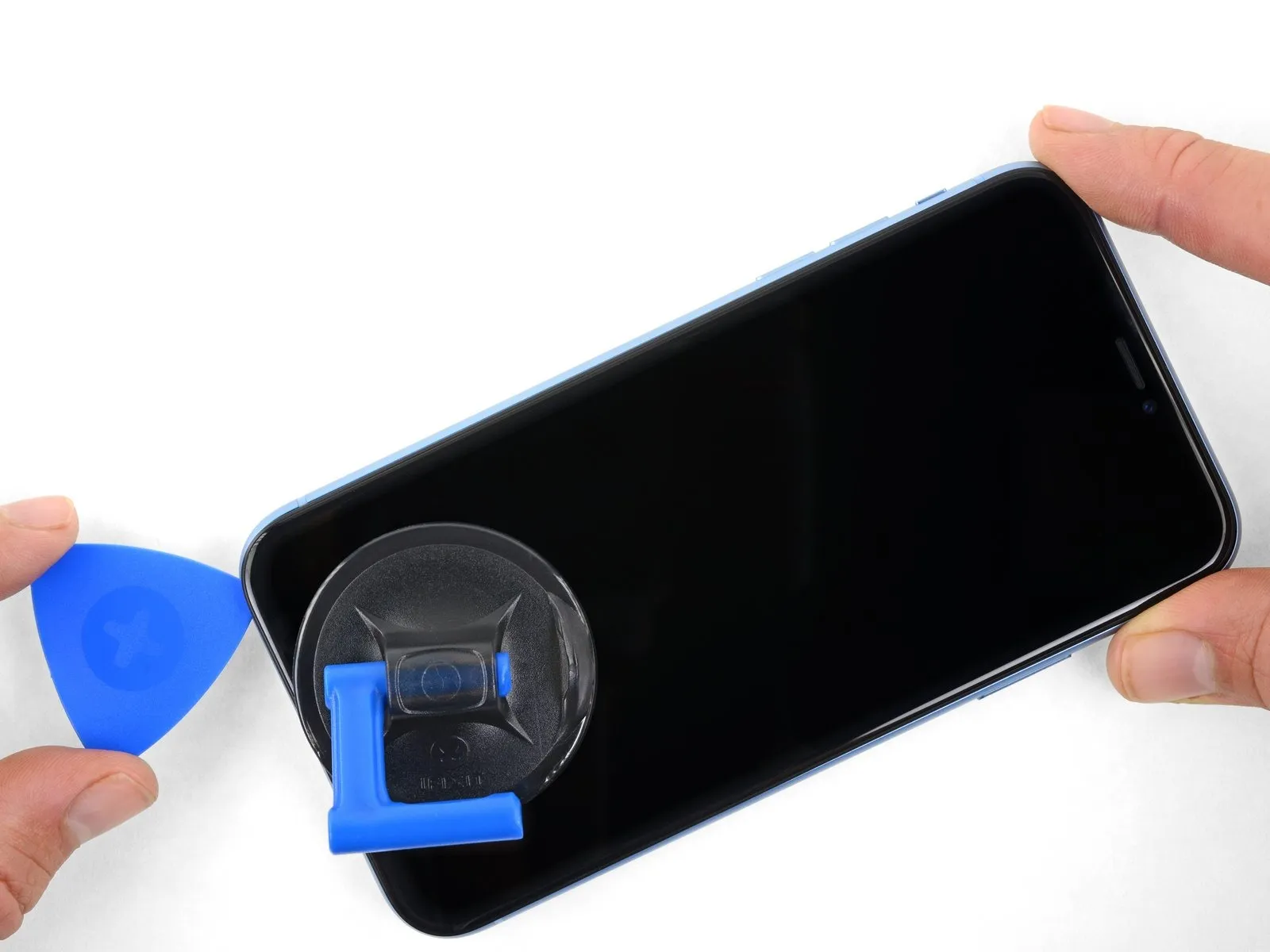

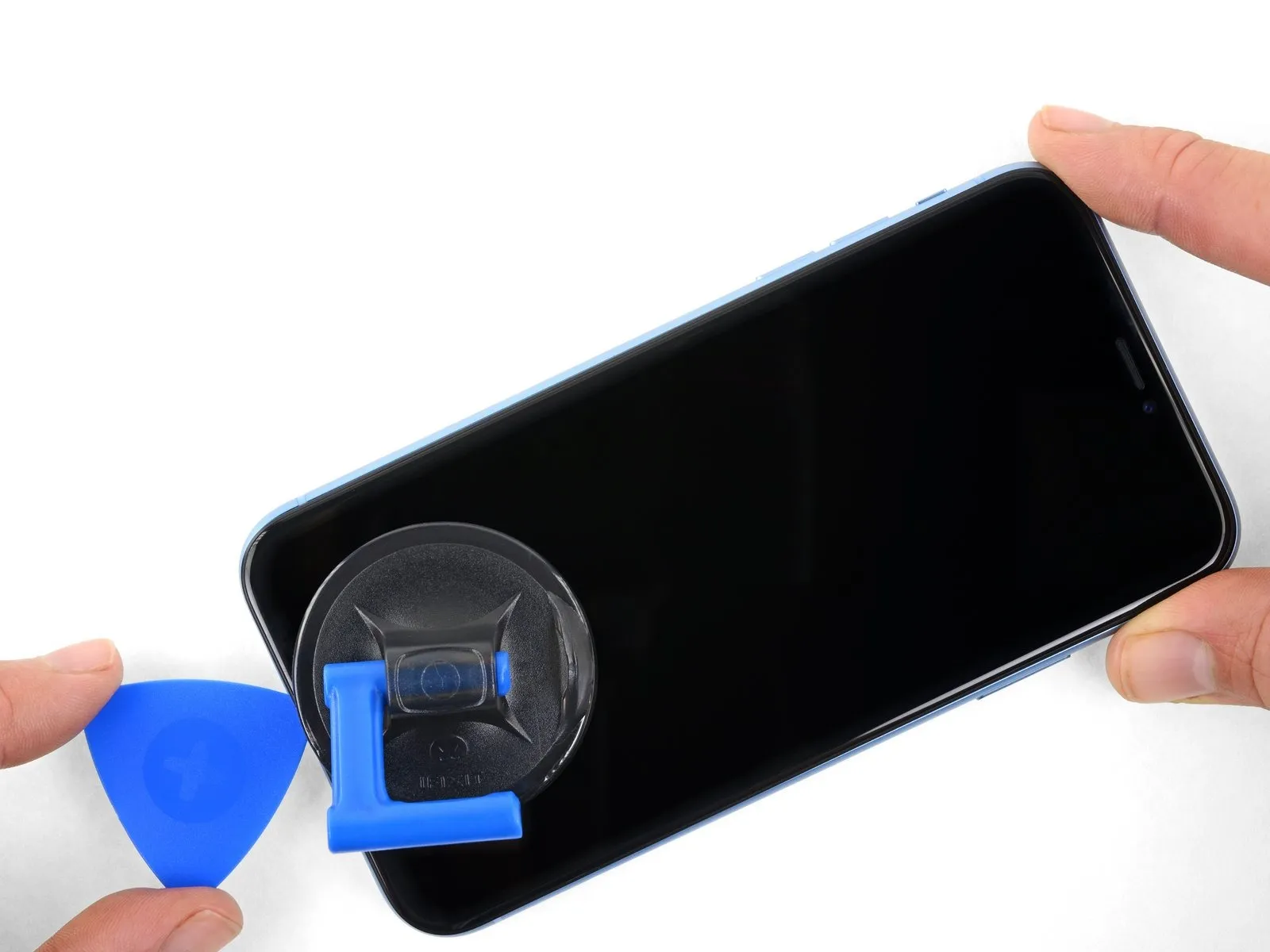

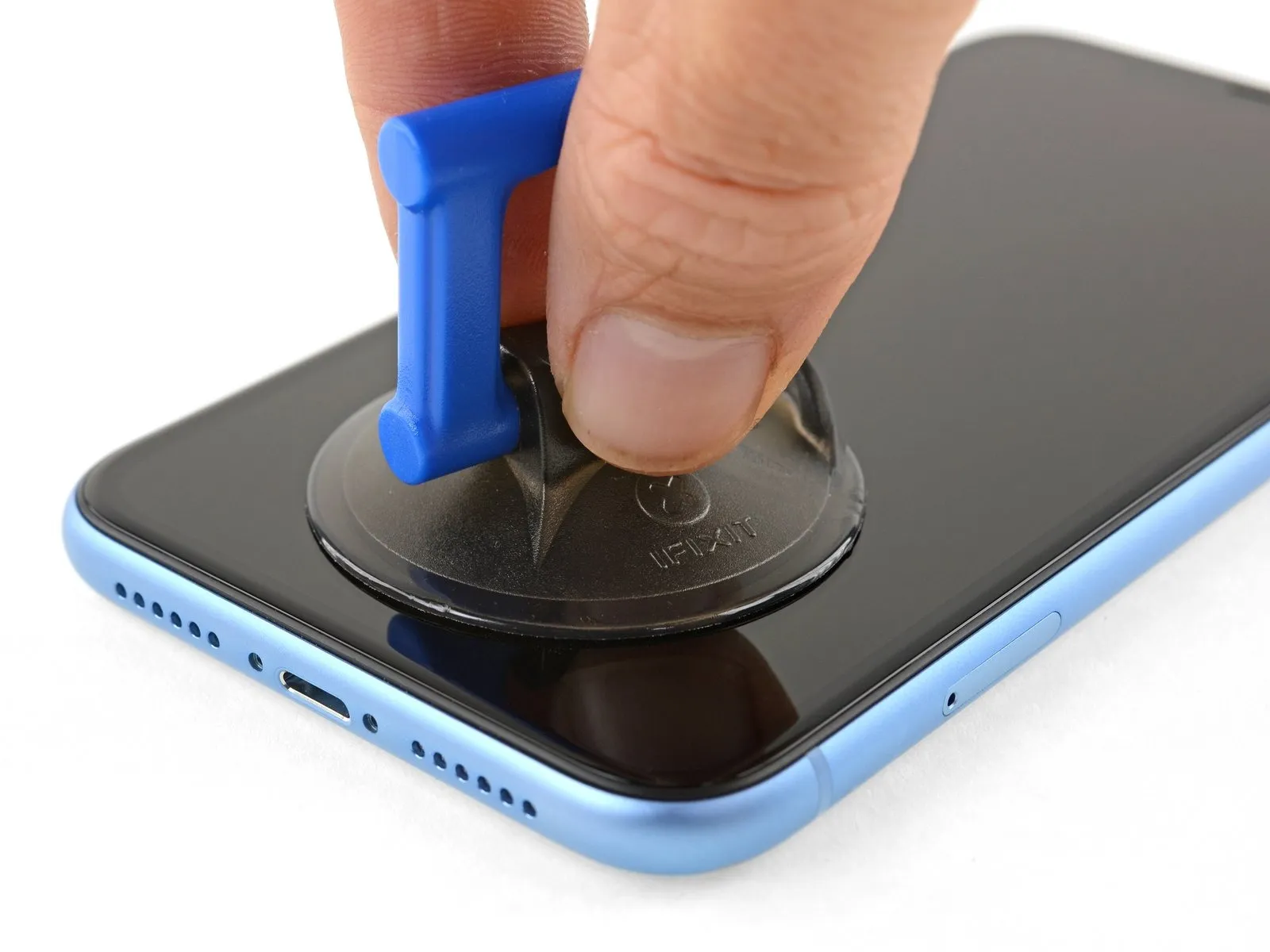

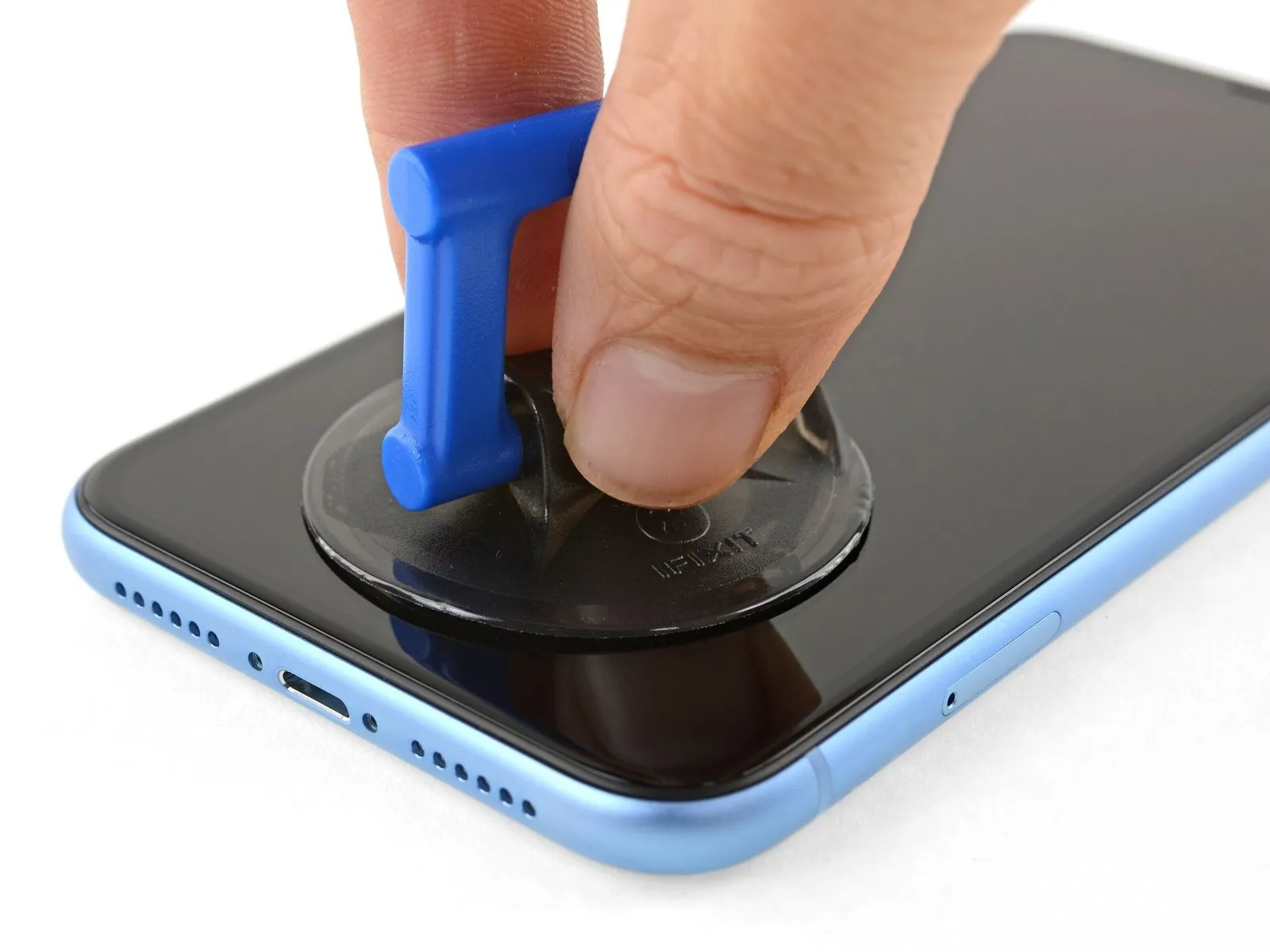

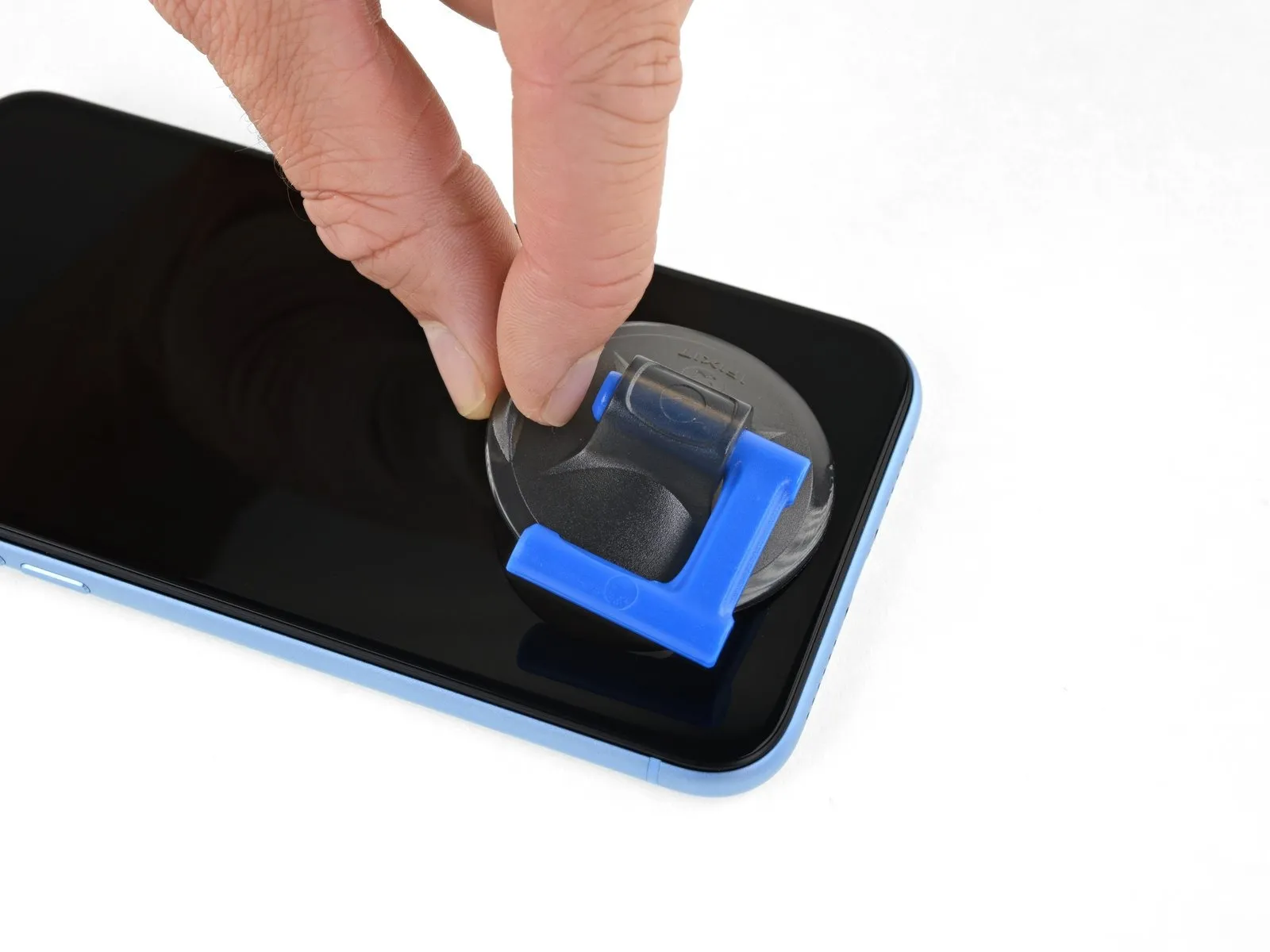

• When employing a solitary suction handle, position it against the lower boundary of the device, ensuring you circumvent the rounded glass section.

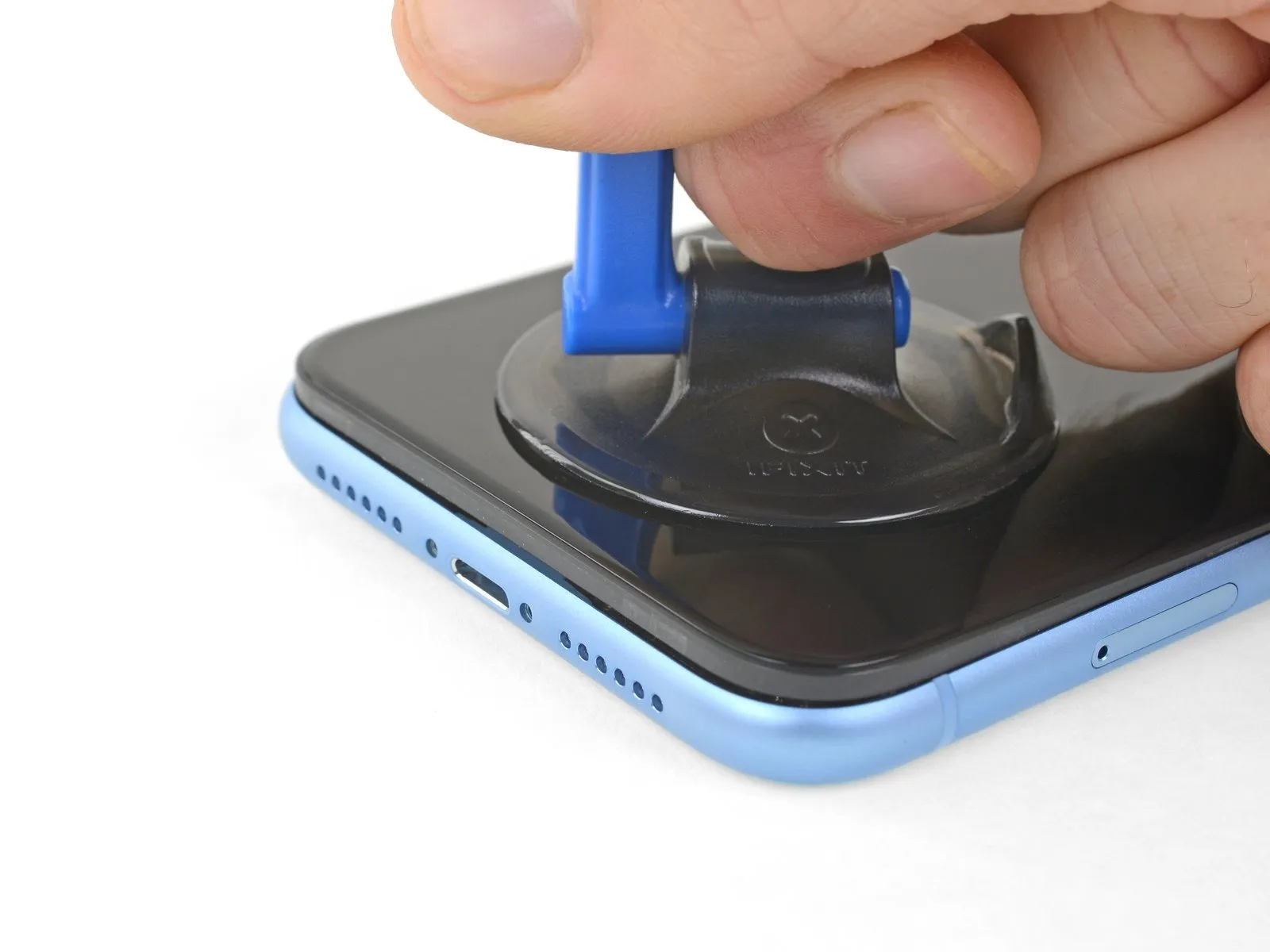

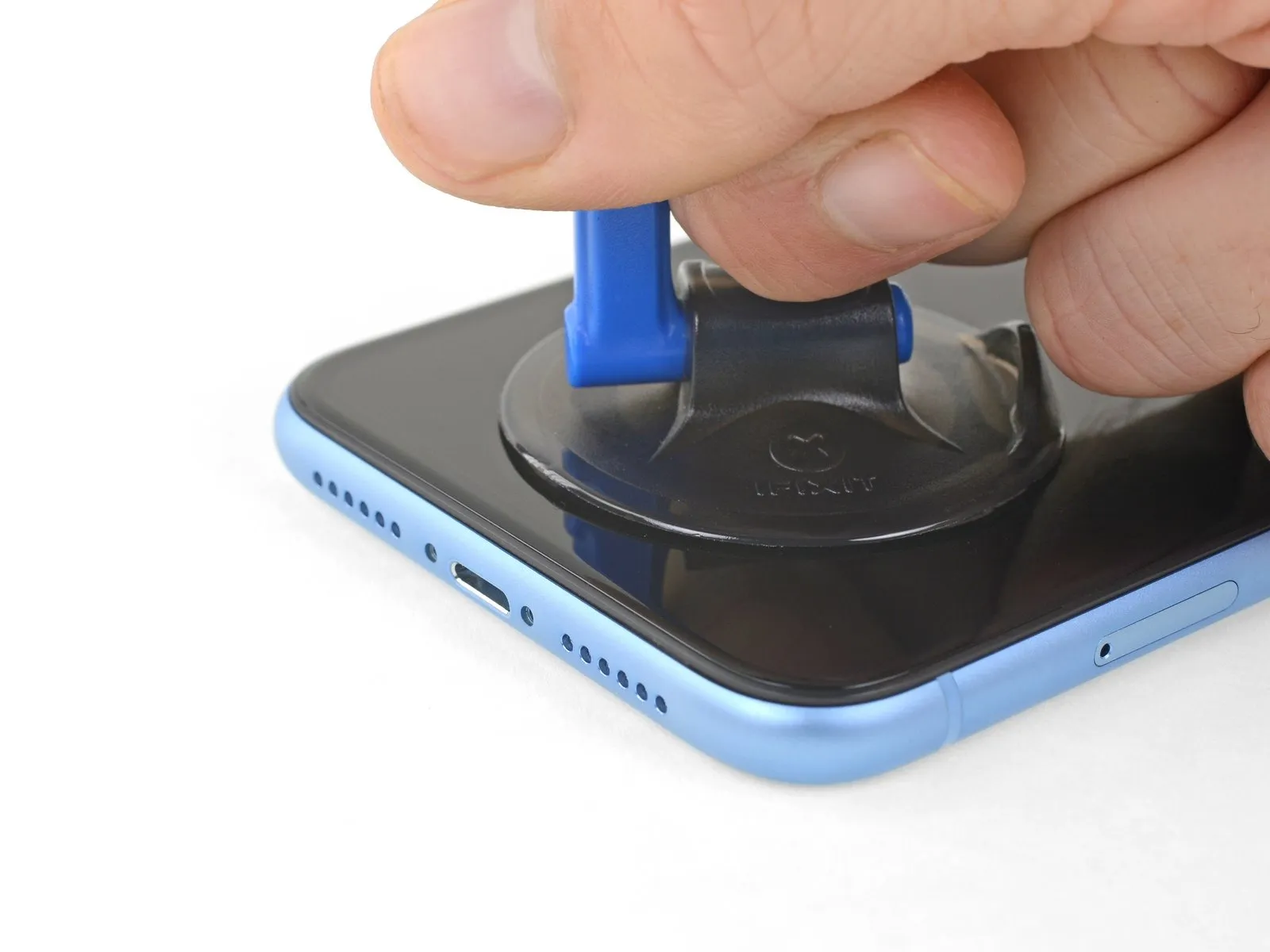

• Apply steady, consistent upward force to the suction cup to generate a small separation between the front panel assembly and the rear casing.

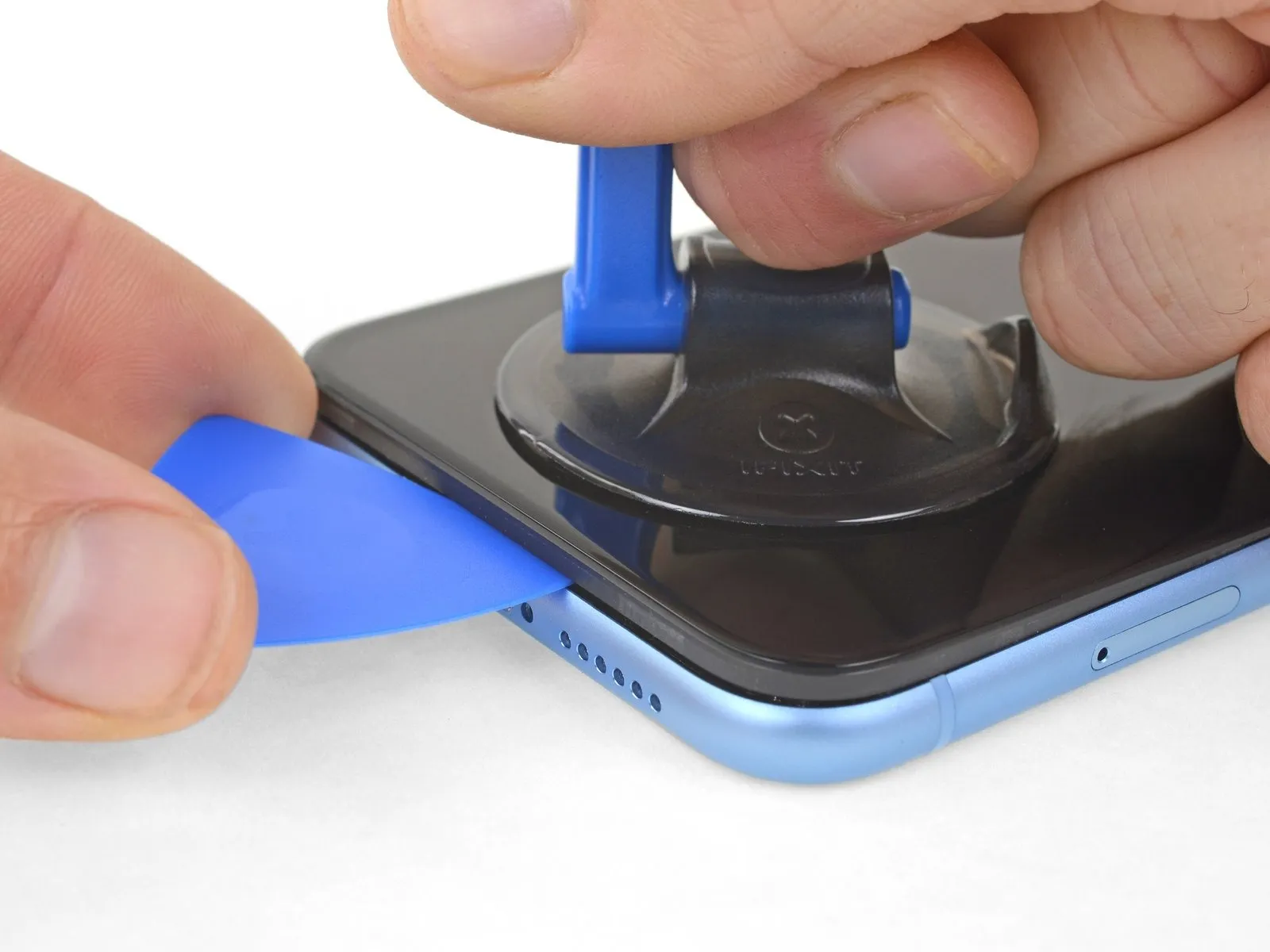

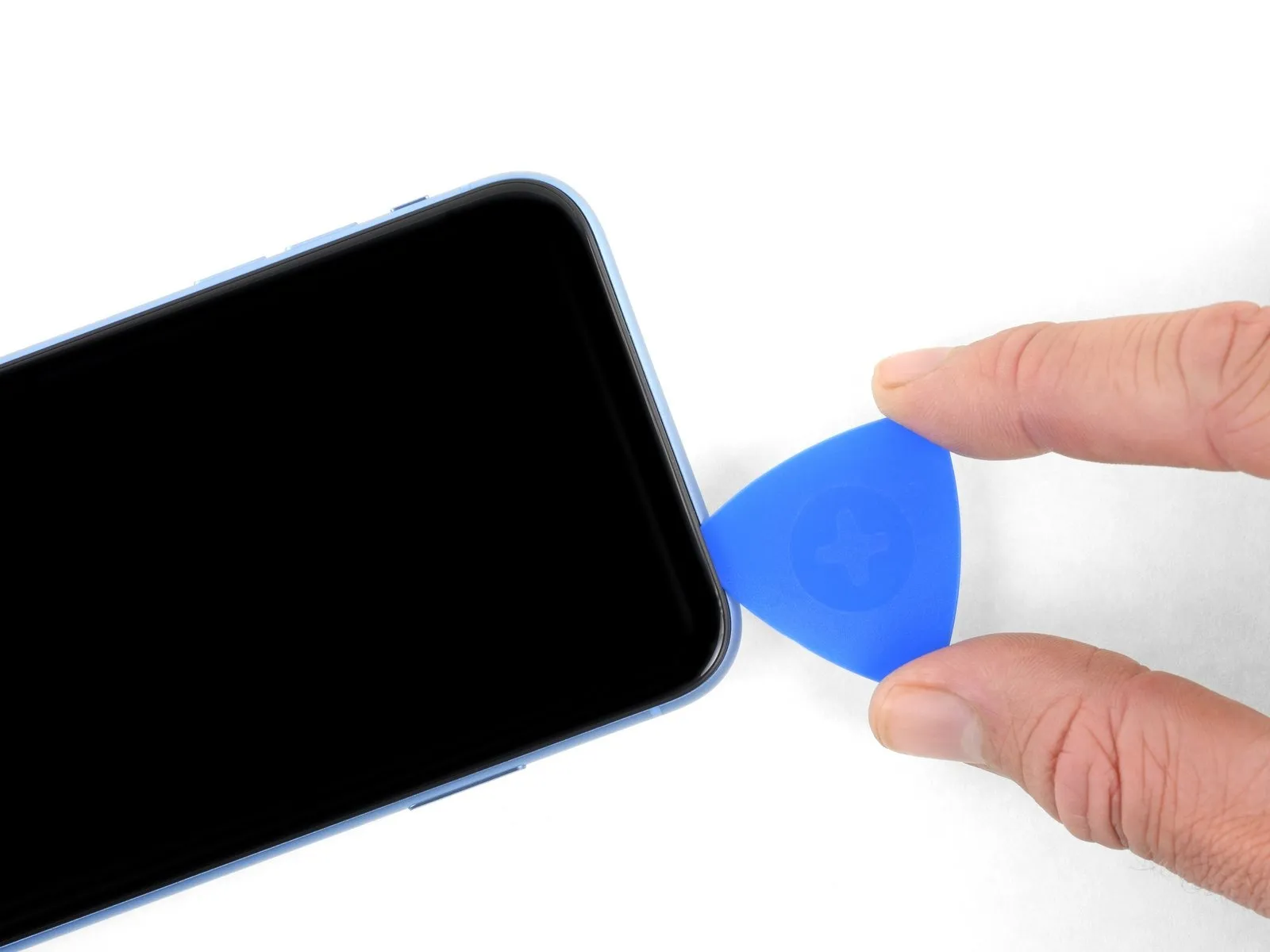

• Position an opening tool beneath the display screen and the surrounding plastic trim, ensuring it does not contact the screen's surface.
• The display is secured by a robust waterproof adhesive; establishing this initial separation requires considerable force. Should you encounter difficulty in creating a gap, apply additional heat and gently oscillate the screen in an upward and downward motion to reduce the adhesive's strength until a sufficient gap is achieved for tool insertion.

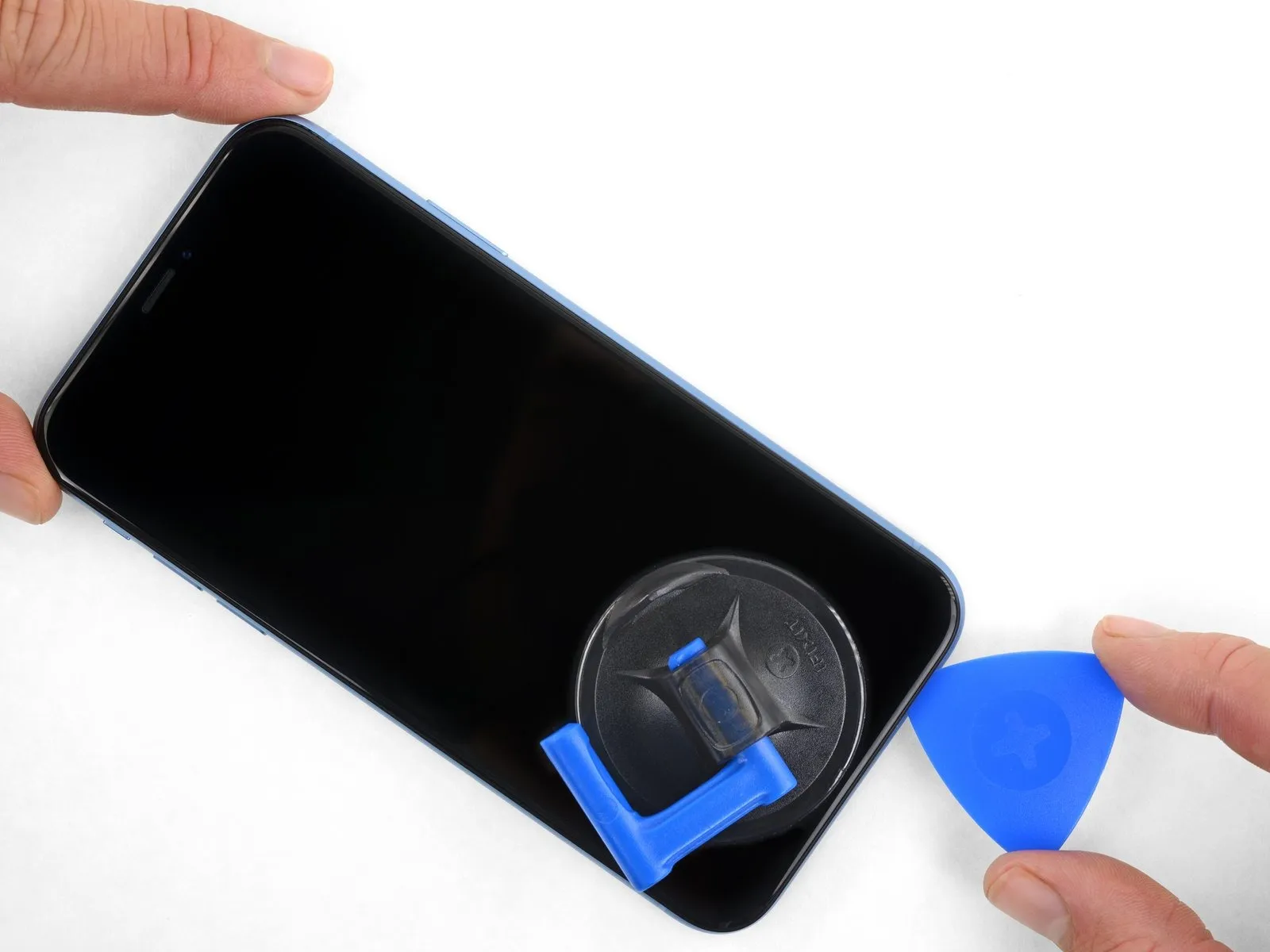

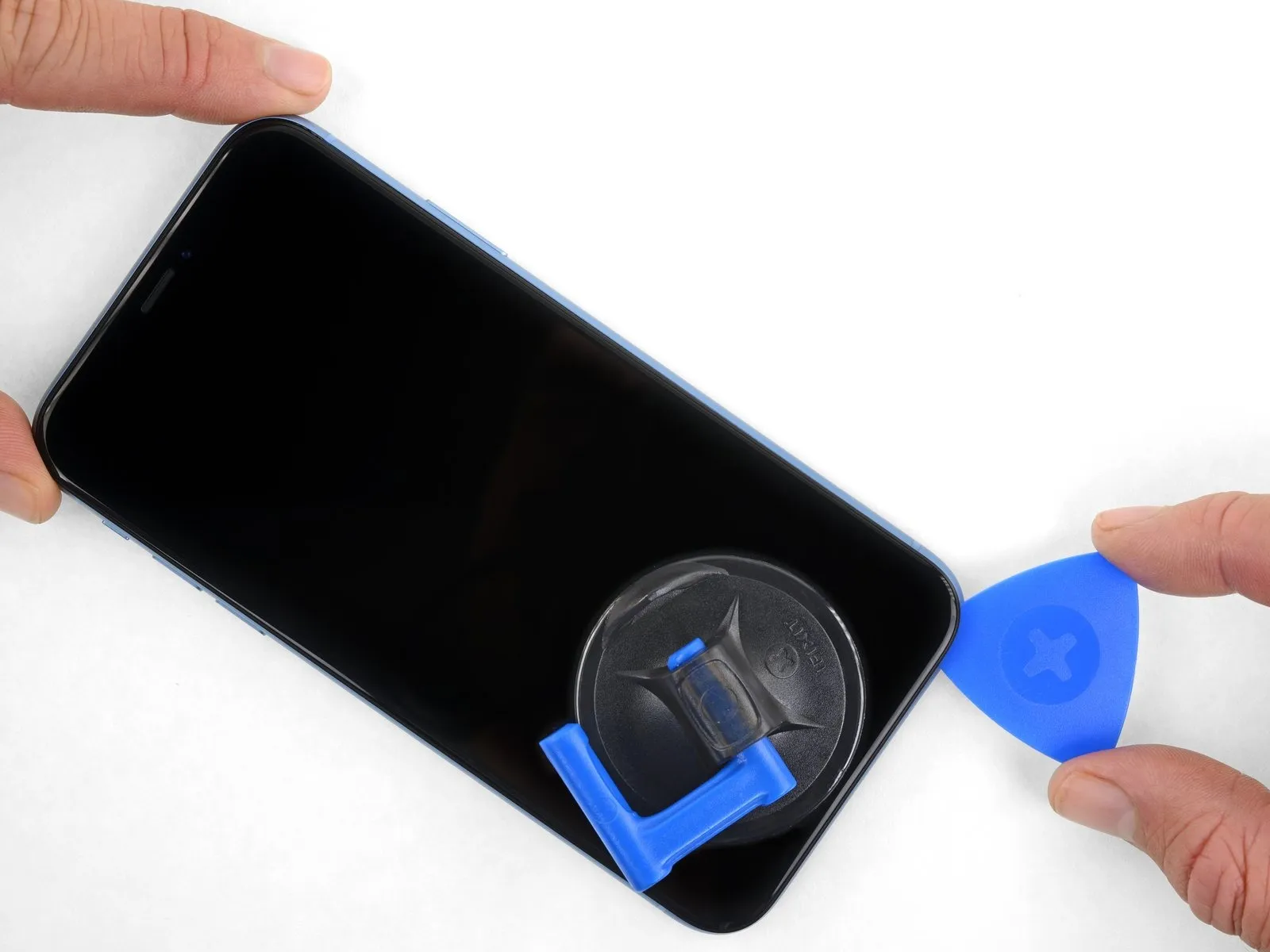

• Employ the opening pick, maneuvering it along the lower-left periphery of the iPhone and upward along the left side, to sever the adhesive securing the display assembly.
• Exercise caution, restricting pick insertion to a maximum depth of 3 millimeters to prevent potential harm to delicate internal components.

Fragile wiring is situated along the right-hand side of the iPhone; therefore, avoid inserting your opening tool into the designated areas to prevent potential cable damage.

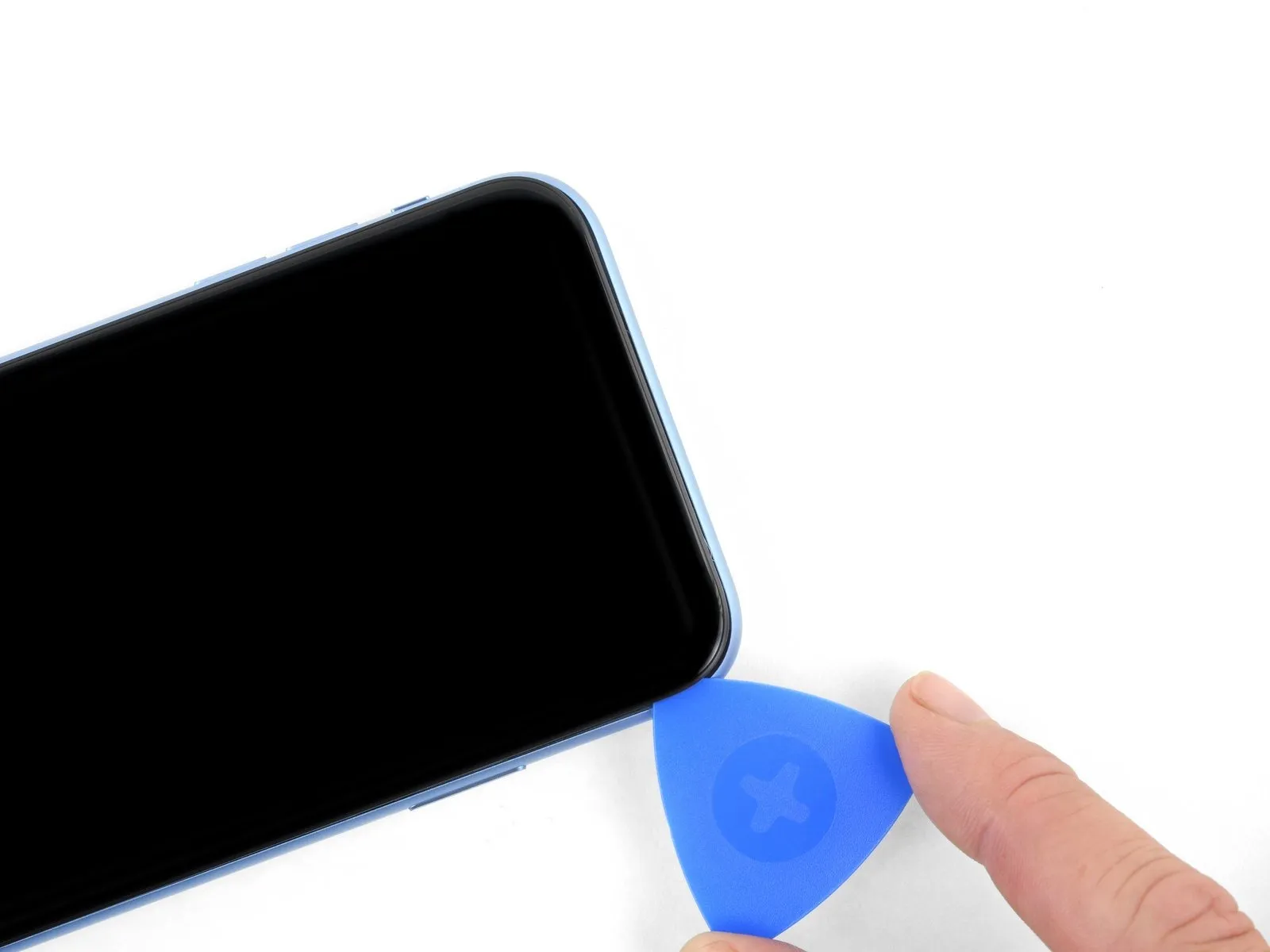

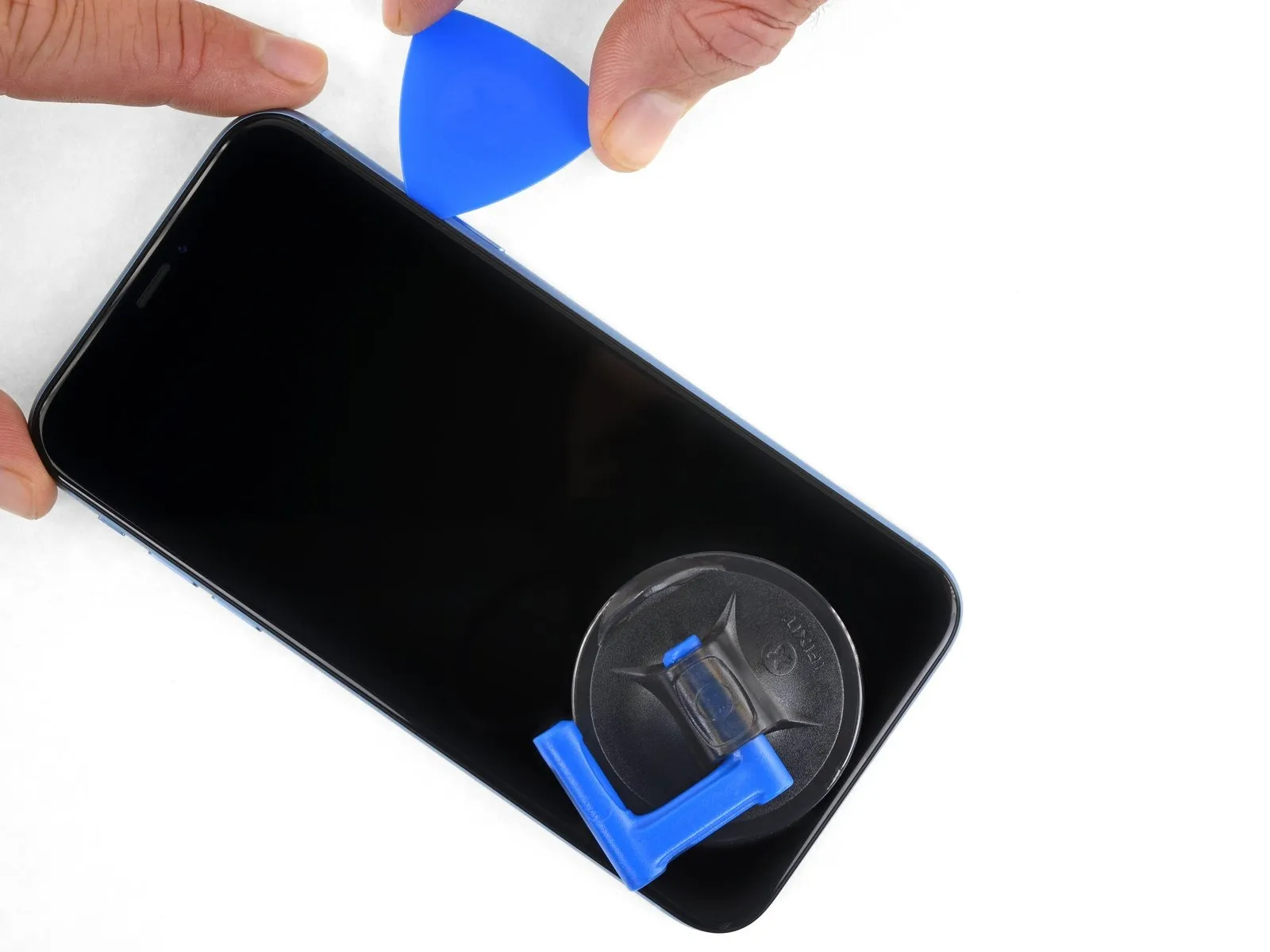

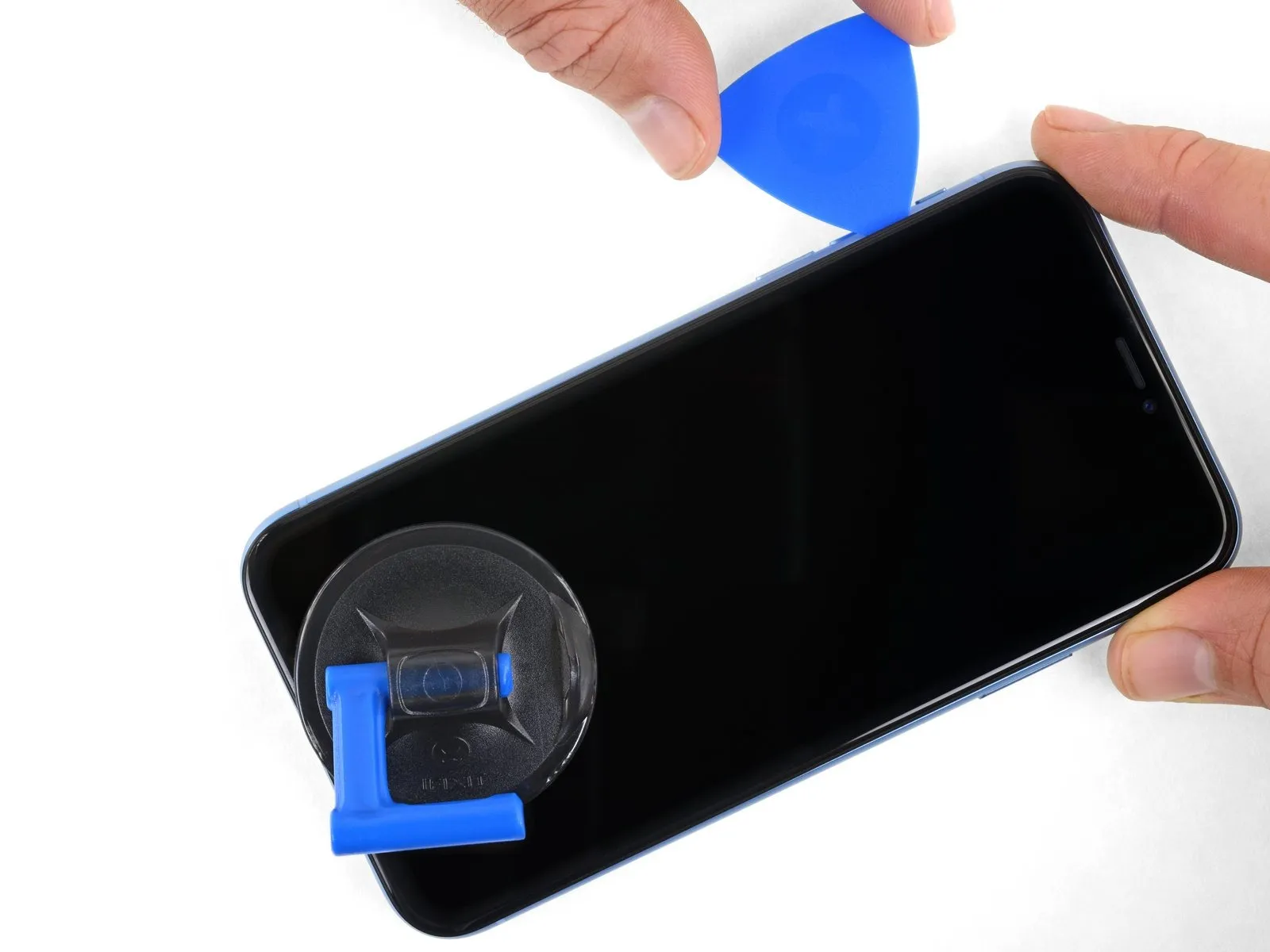

• Position your opening tool once again at the lower boundary of the iPhone's display, then advance it along the right-hand side to further release the adhesive seal.
• Ensure the tool's insertion depth remains under 3 millimeters to prevent potential harm to the delicate display cable connections.

• Adhesive and retaining clips both fasten the uppermost boundary of the screen assembly.

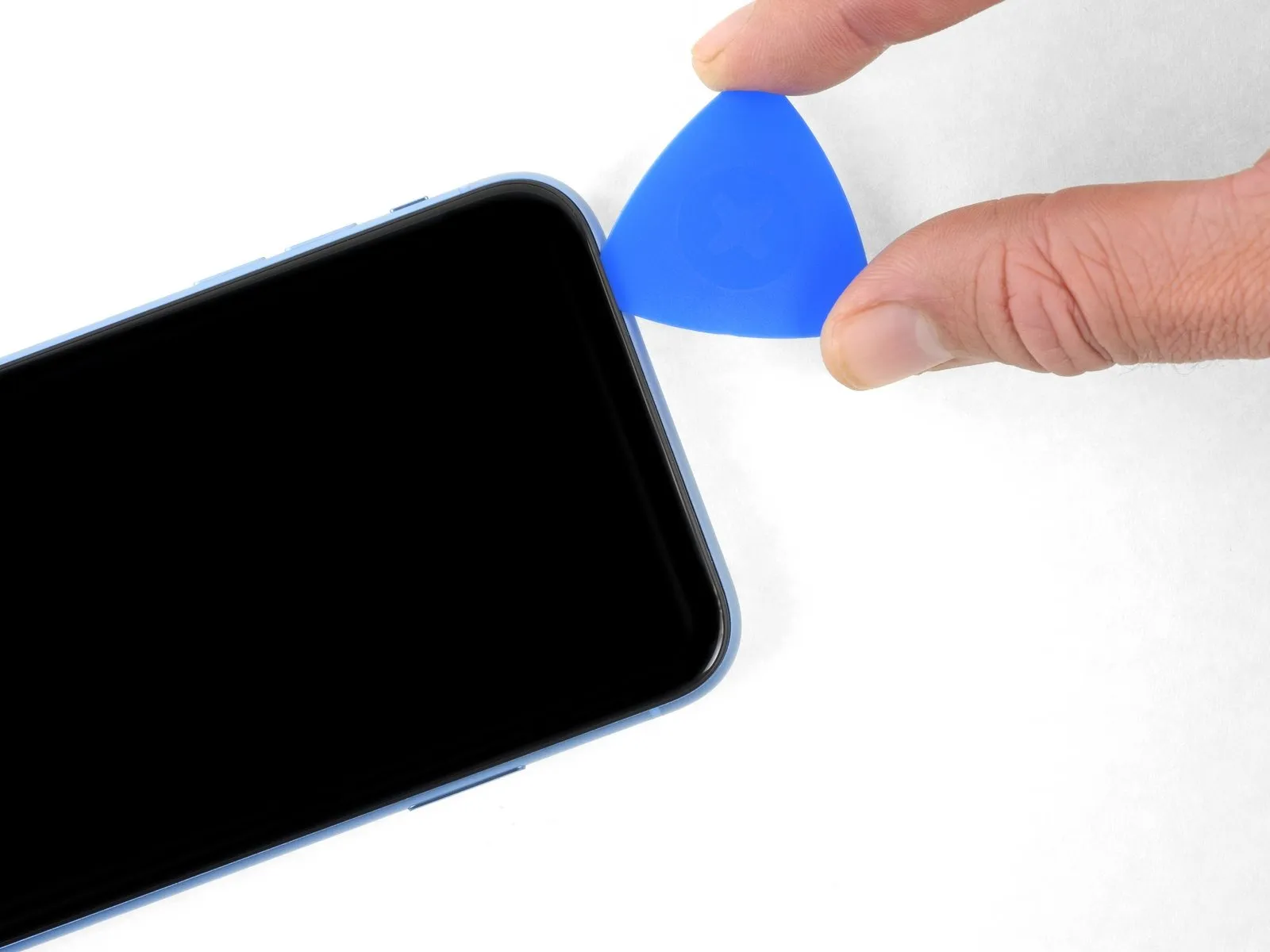

• Employing a specialized opening tool, maneuver it along the upper corner of the display, concurrently applying slight downward traction or oscillating movement towards the Lightning connector’s location.
• Excessive force applied to the retaining clips will result in their fracture; therefore, proceed with caution and allow ample time for the process.
• Maintain the opening tool’s insertion depth at a maximum of 3 millimeters to prevent potential damage to the front panel sensor array.
• Continue the tool’s movement to the opposing corner, severing any residual adhesive that is holding the display in place.

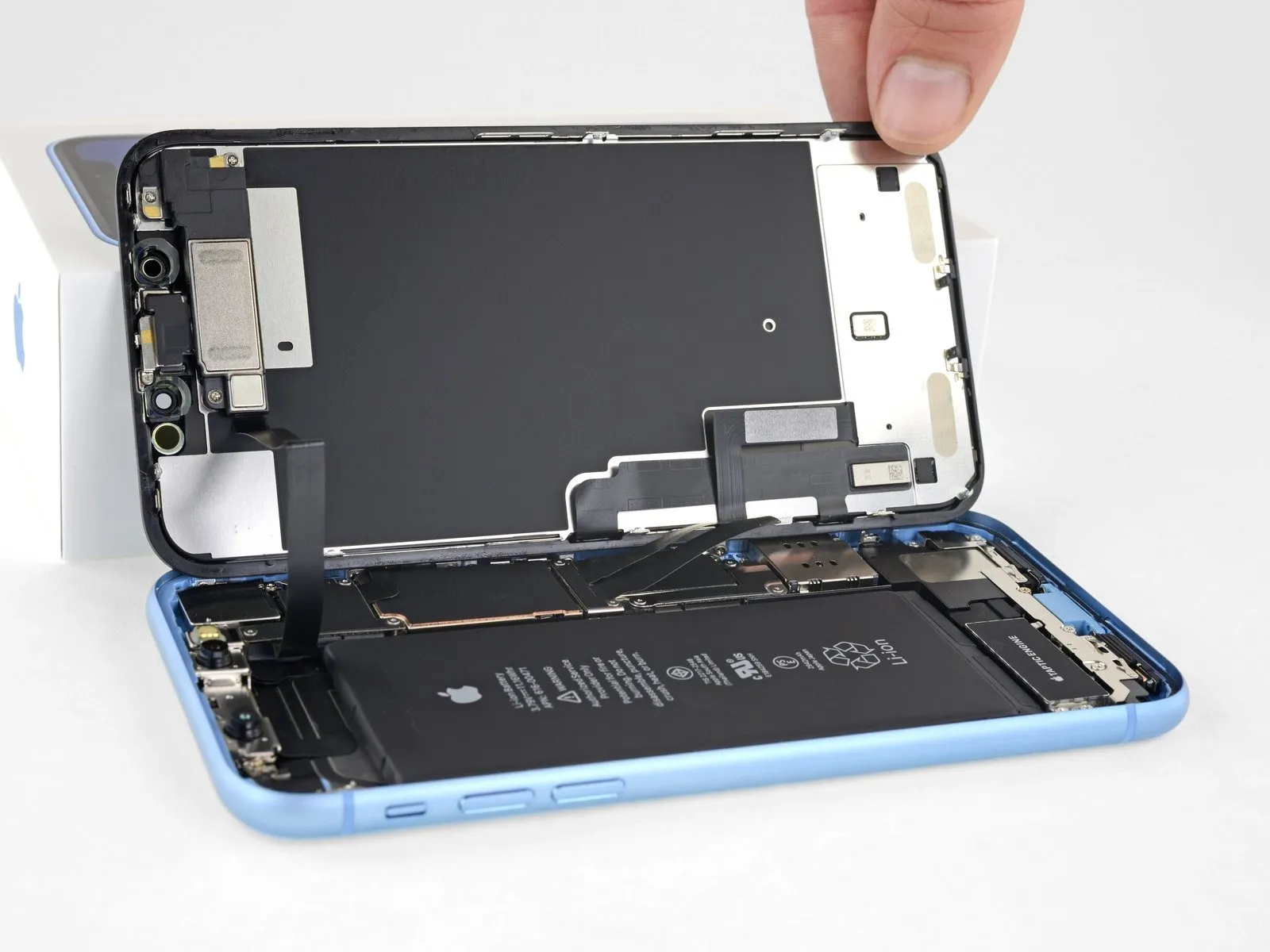

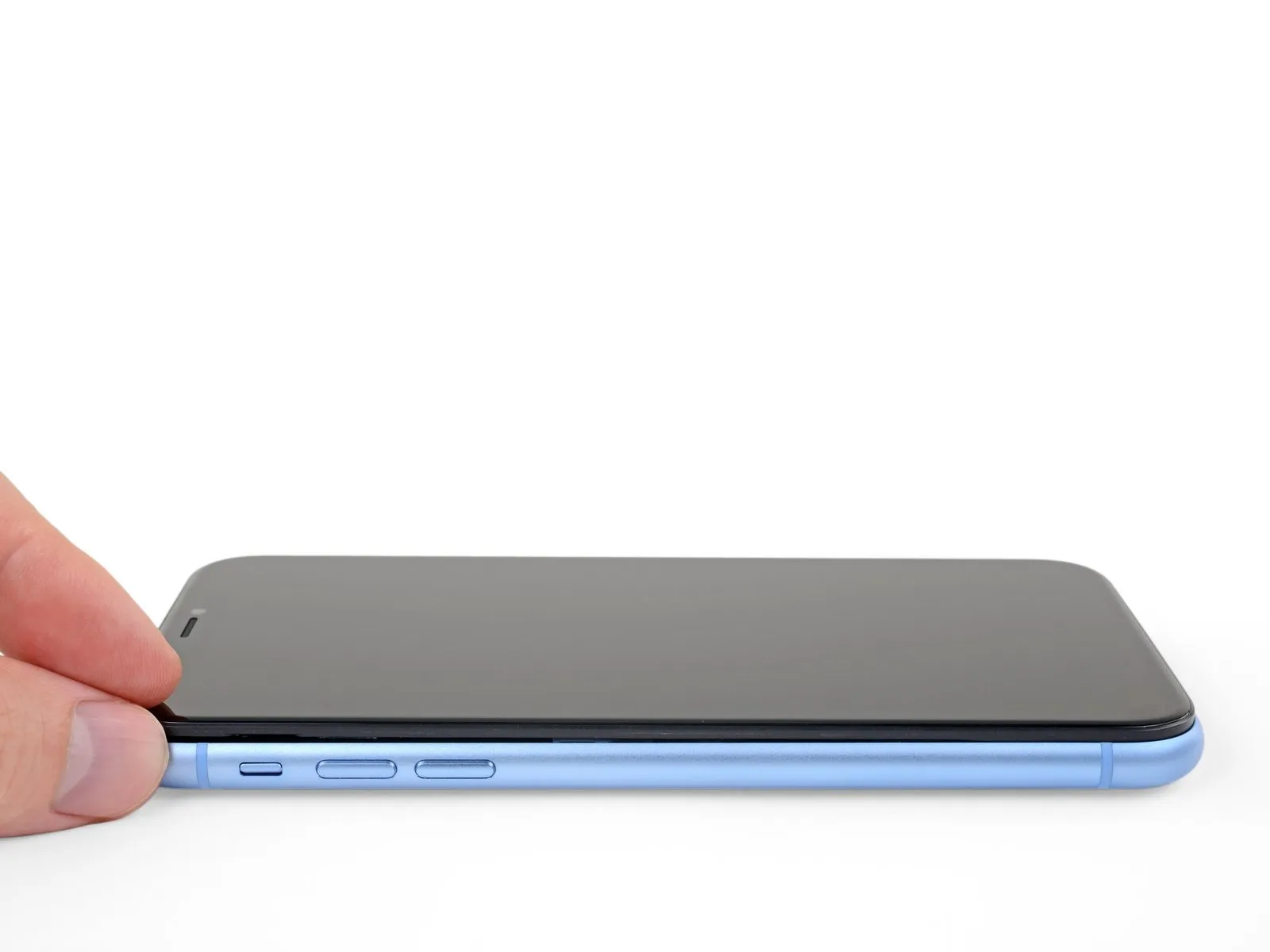

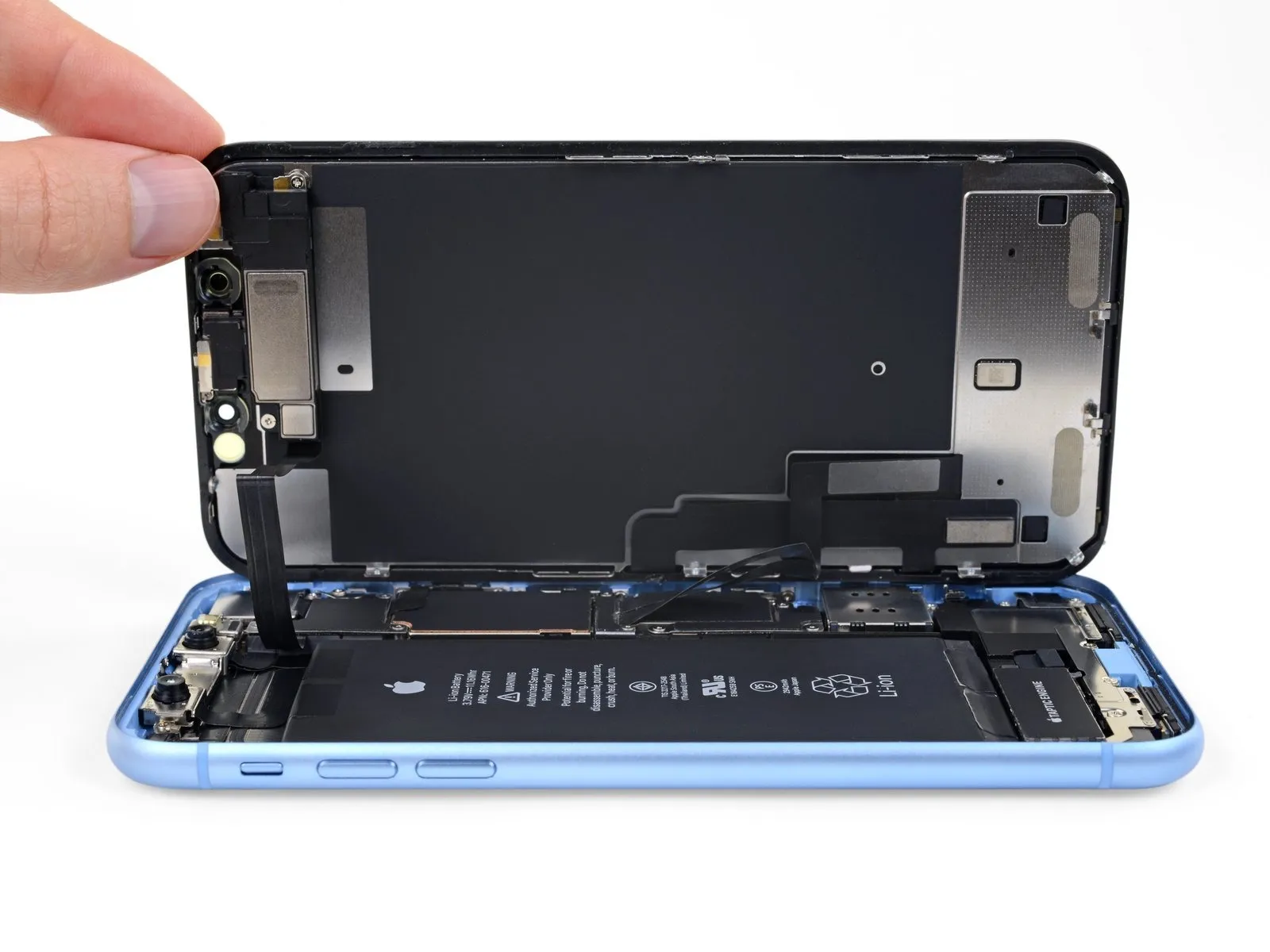

• To access the internal components of the iPhone, initiate the opening process by pivoting the display upwards from the left side, mimicking the action of opening a book's cover.
• Refrain from completely detaching the display at this stage, because multiple delicate ribbon cables remain connected to the iPhone's logic board.
• Secure the display in an upright position using a support to prevent it from shifting during the repair procedure.
• When reassembling the device, position the display, ensure the clips along the top edge are properly aligned, and then gently apply pressure to the top edge to secure it before engaging the remaining portion of the display. Should the display not easily click into place, inspect the clips surrounding the display's perimeter to verify they are not deformed.

1. To proceed, detach three screws, each measuring 1.2 mm in length and utilizing a Y000 screwdriver.These screws fasten the cover bracket that protects the battery connector.Following screw removal, carefully take the bracket away.

2. Maintain meticulous organization of all screws throughout this repair process, ensuring each is reinstalled in its original location to prevent potential damage to your iPhone.

3. As part of the reassembly steps, it is advisable to activate your iPhone at this stage to verify proper functionality across all systems; subsequently, fully deactivate the device before resuming the repair.

4. This testing phase should occur prior to permanently securing the display assembly.

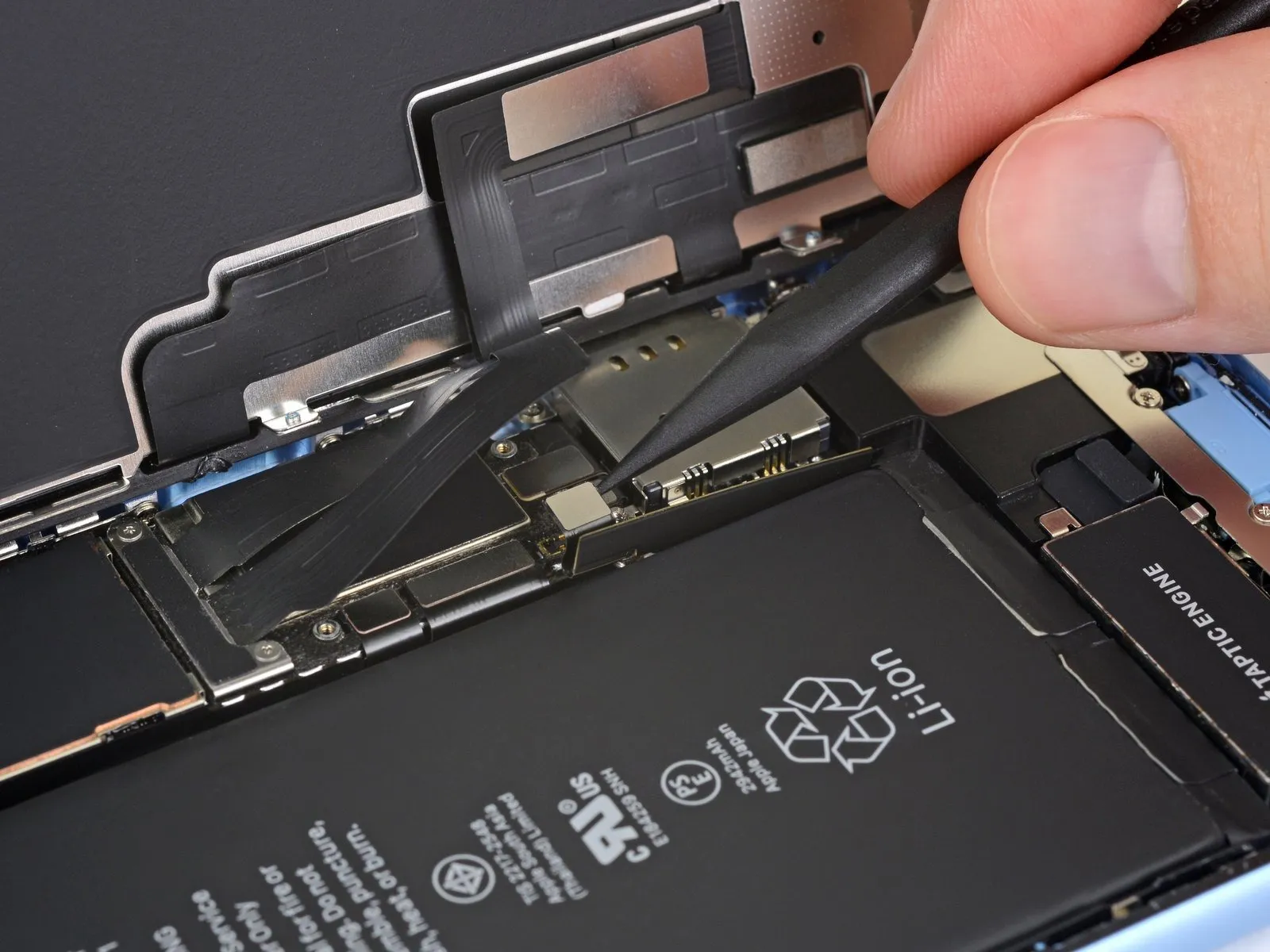

• Employ thetip of a spudgerto lift the battery connector vertically from its receptacle.
• Exercise caution to avoid harming the black silicone sealant that encases this and other board interfaces, as it offers supplemental defense against water and particulate contamination.
• Slightly deflect the connector away from the main circuit board to ensure it remains disconnected from the socket and prevents unintended power delivery to the device while you are performing the repair.

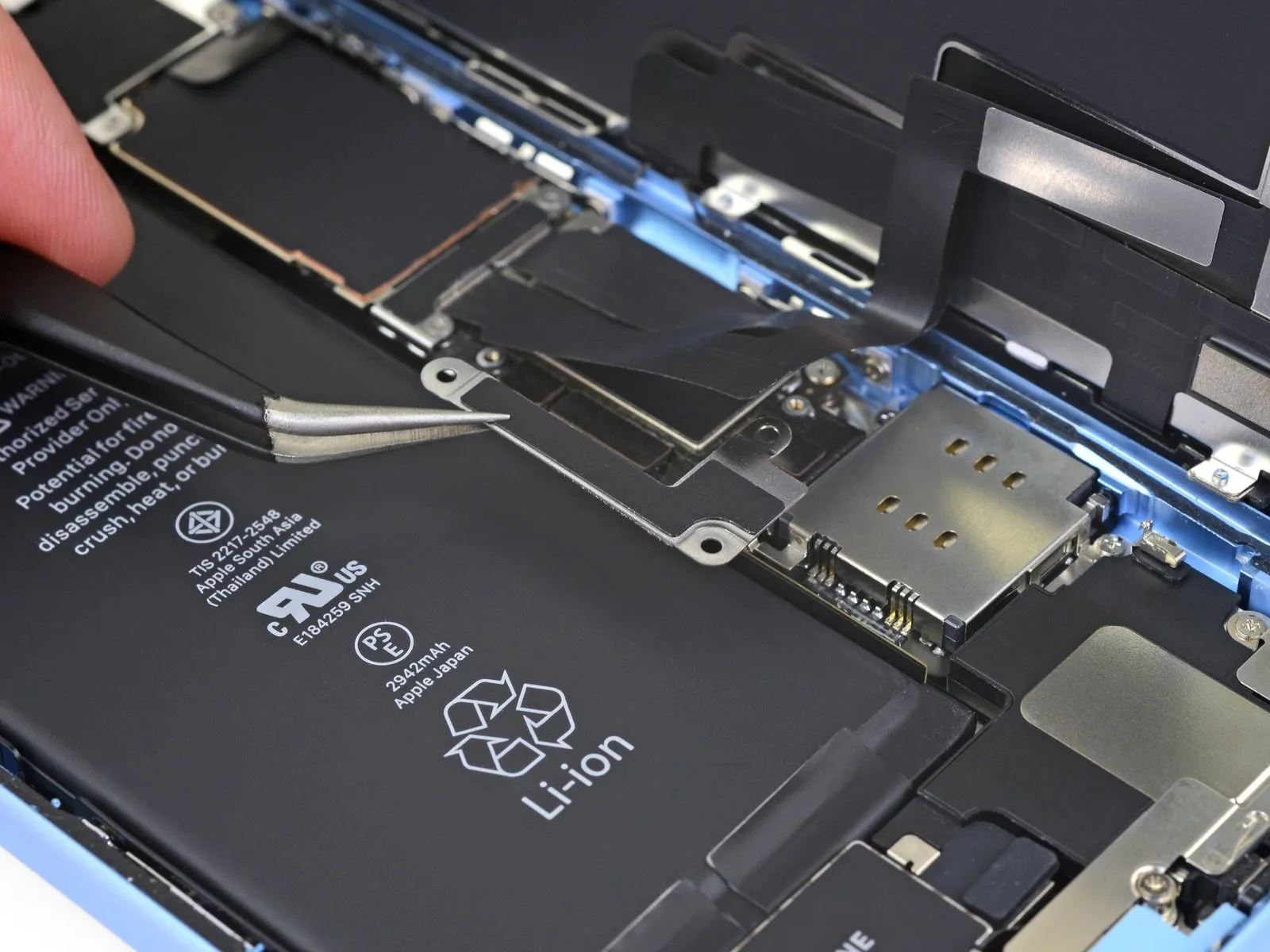

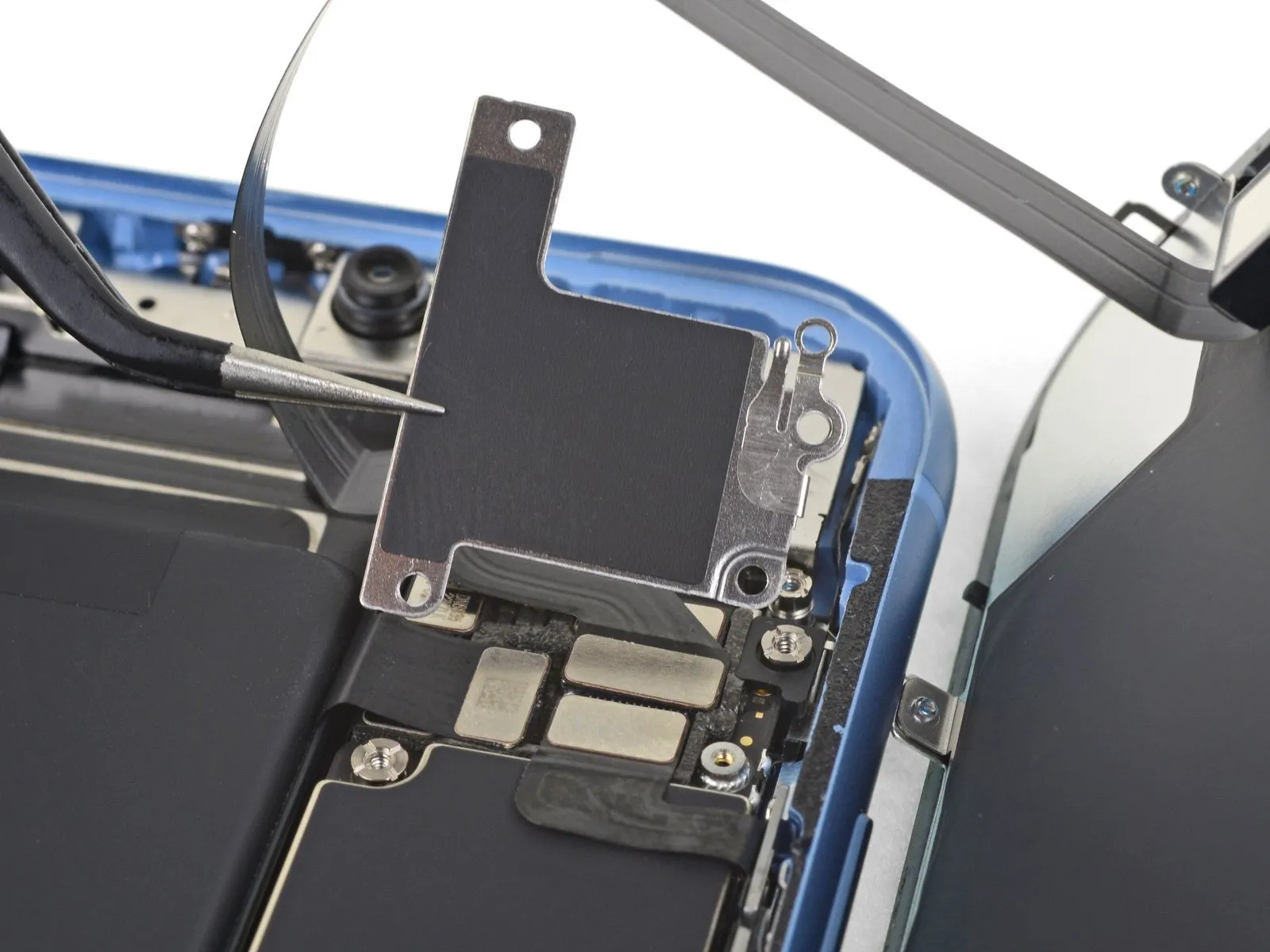

• Detach the display connector bracket by first eliminating the pair of 1.2 mm Y000 screws that hold it in place.The screws utilized are of a 1.2 mm size and require a Y000 screwdriver for removal.Following screw removal, the bracket, which provides stability for the display connector, can be taken off.
• Proceed to physically remove the bracket itself.

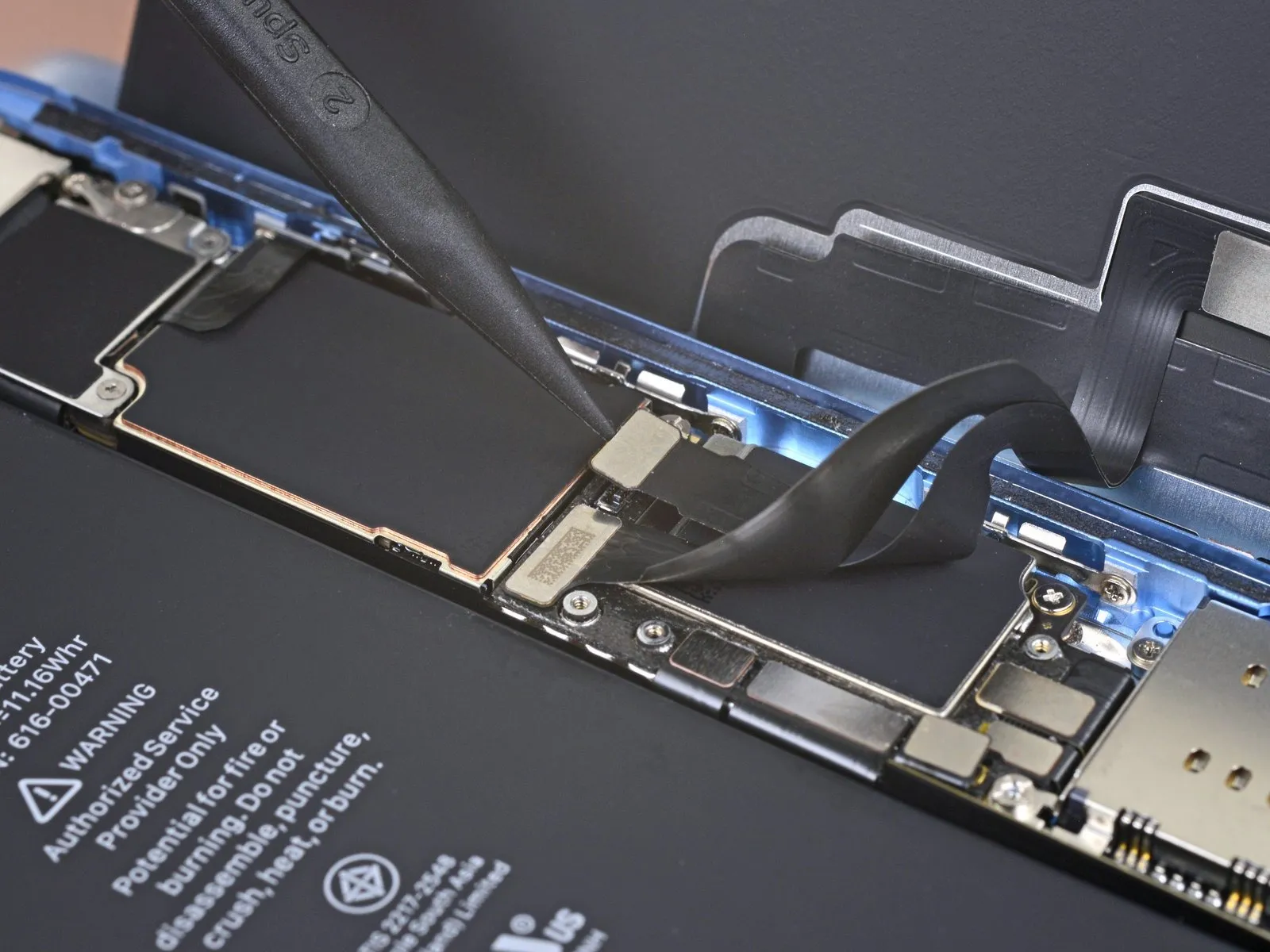

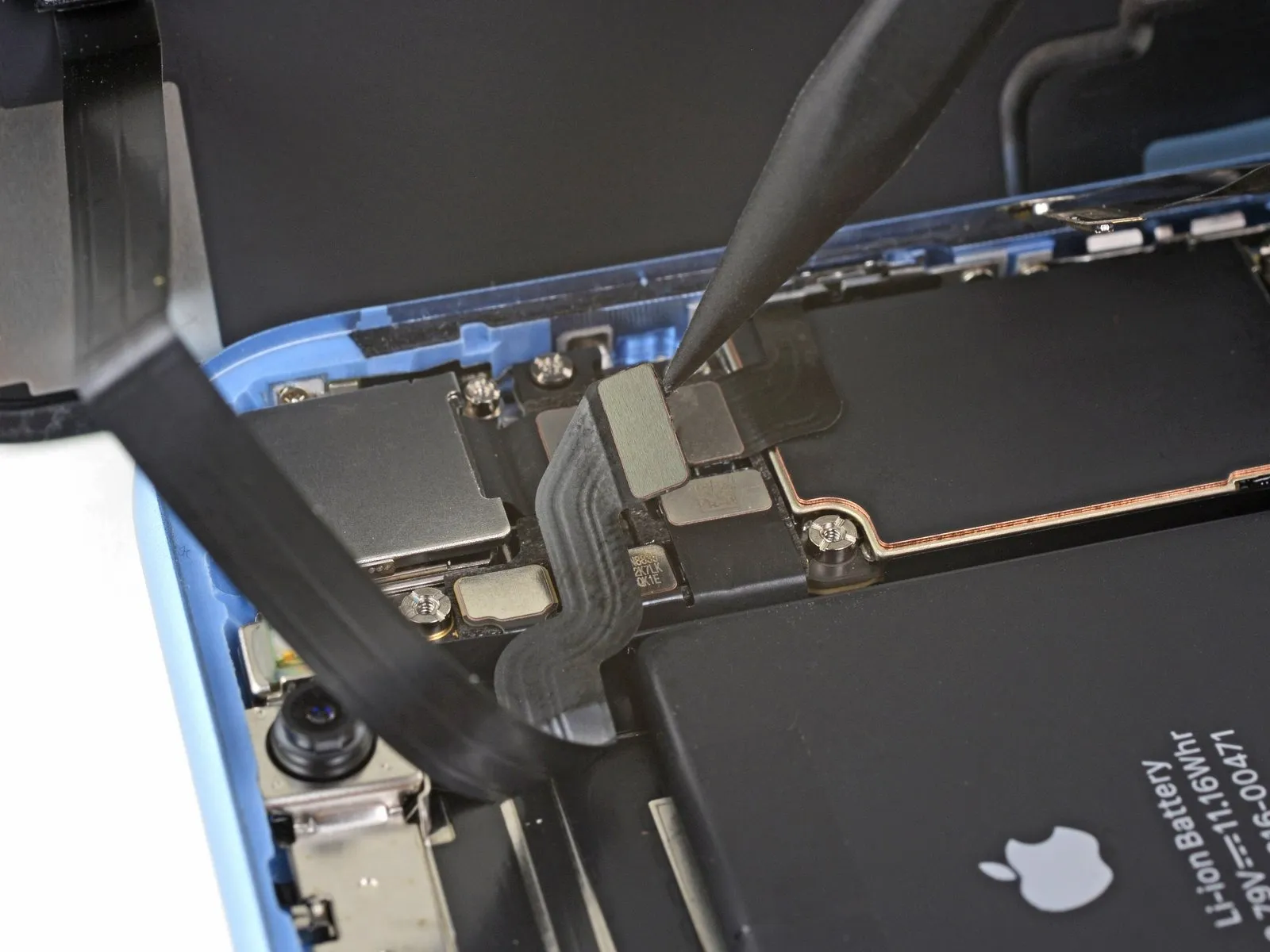

• Employ the pointed end of a spudger to gently lift and separate the digitizer cable from its connection.
• For reattachment, engage the connectors in a similar fashion; meticulously align them and apply pressure to one edge until a distinct click is heard, subsequently repeating the process on the opposing edge. Avoid applying pressure to the central portion of the connector, as this could result in pin deformation and irreversible damage.
• Should any area of the screen exhibit a lack of touch responsiveness following the repair procedure, first detach the battery, then carefully re-engage this connector, ensuring a complete and audible click, and verifying the absence of dust or any other foreign material within the socket.

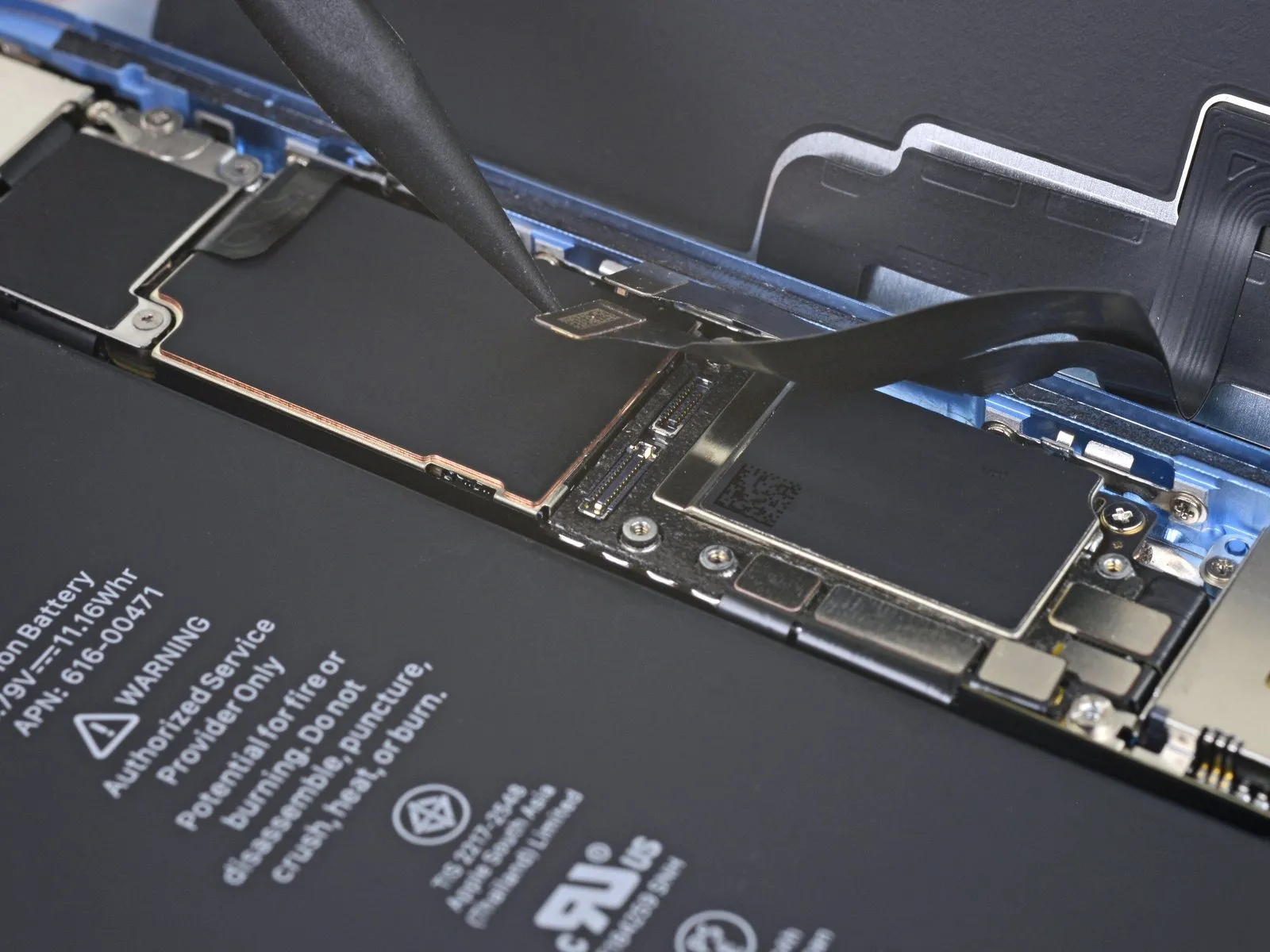

• Carefully detach the display cable connector by utilizing the pointed end of a spudger.

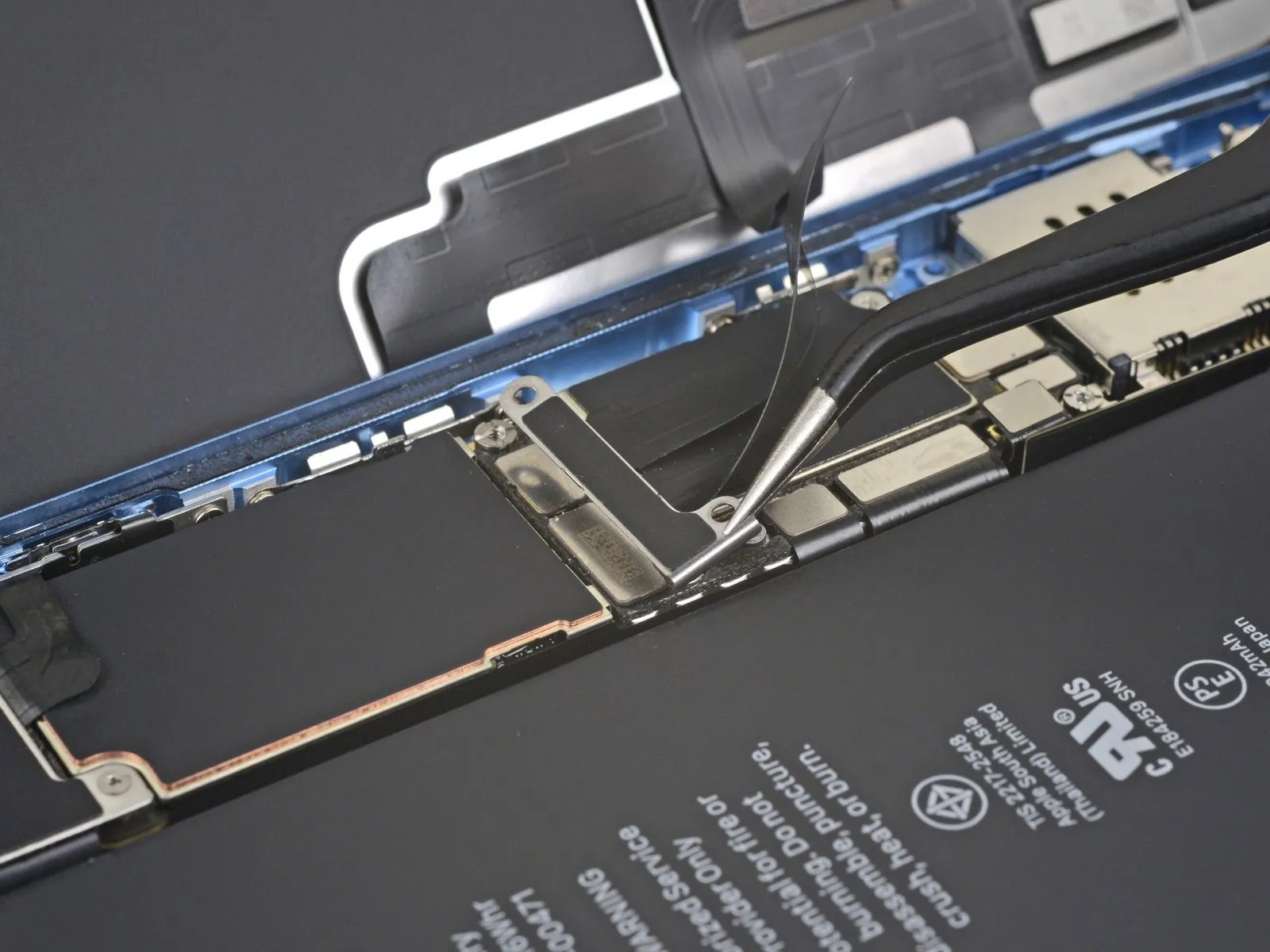

1. Detach the logic board connector bracket from the rear case by unscrewing the five fasteners that hold it in place.
   • A single Phillips #000 screwdriver is needed to remove one screw measuring 1.3 millimeters in length.
   • A single Phillips #000 screwdriver is needed to remove one screw measuring 1.5 millimeters in length.
   • Three screws, each measuring 1.2 millimeters in length and requiring a Y000 screwdriver, must be removed.

Proceed to remove the bracket itself.
Exercise caution to prevent the loss of the smaller bracket attached to the edge, as it is held by a small clip and can easily become dislodged from the larger bracket.

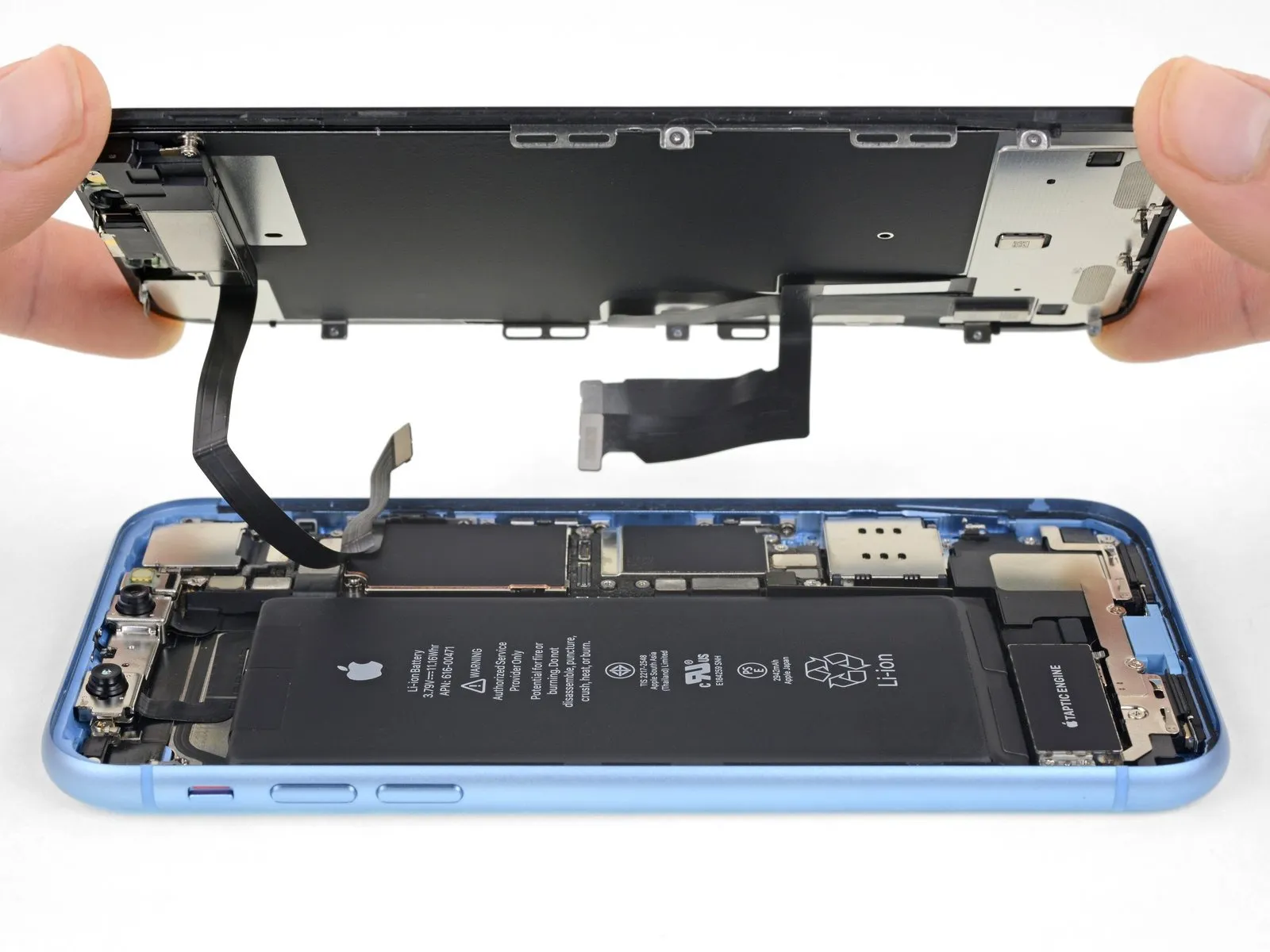

1. Detach the display assembly from the device.
   When putting the device back together, halt at this point should you desire to substitute the waterproof adhesive that seals the display's perimeter.

1. To detach the bracket situated beneath the Taptic engine and speaker assembly, it is necessary to eliminate seven screws.
   • The bracket is fastened with three Phillips head screws, each measuring 1.4 millimeters in width.
   • Two additional Phillips screws, possessing a 1.7-millimeter head, are also used in the attachment.
   • A single Phillips screw with a 1.9-millimeter head contributes to the bracket's securement.
   • Lastly, one Phillips screw, characterized by a 1.6-millimeter head, completes the fastening hardware.

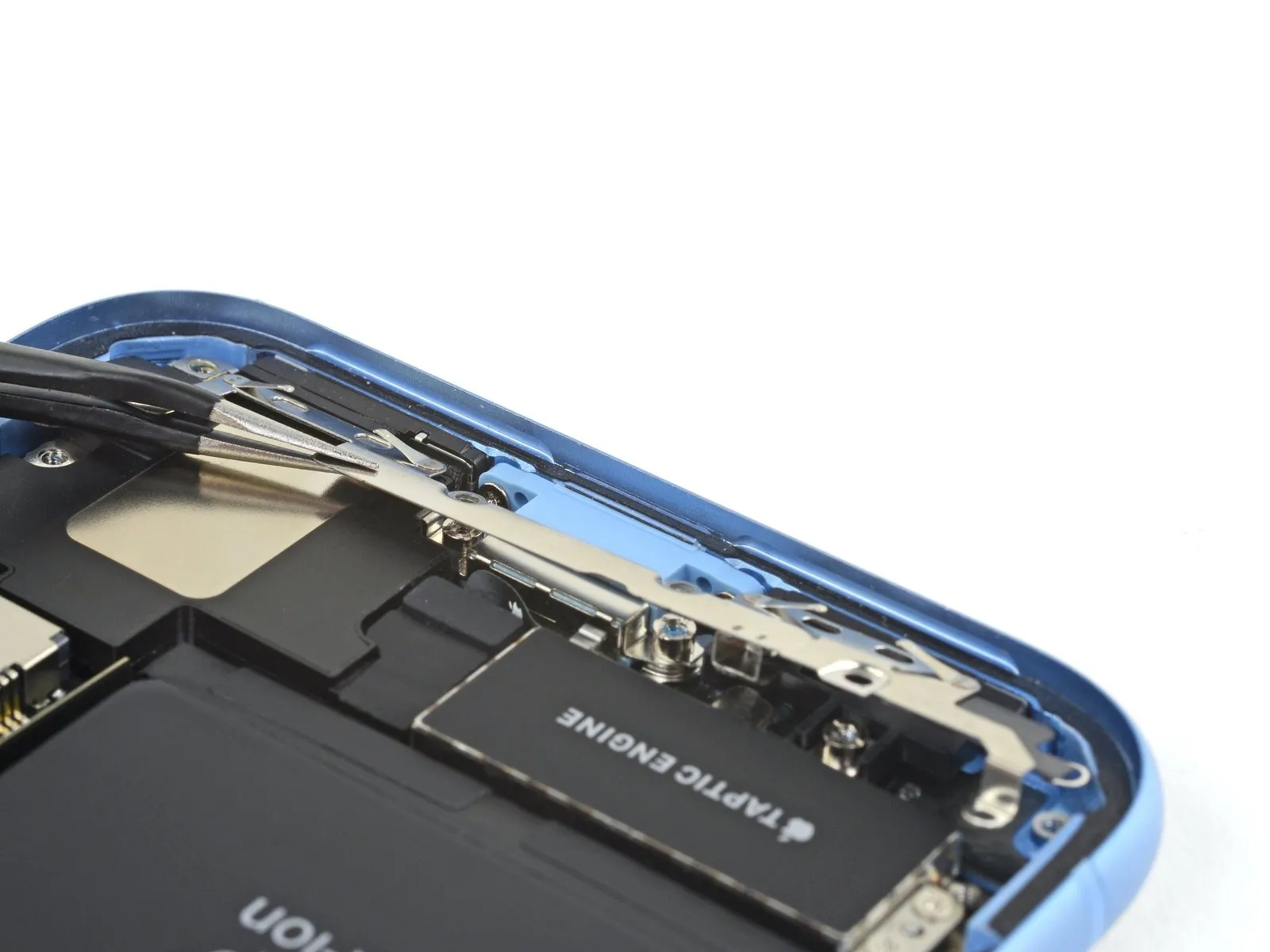

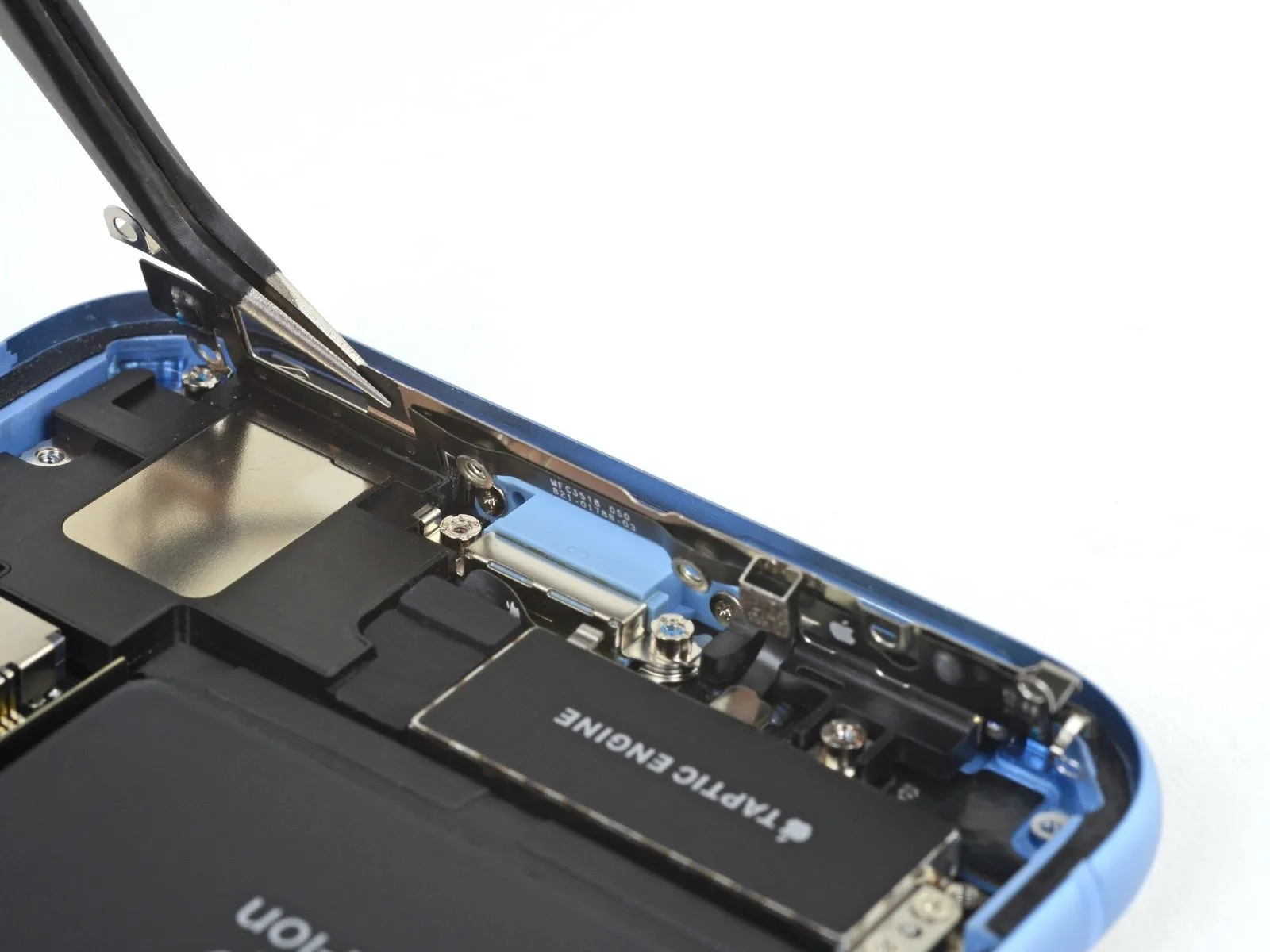

• To begin the repair, elevate the mounting bracket from the side closest to the battery.
• Avoid complete removal of the bracket at this stage, because it remains tethered by a short, flexible cable.

To prevent interference, secure the bracket and then utilize the tip of a spudger to carefully lift and detach the flex cable located beneath.spudgerflex cableTo prevent interference, secure the bracket and then utilize the tip of a spudger to carefully lift and detach the flex cable located beneath.flex cable

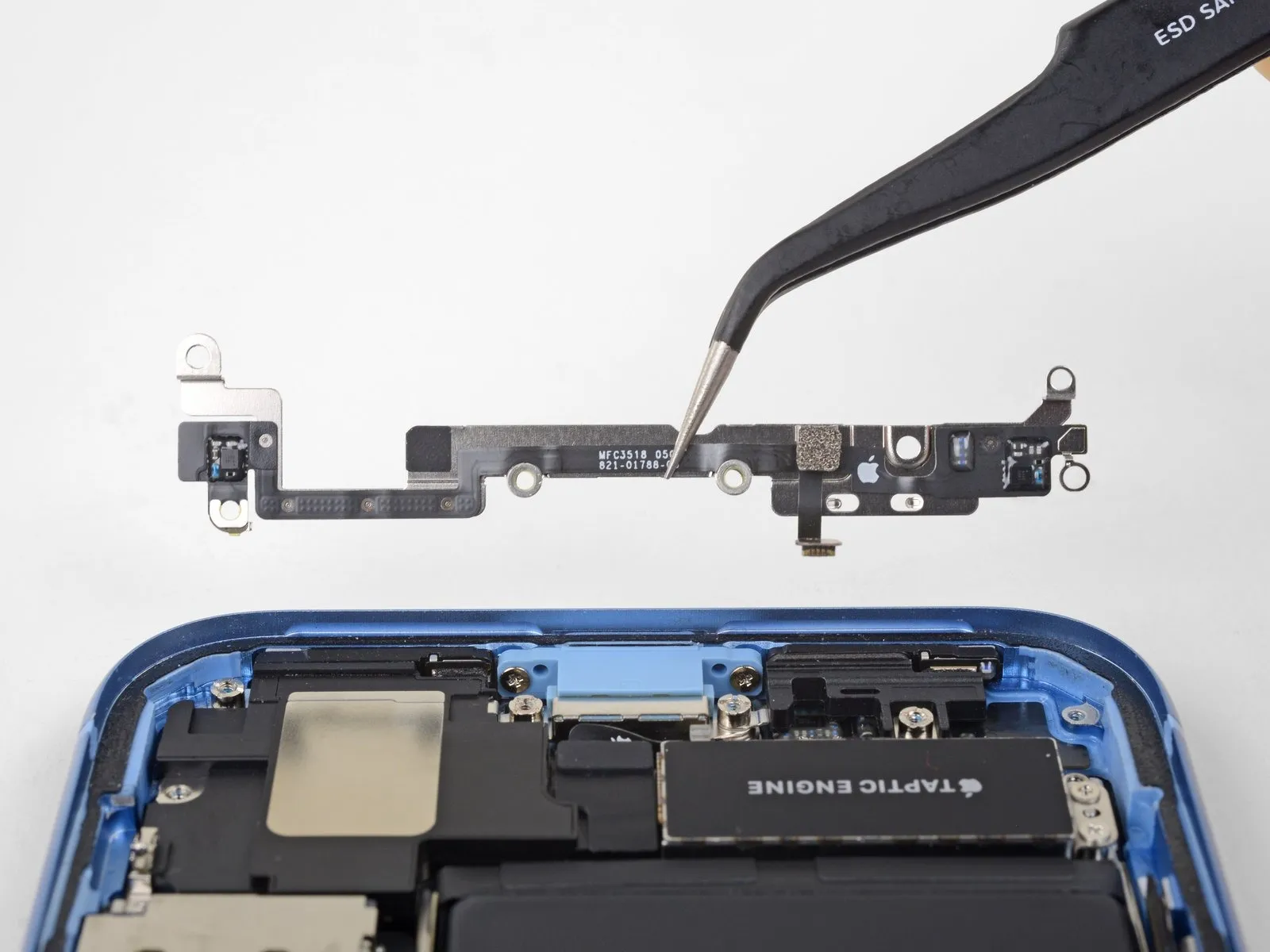

Detach the bracket from its existing location.

• Using a Phillips screwdriver with a 1.8 mm tip, detach the screw that holds the Taptic Engine connector cover in place.The Taptic Engine connector cover must now be removed..

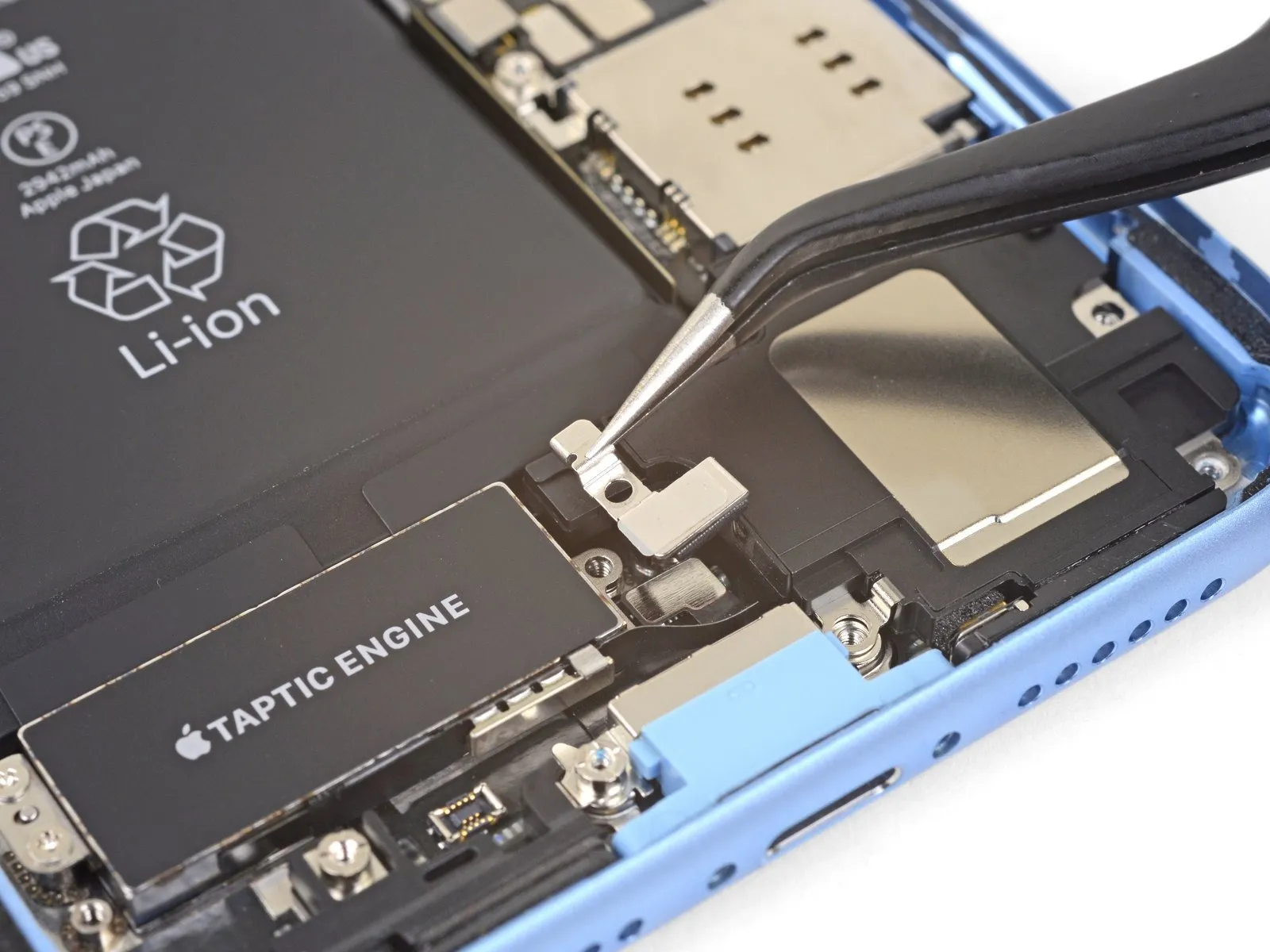

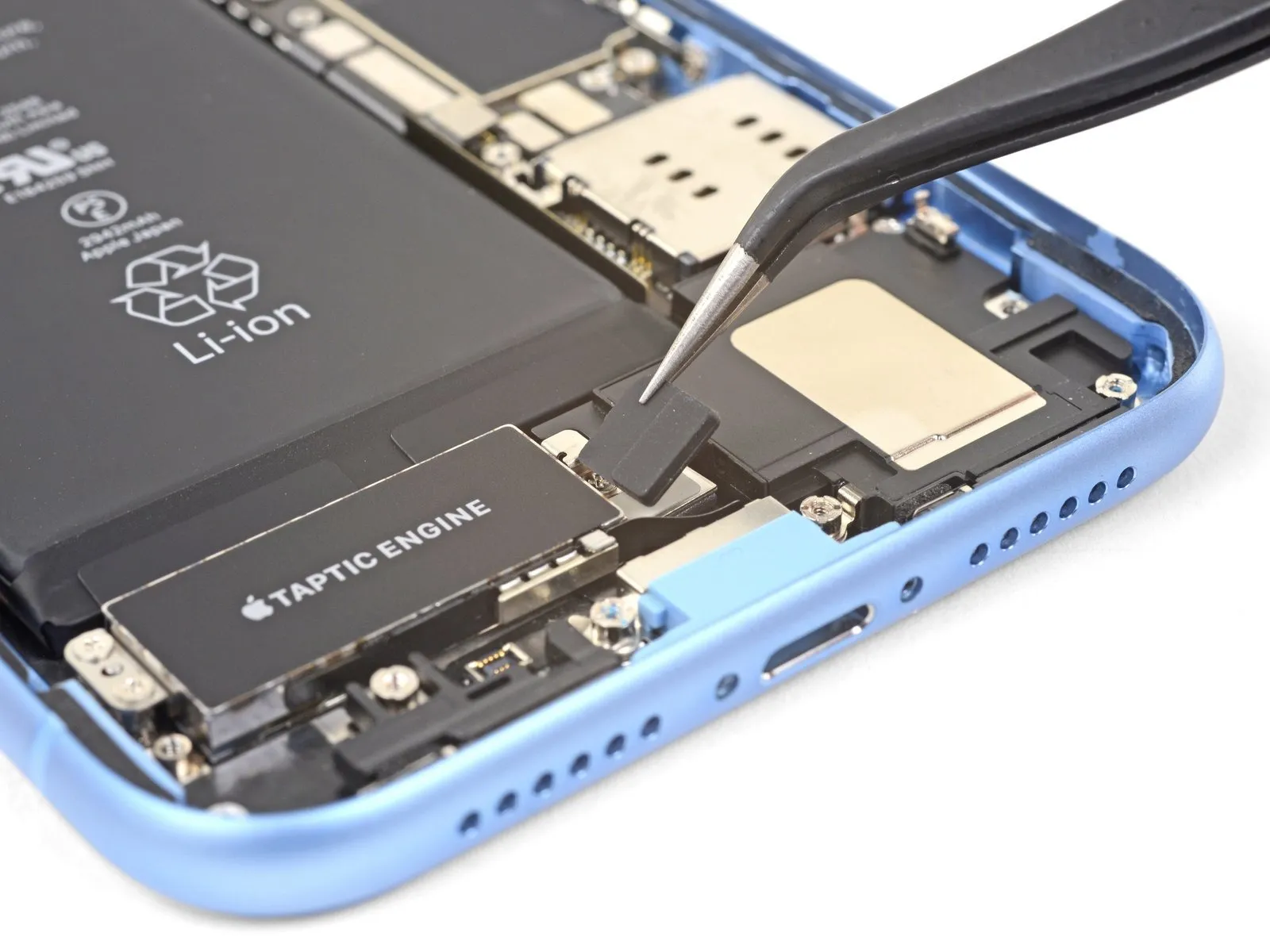

• To proceed, the Taptic Engine connector cover needs to be taken off.The Taptic Engine connector cover is the next component to be removed..

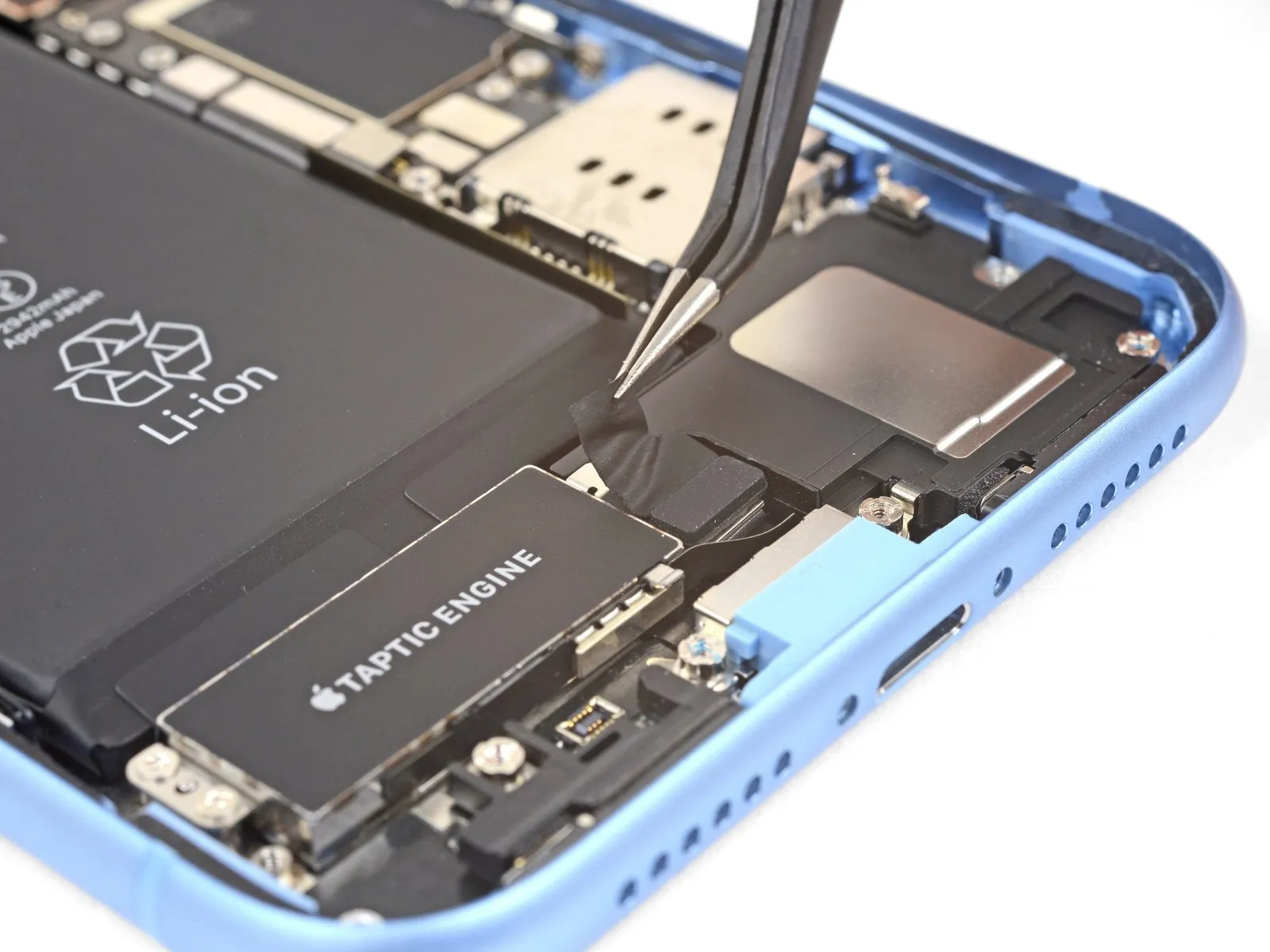

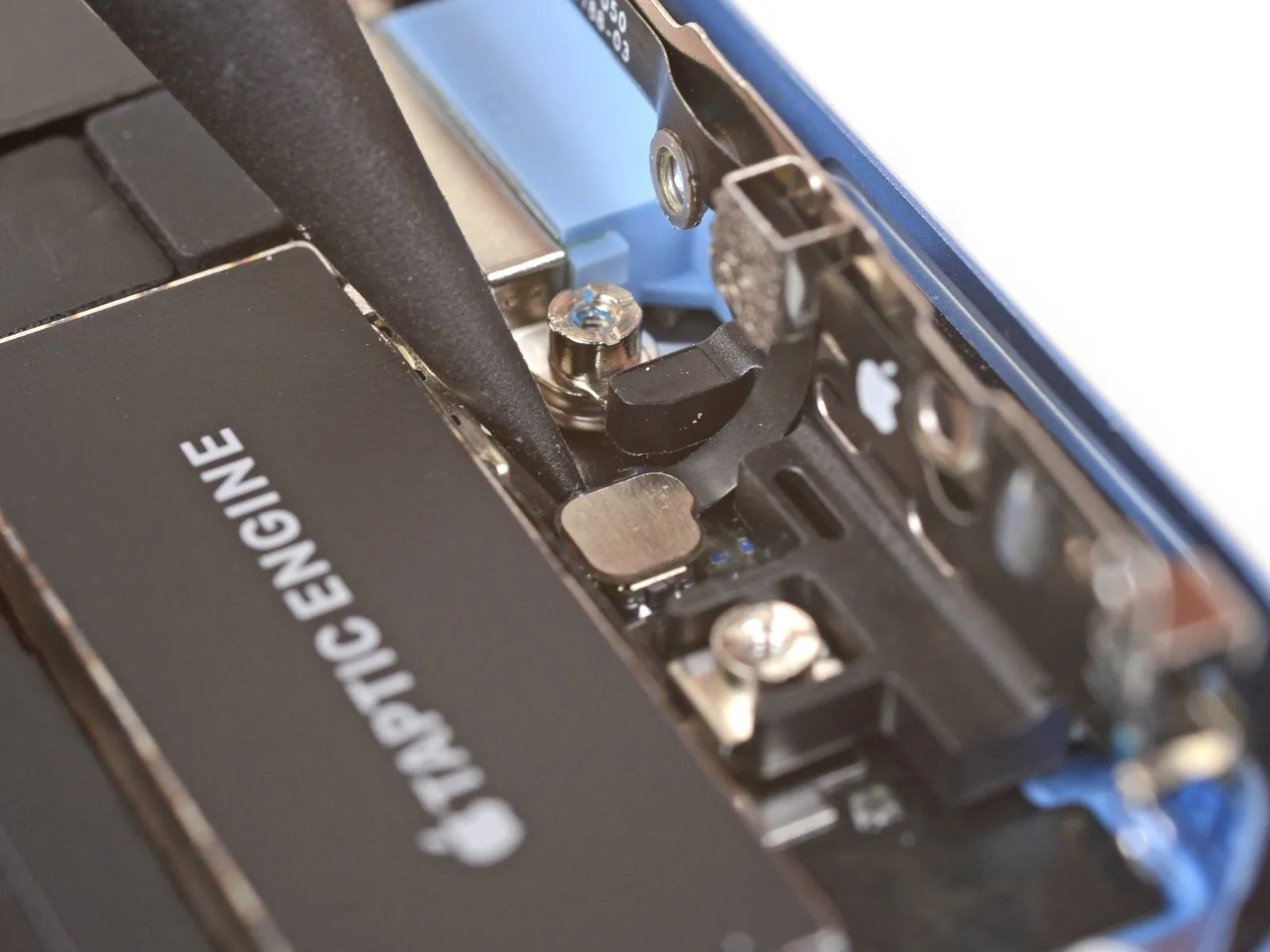

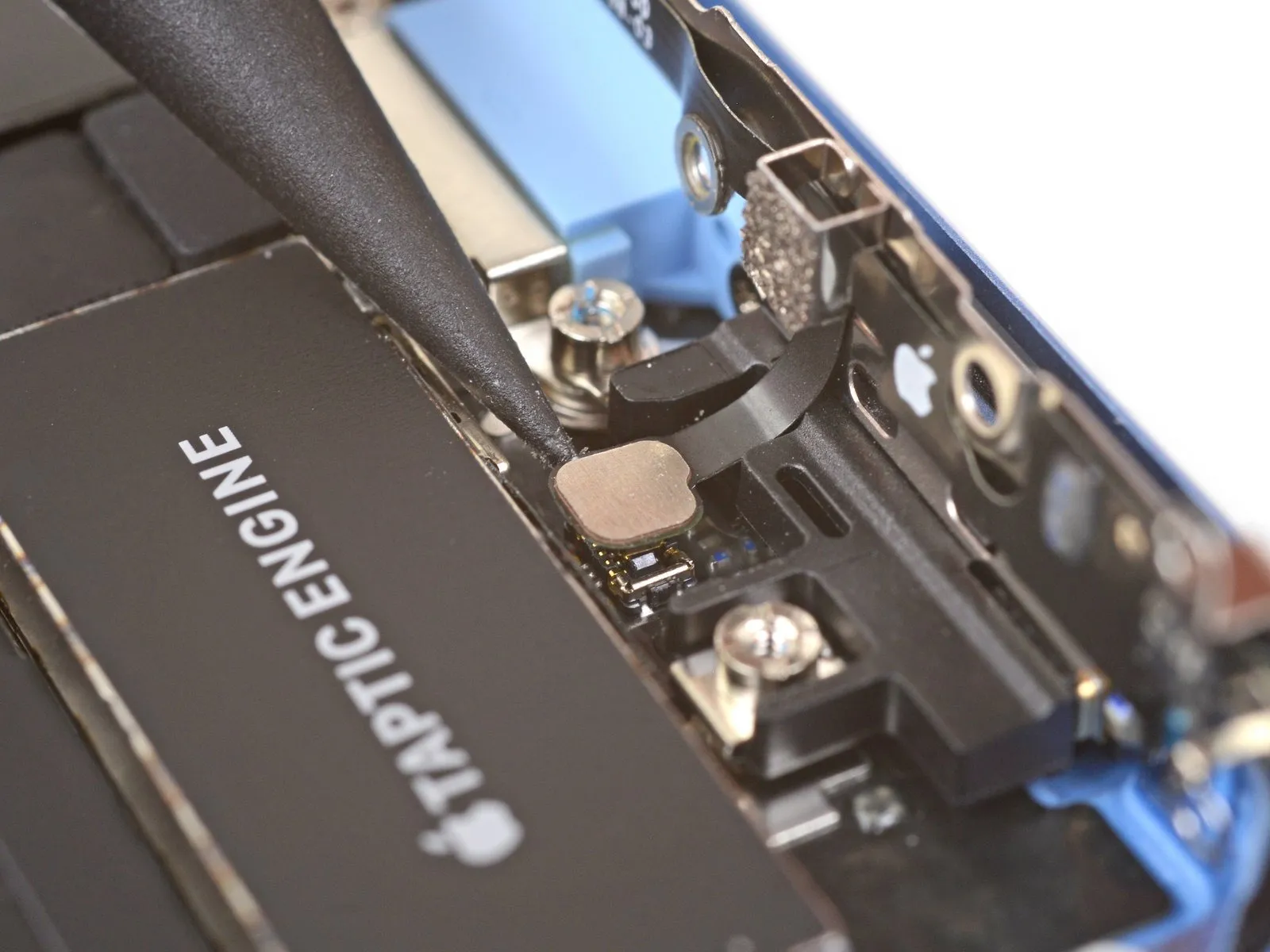

• Employ a spudger tool to release the connection of theTaptic Engine flex cableby applying upward force directly to the connector.

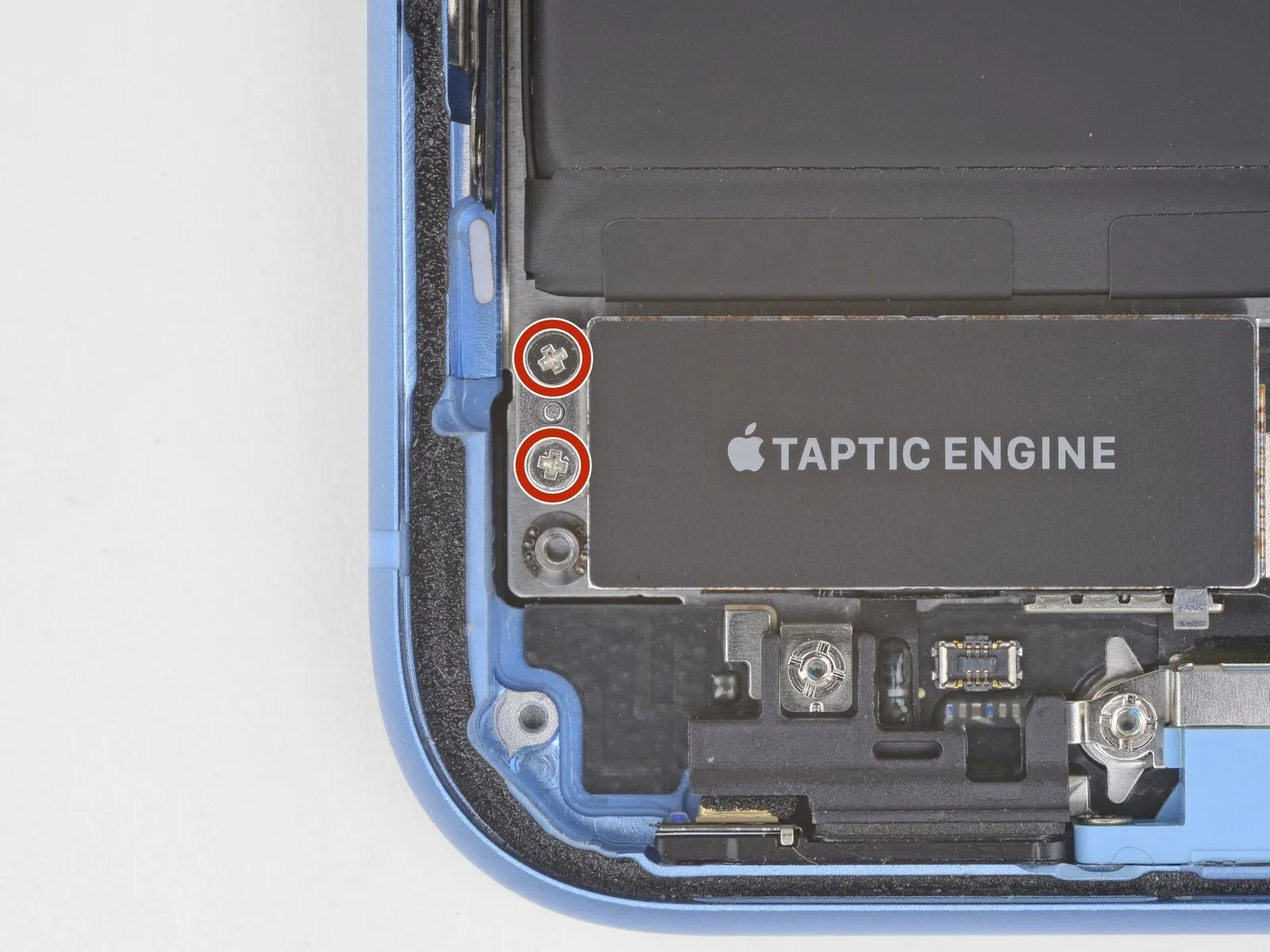

• To detach the Taptic Engine, first eliminate the two screws, each measuring 1.8 millimeters in diameter and utilizing a Phillips head, that hold it in place.Taptic Engine.

• Carefully detach theTaptic Enginecomponent.
