iPhone XS Lower Speaker Replacement

To generate a stereo audio experience, the iPhone XS incorporates both a main speaker and the speaker located in the earpiece, functioning in conjunction. This repair documentation details the procedure for substituting the primary speaker, situated on the device's lower edge. Addressing a replacement for this speaker component can effectively remedy problems including diminished audio output, degraded sound fidelity, and sound distortion.loudspeaker and the earpiece speaker together to produce stereo sound. Use this guide to replace the primary loudspeaker at the bottom of the phone only. Replacing this speaker can help resolve issues such as loss of sound, poor sound quality, and distorted sound.

Step 1 | Pentalobe Screws

Step 1 image
  • As a preliminary precaution, ensure your iPhone's battery has been depleted to a level below 25% prior to commencing the repair process.A fully charged lithium-ion batteryposes a significant fire and/or explosion hazard if it sustains accidental physical damage, such as a puncture.
  • Deactivate the iPhone's power supply by turning it off completely before you start disassembling it.
  • Utilize a screwdriver to extract the pair of pentalobe screws, each measuring 6.9 mm in length, located along the iPhone's lower edge.
  • Separating the iPhone's display assembly will irreversibly damage the integrated waterproof barriers; therefore, prepare replacement seals beforehand, or exercise extreme caution to prevent liquid ingress if you intend to reassemble the device without new seals.

Step 2 | Mark your opening picks

Step 2 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • To avoid potential harm to your device, ensure the opening pick isn't inserted beyond its intended depth; this procedure details how to mark the pick to safeguard against such damage.
  • Determine the measurement of3 mmfrom the pick's leading edge and use a permanent marker to create a visible indication on the opening pick.
  • For additional reference, consider marking the remaining corners of the pick with varying measurements.
  • As another option, affix a coin to the pick's shaft,3 mmaway from its tip.

Step 3 | Tape over any cracks

Step 3 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • To minimize additional damage and potential injury when addressing a cracked iPhone screen, secure the glass fragments with tape.
  • Apply multiple layers of transparent packing tape across the iPhone's display surface, ensuring complete coverage of the face.
  • Always utilize safety eyewear to guard against glass shards that may become dislodged during the repair process.
  • Should the suction cup fail to adhere adequately in subsequent procedures, create a handle from a robust tape (like duct tape) and employ it to elevate the screen.
  • As a last resort, secure the suction cup to the screen's surface using superglue.

Step 4 | Anti-Clamp instructions

Step 4 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • The following three procedures illustrate the function of the Anti-Clamp, a specialized tool developed to simplify the opening process; if you choose not to utilize this tool, proceed to the subsequent three steps for an alternative approach.
  • Detailed instructions regarding the operation of the Anti-Clamp are available in a separate, dedicated guide.
  • Grasp theblue handleand move it in a rearward direction to disengage the Anti-Clamp's arms.
  • Carefully position the arms across either the left or right side of your iPhone.
  • Place the suction cups close to the lower edge of the iPhone, ensuring one is situated on the front surface and the other on the rear.
  • Apply pressure by compressing the cups together to create a secure suction bond to the intended area.
  • Should the iPhone's surface prove excessively slick, preventing the Anti-Clamp from maintaining a firm grip, applying adhesive tape can generate a more textured surface for improved adhesion.

Step 5

Step 5 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • To engage the locking mechanism, draw the blue handle in a forward direction.
  • Rotate the handle through a complete rotation of 360 degrees, or until you observe the suction cups beginning to deform.
  • Confirm that the suction cups maintain their parallel orientation; should they exhibit any signs of displacement, gently release the suction cups and reposition the arms.

Step 6

Step 6 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Employ a heating device to warm aniOpenerand carefully guide it between the arms of the Anti-Clamp.
    Alternative heat sources, such as a hair dryer, heat gun, or hot plate, are acceptable; however, excessive heat poses a risk of damage to the display and/or internal battery, necessitating cautious application.
  • Position theiOpenerin a folded configuration, ensuring it rests along the lower edge of the iPhone.
  • Allow a sixty-second interval to permit the adhesive to soften and create a separation.
  • Introduce an opening pick into the newly formed space situated beneath the display and the plastic bezel, avoiding direct contact with the screen's surface.
  • Should the Anti-Clamp fail to generate a satisfactory gap, increase the heat applied to the region and rotate the handle by ninety degrees.
    Limit rotational increments to ninety-degree increments, and observe a sixty-second pause between each adjustment, allowing the Anti-Clamp and time to facilitate the separation.
  • Proceed past the subsequent three instructions.

Step 7

Step 7 image

Applying warmth to the iPhone's bottom edge facilitates the loosening of the adhesive that holds the display in place, which simplifies the opening procedure.
Employ ahairdryerorheat gunor alternatively, utilize aniOpenerand direct its heat towards the iPhone's lower edge for approximately one minute to reduce the adhesive's tackiness.

Step 8

Step 8 image
Thumbnail 1
Thumbnail 2

When employing a solitary suction handle, position it against the lower boundary of the device's frame, ensuring it does not contact the rounded glass surface.

Step 9

Step 9 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Apply steady, forceful upward pressure to the suction cup to generate a small separation between the front panel assembly and the device's rear casing.
  • Carefully slide an opening tool into the newly formed space located beneath the display screen and the surrounding plastic trim, ensuring it does not contact the screen's surface directly.
  • Due to the robust, waterproof adhesive securing the display, establishing this initial separation requires considerable effort; if you encounter difficulty, apply additional heat and gently oscillate the screen in an upward and downward motion to reduce the adhesive's strength until a sufficient gap is achieved for tool insertion.

Step 10

Step 10 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Carefully maneuver the opening pick along the bottom-left perimeter of the iPhone, then upward along the left side, severing the adhesive that secures the display assembly.
  • Ensure the pick's insertion depth remains limited to3 mmto prevent potential harm to delicate internal parts.

Step 11 | Screen information

Step 11 image

Along the right side of your iPhone, you'll find sensitive wiring; avoid inserting any tools in this area to prevent potential cable damage.

Step 12

Step 12 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • To proceed with separating the adhesive, re-position your opening pick along the lower edge of the iPhone's casing, then advance it upwards along the right side.
  • Ensure your opening pick does not penetrate deeper than 3 mm, to prevent potential harm to the delicate display cable connections.

Step 13

Step 13 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Adhesive and retaining clips together fasten the display's uppermost border.
  • Employing a separation tool, maneuver it along the display's upper corner, applying slight downward traction or oscillation toward the Lightning port's location.
  • Excessive force applied to the clips will result in their breakage; therefore, proceed with caution and allow ample time.
  • Ensure the separation tool's insertion depth remains below 3 millimeters to prevent potential harm to the front panel sensor array.
  • Continue the separation tool's movement to the opposing corner, severing any residual adhesive holding the display in place.

Step 14

Step 14 image
To detach the suction cup from the front panel, grasp and exert force on the small protrusion located on its surface.

Step 15

Step 15 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • To access the internal components of the iPhone, initiate the opening process by pivoting the display upwards from the left side, employing a motion similar to opening a book's cover.
  • Refrain from completely detaching the display at this stage, because multiple delicate ribbon cables remain connected to the iPhone's logic board.
  • Secure the display in an upright position using a support to maintain access to the device's interior during the repair process.
  • When reassembling the iPhone, position the display, ensuring the clips along the top edge are properly aligned, and then gently apply pressure to the top edge to secure it before completing the closure of the display. Should the display not readily click into place, inspect the clips surrounding the display's perimeter to verify they are not deformed.

Step 16 | Display Assembly

Step 16 image
Thumbnail 1
Thumbnail 2
  • Detach the logic board connector bracket by unscrewing five fasteners.
  • Utilize three screws with a diameter of 1.0 mm and a Y000 head type.
  • Employ one screw measuring 1.3 mm in diameter and featuring a Y000 head.
  • A Phillips head screw, 3.7 mm in length, is also required.
During the entire repair process, meticulously organize each screw and ensure its correct replacement in the original location to prevent potential harm to your iPhone.

Step 17

Step 17 image
  • Detach the bracket.
  • Thebracketmight be subtly affixed; apply a gentle yet resolute upward force to disengage it.

As you reassemble the device, consider activating your iPhone at this juncture to verify all operational capabilities, then de-energize it entirely prior to finalizing the display's securement.

Step 18

Step 18 image
Thumbnail 1
Thumbnail 2
  • Employ a spudgerAlternatively, a pristine fingernail can be utilized to lift the battery connector from its corresponding receptacle on the logic board.
  • Exercise caution to avoid compromising the integrity of the black silicone sealant that encases this and other board connections, as it offers supplemental defense against water and particulate contamination.
  • Slightly deflect the connector away from the logic board to ensure it remains disconnected and prevents unintended power delivery to the device during the repair process.

Step 19

Step 19 image
Thumbnail 1
Thumbnail 2

Employ a spudgeror a fingernail to carefully lift and detach the front panel sensor assembly's electrical connector.

Step 20

Step 20 image
Thumbnail 1
Thumbnail 2
  • Employ a spudgerAlternatively, a fingernail can be utilized to release the OLED panel cable connector.
  • For reattachment, secure the connectors by meticulously aligning them and applying pressure to one edge until a distinct click is heard; subsequently, repeat this process on the opposing edge. Avoid applying pressure to the central portion of the connector, as misalignment can result in pin deformation and irreversible damage.

Step 21

Step 21 image
Thumbnail 1
Thumbnail 2
Proceed to step 21:Employ a spudger or fingernail to carefully lift the digitizer cable connector from its receptacle.
  • Due to its deeply situated position, reattaching this connector can be challenging; therefore, meticulous alignment is essential.
  • Apply gentle pressure with your fingertip to secure it, initially engaging one side, then the other.
A distinct clicking sound will indicate a successful connection.
Should any portion of the screen exhibit a lack of touch responsiveness following the repair, first detach the battery, then re-engage this connector, ensuring a complete click and verifying the absence of dust or any other impediment within the socket.

Step 22

Step 22 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
Phase 22:The flexible cable connecting the front panel sensor assembly is secured with a minimal amount of adhesive.
Gently raise the cable, ensuring the adhesive bond releases completely.

Step 23

Step 23 image
Proceed to step 23.Detach the display unit.
If you intend to substitute the waterproof sealant bordering the display's perimeter during reassembly, make a temporary stop at this point.

Step 24 | Lower Speaker

Step 24 image
Thumbnail 1
Thumbnail 2

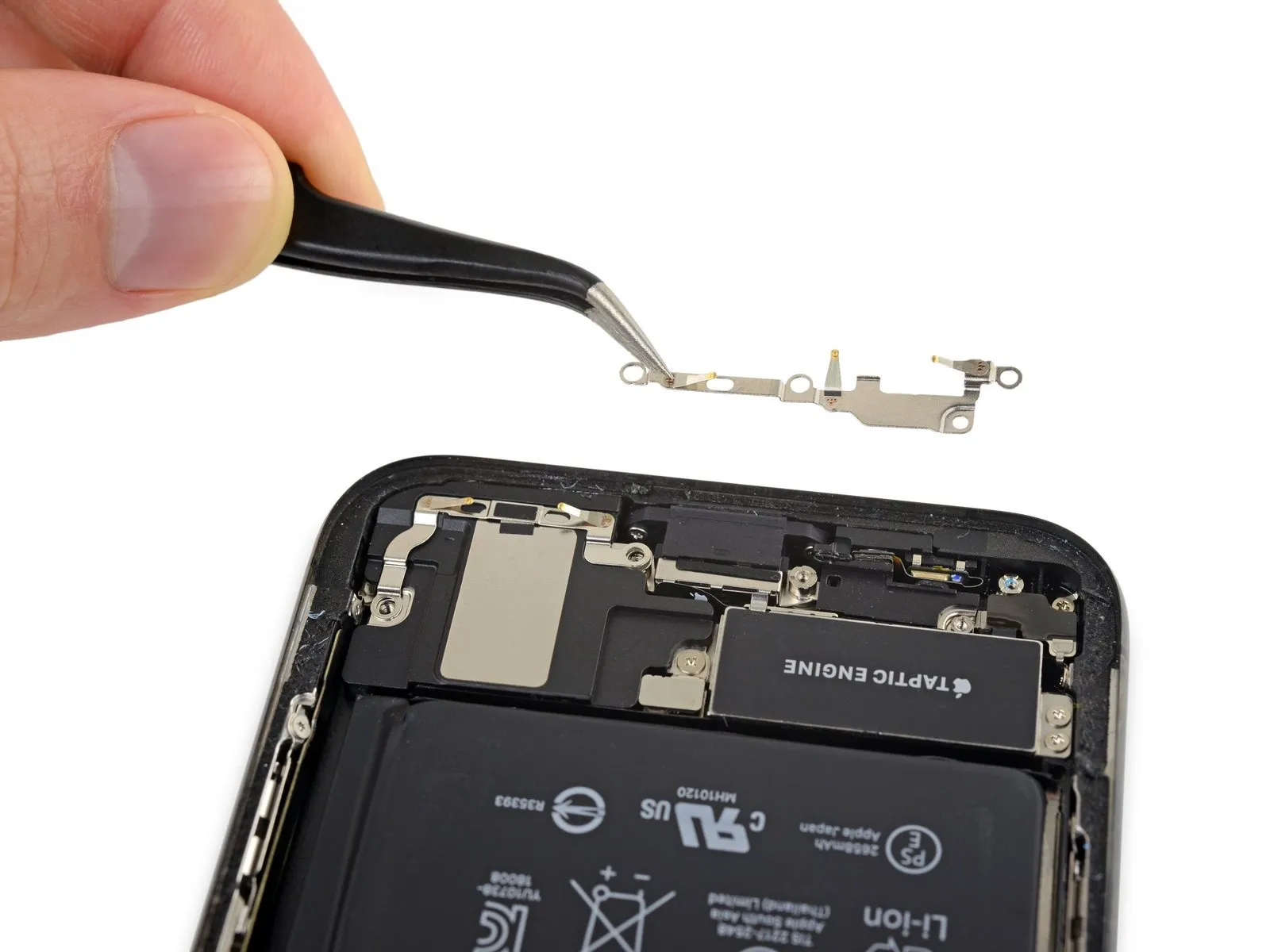

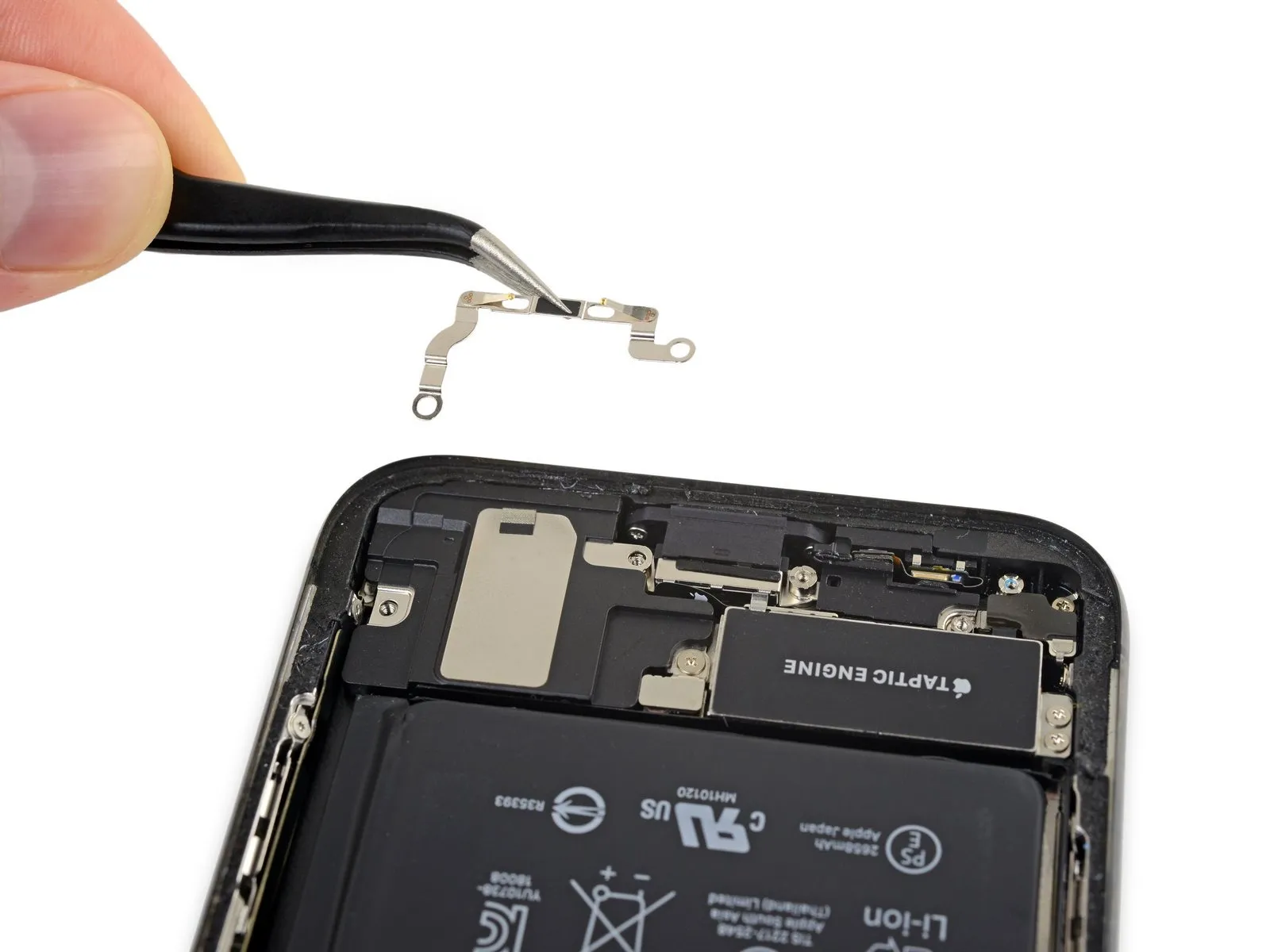

Proceed to step 24.Detach the two brackets positioned beneath the Taptic Engine and main speaker by unscrewing the five fasteners that hold them in place.
  • - A single1.0 mm tri-point Y000 screw is required.
  • - Two1.3 mm Phillips screws are needed.
  • - One1.7 mm Phillips screw is necessary.
  • - One1.8 mm Phillips screw completes the set.

Step 25

Step 25 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

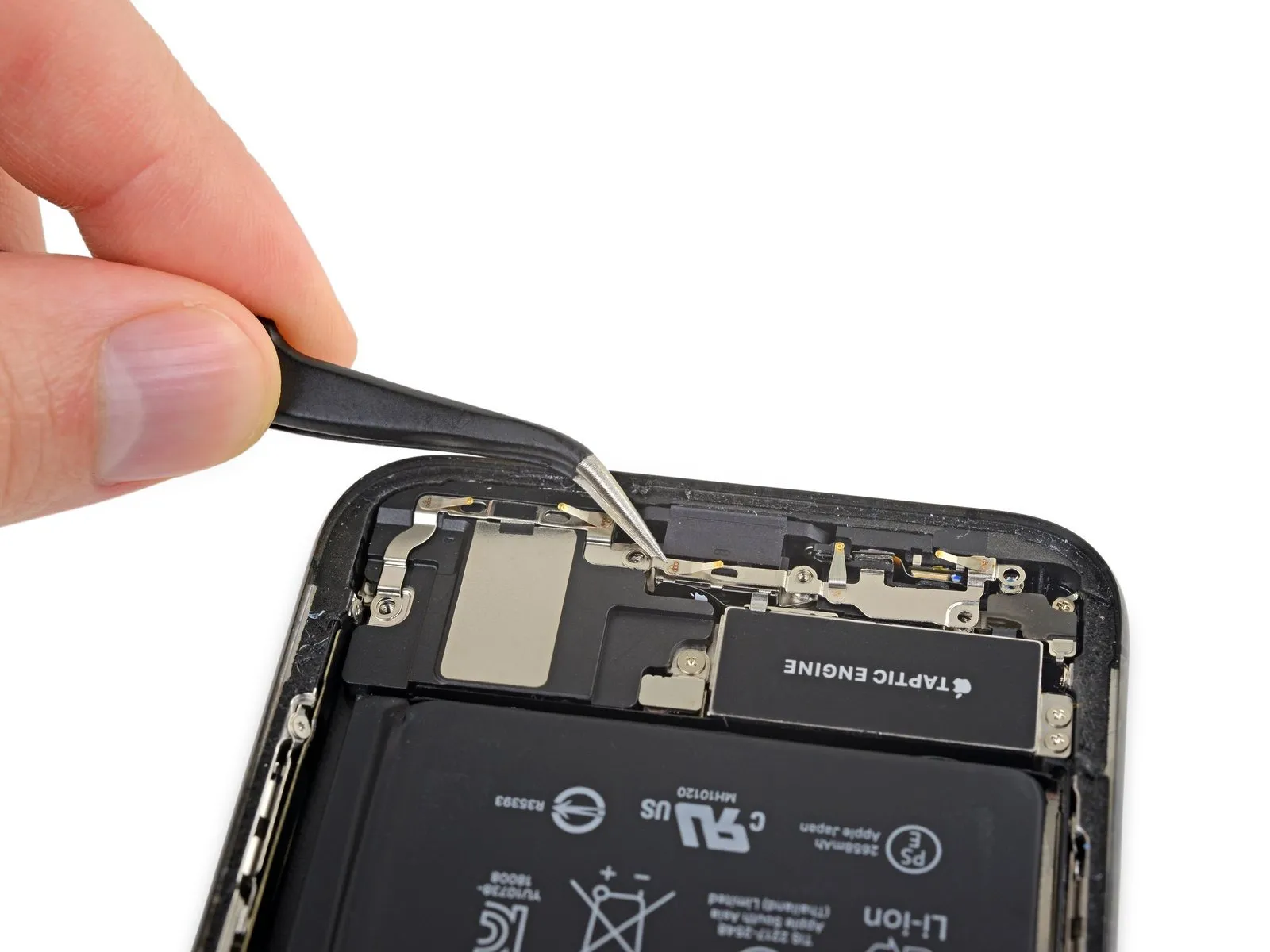

Phase 25:These retaining clips possess a minimal bond to the underlying surface.
  • Carefully detach each clip by raising it slightly to break the adhesive seal, exercising caution to prevent deformation.
  • Should the adhesive resist separation, localized warmth from a hairdryer or heat gun can be utilized to reduce its viscosity; however, employing an iOpener on these clips is discouraged, as it carries a risk of damaging the spring contacts situated at the upper edge.

Step 26

Step 26 image
Thumbnail 1
Thumbnail 2

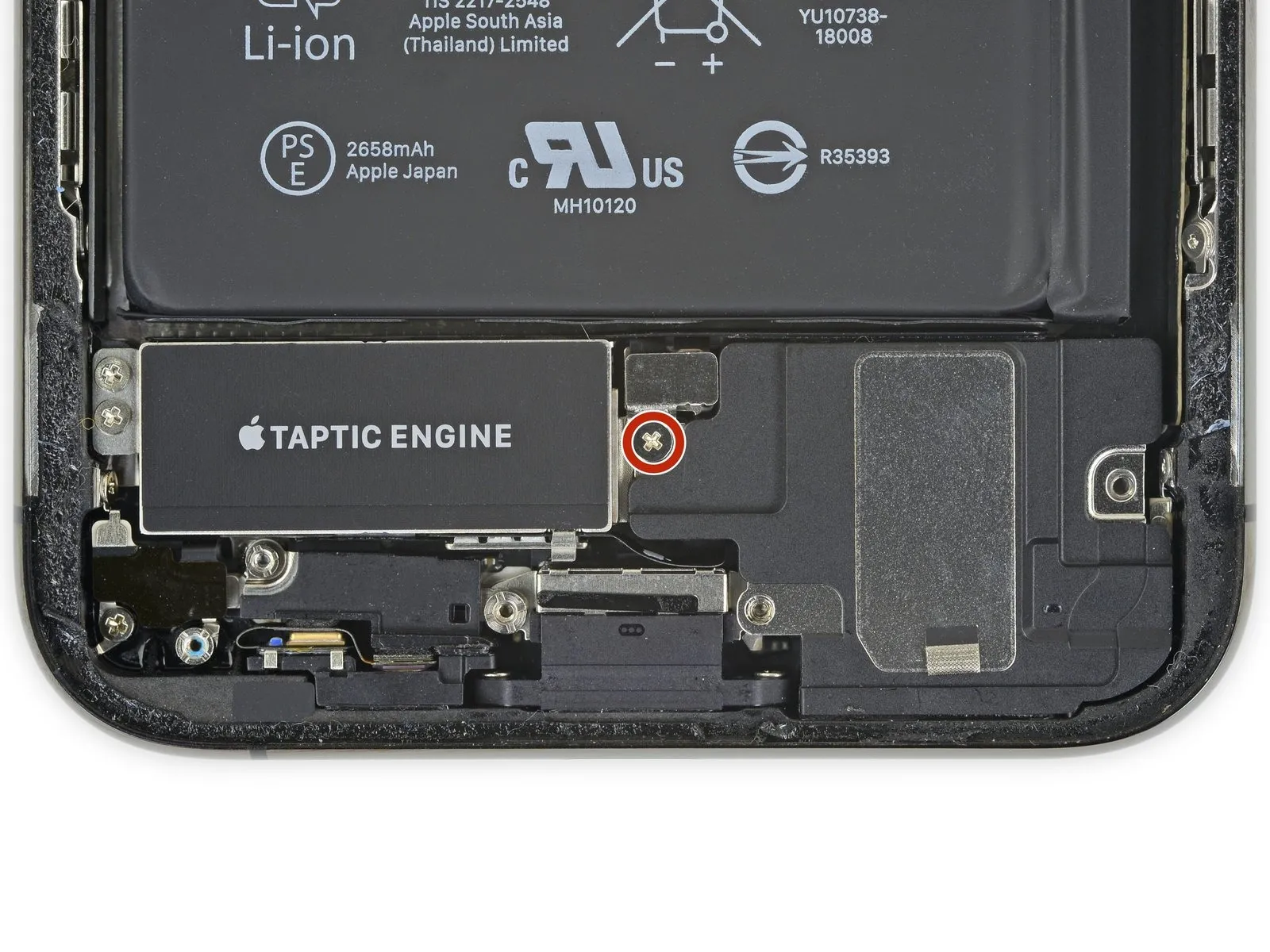

Proceed to step 26.Utilize a Phillips screwdriver, sized at 1.9 mm, to detach the cover that protects the speaker connector.

Step 27

Step 27 image

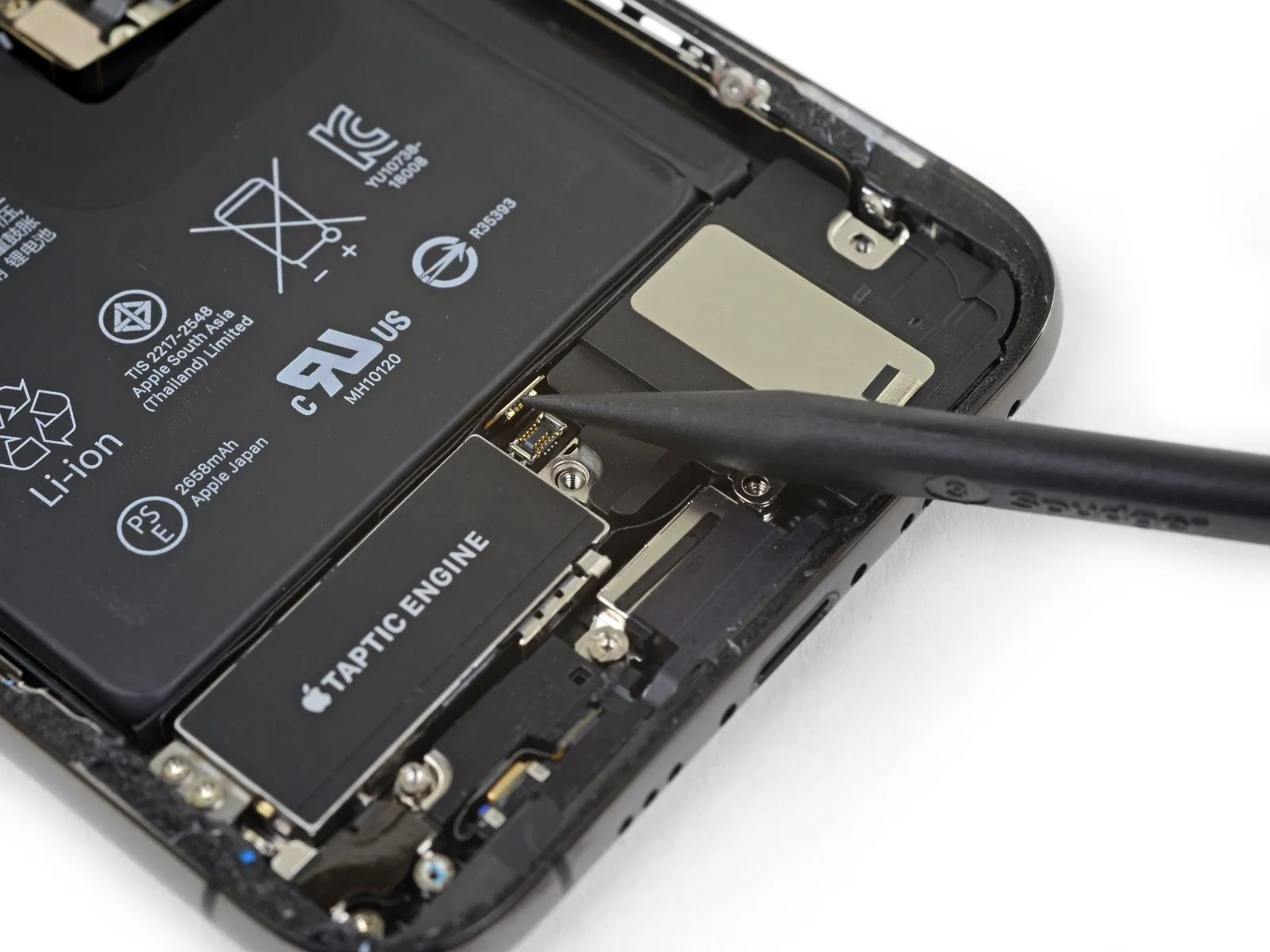

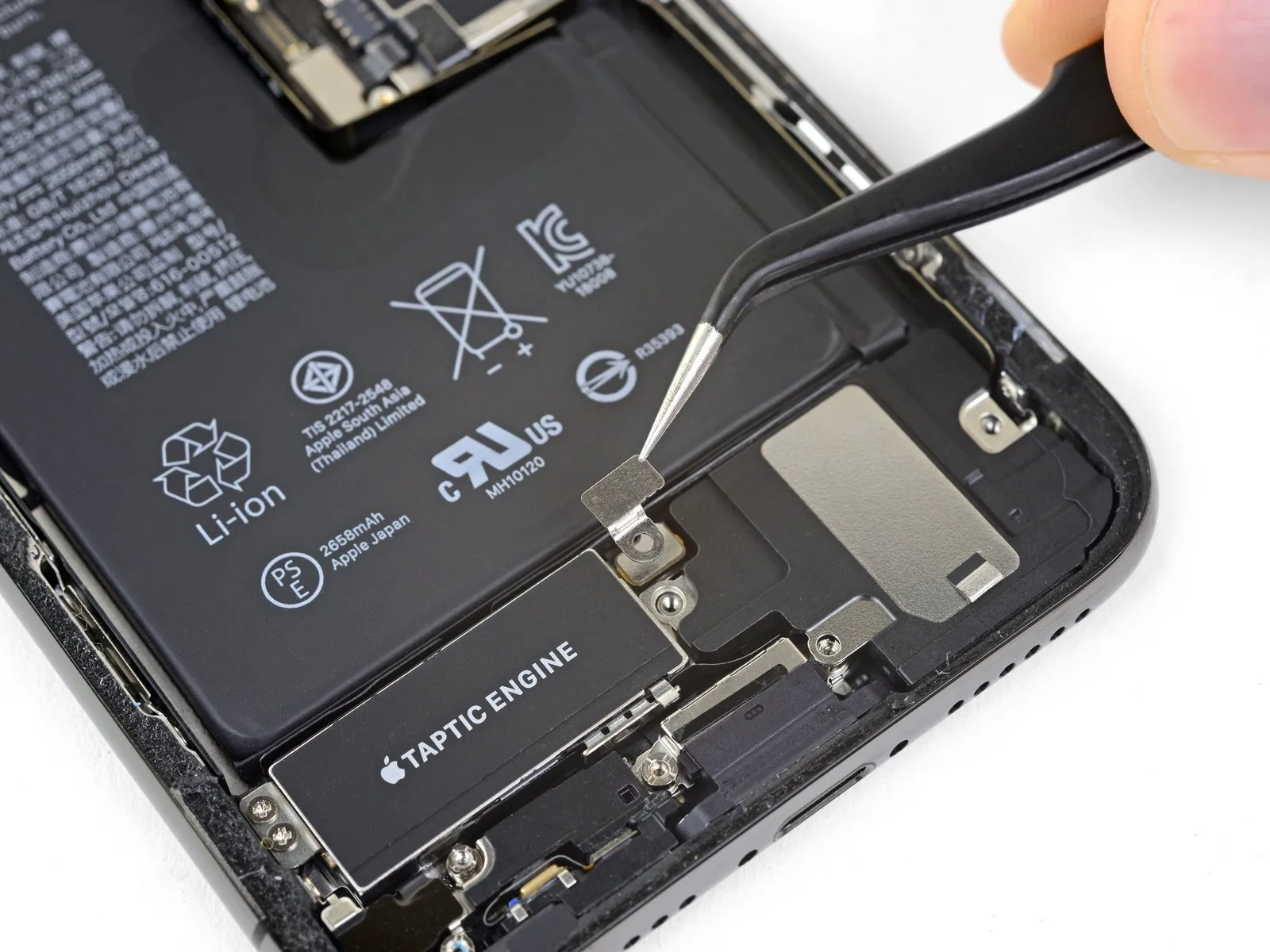

Proceed to step 27:Detach the protective cover from the speaker connector.

Step 28

Step 28 image
Thumbnail 1
Thumbnail 2

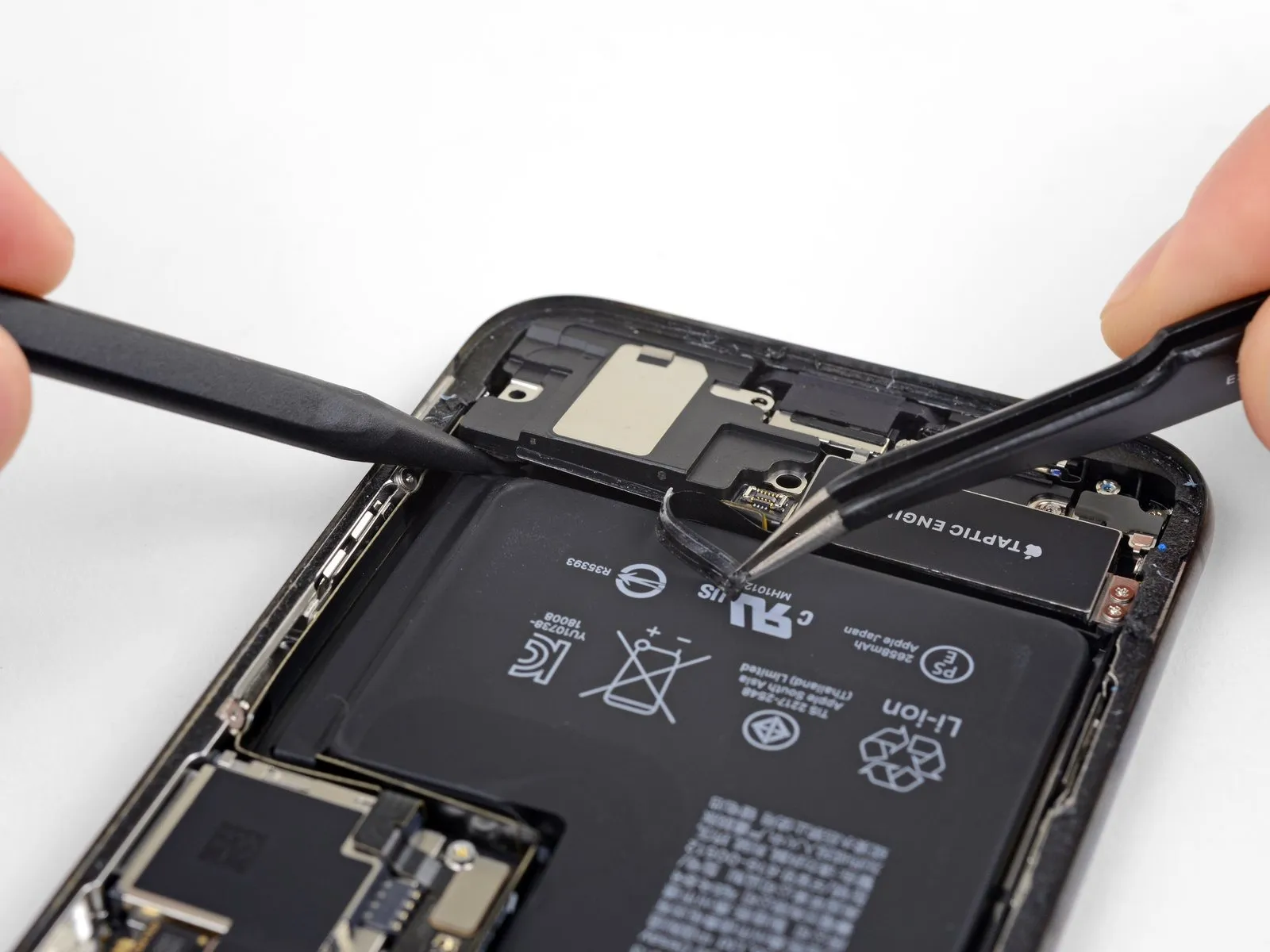

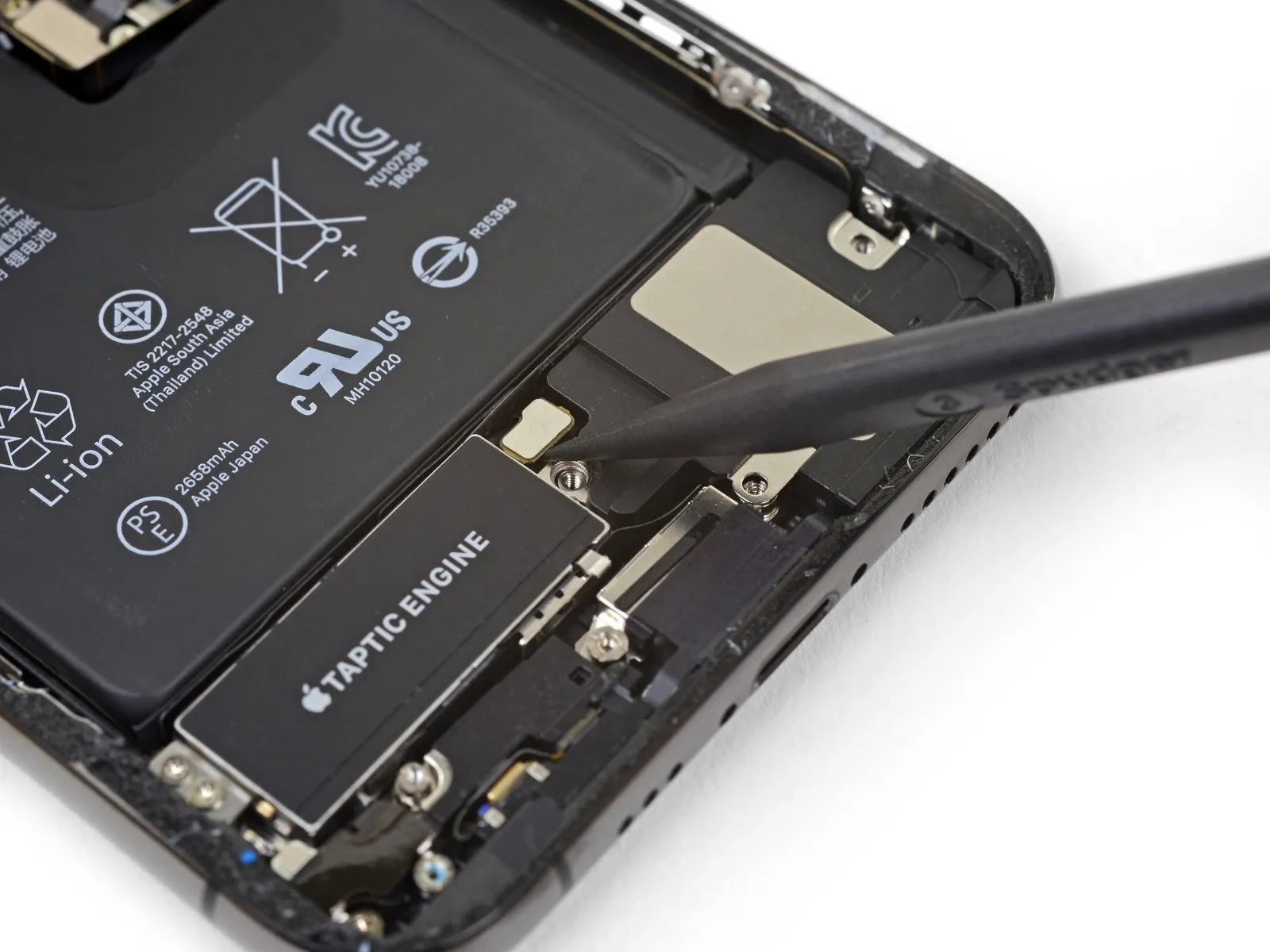

Proceed to step 28:Carefully leverage the pointed end of a spudger to lift and detach the speaker's electrical connector.

Step 29

Step 29 image
Thumbnail 1
Thumbnail 2

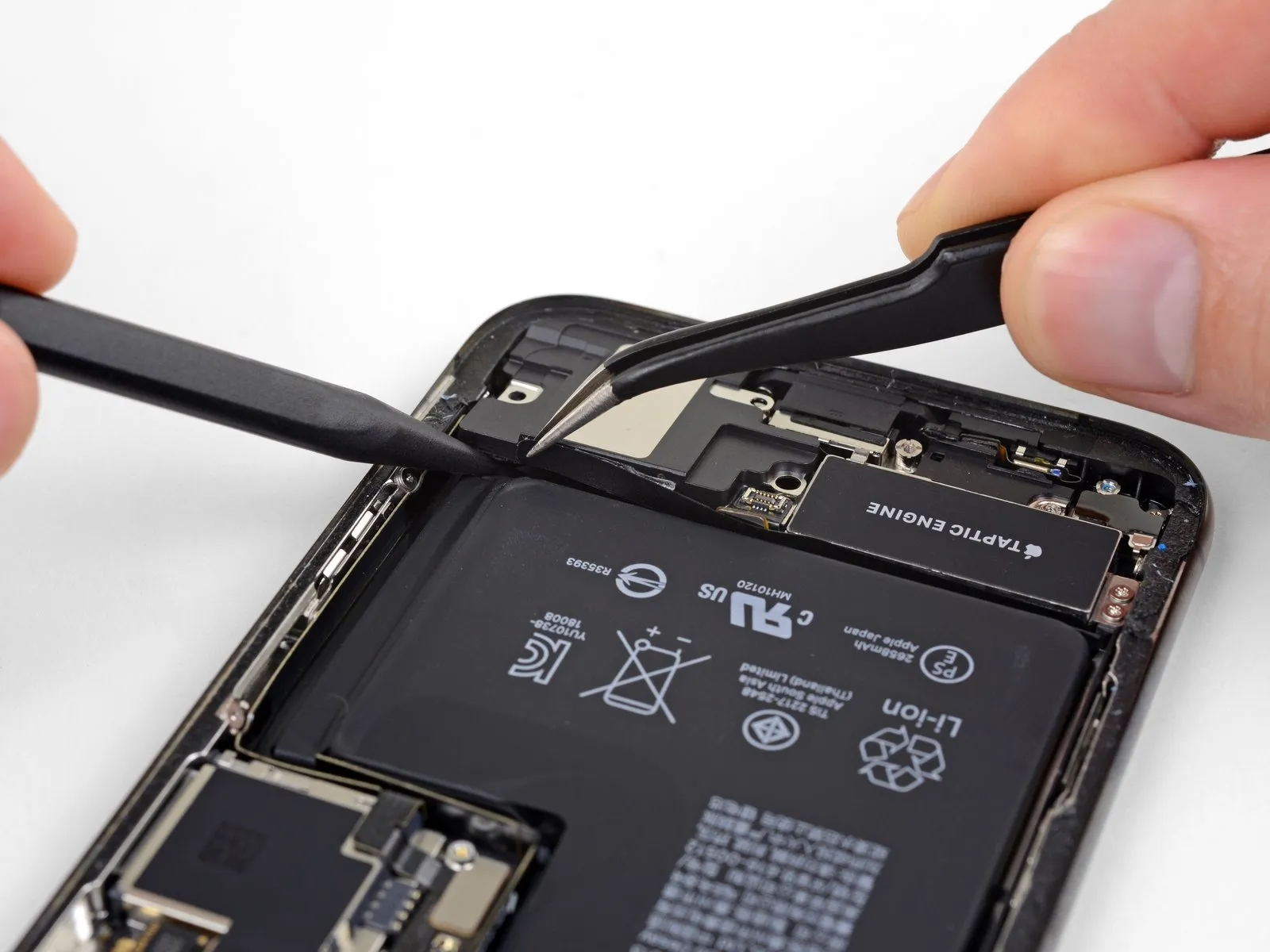

  • Exercise caution while separating the speaker from the device, preventing harm to the flex cable that was recently detached; if needed, reposition the cable towards the battery to facilitate speaker removal.

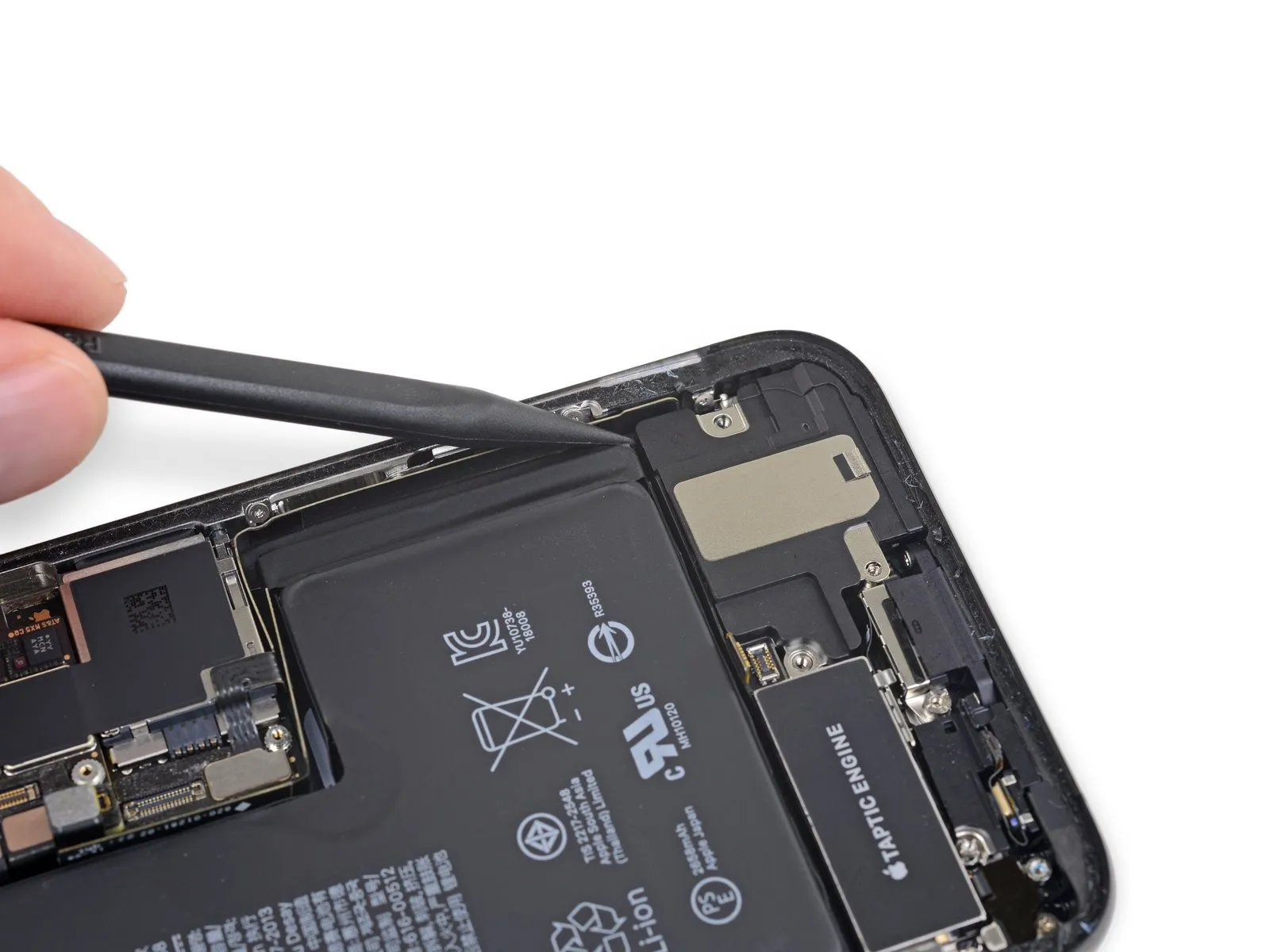

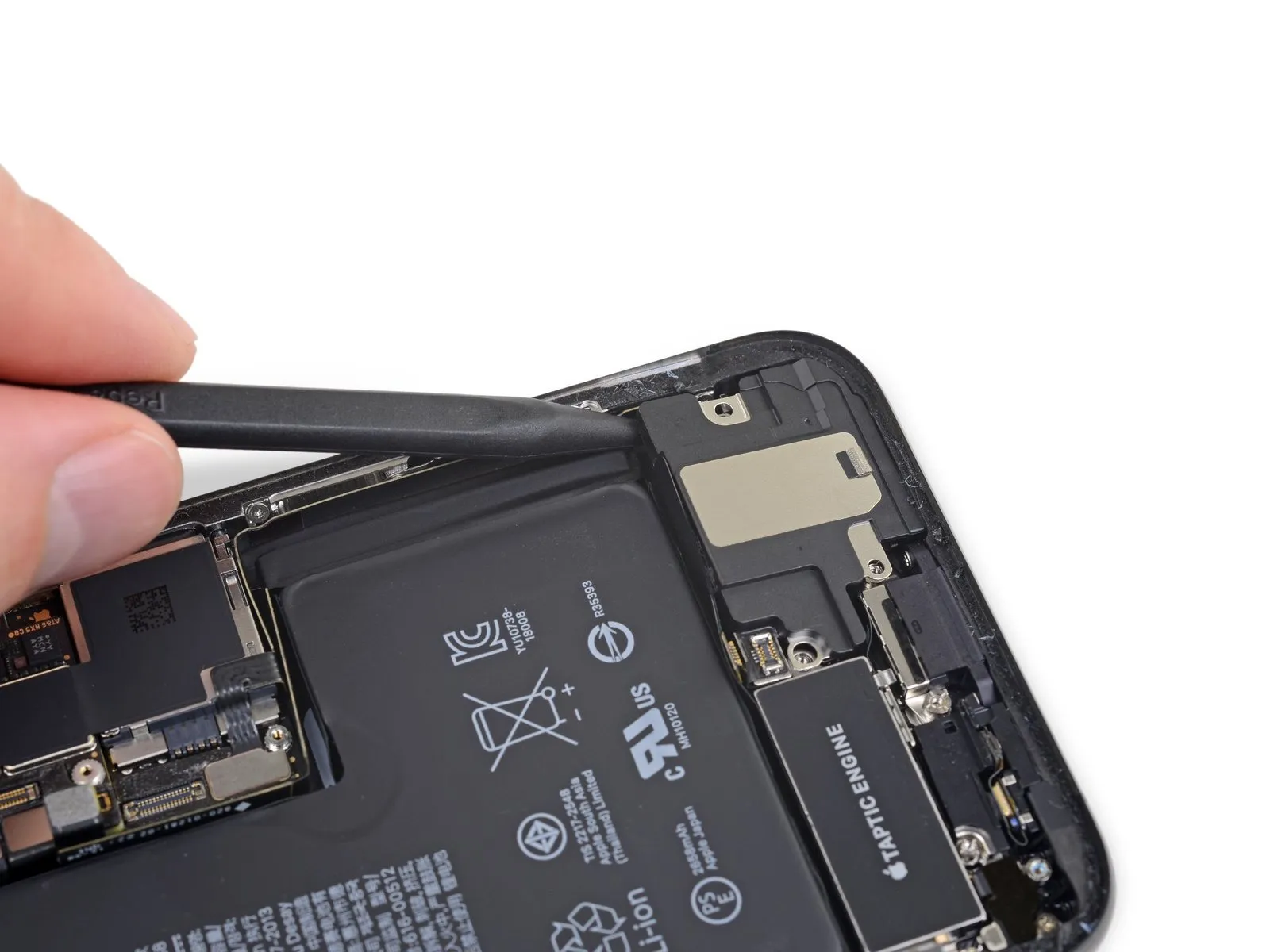

  • Position a spudger beneath the upper border of the speaker, situated close to the iPhone's casing.
  • Apply a delicate upward force, raising the speaker's upper edge a small distance.
  • During reinstallation of the speaker, verify the flex cable's alignment and confirm it remains free from entrapment beneath the speaker.

Step 30

Step 30 image
Thumbnail 1
Thumbnail 2

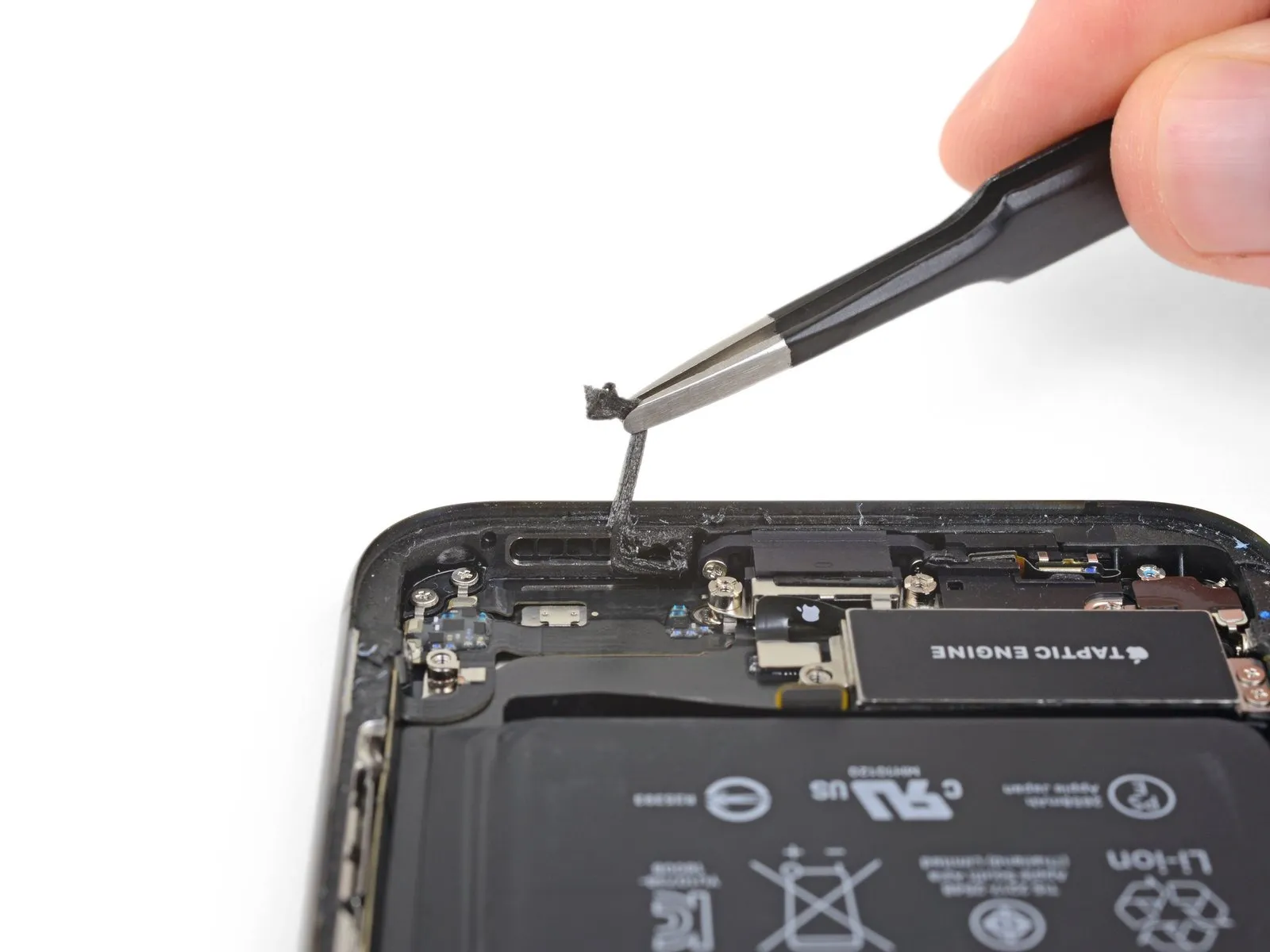

  • Employing tweezers, carefully detach the plastic bumper strip from the speaker's upper edge as you lift the speaker component.
  • Should adhesion prove stubborn, a small amount of heat can be utilized to reduce the adhesive's viscosity, facilitating separation of the bumper strip.

Step 31

Step 31 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
Procedure 31:

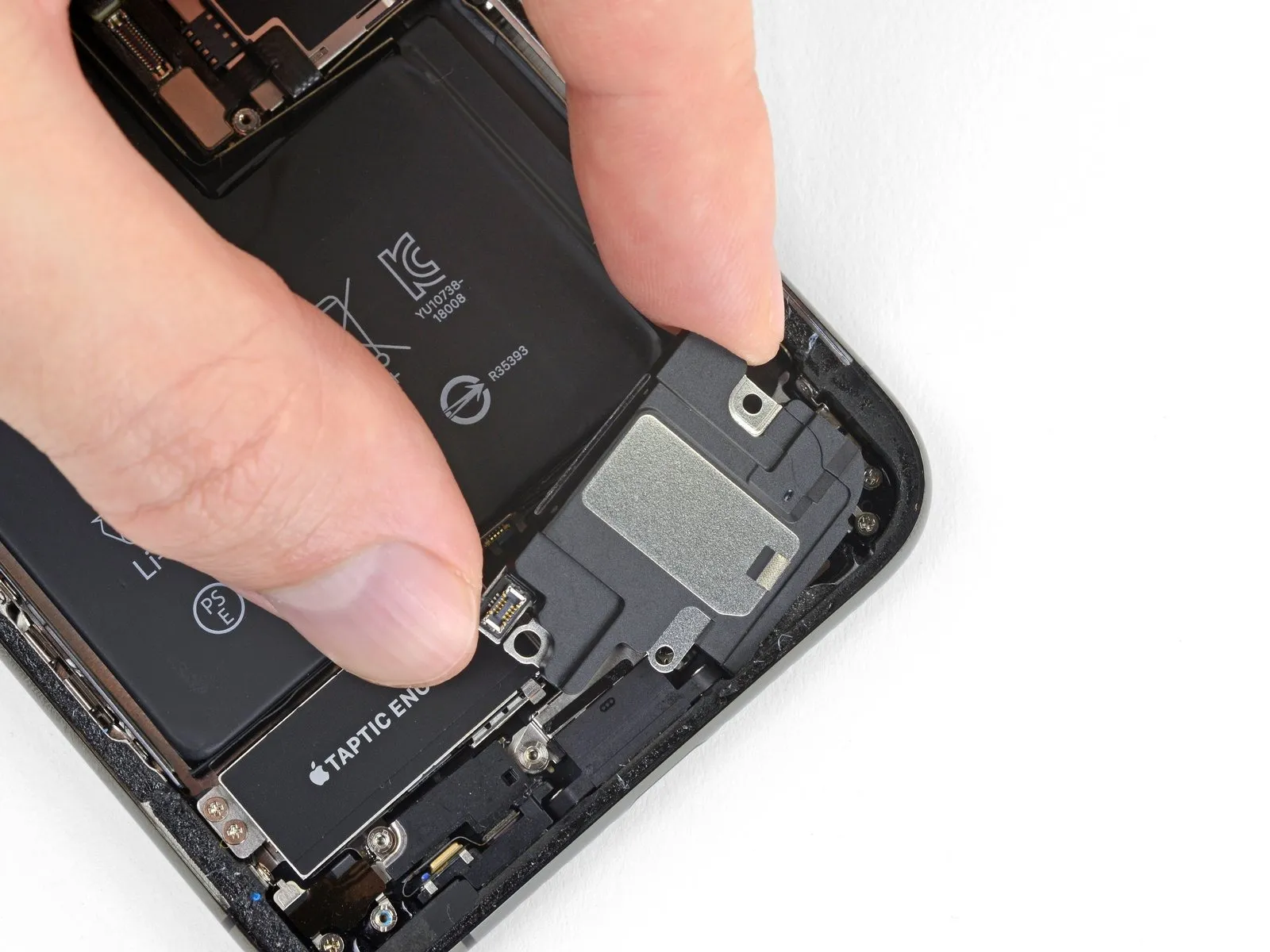

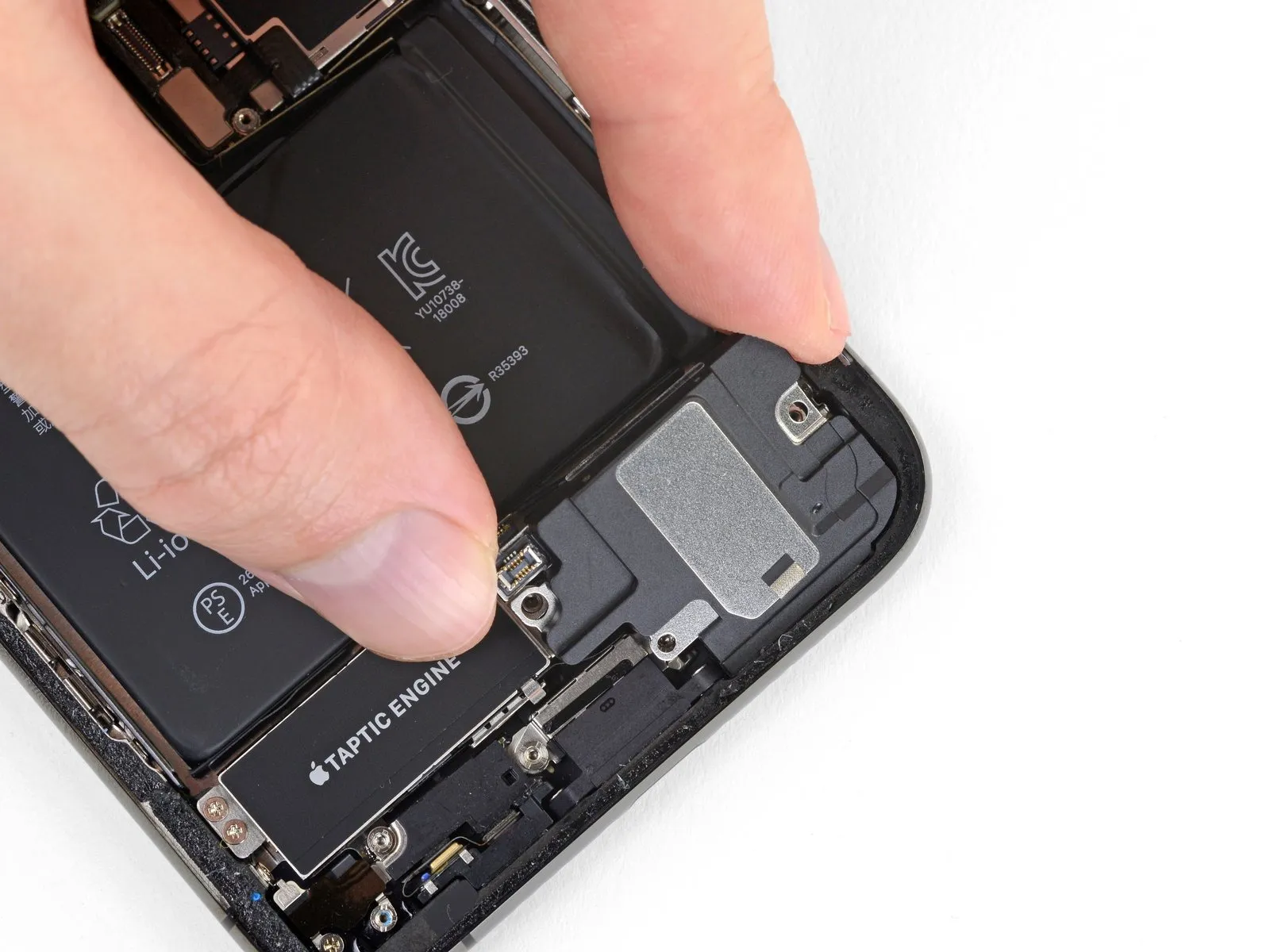

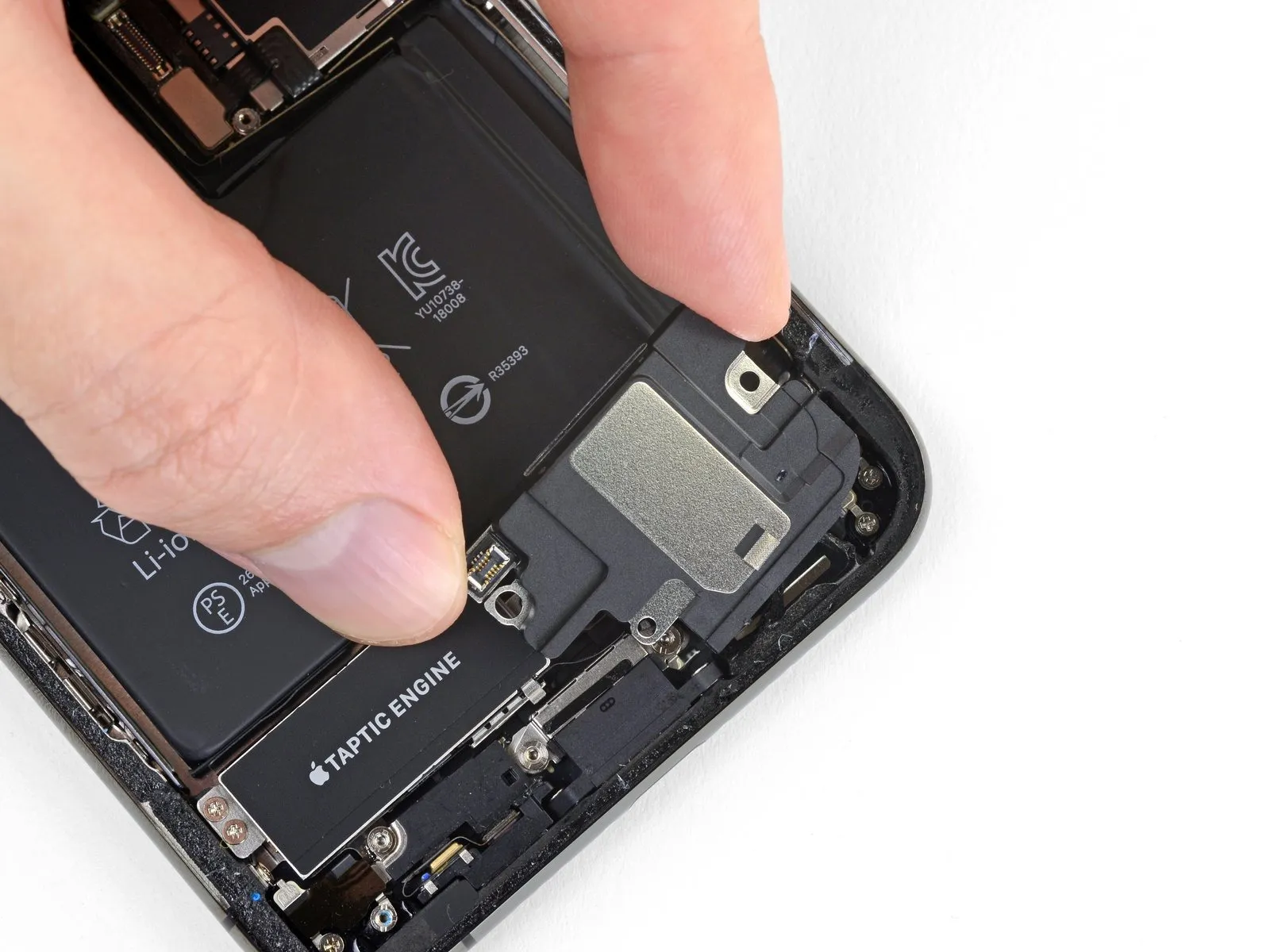

  • Grasp the speaker assembly using its lateral edges, gently oscillating it from side to side to break the adhesive bond that holds it to the iPhone's lower perimeter.
  • Continue moving the speaker outward from the iPhone's base until the adhesive gasket disengages completely.

Step 32

Step 32 image
Thumbnail 1
Thumbnail 2
Procedure 32:

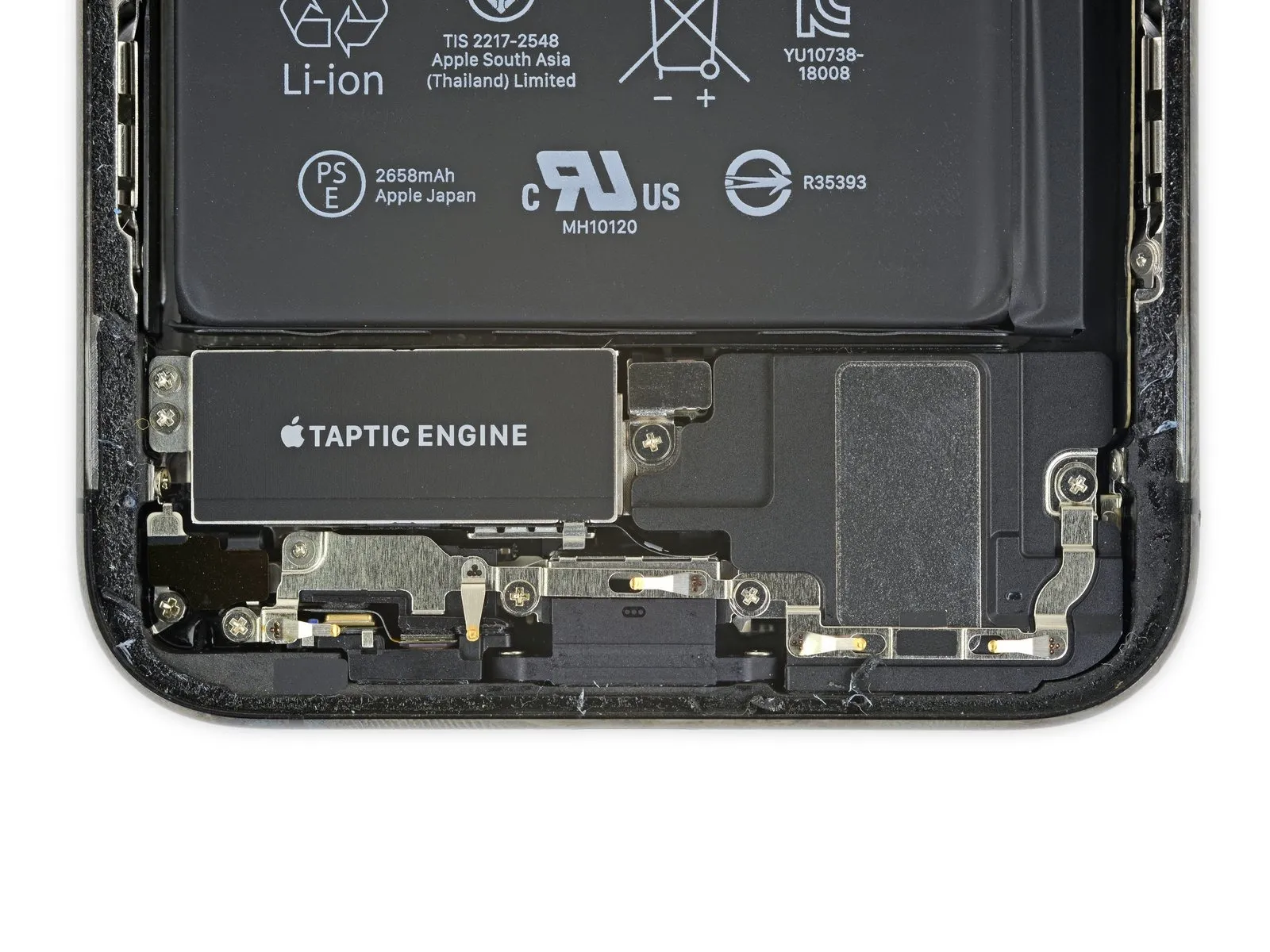

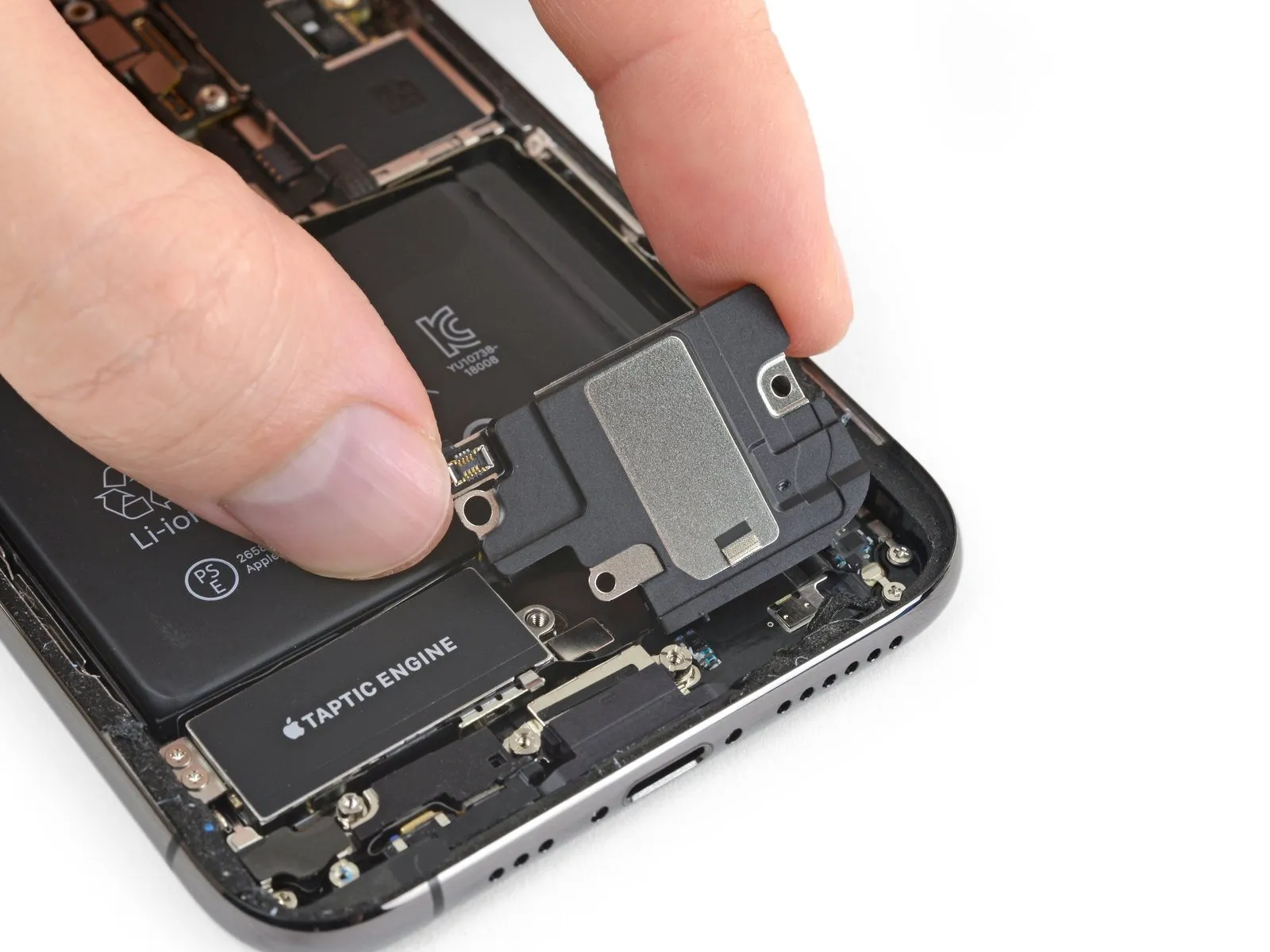

  • Detach the speaker component.
  • Because the speaker's adhesive gasket cannot be reused, carefully remove any leftover adhesive using tweezers.
  • To maintain protection against water and dust, substitute the adhesive gasket when putting everything back together; before applying the new gasket, clean the surface with a small amount of isopropyl alcohol and a lint-free cloth or coffee filter to ensure proper adhesion. Subsequently, affix a fresh gasket to the speaker and then reattach the speaker.
