iPhone XS Screen Replacement

• As a preliminary precaution, ensure your iPhone's battery has been depleted to a level below 25% prior to commencing the repair process.A fully charged lithium-ion batteryposes a significant fire hazard and potential for explosion if it sustains accidental physical damage, such as a puncture.
• To ensure safety and prevent electrical shorts, completely deenergize the iPhone by powering it down before starting the disassembly procedure.
• Using an appropriate tool, extract the pair of pentalobe screws, each measuring 6.9 mm in length, which secure the lower edge of the iPhone's casing.
• Separating the iPhone's display assembly from the body will inevitably damage the integrated waterproof barriers; therefore, obtain replacement seals beforehand to maintain water resistance, or exercise extreme caution to prevent liquid ingress during reassembly if new seals are not used.

• To avoid potential harm to your device, ensure the opening pick does not extend beyond its intended insertion depth; this procedure details how to mark the pick to ensure safe operation.
• Determine the measurement of3 mmfrom the pick's leading edge, then use a permanent marker to create a visible indicator on the opening pick.
• For additional reference, consider marking the other corners of the pick with varying measurement values.
• As an alternative method, affix a coin to the pick's shaft,3 mmaway from its tip.

• To minimize additional damage and potential injury while repairing a fractured iPhone display, secure the broken glass with adhesive tape.
• Apply multiple, overlapping layers of transparent packing tape across the iPhone's screen surface, ensuring complete coverage of the face.
• Always utilize eye protection, specifically safety glasses, to guard against glass fragments that may become dislodged during the repair process.
• Should the suction cup fail to maintain adhesion during subsequent steps, create a handle by folding a robust tape, like duct tape, and employ this to carefully elevate the screen.
• As a last resort, secure the suction cup to the screen's surface using superglue.

• The following three procedures illustrate the function of the Anti-Clamp, a specialized tool developed to simplify the opening process; should you choose not to utilize this tool, proceed past three steps to access an alternative approach.
• Detailed guidance regarding the Anti-Clamp's operation can be found in a separate, dedicated instructional document.
• Grasp theblue handleand move it in a rearward direction to disengage the Anti-Clamp's securing arms.
• Carefully position the arms across either the left or right side of your iPhone.
• Place the suction cups in close proximity to the lower edge of the iPhone, ensuring one is situated on the front surface and the other on the rear.
• Apply pressure by compressing the cups together to establish a secure suction bond to the intended location.
• Should the iPhone's surface prove excessively slick, preventing adequate adhesion by the Anti-Clamp, applying adhesive tape can create a more textured interface for improved grip.

• To engage the locking mechanism, draw the blue handlein a forward direction.
• Rotate the handlea full rotation of 360 degrees, or until you observe the suction cups beginning to expand.
• Maintain proper alignment of the suction cups with one another; should they become misaligned, a minor adjustment of the suction cups is necessary to reposition the arms.

• Employ a heat source to warm aniOpenerand carefully guide it between the arms of the Anti-Clamp.
  Alternative heating methods, such as a hair dryer, heat gun, or hot plate, are acceptable; however, excessive heat poses a risk of damage to the display assembly and/or the internal battery, necessitating cautious operation.
• Position theiOpenerin a folded configuration, ensuring it rests along the lower edge of the iPhone.
• Allow a sixty-second interval to permit the adhesive to soften and create a separation.
• Introduce an opening pick into the newly formed space located beneath the display and the surrounding plastic bezel, taking care to avoid direct contact with the screen's surface.
• Should the Anti-Clamp fail to generate an adequate separation, increase the heat applied to the area and rotate the handle by ninety degrees.
  Incremental handle rotations, limited to ninety-degree increments, are advised, with a sixty-second pause between each adjustment; rely on the Anti-Clamp's mechanism and time to facilitate the separation.
• Proceed past the following three instructions.

Applying warmth to the iPhone's bottom edge facilitates the loosening of the adhesive that holds the display in place, which simplifies the opening process.

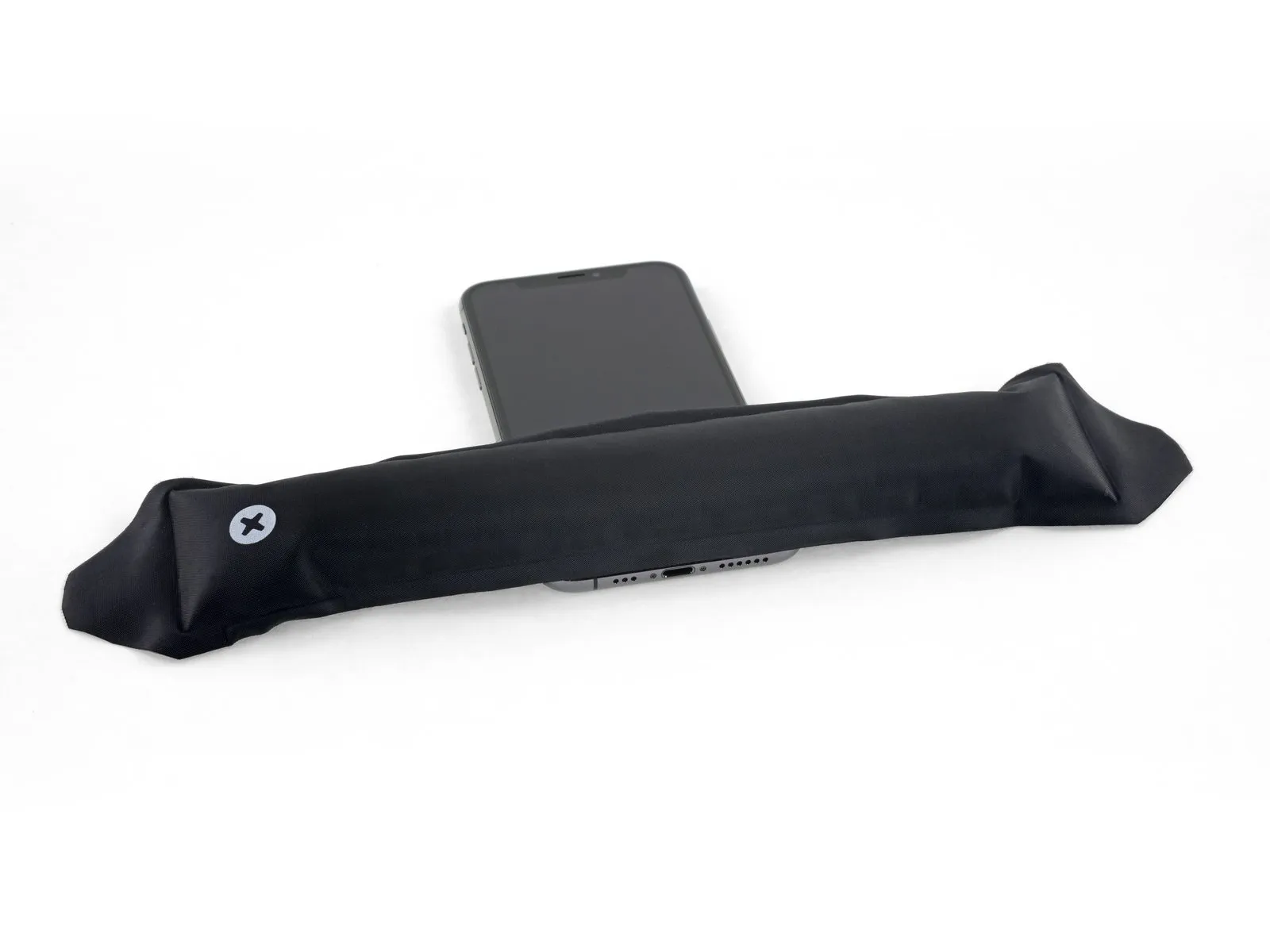

Employ ahairdryerorheat gunor alternatively, utilize aniOpenerand direct its heat towards the iPhone's lower edge for approximately one minute to reduce the adhesive's tackiness.

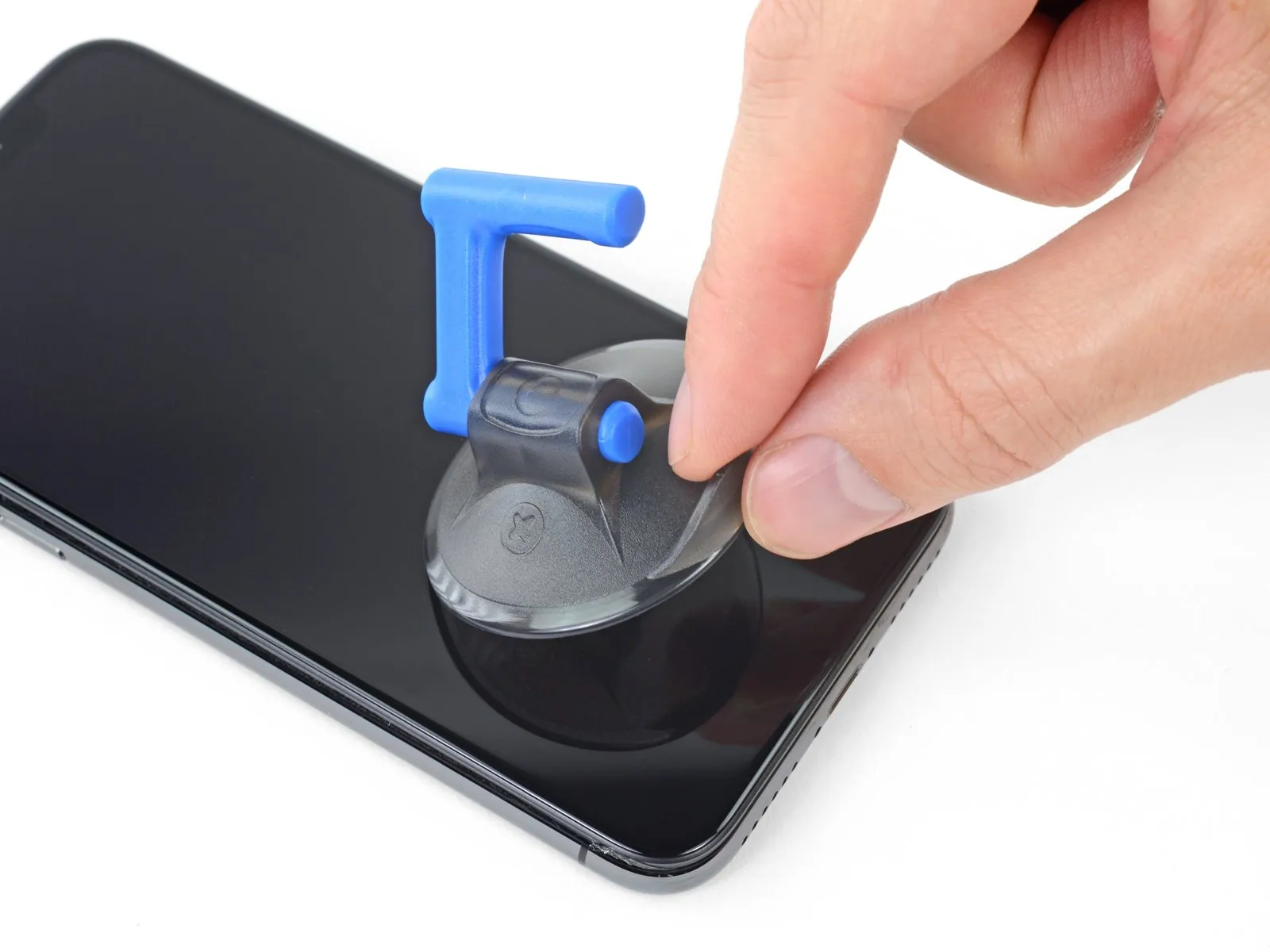

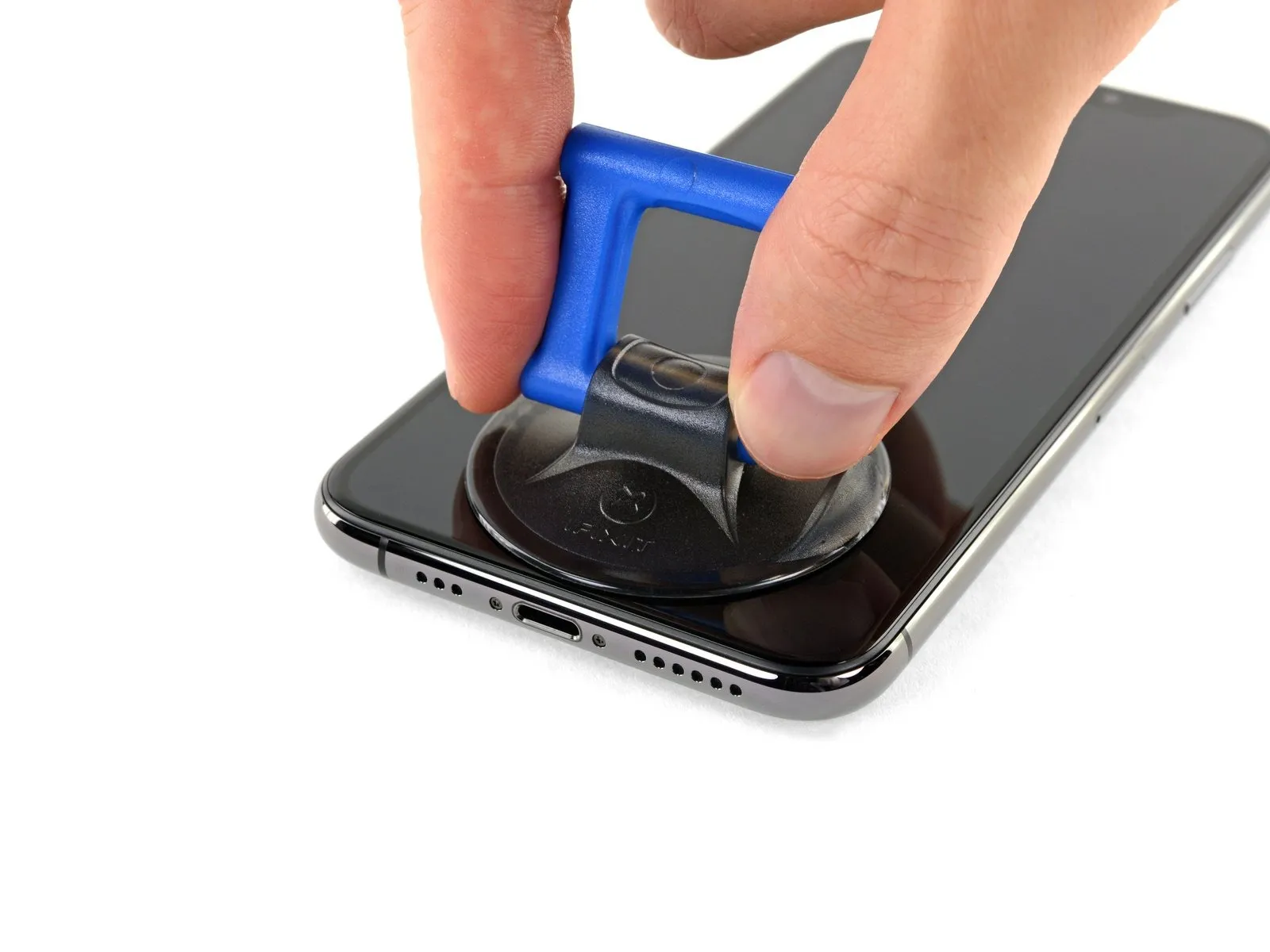

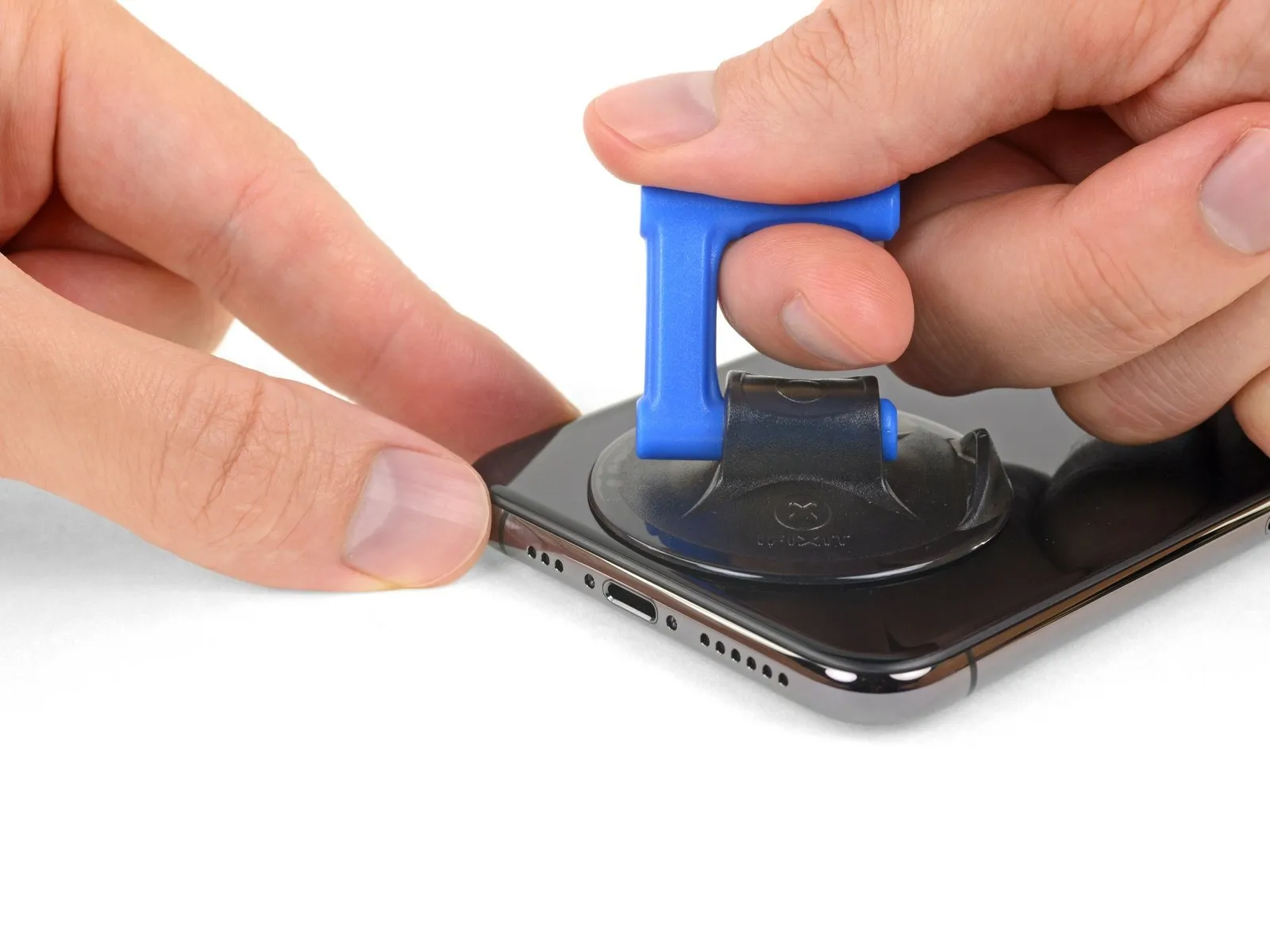

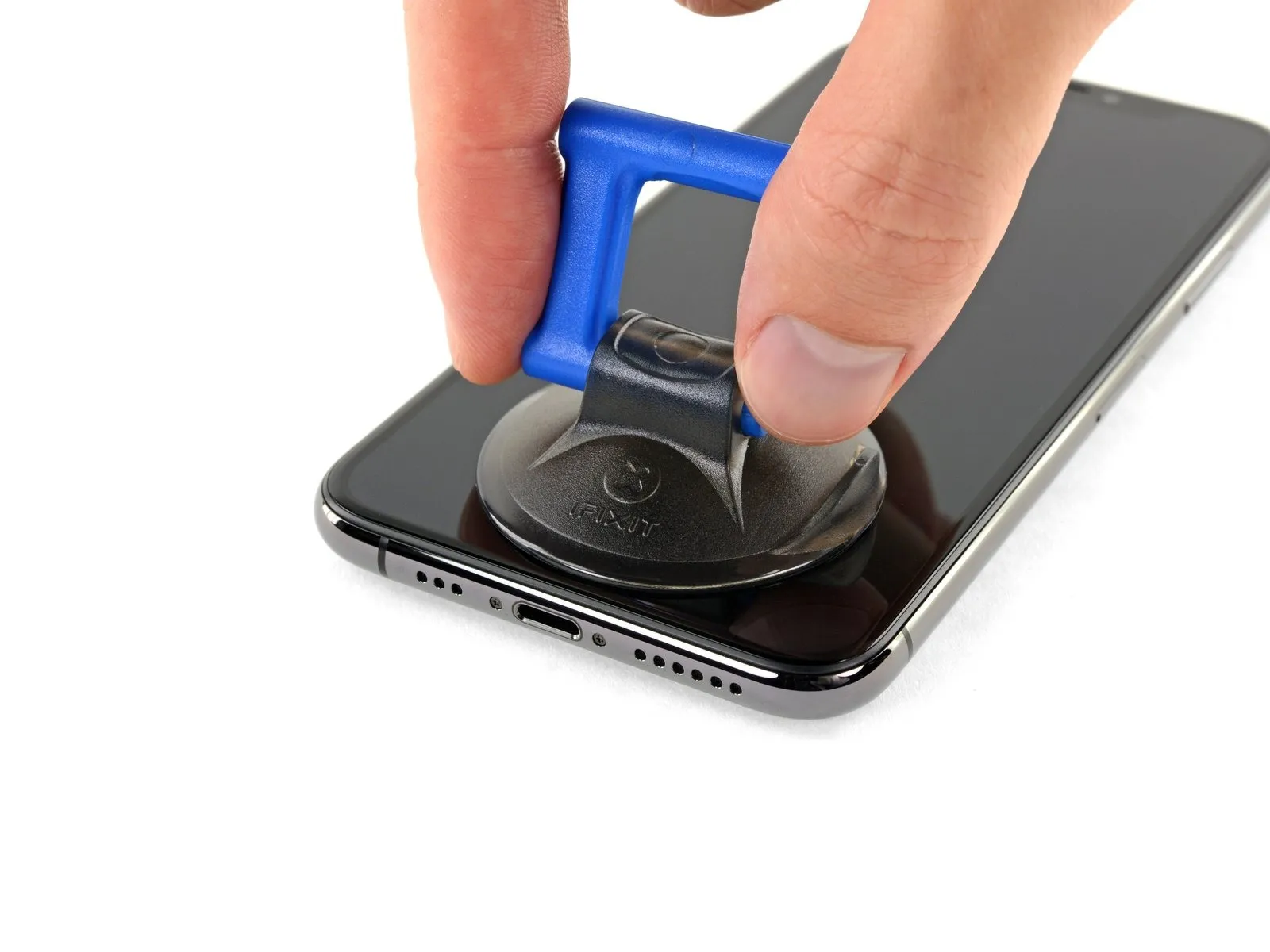

When employing a solitary suction handle, position it against the lower boundary of the device's frame, ensuring it does not contact the rounded glass surface.

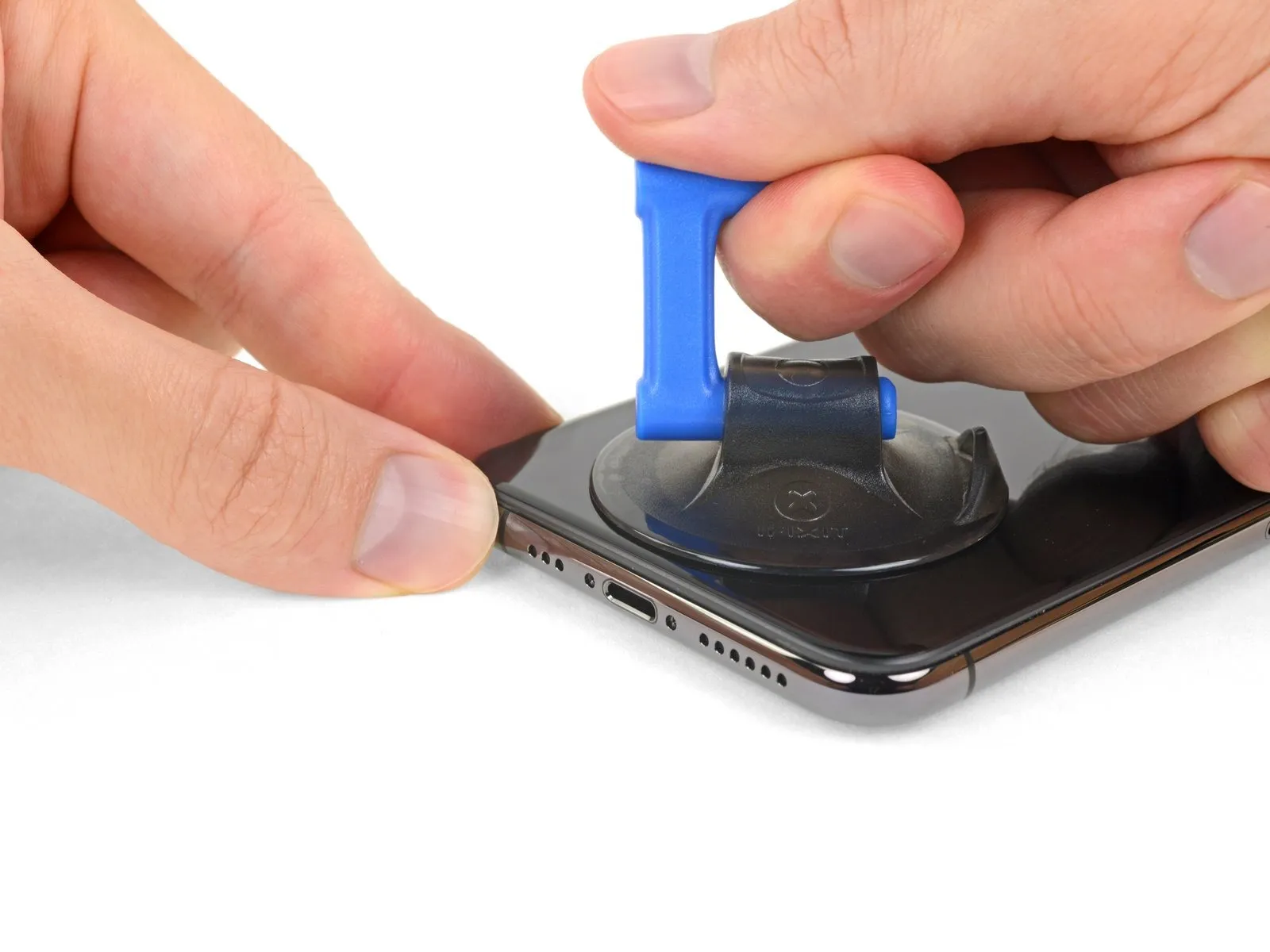

• Apply steady, consistent upward force to the suction cup to generate a small separation between the front panel assembly and the device's rear casing.

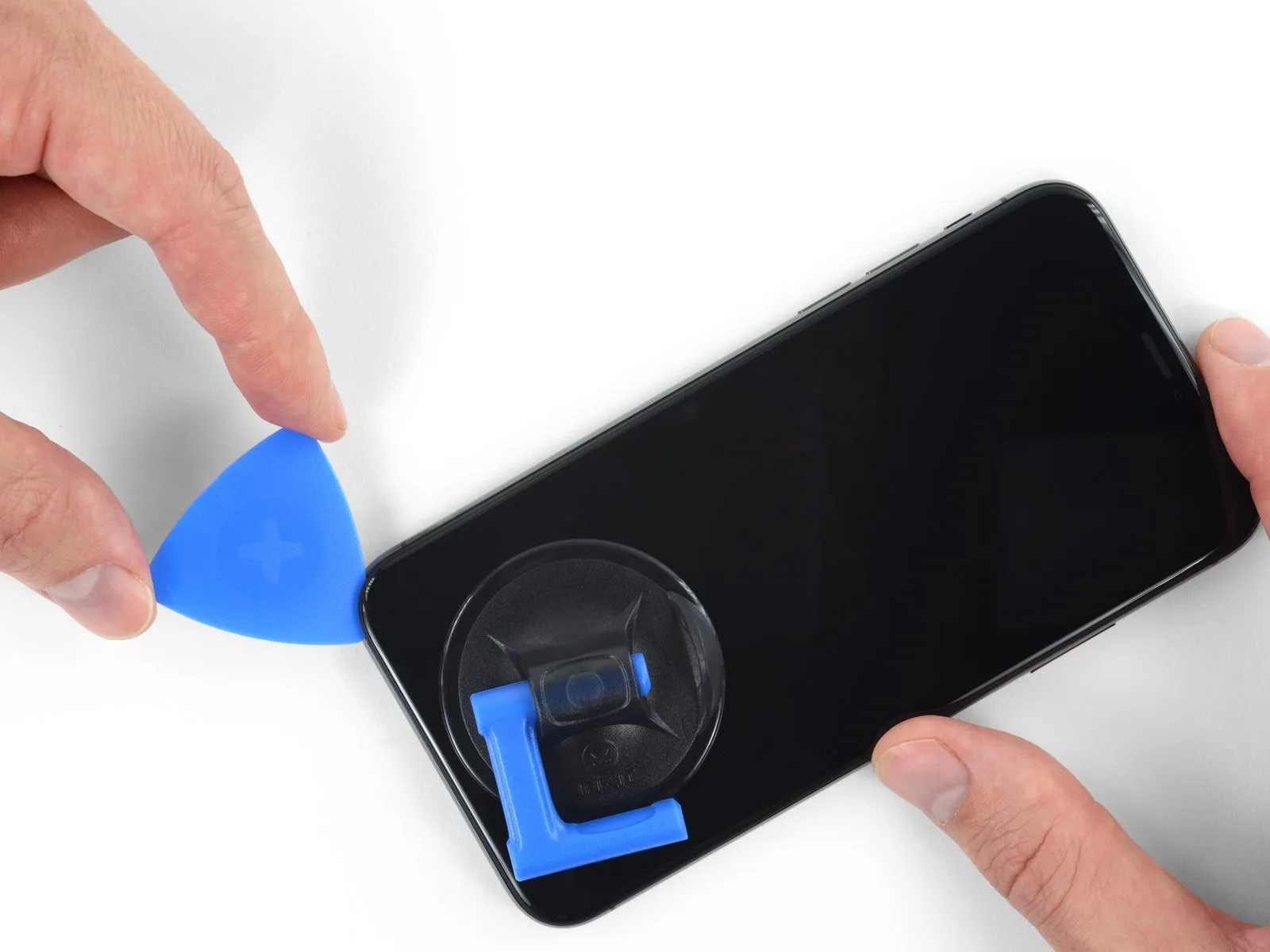

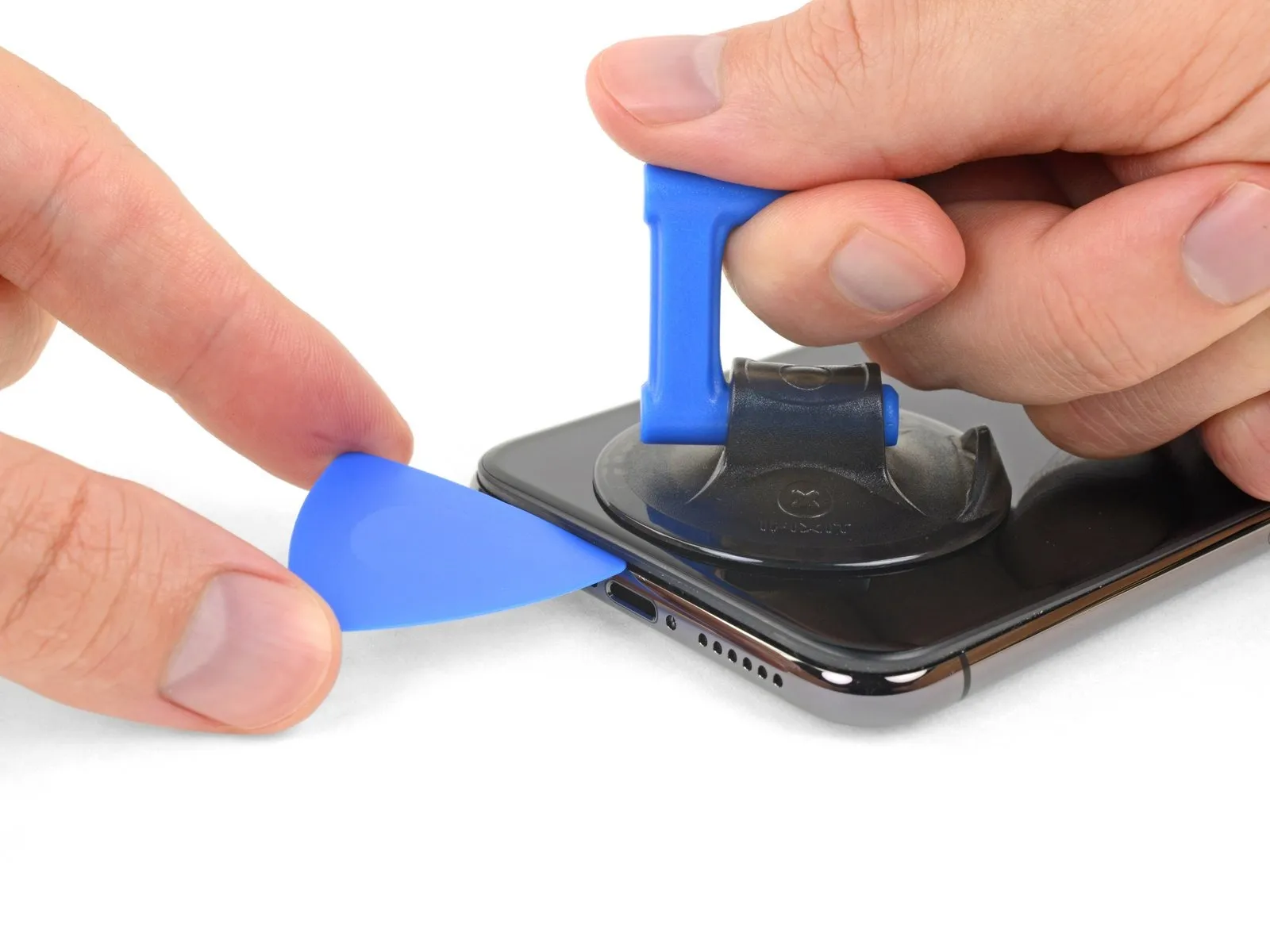

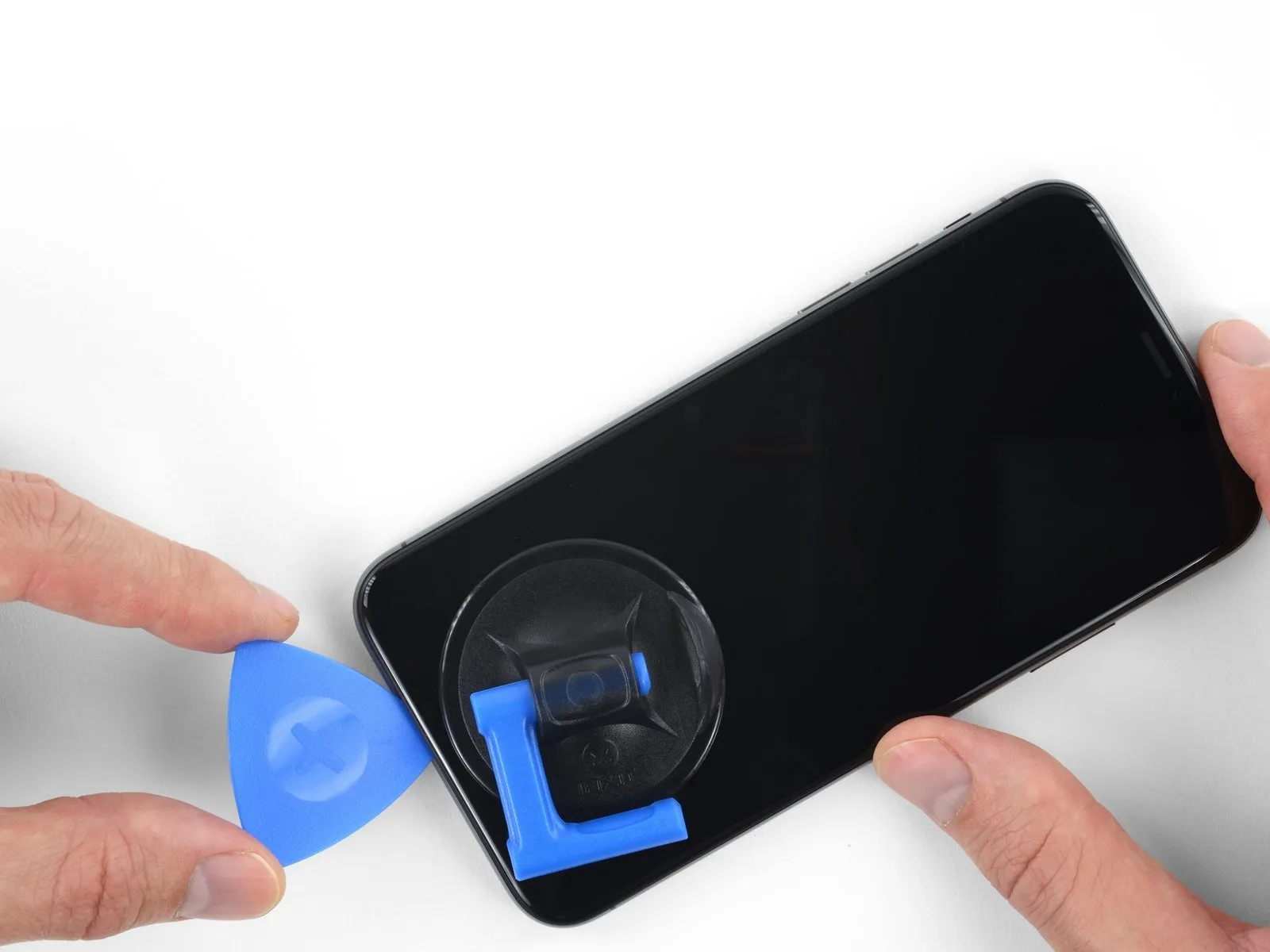

• Carefully slide an opening tool into the space formed beneath the display screen and the surrounding plastic trim, ensuring it does not contact the screen's surface directly.
• The display is secured by a robust, waterproof adhesive; establishing this initial separation requires considerable effort. Should you encounter difficulty in creating this gap, apply additional heat and gently move the screen in an upward and downward motion to reduce the adhesive's strength until a sufficient gap is achieved for tool insertion.

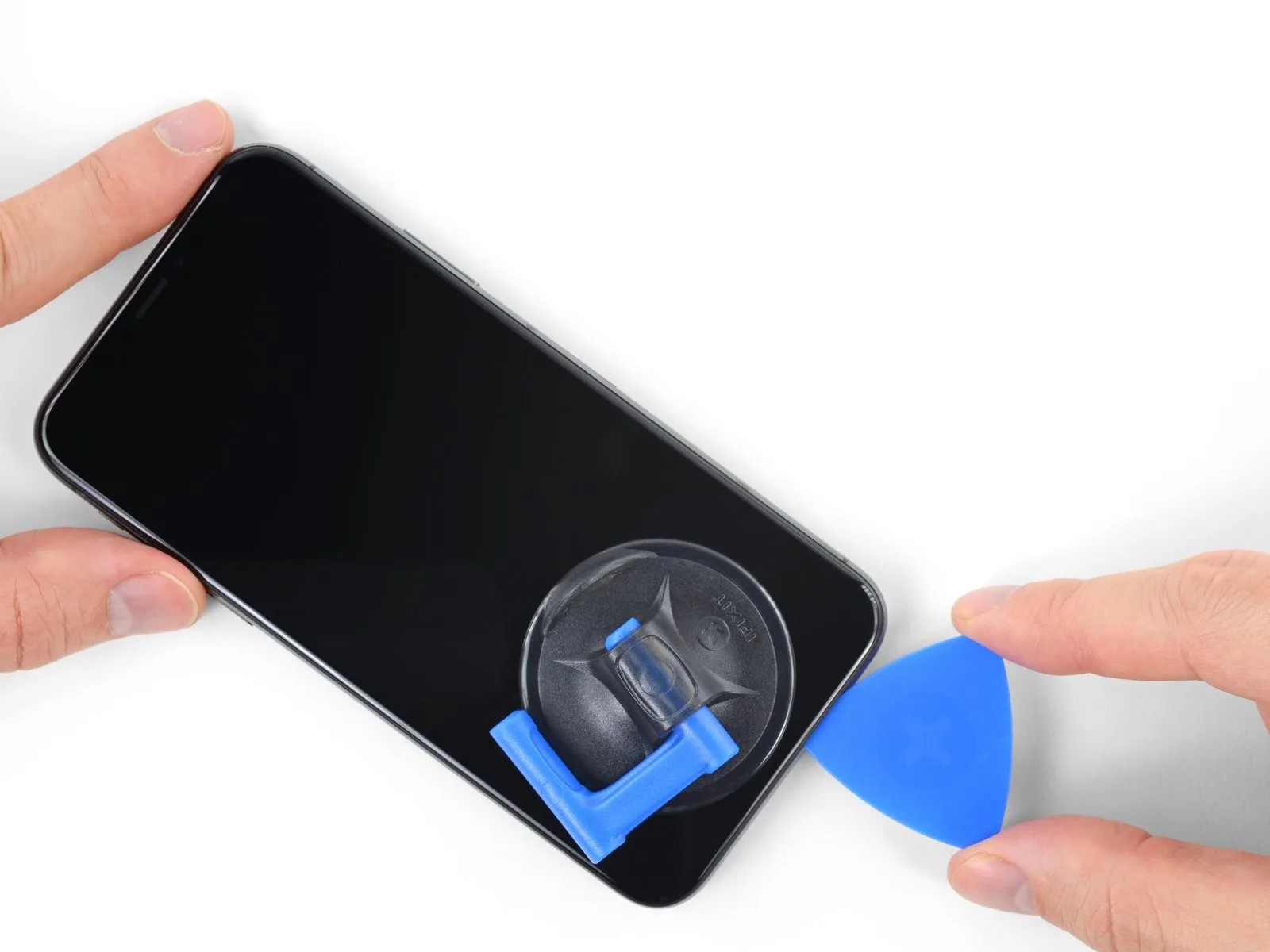

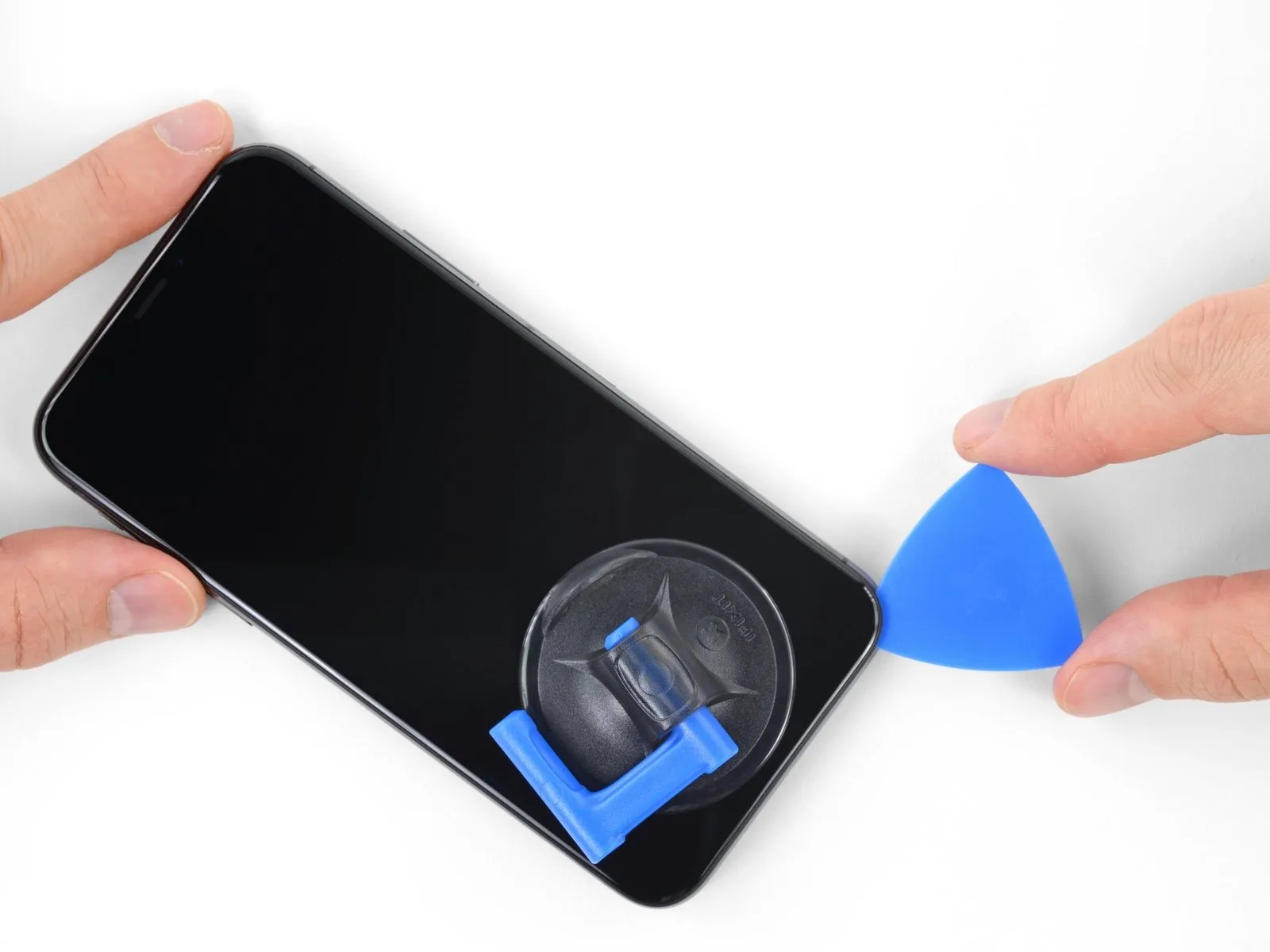

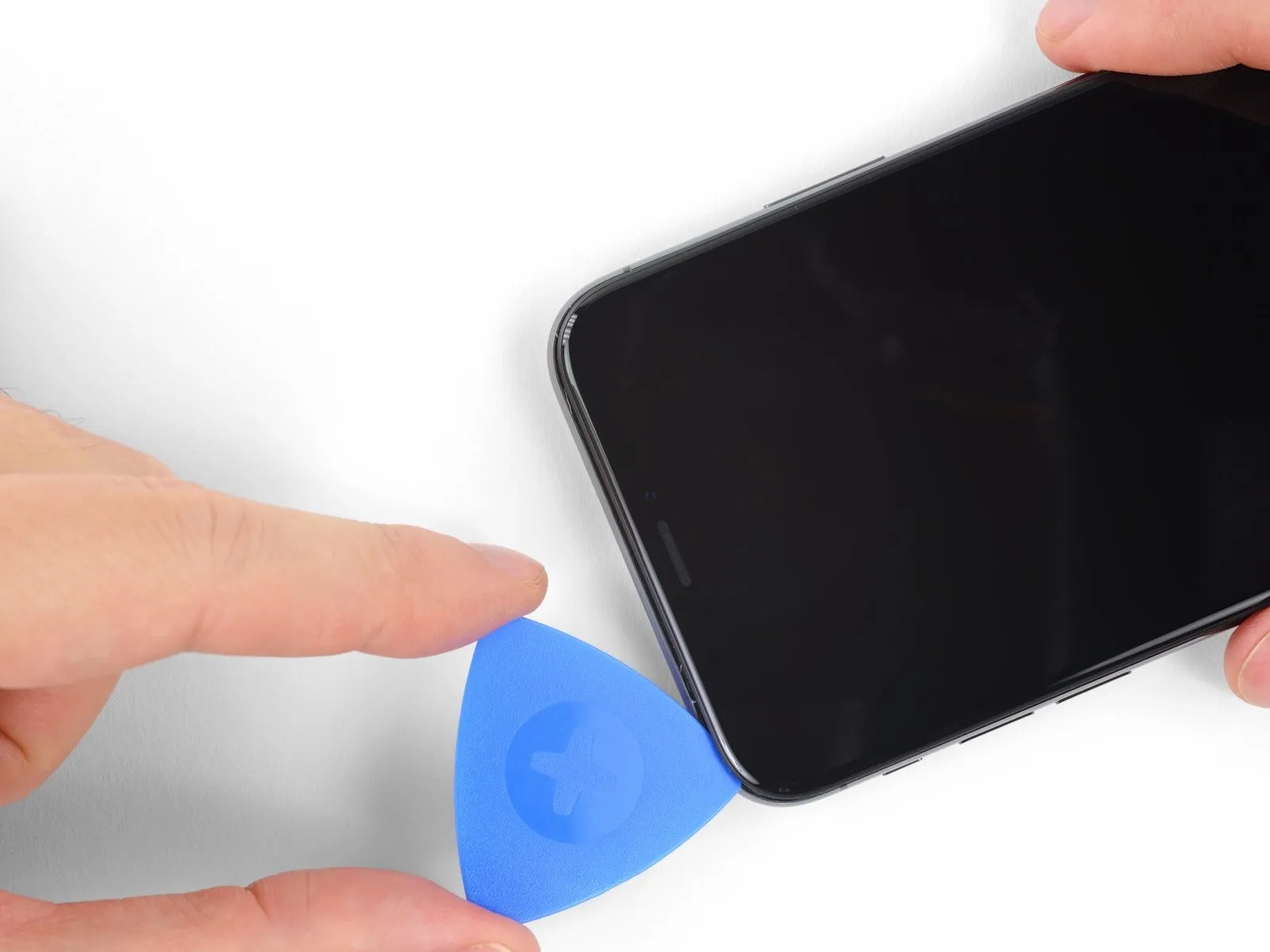

• Carefully maneuver the opening pick along the bottom-left perimeter of the iPhone, progressing upwards along the left side, to sever the adhesive securing the display assembly.
• Ensure the pick's insertion depth remains limited to3 mmto prevent potential harm to delicate internal parts.

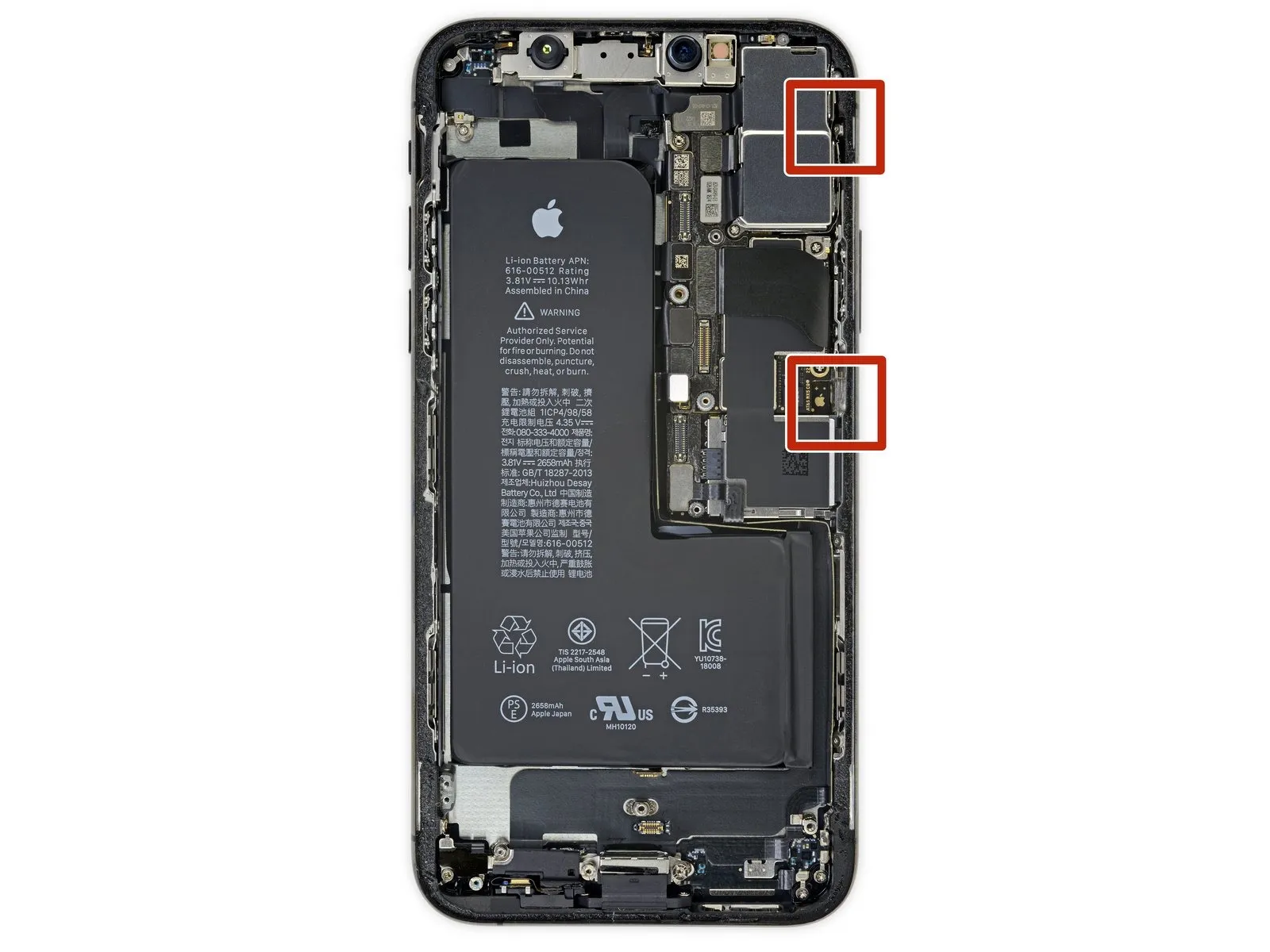

Along the right side of your iPhone, you'll find sensitive wiring; avoid inserting any tools in this area to prevent potential cable damage.

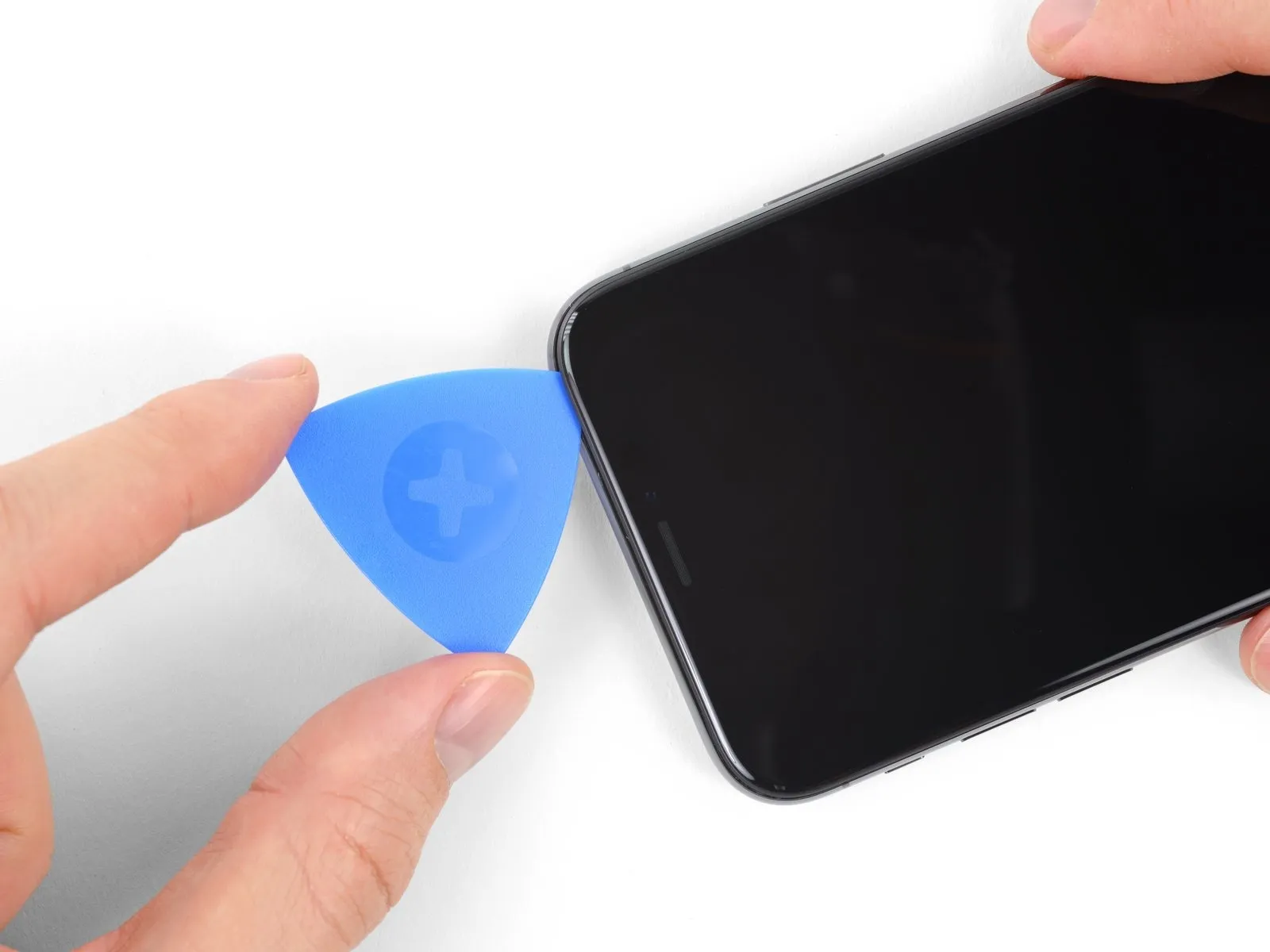

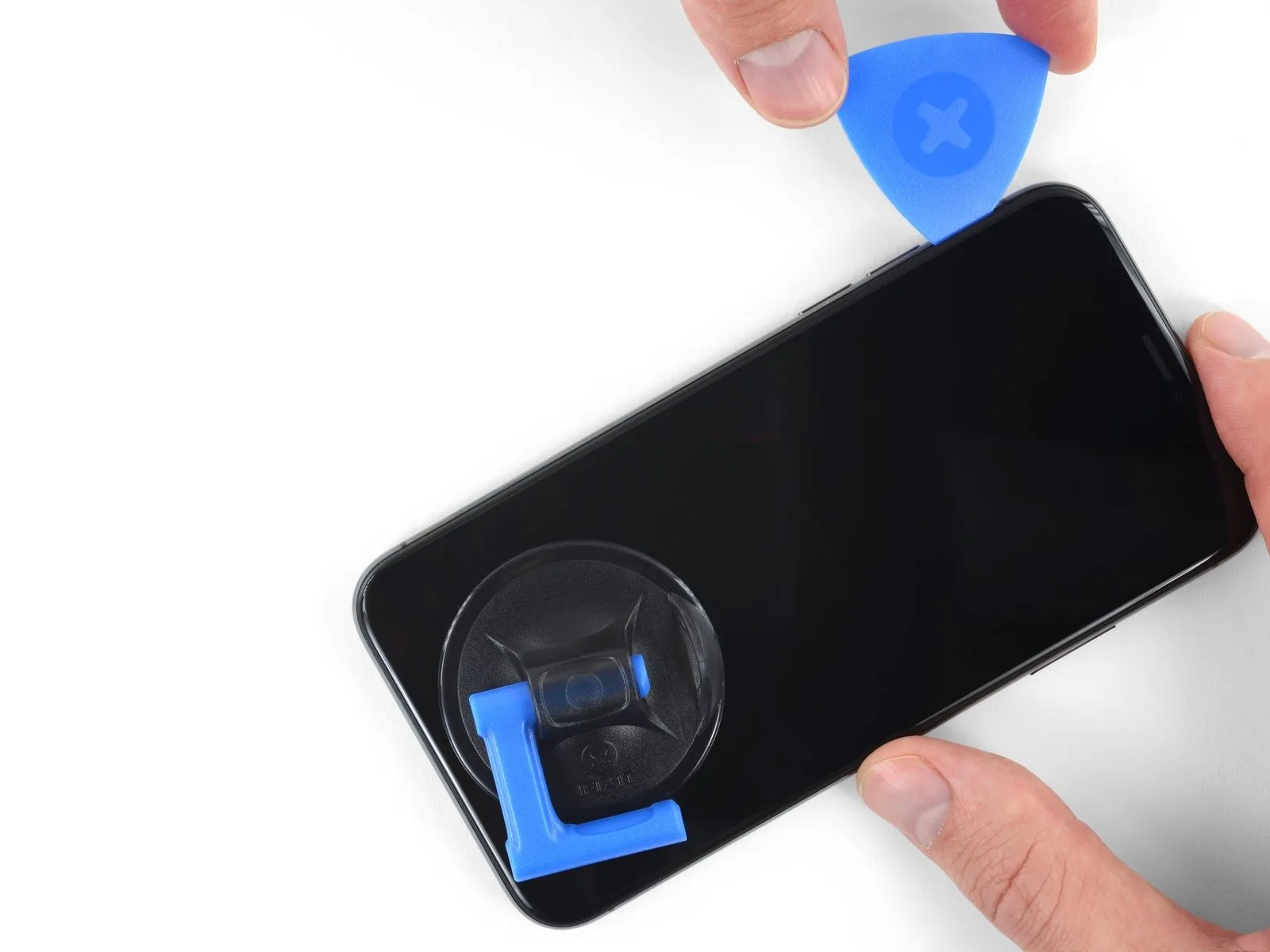

• To proceed with separating the adhesive, re-position your opening pick along the lower edge of the iPhone's casing, then advance it upwards along the right side.
• Ensure your opening pick does not penetrate deeper than 3 mm, to prevent potential harm to the delicate display cable connections.

• Adhesive and retaining clips together fasten the uppermost boundary of the screen assembly.

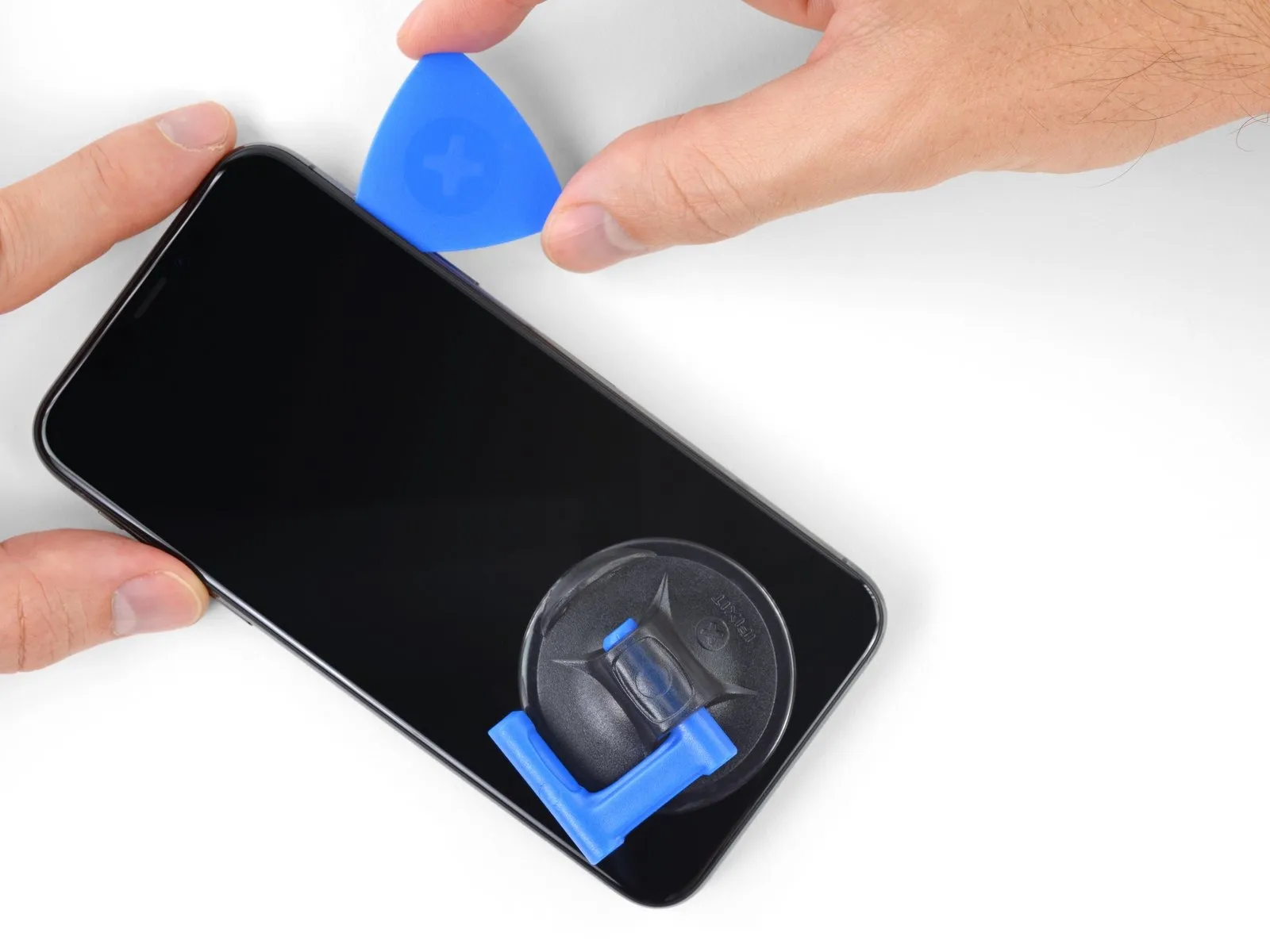

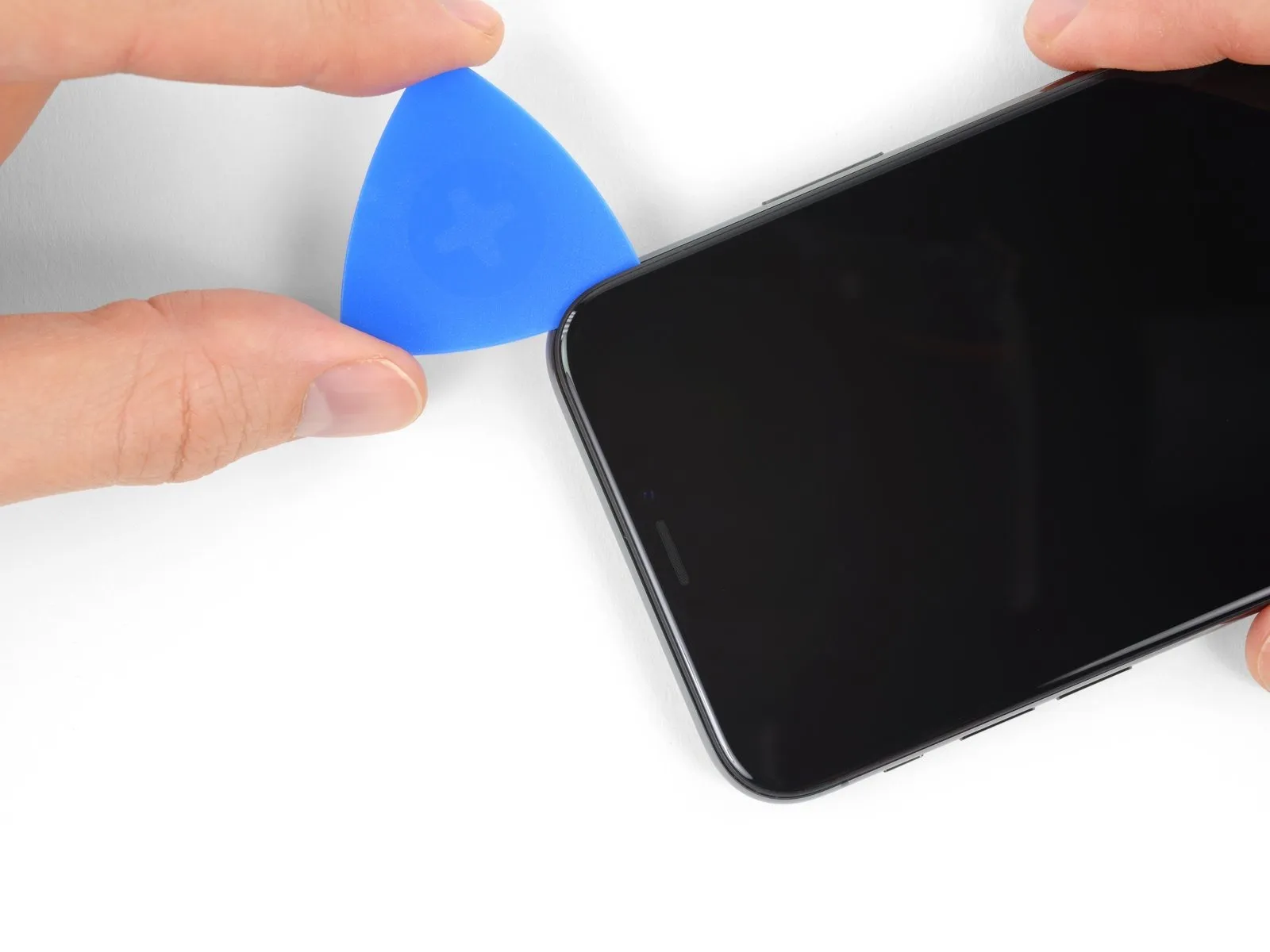

• Employing a specialized opening tool, maneuver it along the upper corner of the display, applying slight downward traction or oscillating movement towards the Lightning connector’s location.
• Excessive force applied to the retaining clips will result in their breakage; therefore, proceed with caution and deliberate care.
• Limit pick insertion depth to a maximum of 3 millimeters to prevent potential harm to the front panel sensor array.
• Continue sliding the tool to the opposing corner, severing any residual adhesive holding the display in place.

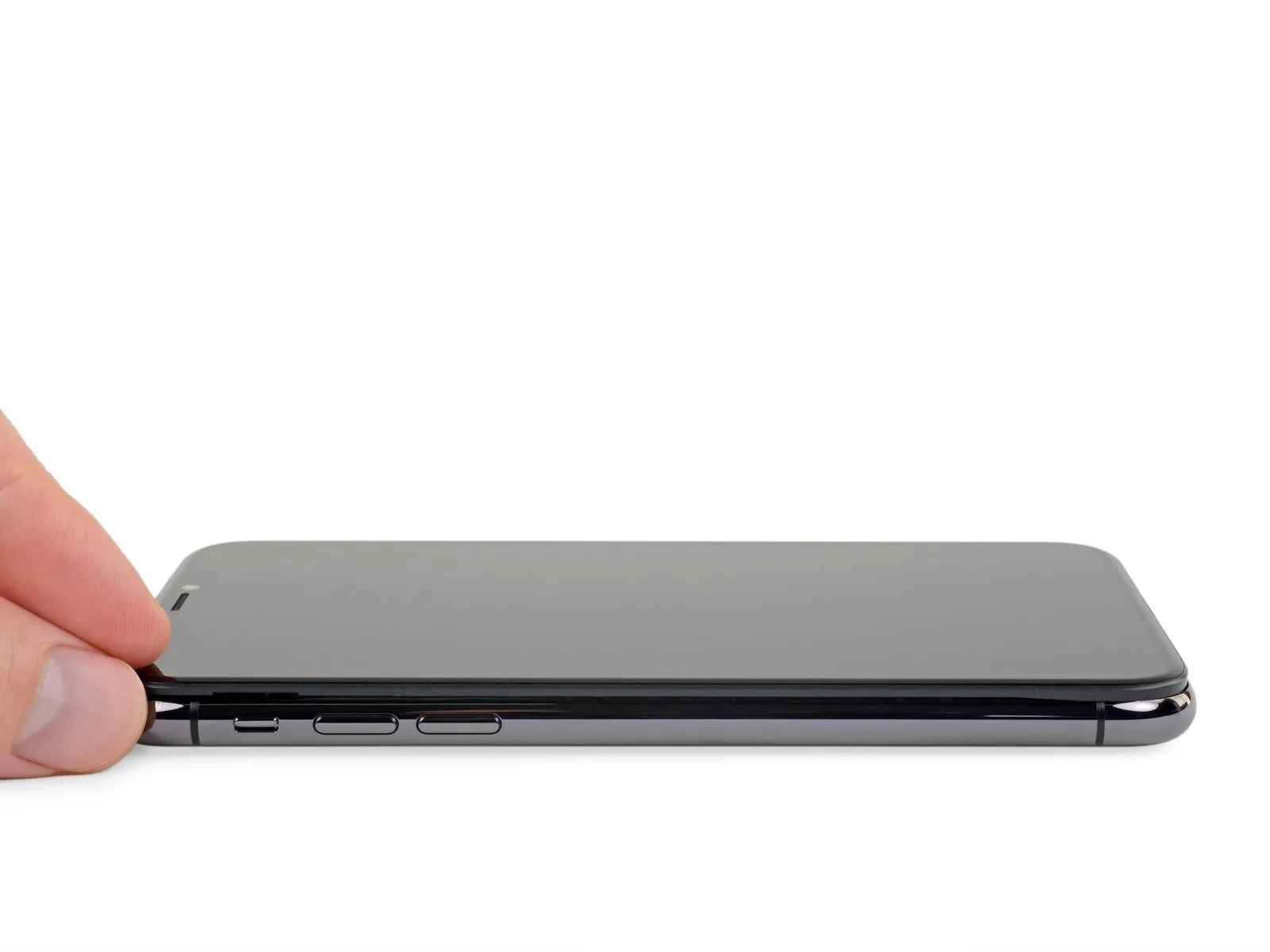

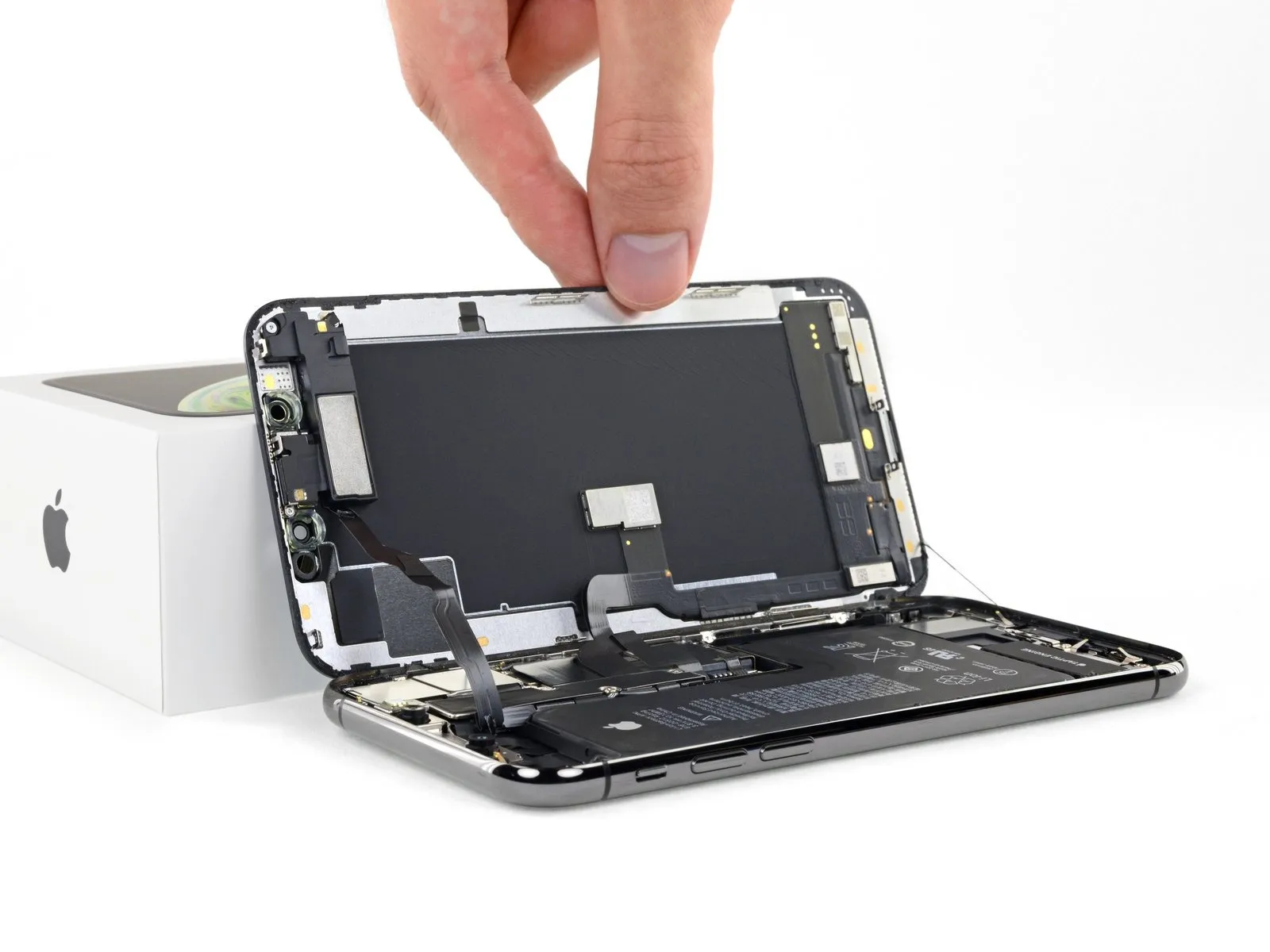

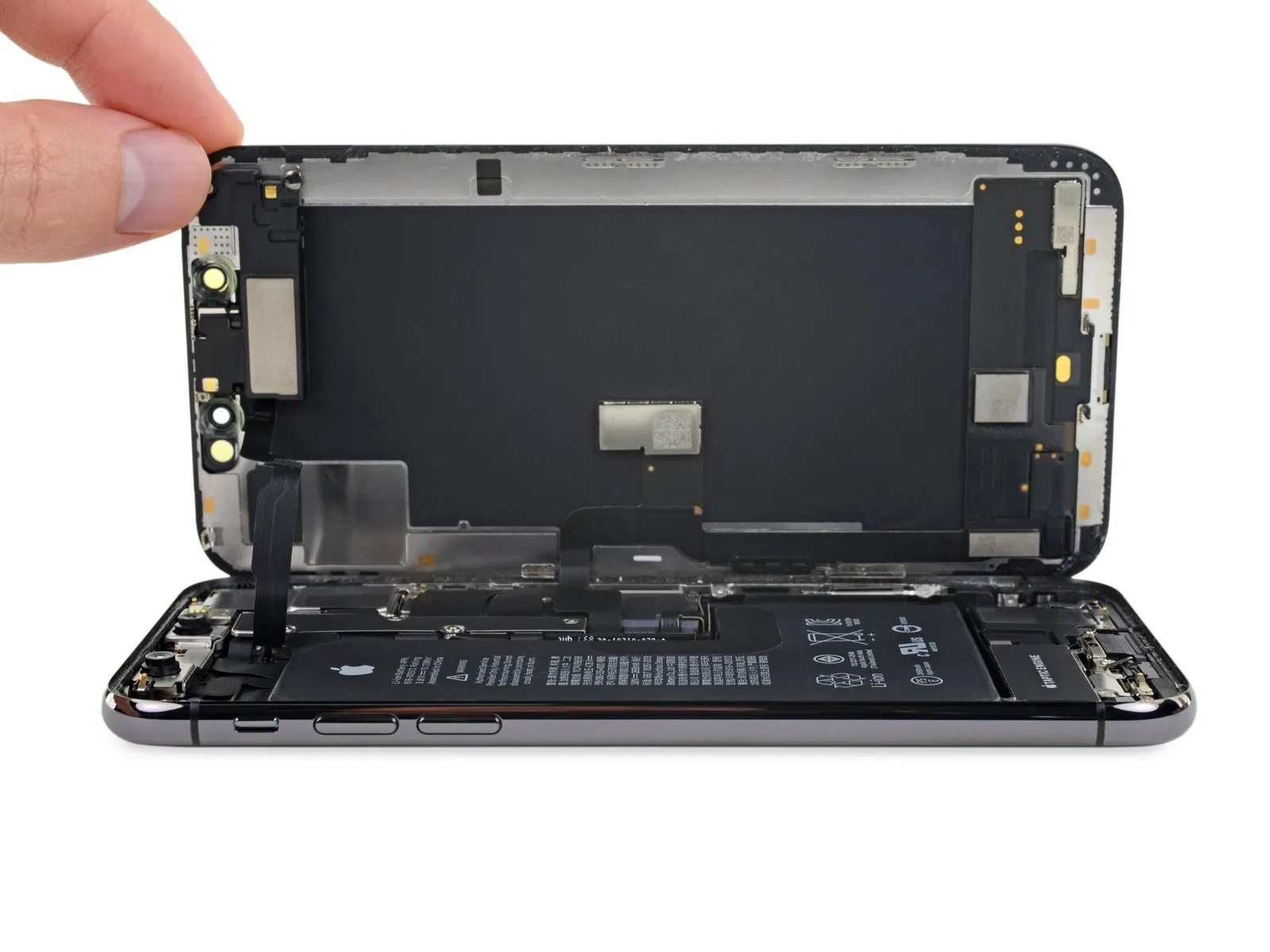

• To access the internal components of the iPhone, initiate the opening process by pivoting the display upwards from the left side, employing a motion similar to opening a book's cover.
• Refrain from completely detaching the display at this stage, because multiple delicate ribbon cables remain connected to the iPhone’s logic board.
• Secure the display in an upright position using a support to maintain access to the internal components during the repair process.
• When reassembling the device, position the display, ensuring the clips along the upper edge are properly aligned, and then gently apply pressure to the top edge to secure it before engaging the remaining display components. Should the display not readily click into place, inspect the clips around the display's perimeter to verify they are not deformed.

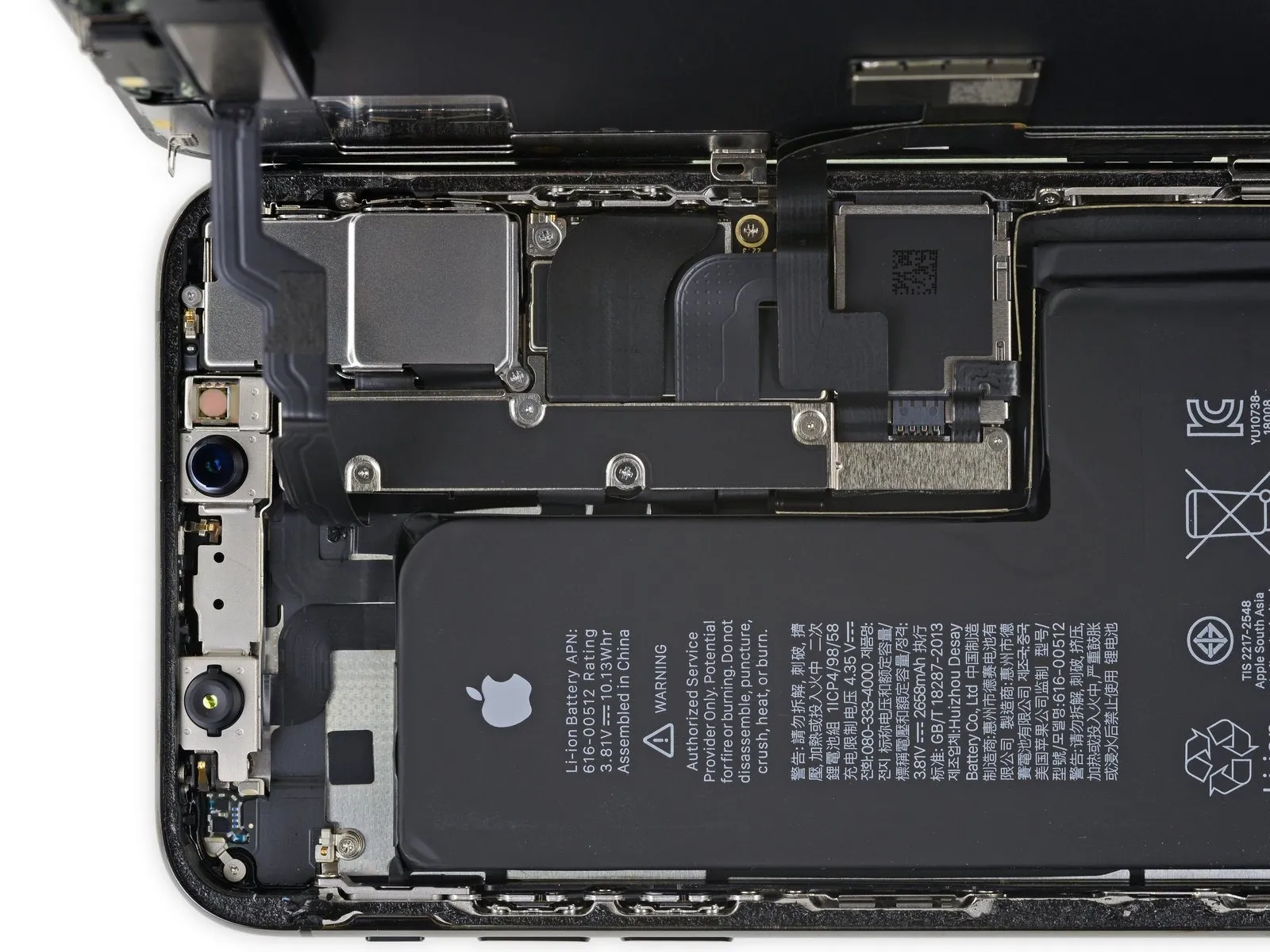

• Detach the logic board connector bracket by unscrewing five fasteners.
• Utilize three screws measuring 1.0 millimeters in length, employing a Y000 screwdriver.
• A single 1.3 mm Y000 screw is also required.
• Additionally, a Phillips screw with a 3.7 mm head is necessary.

• Detach the bracket.
• Thebracketmight be subtly affixed; apply a careful, yet resolute upward force to disengage it.

As you reassemble the device, it's advisable to activate your iPhone and verify all operational capabilities prior to securing the display. Ensure your iPhone is fully powered off before proceeding with further repairs.

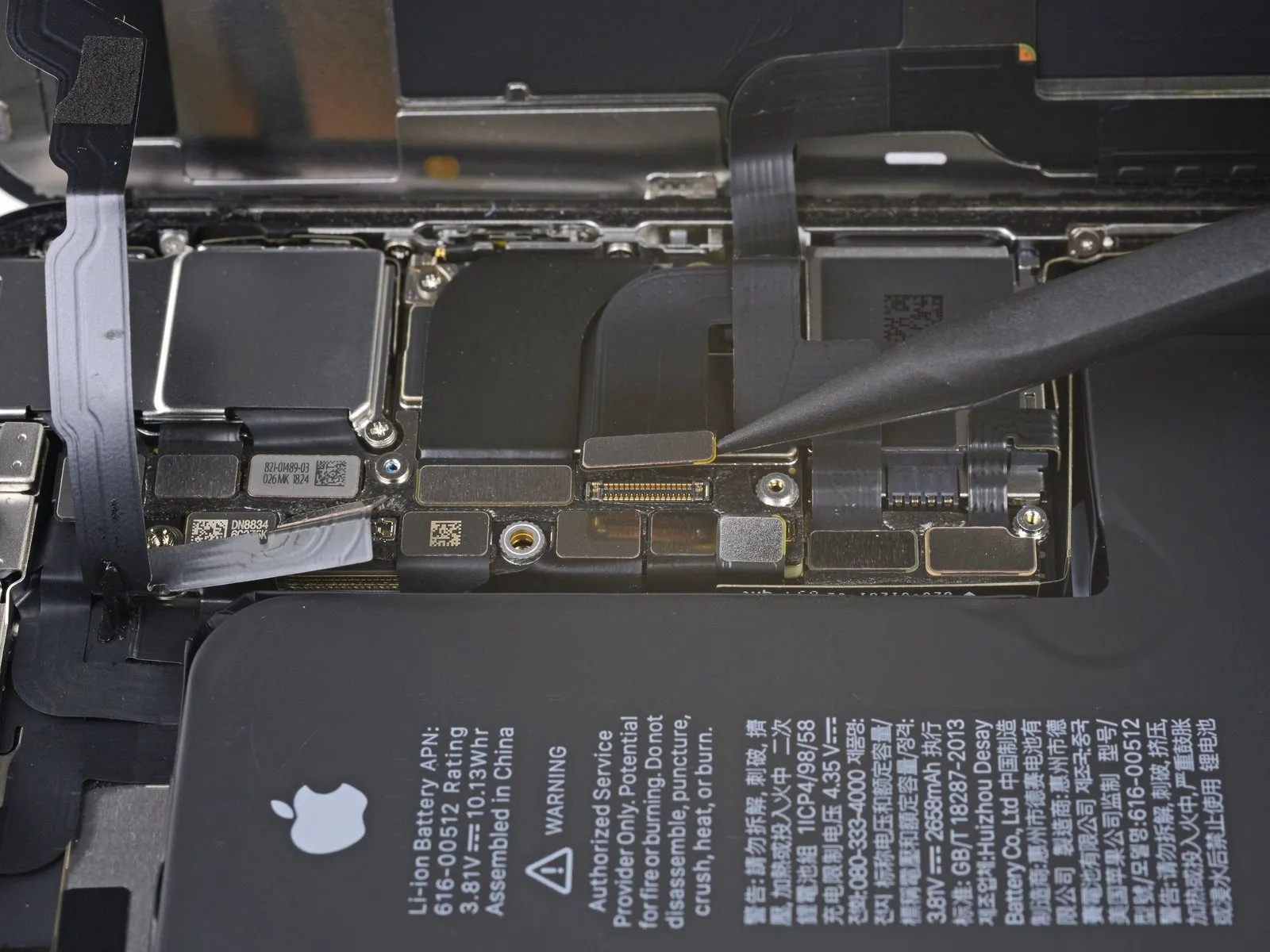

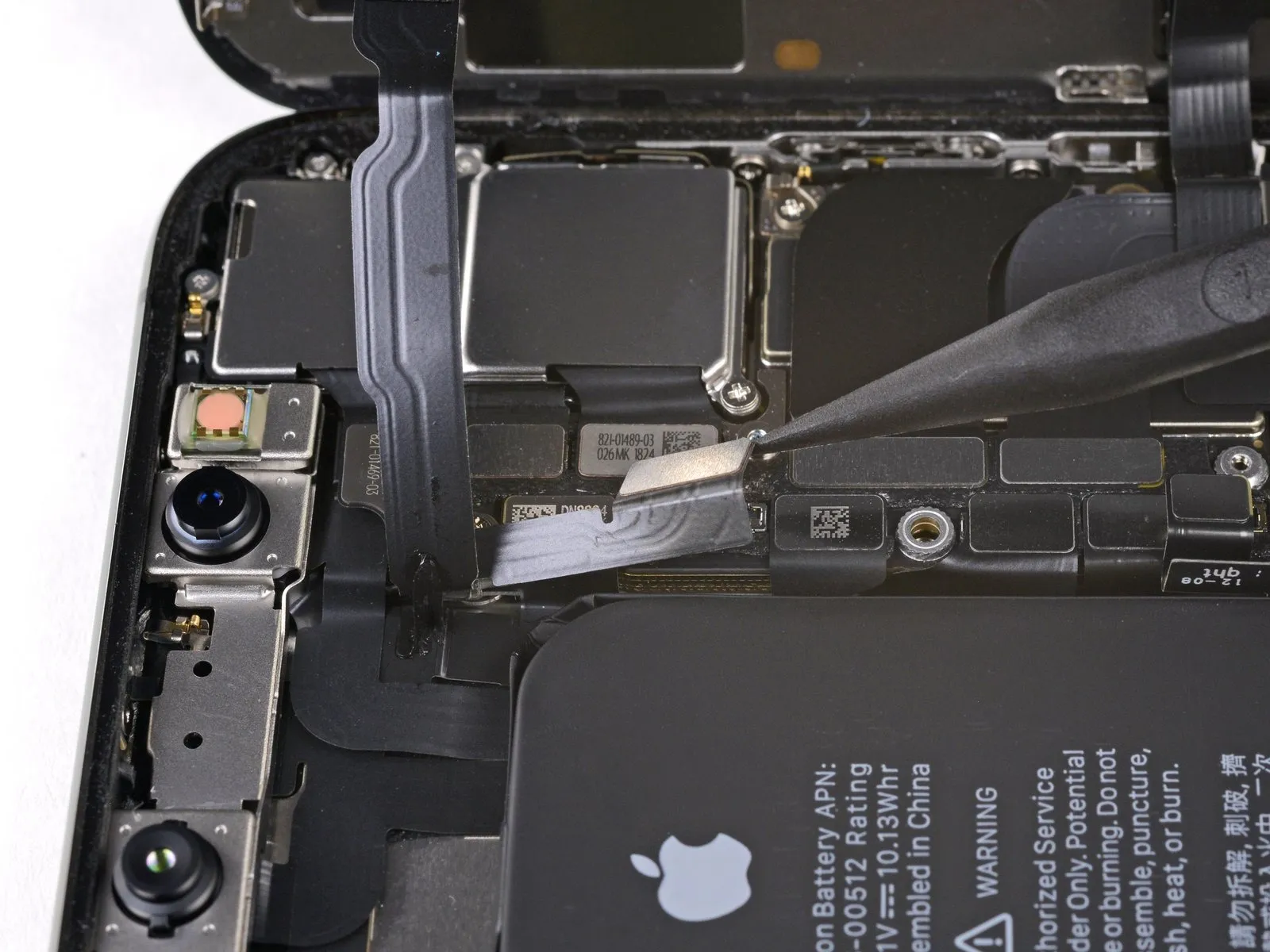

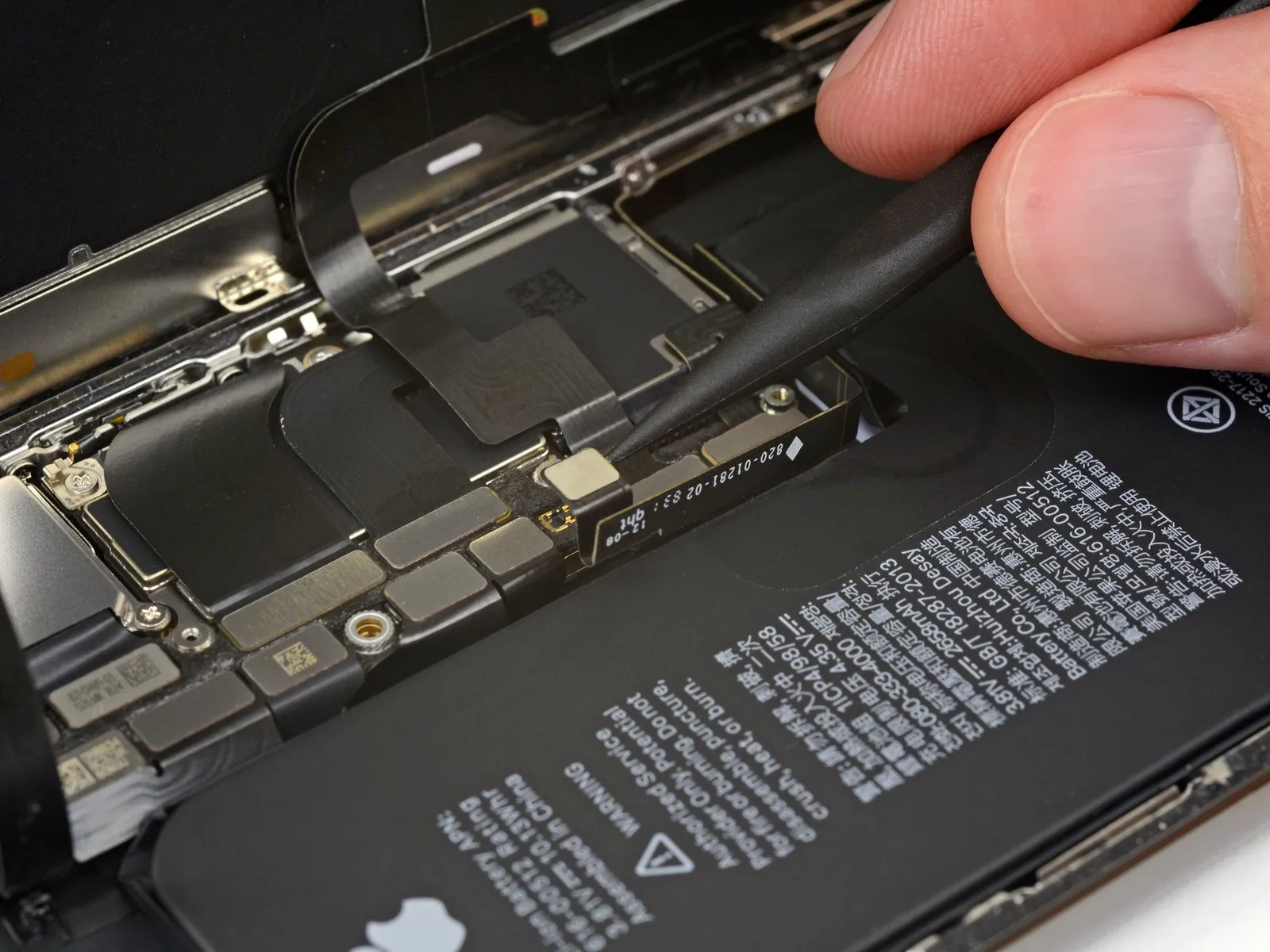

• Employ a spudgerAlternatively, a pristine fingernail can be utilized to lift the battery connector from its corresponding receptacle on the logic board.
• Exercise caution to avoid harming the black silicone sealant that encases this and other board connections, as it offers supplemental defense against water and dust penetration.
• Slightly deflect the connector away from the logic board's surface to ensure it remains disconnected and prevents unintended power delivery to the device during the repair process.

Employ a spudgerAlternatively, utilize a fingernail to carefully lift and detach the connector linking the front panel sensor assembly.

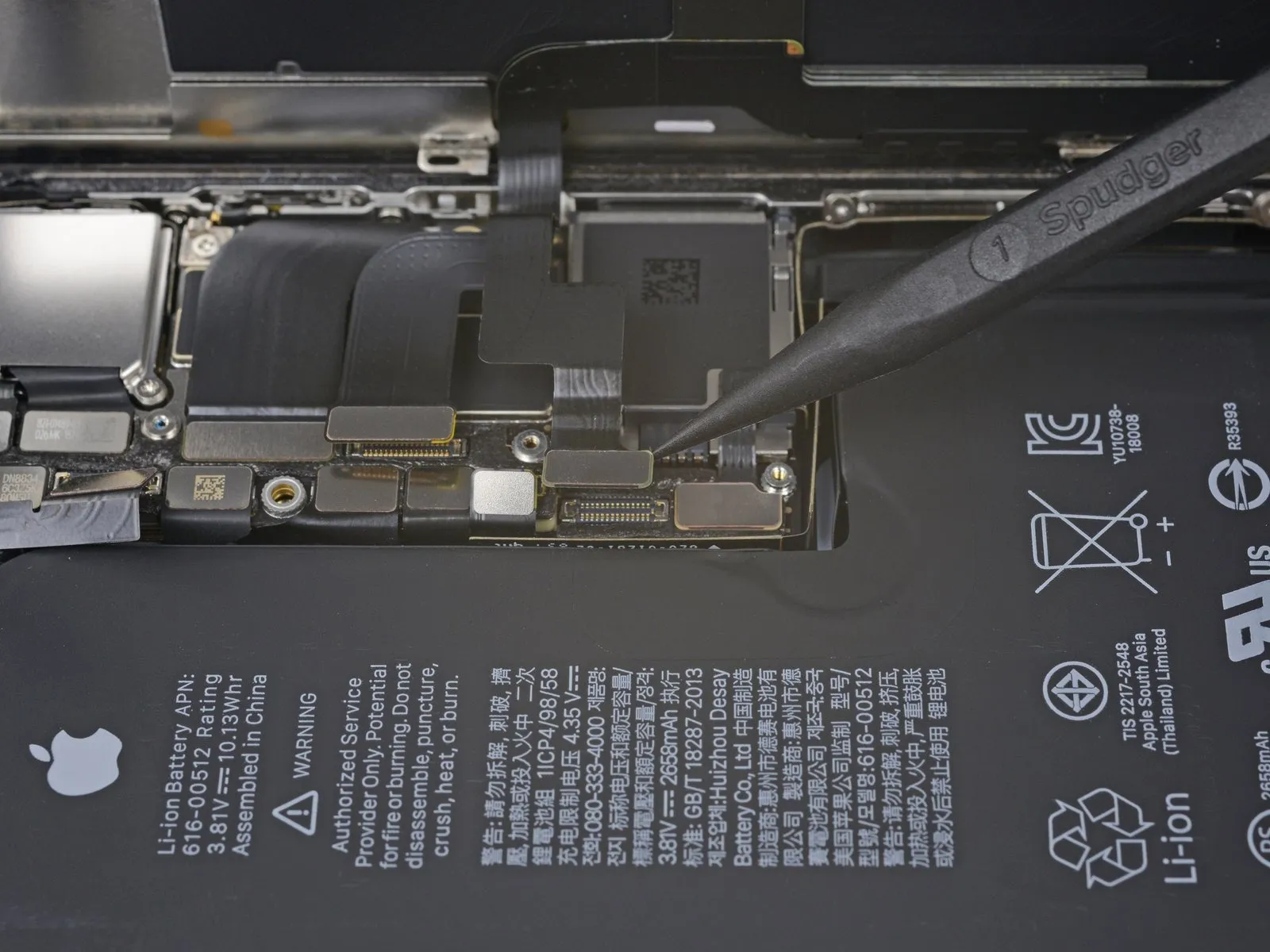

• Employ a spudgeror a fingernail to release the OLED panel cable connector's connection.
• For reattachment, position the connectors similarly, meticulously aligning and applying pressure to a single edge until a click is heard; subsequently, repeat this process on the opposing edge. Avoid applying pressure to the central portion; misalignment risks bending the pins, potentially resulting in irreversible damage.

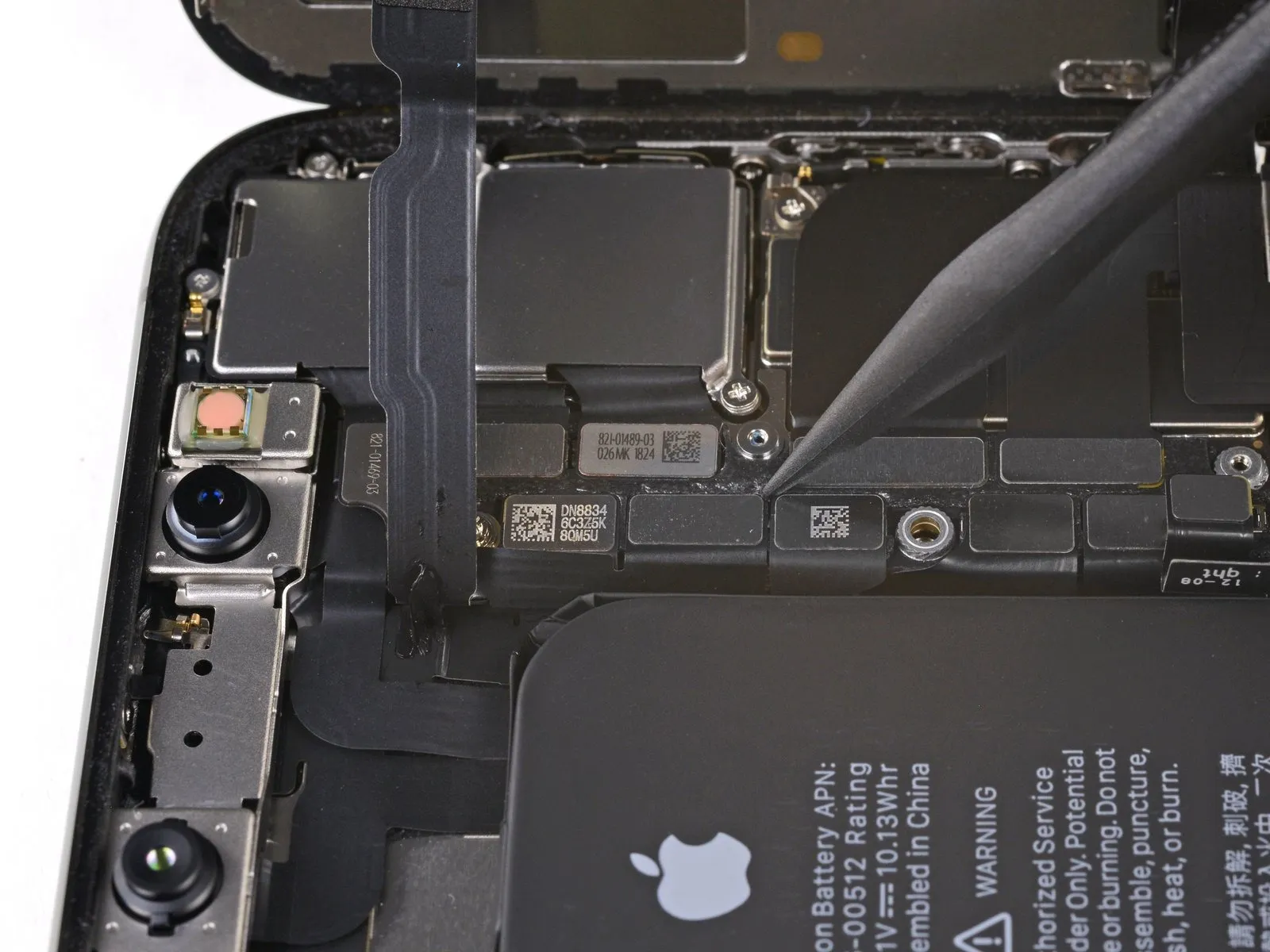

• Employ a spudger or fingernailto carefully lift the digitizer cable connector from its receptacle.
  Due to the connector's deeply set position, reattachment can be challenging; proceed deliberately, ensuring precise alignment before applying gentle pressure with your fingertip to secure it – initially one side, then the other, until a distinct clicking sound confirms its proper engagement.
• Should any area of the screen exhibit a lack of touch responsiveness following the repair, initially detach the battery, then re-engage the connector, verifying a full click and confirming the absence of any dust or foreign material within the socket.

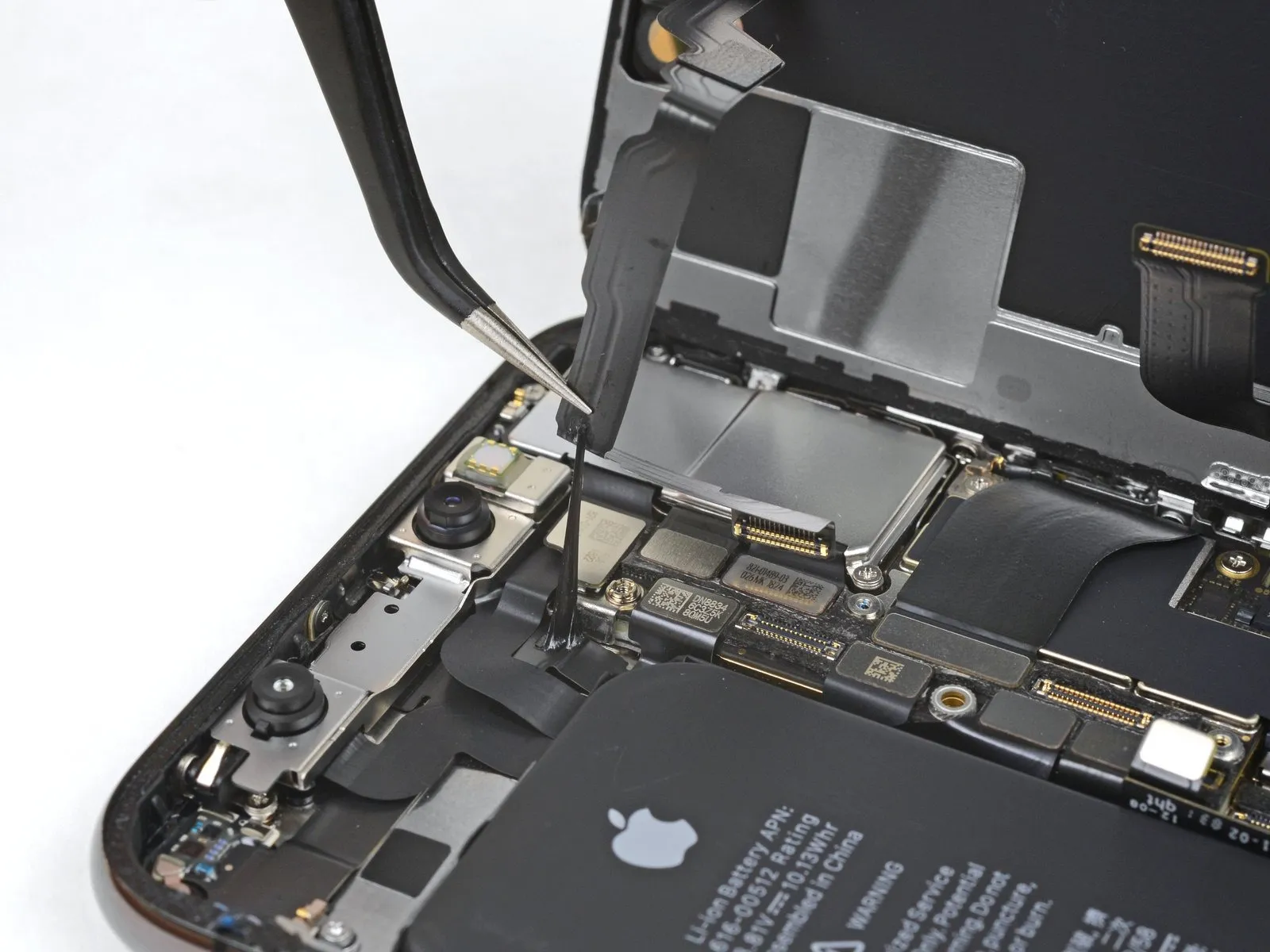

A minimal amount of adhesive secures the front panel sensor assembly flex cable to its location.

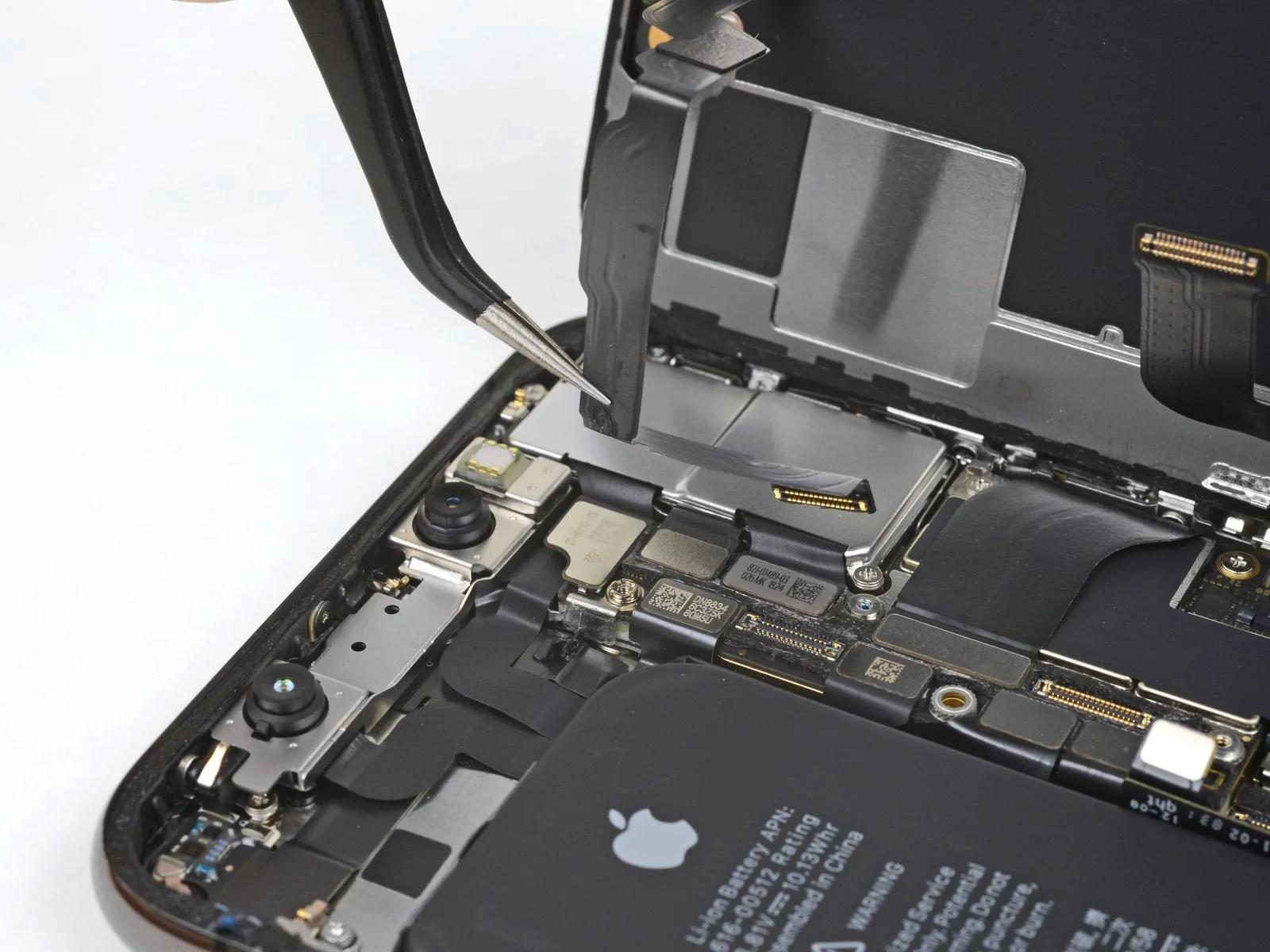

Gently raise the cable to release the adhesive bond.

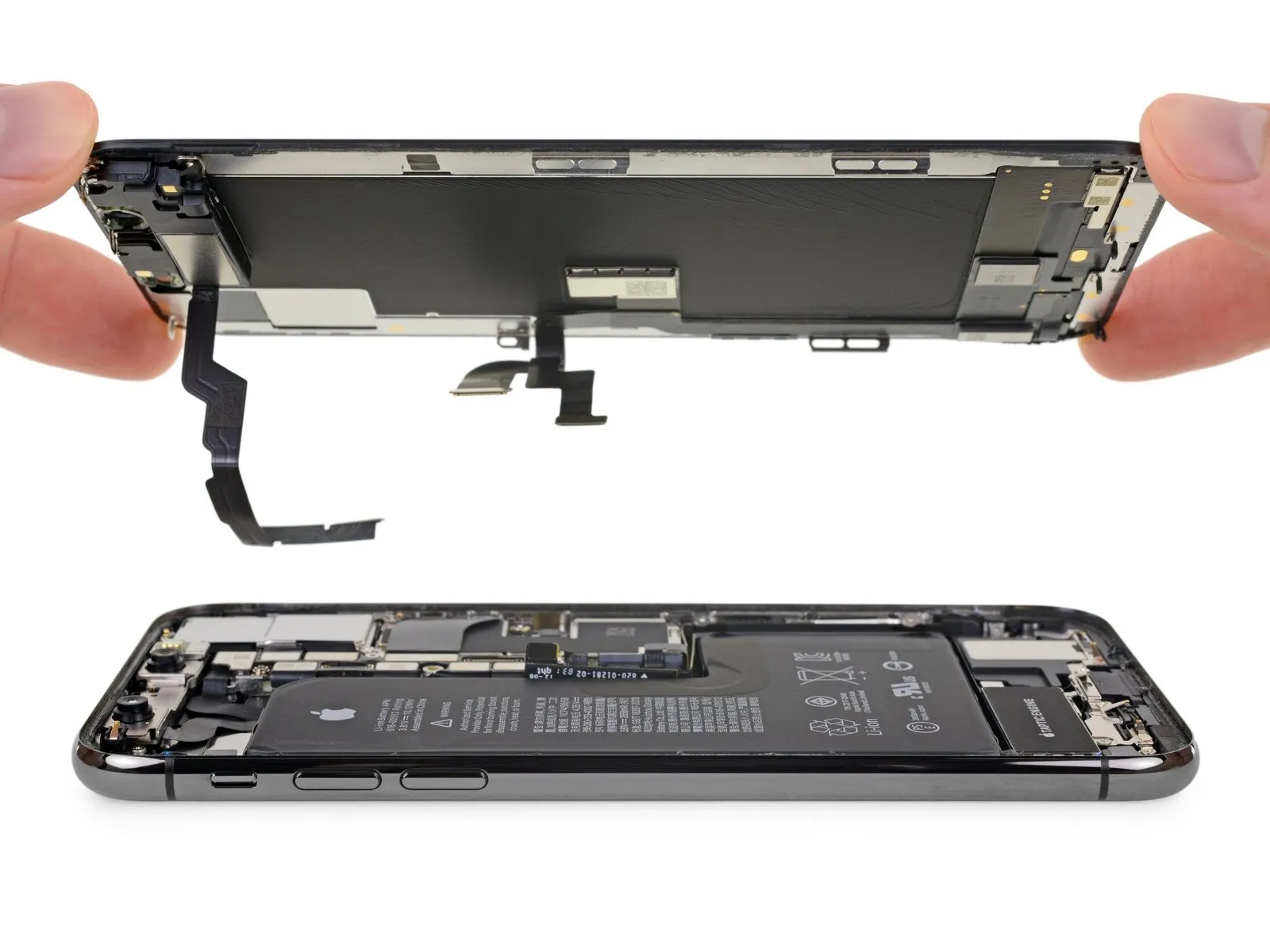

Detach the display unit from the device.
When putting the device back together, halt at this stage should you decide to substitute the waterproof adhesive positioned along the display's perimeter.

Carefully lift and detach any adhesive tape securing the concealed screw located at the speaker housing's lower right section on the display assembly's rear surface.

To detach the speaker/sensor assembly, first eliminate the three Y000 screws that hold it in place.

• A single screw with a 1.3-millimeter head is required.
• A separate screw, featuring a 1.4-millimeter head, is also needed.
• Additionally, utilize a screw with a 1.9-millimeter head for this process.

A minimal adhesive secures the earpiece speaker within its location.

• Employing a spudger tool, carefully lift the speaker assembly from its position by levering it from the display's upper boundary, pivoting it downwards and outwards.
• The speaker is connected by a delicate flex cable; exercise caution to prevent undue stress or harm to this cable.

To loosen the adhesive bonds holding the sensors in place, apply heat using a hairdryer, heat gun, or an iOpener to the upper frontal surface of the display for approximately one minute.

Utilizing an opening pick, cautiously insert its edge beneath the flexible cable situated near the microphone.

• Apply a slight rotational force to detach the microphone, exercising caution to prevent undue stress or harm to the flex cable.
• Should separation prove challenging, employ the tip of a spudger to complete the detachment of the microphone from its recess within the front panel; increasing the heat may be necessary to facilitate this process.

• Commencing with the left side, insert a separating tool beneath the flexible cable and also beneath the proximity sensor and flood illuminator module assembly.
• Employing a gentle wiggling motion, elevate the module to disengage it from its corresponding recess within the front panel.
• To facilitate access, supporting the speaker by lifting and holding it is beneficial; however, exercise caution to avoid stressing the delicate flexible cable during the process.

• Employing tweezers, gently maneuver the ambient light sensor to dislodge it from its designated slot within the display panel.
• Should the sensor resist separation after a brief attempt, increase the applied heat and repeat the loosening procedure.
• A delicate flex cable secures the sensor to the larger sensor assembly; exercise caution to prevent any undue stress or harm to this cable.

• Following complete removal of the ambient light sensor, as visually demonstrated in the initial image, proceed to the subsequent instructions.
• Should the white diffuser strip become separated and become lodged within the display assembly, as depicted in the second photograph, utilize a slender blade or prying instrument to gently dislodge it from the upper boundary. Applying warmth beforehand might facilitate this process.
• For reassembly, initially position the diffuser within the display, ensuring correct orientation; the front surface is illustrated in the first image, while the rear surface is shown in the third image.
• Subsequently, place the ambient light sensor atop the diffuser; maintain its position while fastening the screws that secure the earpiece/sensor assembly. Upon tightening these screws, the sensor will remain secured and function as intended.

• Carefully detach the earpiece speaker and front sensor assembly from the device.
• When putting the device back together, verify the placement of the black plastic module which houses these parts:
  Proximity sensor
  Flood illuminator
• Ensure this module is situated in a way that prevents any adhesive from blocking the functionality of the proximity sensor and flood illuminator.
