iPhone XS Taptic Engine Replacement

The Taptic Engineis responsible for generating both vibration and tactile feedback within your iPhone. Adhere to the instructions in this document to detach and/or substitute the Taptic Engine from your iPhone XS.

  • To safeguard the display cables from unintended stress or potential harm, this procedure necessitates complete removal of the display assembly; therefore, it is mandatory.
  • Should you possess the confidence to extract the Taptic Engine without risking damage to the display cables, you may bypass the procedures detailed for display cable disconnection.

Step 1 | Pentalobe Screws

Step 1 image
  • As a preliminary precaution, ensure your iPhone's battery has been depleted to a level below 25% prior to commencing the repair process.A fully charged lithium-ion batteryposes a significant fire hazard and/or risk of explosion if it sustains accidental physical damage, such as a puncture.
  • Deactivate your iPhone by powering it down completely before you start disassembling it.
  • Utilize a screwdriver to extract the pair of pentalobe screws, each measuring 6.9 mm in length, located along the iPhone's lower edge.
  • Separating the iPhone's display assembly will inevitably damage the integrated waterproof seals; therefore, prepare replacement seals beforehand to maintain water resistance, or exercise extreme caution to prevent liquid ingress if you intend to reassemble the iPhone without new seals.

Step 2 | Mark your opening picks

Step 2 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • To avoid potential harm to your device, ensure the opening pick does not extend beyond its intended insertion depth; this procedure details how to identify a safe insertion point by marking the pick.
  • Determine the distance of3 mmfrom the pick's leading edge, then use a permanent marker to create a visible indication on the opening pick.
  • For enhanced precision, consider marking additional points on the pick's corners with varying measurements.
  • As another method, affix a coin to the pick's shaft,3 mmaway from its tip.

Step 3 | Tape over any cracks

Step 3 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • To mitigate additional damage and potential injury when addressing a cracked iPhone screen, secure the glass fragments with adhesive tape.
  • Apply successive layers of transparent packing tape across the iPhone's display surface, ensuring complete coverage of the front face.
  • Always utilize eye protection, specifically safety glasses, to guard against glass shards that may become dislodged during the repair process.
  • Should the suction cup fail to maintain adhesion during subsequent procedures, create a handle from a robust tape, like duct tape, and employ it to carefully elevate the screen.
  • As a last resort, secure the suction cup to the screen’s surface using superglue.

Step 4 | Anti-Clamp instructions

Step 4 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • The following three procedures illustrate the function of the Anti-Clamp, a specialized tool developed to simplify the opening process; if this tool is not available, proceed to the subsequent three steps for an alternative approach.
  • Detailed instructions regarding the Anti-Clamp's operation can be found in a separate, dedicated guide.
  • Grasp theblue handleand move it in a rearward direction to disengage the Anti-Clamp's arms.
  • Carefully position the arms across either the left or right side of your iPhone.
  • Place the suction cups close to the lower edge of the iPhone, ensuring one is situated on the front surface and the other on the rear.
  • Apply pressure by compressing the cups together to create a secure suction bond to the intended location.
  • Should the iPhone's surface prove excessively smooth, preventing the Anti-Clamp from maintaining a firm grip, applying adhesive tape can enhance the surface's tackiness.

Step 5

Step 5 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • To engage the locking mechanism, draw the blue handlein a forward direction.
  • Rotate the handlethrough a full 360-degree rotation, or continue until the suction cups exhibit signs of deformation.
  • Maintain proper alignment of the suction cups with one another; should they become misaligned, a minor adjustment of the suction cups is necessary to restore the arms' correct positioning.

Step 6

Step 6 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
Proceed to step 6:
  • Apply heat to aniOpenerand guide it between the iPhone's frame and casing; alternative heating methods include a hair dryer, heat gun, or hot plate, but exercise caution as excessive temperatures may compromise the display or internal battery.
  • Position theiOpenerto rest along the lower edge of the iPhone's display.
  • Allow a sixty-second interval to permit the adhesive to soften and create a separation.
  • Carefully slide an opening pick into the newly formed space beneath the screen assembly and the plastic bezel, ensuring it does not contact the display surface.
  • Should the Anti-Clamp fail to generate an adequate separation, increase the heat application to the area and rotate the handle by ninety degrees.
  • Avoid incremental handle rotations exceeding ninety degrees, and observe a sixty-second pause between adjustments; rely on the Anti-Clamp's force and time to achieve separation.
  • Omit the following three steps.

Step 7

Step 7 image
Procedure 7:
  • Applying warmth to the iPhone's bottom edge facilitates the separation of the display, as it loosens the adhesive that holds it in place.
  • Employing a hairdryer, heat gun, or aniOpeneris recommended; direct heat to the lower edge of the iPhone for approximately one minute to reduce the adhesive's tackiness.

Step 8

Step 8 image
Thumbnail 1
Thumbnail 2
Proceeding to step 8:
  • When employing a solitary suction handle, position it against the lower boundary of the device, ensuring it does not contact the rounded glass surface.

Step 9

Step 9 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
Procedure nine commences.
  • Maintain consistent, substantial upward force on the suction cup to generate a minimal separation between the front panel assembly and the rear casing.
  • Carefully slide an opening tool into the created space, positioning it beneath the display and the surrounding plastic trim, ensuring it does not contact the screen's surface.
  • The display is secured by a robust, waterproof adhesive; overcoming this bond requires considerable effort. Should you encounter difficulty in establishing this initial separation, apply additional heat and gently oscillate the screen in an upward and downward motion to reduce the adhesive's strength until a sufficient gap is achieved for tool insertion.

Step 10

Step 10 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
Procedure 10:
  • Employ the opening pick, maneuvering it along the bottom-left perimeter of the iPhone and upward along the left side, to sever the adhesive securing the display assembly.
  • Exercise caution to limit pick insertion depth to a maximum of 3 millimeters, preventing potential harm to underlying internal components.

Step 11 | Screen information

Step 11 image
Procedure 11:

Fragile wiring is situated along the right-hand side of the iPhone; avoid inserting any tools in this area to prevent potential cable damage.

Step 12

Step 12 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
Procedure 12:
  • Position your opening tool once again at the lower boundary of the iPhone's display, then advance it upwards along the right-hand side to further release the adhesive seal.
  • Ensure the tool's insertion depth remains under 3 millimeters to prevent potential harm to the delicate display cable connections.

Step 13

Step 13 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Adhesive and retaining clips together fasten the display's uppermost boundary.
  • Employing a separation tool, maneuver it along the upper corner of the display, concurrently applying slight downward traction or oscillation towards the Lightning port’s location.
  • Excessive force applied to the retaining clips will result in their breakage; therefore, proceed with caution and deliberate care.
  • Limit pick insertion depth to a maximum of 3 millimeters to prevent potential damage to the front panel sensor array.
  • Continue the separation tool’s movement to the opposing corner, severing any residual adhesive holding the display in place.

Step 14

Step 14 image
To detach the suction cup from the front panel, grasp and exert force on the small protruding feature located on its surface.

Step 15

Step 15 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • To access the internal components of the iPhone, initiate the opening process by pivoting the display upwards, starting from the left edge, mimicking the action of opening a book's cover.
  • Refrain from completely detaching the display at this stage, because multiple delicate ribbon cables remain connected to the iPhone's logic board.
  • To allow for workspace, secure the display in an upright position using a support.
  • When reassembling the device, position the display, ensure the clips along the upper edge are properly aligned, and then gently apply pressure to the top edge to secure it before fully engaging the remainder of the display. Should the display not easily click into place, inspect the clips around the display's perimeter to confirm they are not deformed.

Step 16 | Display Assembly

Step 16 image
Thumbnail 1
Thumbnail 2
  • Detach the logic board connector bracket by unscrewing five fasteners.
  • Utilize three screws measuring 1.0 mm in length, employing a Y000 screwdriver.
  • A 1.3 mm Y000 screwdriver is required for one screw.
  • Secure one screw with a Phillips head, measuring 3.7 mm in length.
During this repair process, meticulously organize each screw and ensure its correct replacement to prevent potential damage to your iPhone.

Step 17

Step 17 image
  • Detach the bracket.
  • Thebracketmight be subtly affixed; apply a careful, yet resolute upward force to disengage it.

As you put the iPhone back together, this juncture provides an opportune moment to activate the device and verify the operation of all features, ensuring everything is working correctly before securing the display. Subsequently, completely deactivate your iPhone to proceed with the remaining steps.

Step 18

Step 18 image
Thumbnail 1
Thumbnail 2
  • Employ a spudgerAlternatively, a pristine fingernail can be utilized to lift the battery connector from its corresponding receptacle on the logic board.
  • Exercise caution to avoid harming the black silicone sealant that encases this connector and others; this sealant offers supplemental defense against moisture and particulate contamination.
  • Slightly deflect the connector away from the logic board's surface to ensure it remains disconnected and prevents unintended power delivery to the device during the repair process.

Step 19

Step 19 image
Thumbnail 1
Thumbnail 2

Employ a spudgerAlternatively, utilize a fingernail to carefully lift and detach the connector linking the front panel sensor assembly.

Step 20

Step 20 image
Thumbnail 1
Thumbnail 2
  • Employ a spudgeror a fingernail to release the OLED panel cable connector's connection.
  • For reattachment, position the connectors precisely and apply pressure sequentially to each side until a distinct click is heard; avoid applying pressure to the central portion. Incorrect alignment risks bending the pins, which can result in irreversible damage.

Step 21

Step 21 image
Thumbnail 1
Thumbnail 2
Proceed to step 21.
  • Employ a spudger or fingernail to carefully lift the digitizer cable connector from its receptacle.
  • Due to the connector's deeply set position, reattachment can be challenging; therefore, meticulous alignment is essential. Gently secure the connector by initially pressing one side, then the other, ensuring a distinct audible click confirms its proper seating.
  • Should any area of the screen exhibit a lack of touch responsiveness following the repair, initially detach the battery, then re-engage this connector, verifying a complete click and confirming the absence of dust or any other impediment within the socket.

Step 22

Step 22 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
Procedure 22:
  • The flexible cable connecting the front panel sensor assembly is secured with a minimal amount of adhesive.
  • Gently raise the cable to release the adhesive bond.

Step 23

Step 23 image
Proceed to step 23.
  • Detach the display unit.
  • If you intend to substitute the water-resistant adhesive that seals the display's perimeter, temporarily halt the reassembly process at this juncture.

Step 24 | Lower Speaker

Step 24 image
Thumbnail 1
Thumbnail 2
Proceed to step 24.
  • Detach the two brackets positioned beneath the Taptic Engine and main speaker by unscrewing the five fasteners that hold them in place.
    - A single1.0 mm tri-point Y000 screw is required.
    - Two1.3 mm Phillips screws are needed.
    - One1.7 mm Phillips screw is necessary.
    - One1.8 mm Phillips screw is also required.

Step 25

Step 25 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
Proceed to step 25.
  • The retaining clips possess a minimal adhesive bond.
  • Carefully detach each clip by elevating it to break the bond, exercising caution to prevent deformation.
  • Should the adhesive resist separation, localized heat application using a hairdryer or heat gun can facilitate release; however, utilizing an iOpener on these components is discouraged, as it carries a risk of damaging the spring contacts situated along the upper edge.

Step 26

Step 26 image
Thumbnail 1
Thumbnail 2
To access the speaker connector, detach the cover using a Phillips screwdriver with a 1.9 mm bit.

Step 27

Step 27 image
To access the speaker terminals, detach the protective cover.

Step 28

Step 28 image
Thumbnail 1
Thumbnail 2
Carefully leverage the pointed end of a spudger to lift and detach the speaker's electrical connector.

Step 29

Step 29 image
Thumbnail 1
Thumbnail 2
  • Exercise caution while separating the speaker from the device, preventing harm to the flex cable that was recently detached; if needed, reposition the cable towards the battery to facilitate speaker removal.
  • Position a spudger beneath the upper border of the speaker, situated close to the iPhone's casing.
  • Apply gentle upward pressure and elevate the speaker's top edge a small amount.
  • During the reinstallation process, verify the flex cable's alignment and confirm it remains free from obstruction beneath the speaker.

Step 30

Step 30 image
Thumbnail 1
Thumbnail 2
  • Employing tweezers, carefully detach the plastic bumper strip from the speaker's upper edge as you lift the speaker.
  • Should adhesion prove stubborn, a small amount of heat can be applied to the adhesive to facilitate separation of the bumper strip.

Step 31

Step 31 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Grasp the speaker firmly along its lateral borders, gently oscillating it to disengage the adhesive that bonds it to the iPhone's lower edge.
  • Continue moving the speaker outward from the iPhone's base until the adhesive gasket fully detaches.

Step 32

Step 32 image
Thumbnail 1
Thumbnail 2
  • Detach the speaker component.
  • Because the speaker's adhesive gasket is designed for single use, discard it and carefully remove any leftover adhesive using tweezers.
  • For enhanced protection against water and dust, substitute the adhesive gasket during reassembly. Prior to applying the new gasket, thoroughly clean the surface with a small amount of isopropyl alcohol and a lint-free cloth or coffee filter to ensure proper adhesion. Subsequently, secure a fresh gasket to the speaker before reinstalling it.

Step 33 | Taptic Engine Assembly

Step 33 image
Thumbnail 1
Thumbnail 2
  • Employ a spudger to carefully separate the Taptic Engine flex cable by applying upward force directly above the connector.

Step 34

Step 34 image
Thumbnail 1
Thumbnail 2
  • To detach the component, eliminate the pair of1.9 mm Phillips screwsthat hold theTaptic Enginein place.

Step 35

Step 35 image
Thumbnail 1
Thumbnail 2
  • To access the speaker, elevate the plastic bumper strip, exercising caution to avoid dislodging the connector.

Step 36

Step 36 image
Detach the Taptic Engine component from the device.

Step 37 | Taptic Engine

Step 37 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

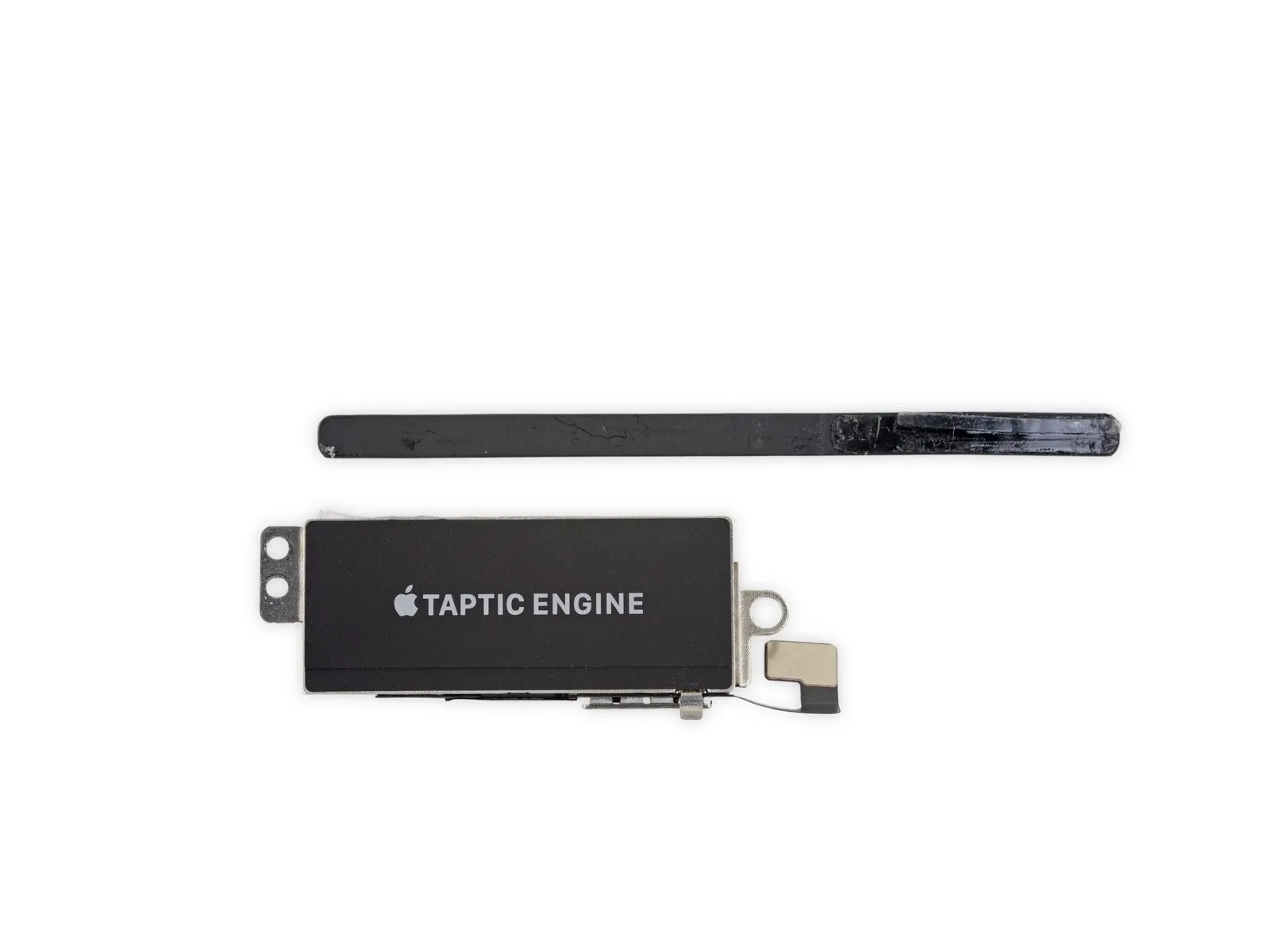

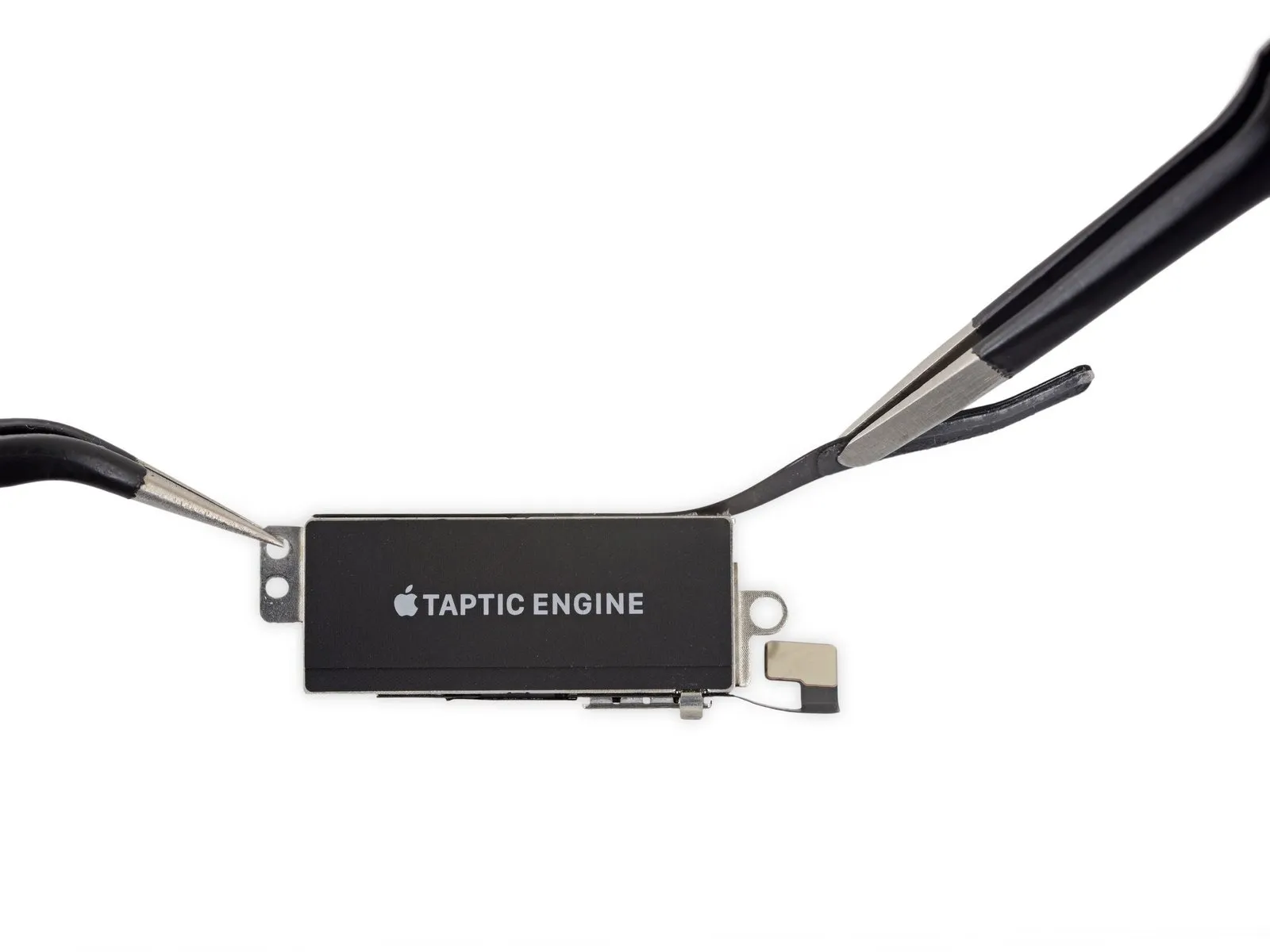

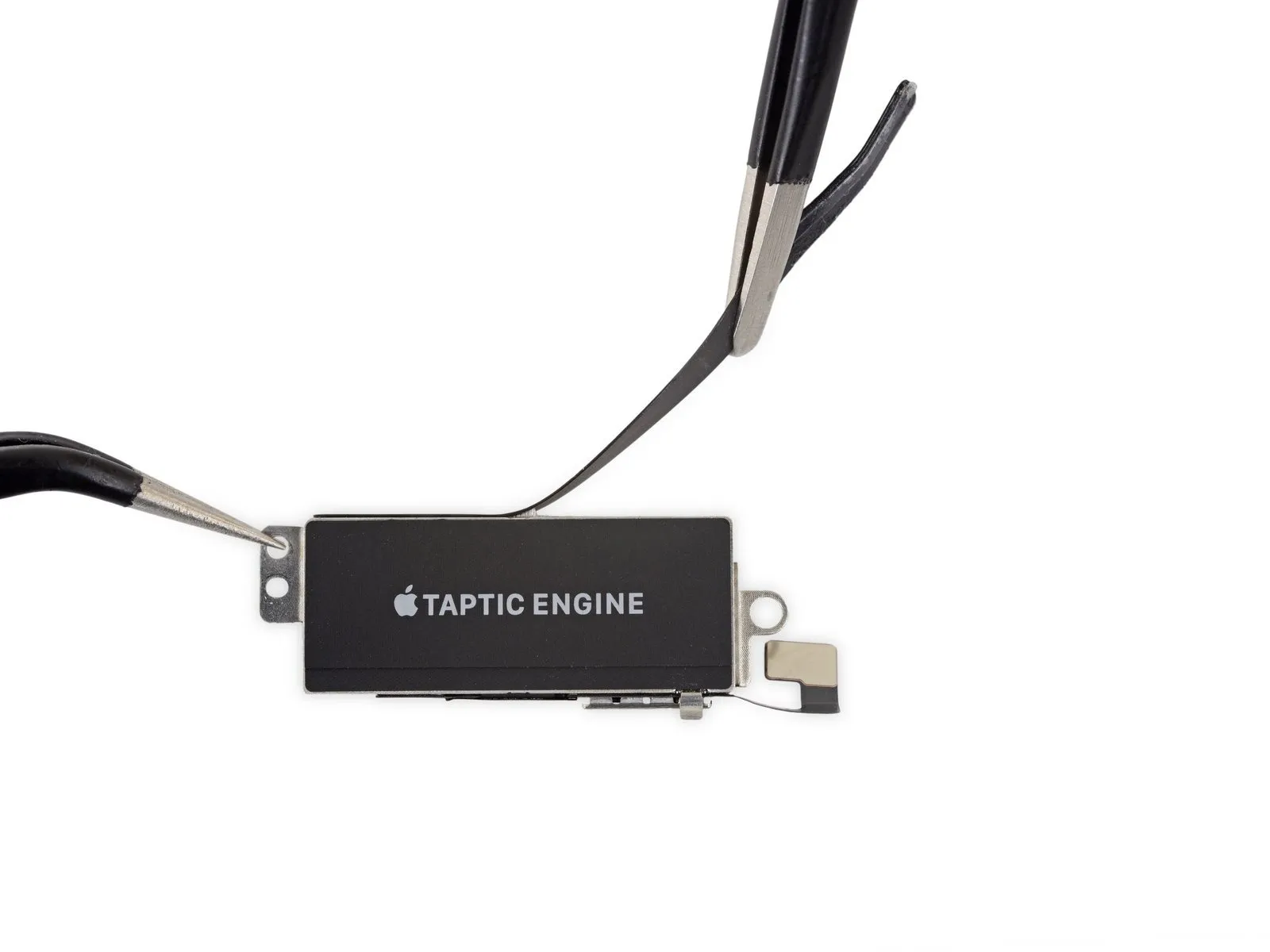

Carefully detach and eliminate the protective plastic molding affixed to the Taptic Engine.
